aR Fuses DNT-O1J Series AC1000V 100kA Semiconductors Equipment Protection Fuses

 aR Fuses DNT-O1J Series

Product description

DNT □ – O1J series semiconductor equipment protection fuse
Broken body, suitable for AC systems, rated voltage
1000V, rated current 160A~1500A, for Used for short-circuit protection of semiconductor components and their complete equipment.

All performance indicators of the product comply with GB/T 13539.4/IEC 60269-4.

Basic parameters of fuse links

Product model	Size	Rated voltage            V	Rated current            A	Rated breaking capacity      kA
DNT1-01J-160	1	AC 1000	160	100
DNT1-01J-200			200
DNT1-01J-250			250
DNT1-01J-315			315
DNT1-01J-350			350
DNT1-01J-400			400
DNT1-01J-450			450
DNT1-01J-500			500
DNT1-01J-550			550
DNT1-01J-630			630
DNT2-01J-350	2		350
DNT2-01J-400			400
DNT2-01J-450			450
DNT2-01J-500			500
DNT2-01J-550			550
DNT2-01J-630			630
DNT2-01J-710			710
DNT2-01J-800			800
DNT3-01J-630	3		630
DNT3-01J-710			710
DNT3-01J-800			800
DNT3-01J-900			900
DNT3-01J-1000			1000
DNT3-01J-1100			1100
DNT3-01J-1250			1250
DNT3-01J-1400			1400
DNT3-01J-1500			1500

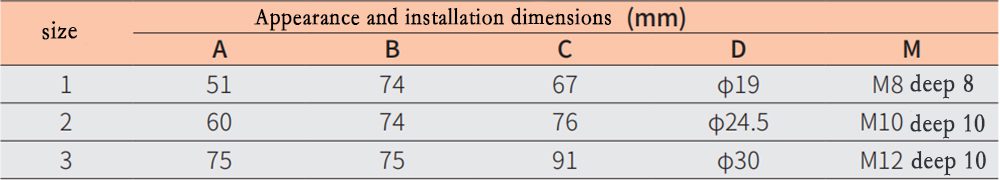

Appearance and installation dimensions

What are the most common failure modes for semiconductor fuses, and how can they be prevented?



Semiconductor fuses are designed to protect electronic components from excessive current that can cause damage or create a safety hazard. They are a critical element in power management and circuit protection. However, like all components, they can fail, and their failure modes can be broadly categorized as follows:



1.Overload Failures: The most common failure mode for a fuse is an overload condition where the current exceeds the fuse’s rated capacity. This is the intended operation—a fuse should “blow” or open the circuit under overload conditions to prevent damage to the circuit components.



2.Fatigue Failures: Over time, the fuse element may degrade due to thermal cycling or repeated stress from current surges that don’t quite reach the level needed to blow the fuse. This can eventually lead to a fatigue failure where the fuse blows at a lower current than rated.



3.Environmental Failures: Exposure to high temperatures, moisture, or corrosive environments can degrade the fuse materials, leading to premature failure.



4.Manufacturing Defects: Defects such as impurities in the fuse element, improper end cap attachment, or incorrect sizing can cause a fuse to fail prematurely or not operate as intended.



5.Improper Selection or Installation: If a fuse is not properly selected for its application, it may fail to operate correctly. For example, using a fuse with a rating too close to the normal operating current can lead to nuisance tripping, while a fuse with too high a rating may not protect the circuit adequately.



6.Voltage Transients: Spikes or surges in voltage can cause a current increase that may blow the fuse, even if the surge is very brief.



To prevent these failure modes, the following measures can be taken:



Proper Sizing: Ensure that fuses are correctly sized for the circuit they are protecting. The fuse should have a current rating higher than the normal operating current but lower than the current that could damage the circuit components.



Environmental Protection: Use fuses with the appropriate environmental rating for the application, and if necessary, add additional protection against moisture, temperature extremes, or corrosive substances.



Quality Control: Source fuses from reputable manufacturers that adhere to strict quality control standards to minimize the risk of manufacturing defects.



Correct Installation: Follow the manufacturer’s guidelines for fuse installation, including proper mounting and contact with fuse holders, to avoid issues related to loose connections or improper contact pressure.



Cycling Durability: For applications with frequent current surges, select fuses designed to withstand a larger number of cycles.



Surge Protection: Use additional surge protection devices in conjunction with fuses to handle voltage transients and spikes, such as metal oxide varistors (MOVs), transient voltage suppression (TVS) diodes, or surge arresters.



Routine Inspection: Implement a routine inspection and maintenance program to check for signs of fuse degradation or environmental damage.



By understanding the common failure modes of semiconductor fuses and taking steps to prevent them, the reliability of electronic systems can be significantly improved, reducing downtime and maintenance costs.
