Semiconductor fuses DNT-J1N Series 100A~1600A 690V

Semiconductor fuses DNT-J1N Series

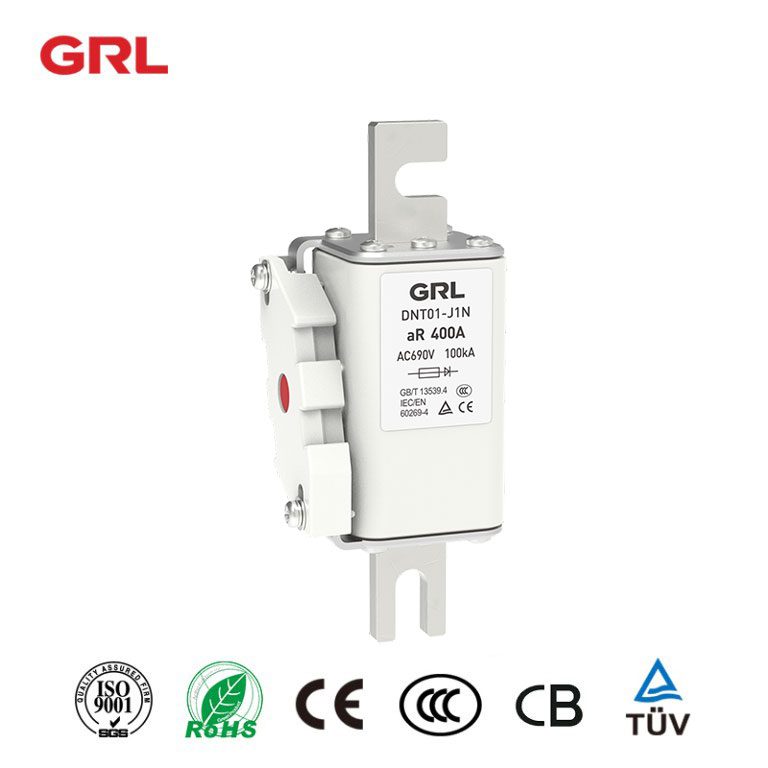

Product description

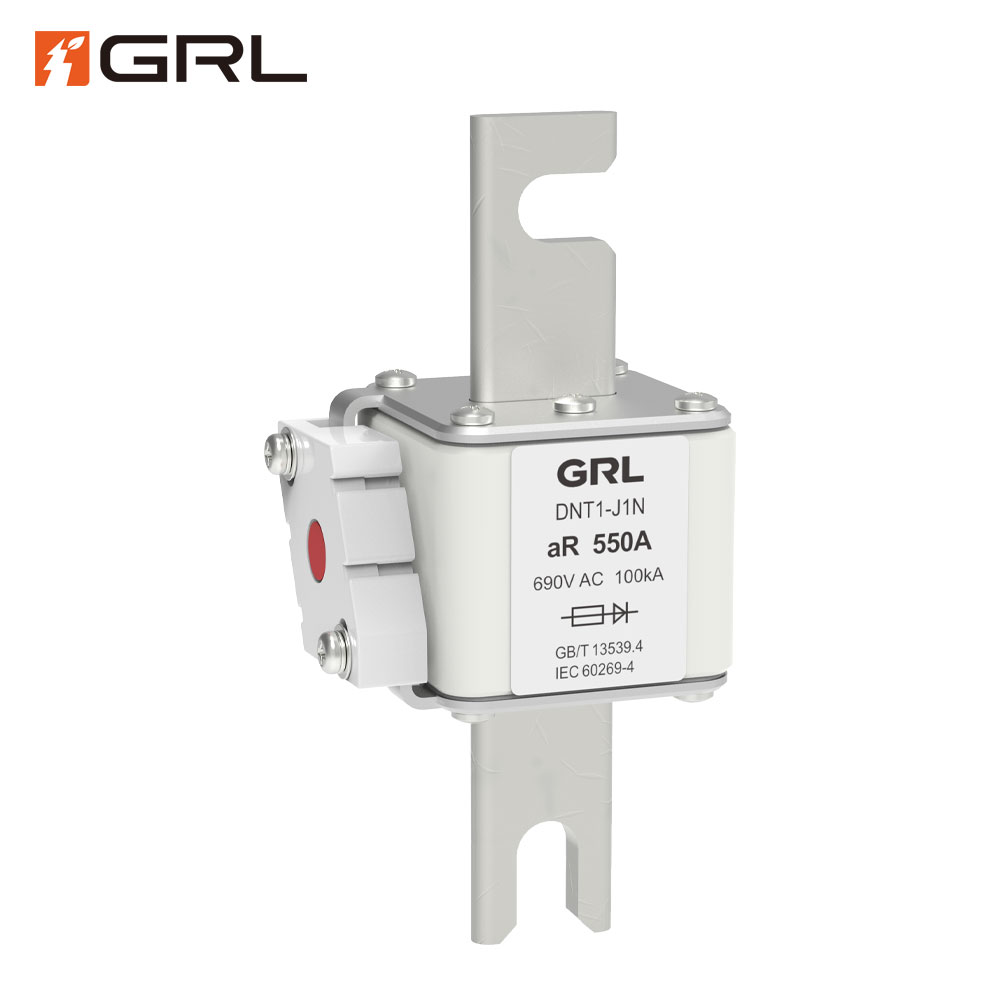

The DNT □ – J1N series semiconductor equipment protection fuse is suitable for AC systems, with a rated voltage of 690V and a rated current of 100A~1600A. It is used for short-circuit protection of semiconductor components and their complete equipment.

All performance indicators of the product comply with GB/T 13539.4/IEC 60269-4.

Basic parameters of fuse links

Product model	size	Rated voltage          V	Rated current         A	Rated breaking  capacity    kA

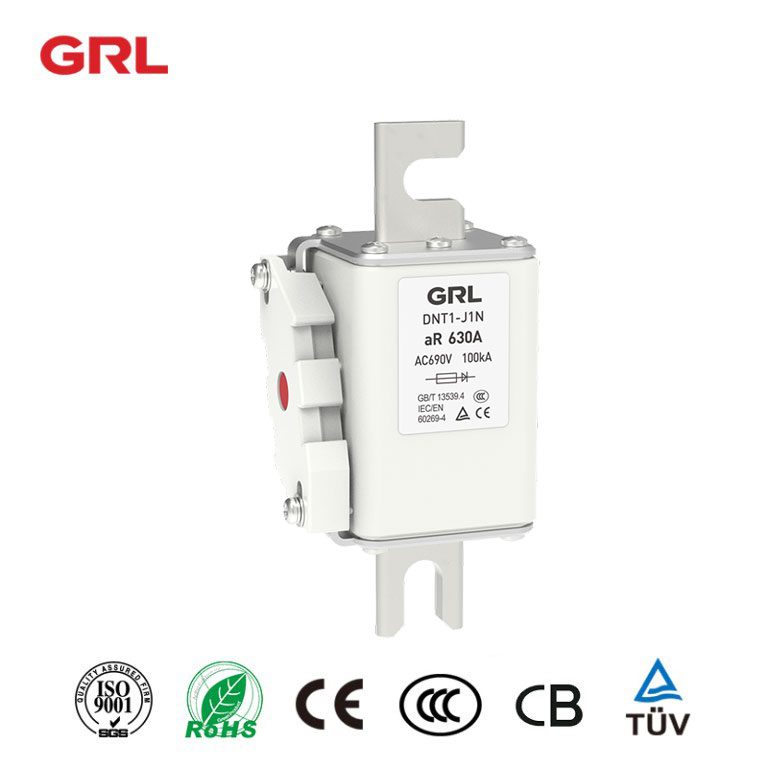

DNT1-JIN-100	1	AC 690	100	100
DNT1-JIN-125			125
DNT1-JIN-160			160
DNT1-JIN-200			200
DNT1-JIN-250			250
DNT1-JIN-315			315
DNT1-JIN-350			350
DNT1-JIN-400			400
DNT1-JIN-450			450
DNT1-JIN-500			500
DNT1-JIN-550			550
DNT1-JIN-630			630

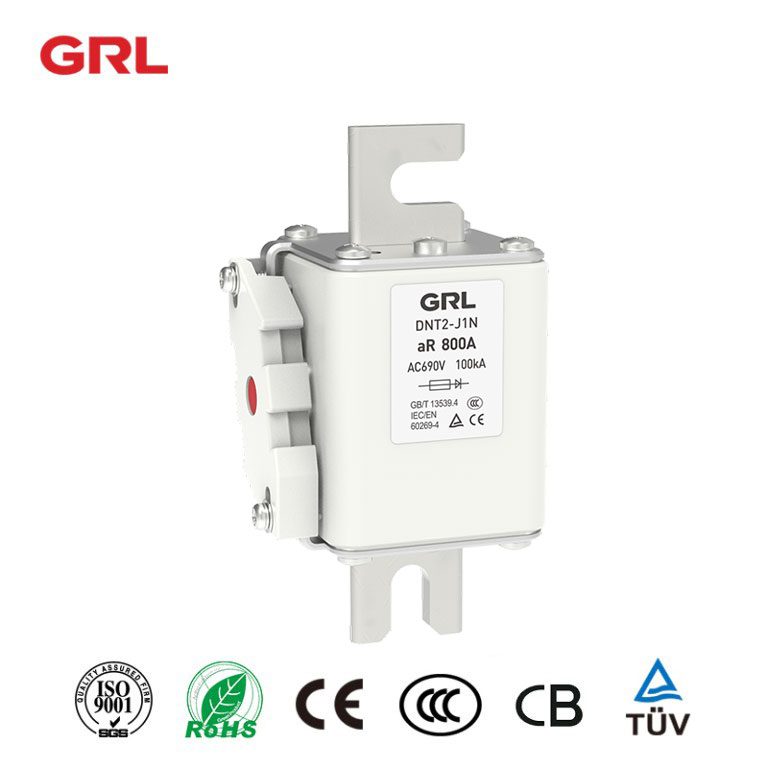

DNT2-J1N-350	2		350
DNT2-J1N-400			400
DNT2-J1N-450			450
DNT2-J1N-500			500
DNT2-J1N-550			550
DNT2-J1N-630			630
DNT2-J1N-710			710
DNT2-J1N-800			800
DNT2-J1N-900			900
DNT2-J1N-1000			1000
DNT2-J1N-1100			1100
DNT2-J1N-1250			1250

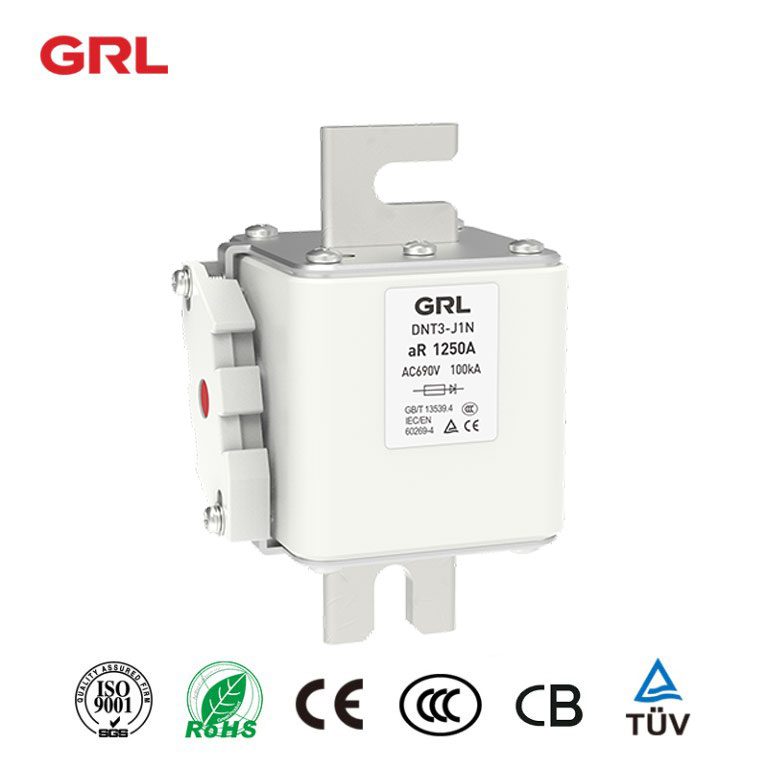

DNT3-J1N-800	3		800
DNT3-J1N-900			900
DNT3-J1N-1000			1000
DNT3-J1N-1100			1100
DNT3-J1N-1250			1250
DNT3-J1N-1400			1400
DNT3-J1N-1500			1500
DNT3-J1N-1600			1600

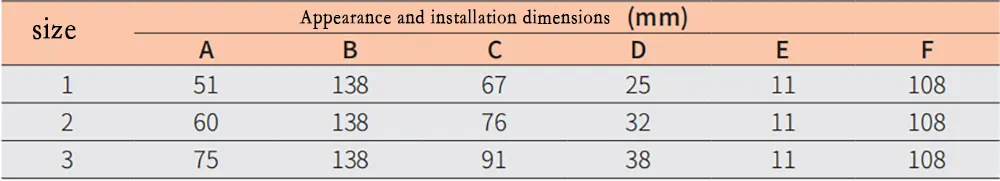

Appearance and installation dimensions

What is the difference between a semiconductor fuses and a standard fuse?

Semiconductor fuses and standard (or general-purpose) fuses are designed for different applications, and their key differences lie in their operating characteristics and construction.

Semiconductor Fuses:

1.Purpose: Designed specifically to protect sensitive semiconductor devices such as diodes, thyristors, and transistors. These devices can be damaged by overcurrent conditions much more quickly than traditional electrical devices due to their low thermal mass and high heat sensitivity.

2.Operating Speed: Semiconductor fuses are fast-acting fuses that blow very quickly to protect semiconductor devices from even short durations of overcurrent.

3.Current Rating: They have precise current ratings to provide exact protection without a delay that could damage the component they are designed to protect.

4.Energy Let-Through: These fuses have a very low I^2t value, which is the integral of the square of the current over time during the clearing of the fault. This ensures minimal energy let-through and reduces the chance of damage to delicate electronic components.

5.Physical Construction: Semiconductor fuses often use materials and construction methods that allow for the rapid interruption of current. They are generally more compact and may use silver or other high-conductivity materials.

6.Arc Quenching: The construction of semiconductor fuses is such that they are better at quenching the electric arc that occurs when the fuse element melts, due to the materials and the design used.



Standard Fuses:

1.Purpose: Standard fuses are made to protect wiring and prevent fires by interrupting the circuit during prolonged overcurrent conditions. They are used across a wide range of applications, from household electronics to industrial machinery.

2.Operating Speed: They can be fast-acting for some sensitive circuit components, but typically they are slower than semiconductor fuses, allowing for a brief overcurrent condition (like the startup surge of a motor) without blowing.

3.Current Rating: While precise, the current ratings for standard fuses are not as exacting as for semiconductor fuses, because the protected components are not as sensitive to the exact duration and magnitude of overcurrent events.

4.Energy Let-Through: Standard fuses can have a higher I^2t value because the devices they protect can typically withstand more energy without being damaged.

5.Physical Construction: They are often larger and may use different construction materials, as the precision required is not as high. The construction is often focused on durability and longevity rather than quick response.

6.Arc Quenching: While standard fuses also quench arcs, they may not do so as quickly or effectively as semiconductor fuses, because the risk of damage to what they are protecting is not as immediate.



The choice between a semiconductor fuse and a standard fuse depends on the specific requirements of the circuit and the sensitivity of the components involved. It is crucial to select the appropriate type of fuse to ensure both safety and functionality in electrical systems
