The 400A-1600A busbar systems and terminals are designed to provide a safe and efficient way to distribute power to commercial and industrial buildings. Made from the highest quality materials, our terminals are designed to be safe and easy to use.
The busbar system is available in a variety of configurations to meet the specific needs of the application. It is available in both indoor and outdoor models.
Busbar Systems
Terminal
LJJ-185
400A 35-150mm²
Busbar Systems
Terminal
LJJ-185-2
400A 95-185mm²
Round strands and sector strands wire
LJJ-300
630A 95-300mm²
Round strands cable
Sector strands wire and find round wire (connect directly)
LJJ-300-2
630A
Multilayer copper bar from 3x20x1 to 10x24x1
LJJ-300-3
800A
Multilayer copper bar from 3x20x1 to 10x32x1

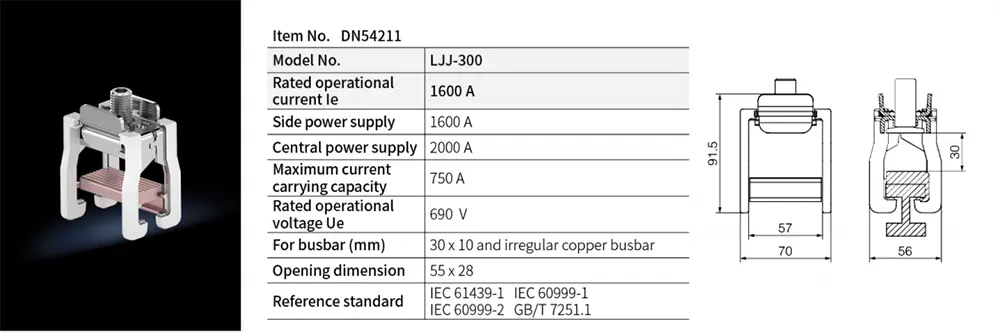

LJJ-300-4
1600A
Opening dimension 55x 28

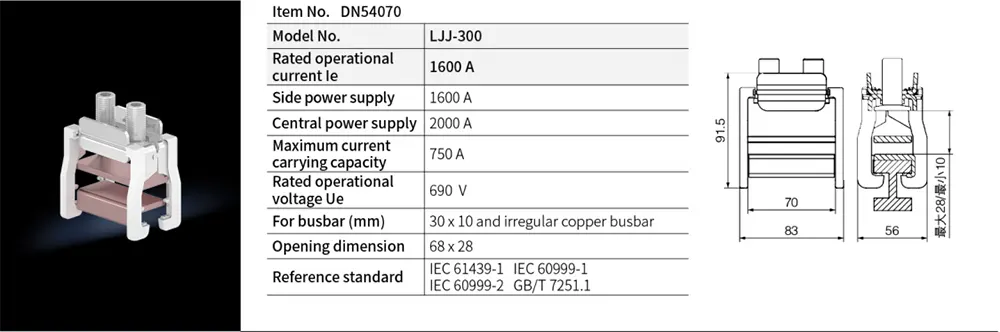

LJJ-300-5
1600A
Opening dimension 68×28

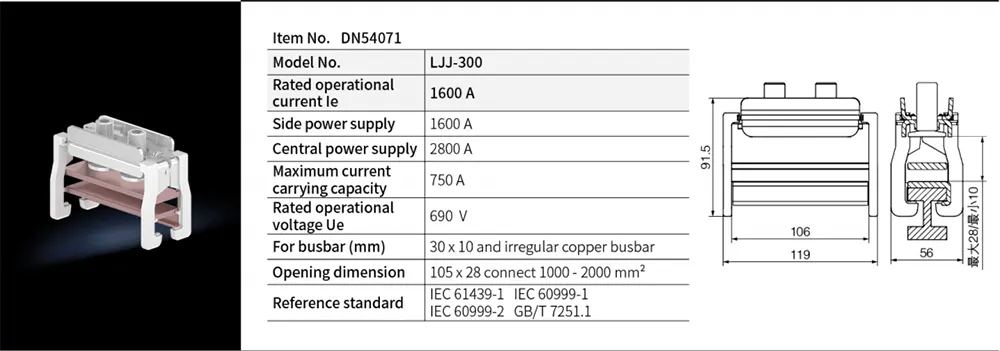

LJJ-300-6
1600A
Opening dimension 105×28 1000-2000mm²

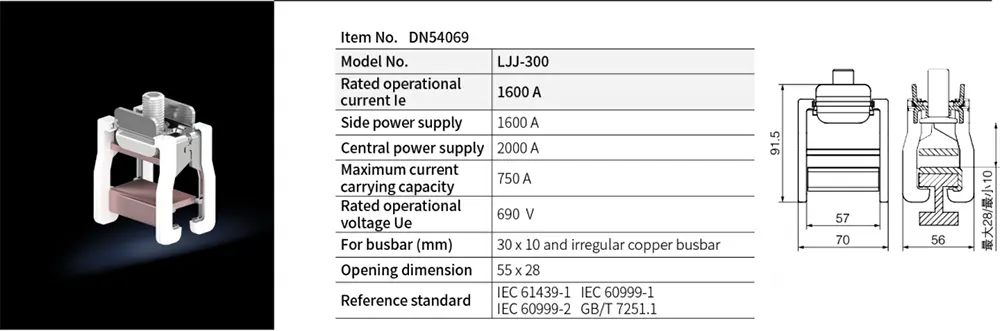

LJJ-300-7
1600A
Opening dimension 55×28

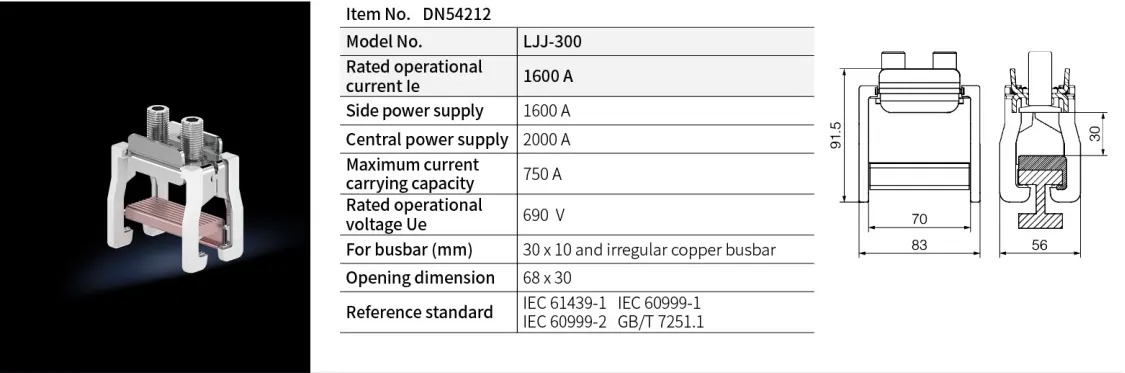

LJJ-300-8
1600A
Opening dimension 68×30

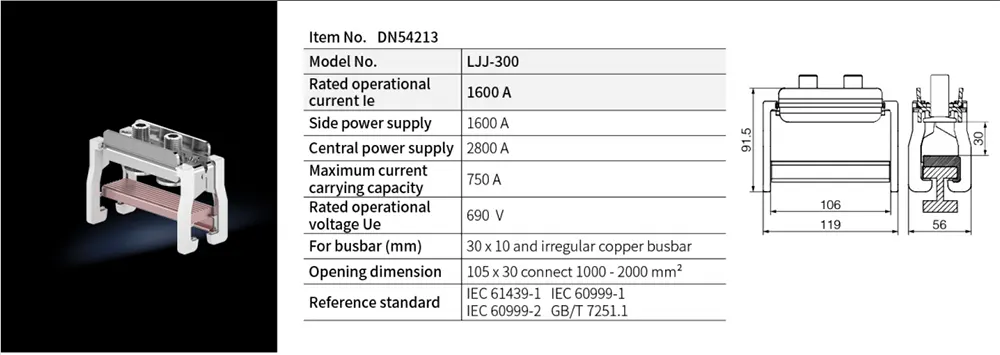

LJJ-300-9
1600A
Opening dimension 105×30 1000-2000mm²
The 400A-1600A busbar system is ideal for high power applications. GRL offers a wide range of busbar systems designed to protect your equipment from damage caused by overcurrent.
Our busbar systems are available in a variety of voltage and current ratings so you can find the perfect system for your needs. Plus, our terminal blocks make installation a breeze! For more information, please contact us at [email protected].
