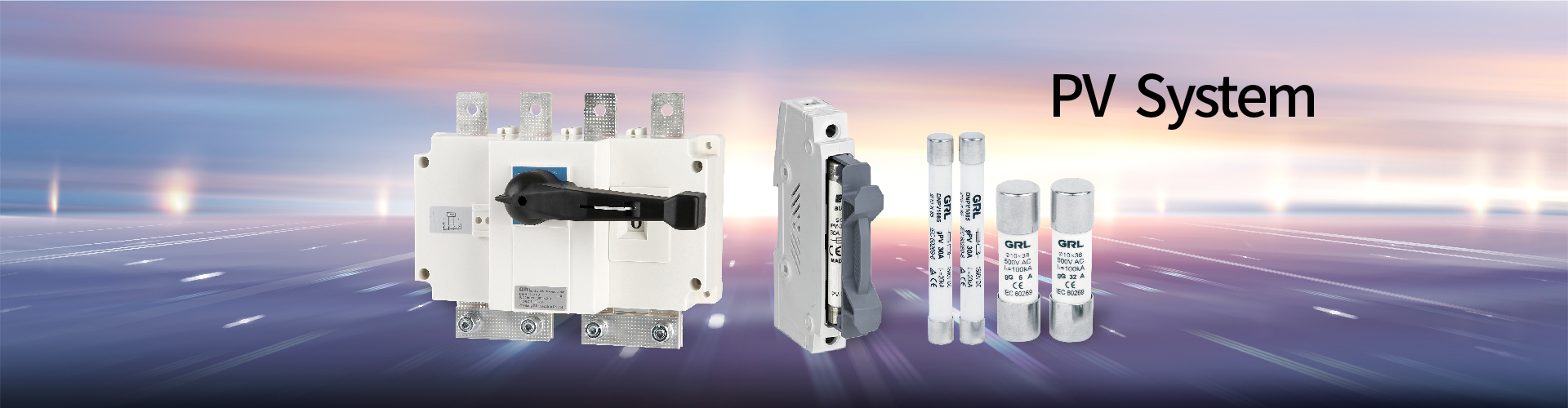

PV System
PV System manufacturer
DC isolating switches are a valuable tool for anyone working with 12 volt DC powered devices. They allow you to safely and easily disconnect the battery from the device, protecting both the battery and the device from damage. DC isolating switches are durably constructed and easy to use, making them ideal for a variety of applications, such as electrical engineering, testing, and prototyping.
This DC isolating switch is mainly suitable for indoor equipment with AC 50/60Hz, rated voltage 1500V, maximum voltage 1000V, and rated current 200A, 400A. In addition to being used as a switching power supply, the DC isolating switch can also be used for infrequently connecting and breaking circuits.
GRL Safe Electricity Use Fast Connection
1. What Are The Different Types Of DC Isolating Switch?
GRL offers a variety of DC switching solutions
DNH19 Isolation Switch are designed for DC1500V application , passed TUV experiment
GRL DNH19 series DC1000V 1500V Isolating switch ,The DNH19 range of Isolating switch from 100A to 1250A is specially DC applications.
The DNH19 Isolating switch are designed to offer efficient and reliable performance even in high ambient temperatures and harsh environmental conditions. They are virtually maintenance-free. The unique contact design results in a lower temperature rise.
- DNPVF1Fuse Holder
DNPVF1 Fuse holder is suitable for use with 10*38mm,14*51mm and 22*58mm cylindrical gPV fuse Links ，Which are widely used in photovoltaic combiner boxes and other DC fields.
- DNPVF1-32LFuse Holder
DNPVF1-32L Fuse holder is suitable for use with 10*85mm and 14*85mm cylindrical gPV fuse Links ，Which are widely used in photovoltaic combiner boxes and other DC fields.
- Combine Box
The photovoltaic DC combiner box can be connected to multiple solar photovoltaic arrays at the same time. The current is pooled into the inverter, which is suitable for 1000VDC and 1500VDC circuits.
GRL offers a variety of DC Fuse Holders :
- 10*38/14*51 1000VDCCylindrical Fuse
10*38/14*51Cylindrical Fuse is used with the Fuse Holder of DNPVF1, have breaking protection function in the circuit. It is suitable for 1000VDC circuit with the maximum current up to 63A.
- 10*85/14*851500VDC Cylindrical Fuse
10*85/14*85 Cylindrical Fuse is used with the Fuse Holder of DNPVF1, have breaking protection function in the circuit. It is suitable for 1000VDC circuit with the maximum current up to 63A.
2. The Application Of The DC Isolating Switch
- DNH19DC Isolating switch
Widely used in the DC combiner box of DC1500V/1000V photovoltaic system
- DNPVF1series Fuse Holder
Widely used in photovoltaic combiner boxes, inverters, on grid-connected cabinets and photovoltaic box substations.
- Combine Box
Widely used in photovoltaic systems, the combiner box is located in the middle of the photovoltaic module and the inverter, which plays a role of confluence.
3. What Does An Isolating Switch Do?
An isolation switch acts as a circuit breaker on your mains electrical supply, so that any electrical work (such as an EV charger or solar installation) that is going to take place within a property can be completed safely by a private electrician or anyone doing electrical work on your home.
4. How Does A DC Isolator Work?
A DC isolator is a manual disconnection switch that stops electricity generated by a PV system flowing through the system to make it safe in emergency situations or to allow for servicing and maintenance.
5. What Is DC Isolator Switch?
A rooftop DC isolator is a switch situated adjacent to a solar panel array intended as an additional safety mechanism. Manually operated, the switch shuts off DC current between the solar panels and the solar inverter. However, these little boxes are one of the most common single causes of rooftop solar system fires.
