63A , Busbar Fuse Box Base, D Type

Rated Current:

63A

Rated Voltage:

400VAC/250VDC, 500VAC/500VDC

Wiring Range:

1.5-10m㎡ round single wire or 1.5-25m㎡ fine wire

Rated Impulse Withstand Current:

6KV, 4KV

Breaking Capacity With Fuse:

50 KA(400VAC)/8kA(250VDC)

Applicated To System:

60 Busbar System

Pole:

For Busbar (mm):

12, 15, 20, 25, 30 x5, 10 flat copper busbar

Fuse Size:

D01, D02, D II, D III

Mounting Method:

Busbar type

Reference Standard:

IEC60269-3 GB/T 13539.3

Certification Contact Us

Description

16A-63A, D-Type Busbar Fuse Block Base, is a reliable and affordable option for those who need a busbar fuse block. It is used to protect the circuit in the event of overload or short circuit.

This fuse box is designed for easy installation and maintenance. This product is made of high-quality materials and is durable. It’s also easy to install and comes with all the necessary hardware.

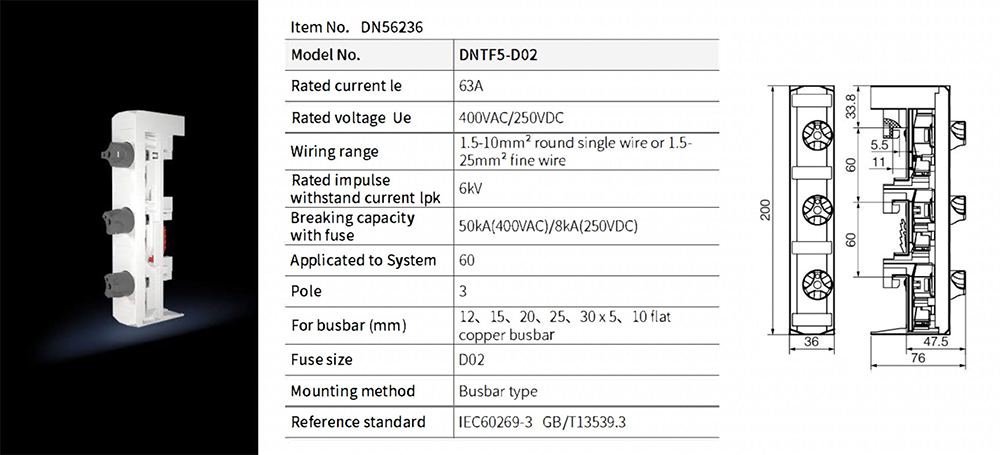

DN56236

Busbar Fuse Base

D Type

63A 400VAC/250VDC

Fuse size D02

DN56236 16A-63A Busbar Fuse Box Base D Type

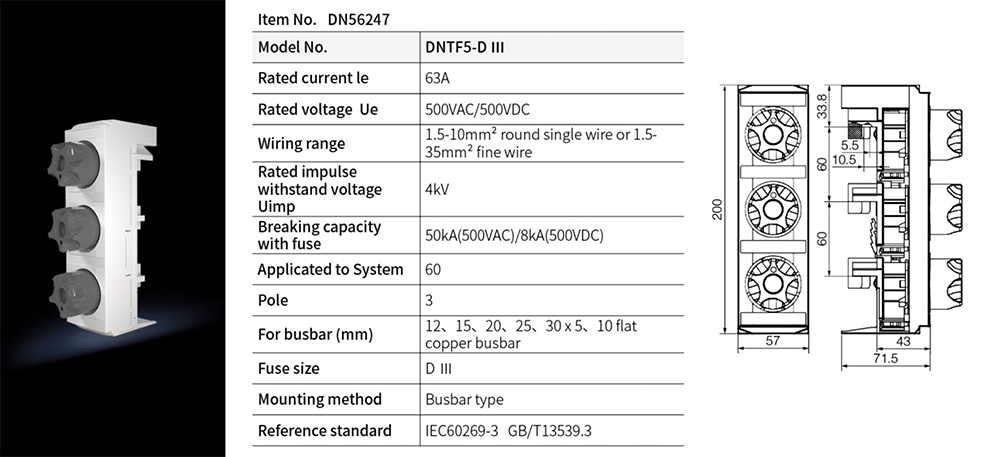

DN56247

Busbar Fuse Base

D Type

63A

500VAC/500VDC

Fuse size D III

DN56247 16A-63A Busbar Fuse Box Base D Type

This 16A-63A busbar fuse box base is an essential component of any 60 busbar system. The box is made from a durable plastic housing and includes a set of screws and nuts for easy installation.

The rated current is 16A, 25A, 63A respectively, can withstand 6kV impulse current, and the breaking capacity of the fuse is 50KA. If have any questions about our products, please feel free to contact us at [email protected].
