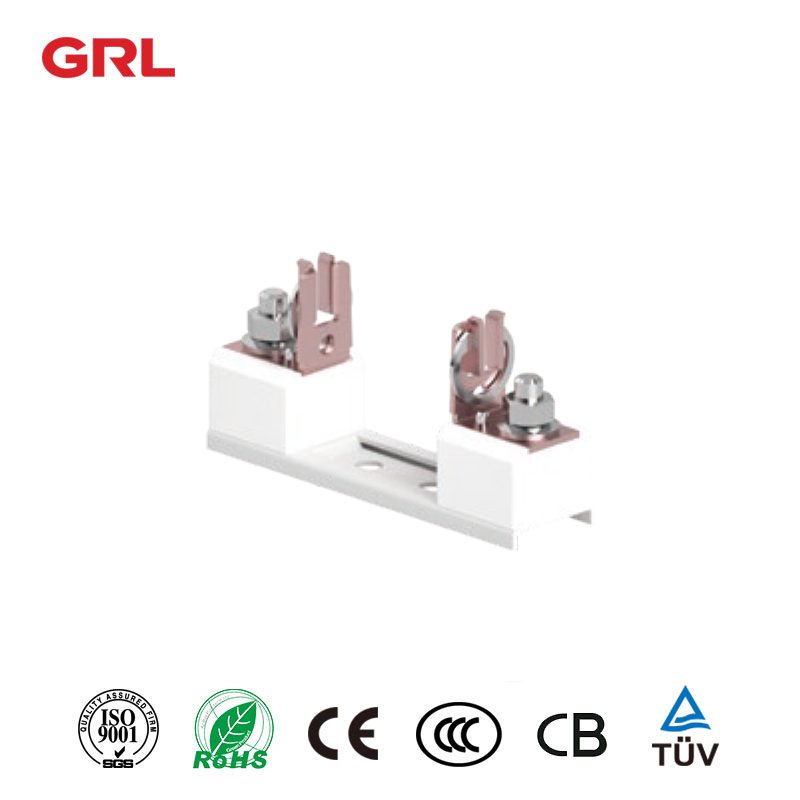

DNF series AC Fuse Box Base 160A(500VAC, 250VDC)/100A(690VAC)

Rated current Ie:

160A(500VAC, 250VDC)/100A(690VAC)

Rated voltage Ue:

500VAC/690VAC/250VAC

Rated insulation voltage :

690V

Rated impulse withstand current Ipk:

6kV

Breaking capacity with fuse :

120kA(500VAC)/50kA(690VAC)/100kA(250VAC)

Fuse size:

00

Feature:

1P,3P, with or without touch protection device

Mounting method:

Fixed type

Reference standard:

IEC 60269-1 IEC 60269-2 GB/T 13539.2

Certification Download PDF Contact Us

Description

DNF1 series AC Fuse Box Base 1P without touch protection device

DNF1 series Fuse Base 1P with touch protection device

DNF1 series Fuse Base 3P with touch protection device

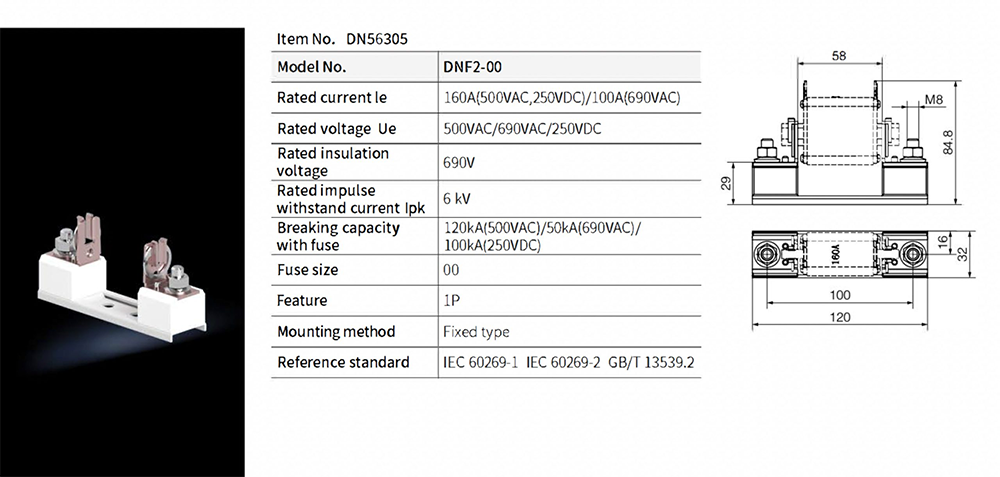

DNF2 series Fuse Base 1P
