DNF1-1-3P series automotive fuse holder NH1 Fuse link

Rated current Ie:

250A(500VAC, 440VDC)/200A(690VAC)

Rated voltage Ue:

500VAC/690VAC/440VAC

Rated insulation voltage :

690V

Rated impulse withstand current Ipk:

6kV

Breaking capacity with fuse :

120kA(500VAC)/50kA(690VAC)/100kA(440VAC)

Fuse size:

1, Product without fuse, with breaking capacity

Feature:

1P,3P, with or without touch protection device, N pole with breaking capacity without touch protection device

Mounting method:

Fixed type

Reference standard:

IEC 60269-1 IEC 60269-2 GB/T 13539.2

Key words:

automotive fuse holder

Certification Download PDF Contact Us

Description

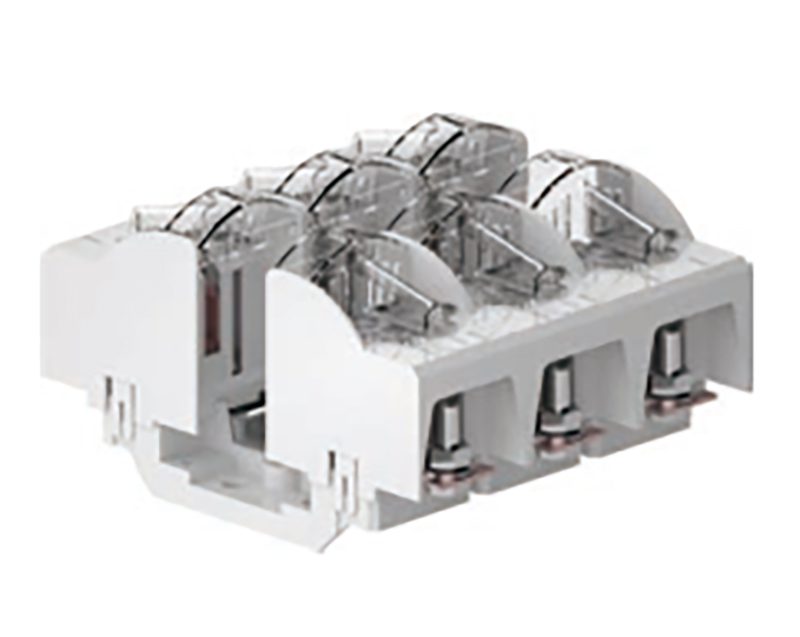

DNF1-1-3P series automotive fuse holder

Order No.:DN56312

Model No.:DNF1-1

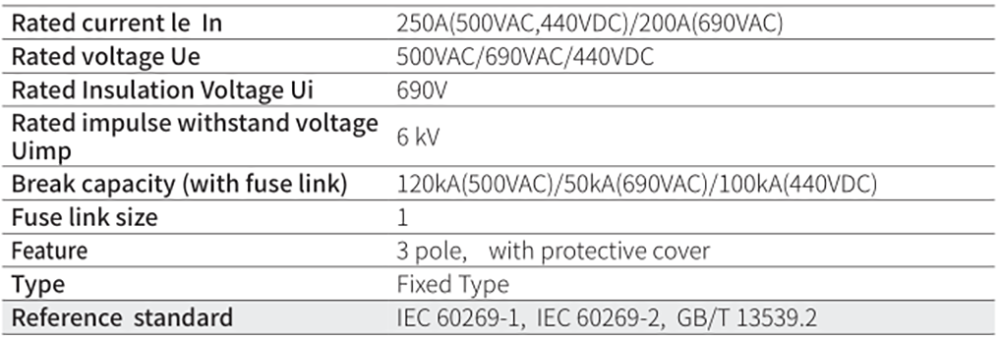

Rated Current le In	250A(500VAC,440VDC)/200A(690VAC)
Rated voltage Ue	500VAC/690VAC/440VDC
Rated Insulation Voltage Ui	690V
Rated Impulse Withstand Voltage Uimp	6KV
Break Capacity(with Fuse link)	120KA(500VAC)/50KA(690VAC)/100KA(440VDC)
Fuse link Size	1
Feature	3 Pole, with protective cover
Type	Fixed Type
Reference Standard	IEC 60269-1,IEC 60269-2,GB/T 13539.2
