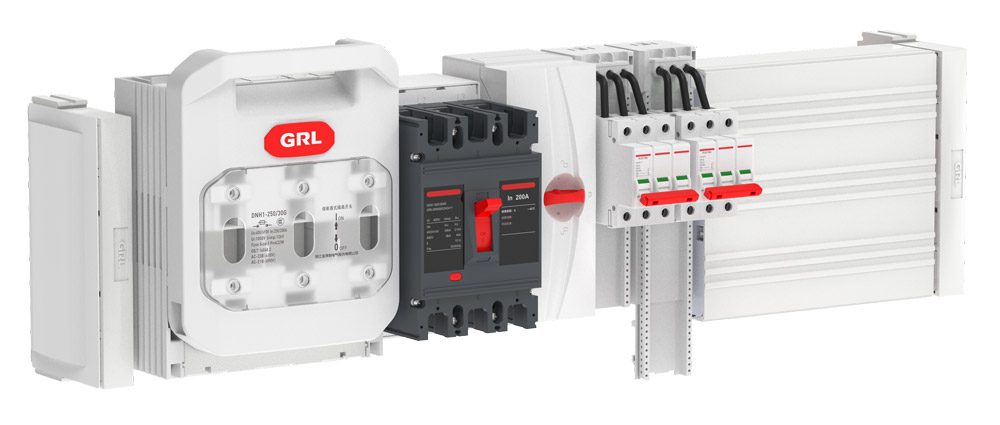

Closed busbar systems power distribution method

• Holeless connection technology: No need to drill holes in the busbar, eliminating drilling processes and reducing busbar losses.
• Rapid installation: Installation is completed upon successful hanging. Components and adapters are fully matched, eliminating the need for cable termination processing and requiring low installation skill.
• Safety: The system’s front is composed of insulating components with no exposed conductors, achieving comprehensive safety protection.
• Compact structure: Reduces space occupied by cables or busbars, with no wire crossings. The system has clear wiring and a compact structure. For example, the 60 classic busbar system is only about 200mm in height.
• Flexible adjustment: Product hanging positions can be flexibly adjusted according to actual conditions. Replacing or adding components doesn’t require power shutdown, facilitating easy maintenance.
• Aesthetically pleasing: Unique design with proprietary color schemes, full of technological feel. The overall system’s branch circuits are clear and orderly.
• Cost-effective: Using GRL closed busbar system products can significantly save labor costs, space costs, and future maintenance costs, offering high cost-effectiveness.

What is an Enclosed Busbar System?

An enclosed busbar system is a highly efficient and organized method of electrical distribution, which involves the use of rectangular copper busbars encased in protective enclosures.

This system facilitates the connection of various low voltage electrical components like switches, fuse holders, motor starters, and conductors directly onto the busbars without the need for additional cabling.

The unique design and robust construction of enclosed busbar systems make them ideal for a wide range of industrial and commercial applications.

 Advantages and features of busbar systems

1、Safety

Enclosed busbar systems are designed with insulation and protective enclosures that prevent accidental contact with live parts, ensuring comprehensive safety for personnel and equipment.

2、Quick Installation

The modular nature of busbar systems allows for rapid assembly and disassembly, significantly reducing installation time compared to traditional wiring methods.

3、Flexibility

Busbar systems offer unparalleled flexibility in design and installation. Components can be easily added, removed, or reconfigured without disrupting the entire system, allowing for scalable and adaptable electrical infrastructure.

4、Space Efficiency

The compact design of busbar systems minimizes the space required for electrical distribution, making them ideal for environments where space is at a premium.

5、Reduced Maintenance

The robust construction and reduced number of connections in busbar systems result in lower maintenance requirements and enhanced system reliability over time.

6、Cost-Effectiveness

By simplifying installation and maintenance, busbar systems can lead to substantial cost savings in terms of labor, downtime, and overall operational efficiency.

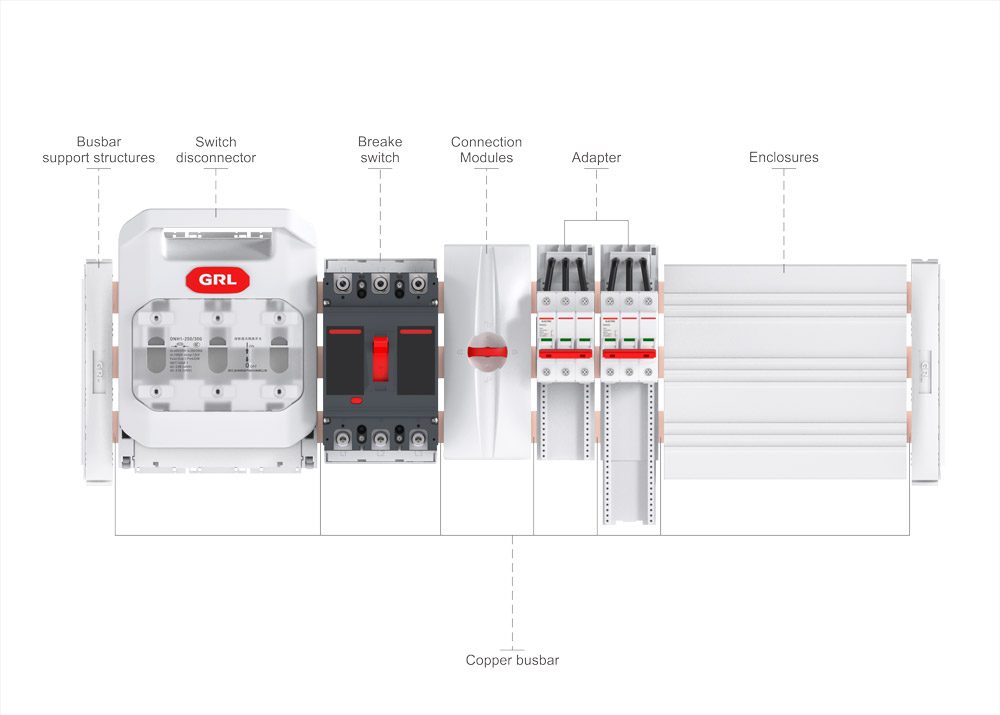

Core components of busbar systems

1、Busbars

Busbars are the central components of the system, made from high-conductivity materials such as copper or aluminum. They are responsible for carrying large amounts of current efficiently and safely.

2、Enclosures

Protective enclosures provide insulation and mechanical protection for the busbars, preventing accidental contact and environmental damage, and ensuring the overall safety of the system.

3、Connection Modules

These modules facilitate the secure attachment of electrical components to the busbars, ensuring reliable electrical connections without the need for additional cabling.

4、Support Structures

Busbar systems include various support structures like busbar holders and brackets that ensure the physical stability and proper alignment of the busbars within the system.

5、Insulation Materials

High-quality insulation materials are used to prevent electrical faults and ensure safe operation, even under harsh environmental conditions.

Click to view grl busbar product>>

Practical applications of busbar systems

1、Industrial Plants

In industrial settings, enclosed busbar systems are used to distribute power to heavy machinery and equipment, ensuring reliable and uninterrupted power supply critical for production processes.

2、Commercial Buildings

In commercial buildings, busbar systems are used to manage electrical distribution for lighting, HVAC systems, and other building services, providing a neat and organized solution that enhances safety and efficiency.

3、Data Centers

Busbar systems are essential in data centers where they provide a reliable and scalable solution for distributing power to servers and networking equipment, ensuring uptime and operational continuity.

4、Renewable Energy Projects

In renewable energy installations such as solar and wind farms, busbar systems efficiently manage the distribution of generated power, facilitating integration with the grid or other energy storage systems.

Enclosed busbar systems represent a significant advancement in electrical distribution technology, offering a safe, efficient, and cost-effective solution for a wide range of applications.

By understanding the advantages, practical applications, and core components of busbar systems, businesses can make informed decisions to enhance the reliability and efficiency of their electrical infrastructure.
