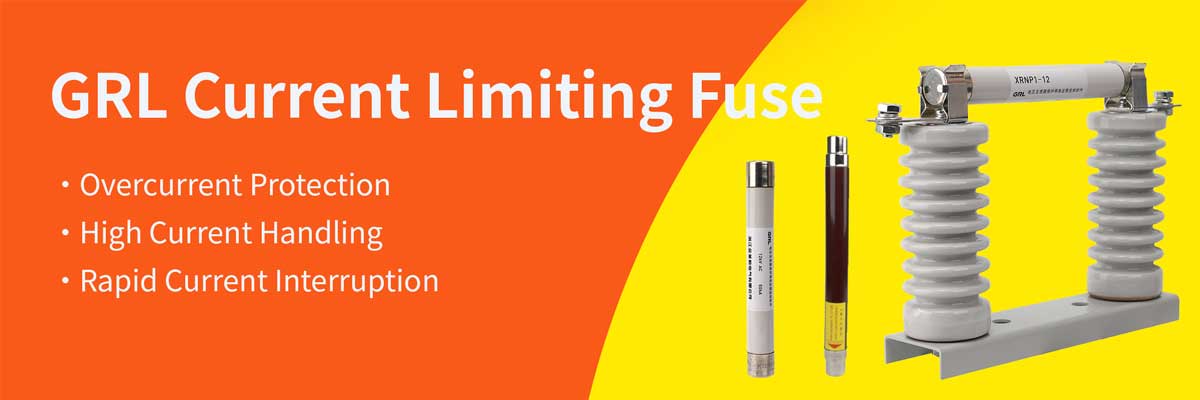

What is a current limiting fuse？

A high-voltage current limiting fuse is a current protection device for high-voltage power systems. It is widely used in short-circuit and overload protection of equipment such as transformers, distribution cabinets, capacitor banks, and high-voltage motors. It can quickly cut off the fault current and limit the impact peak of the short-circuit current, thereby effectively protecting electrical equipment from damage and improving the safety and stability of the entire power system.

Current Limiting Fuse Structure

The design structure of this fuse includes multiple key components, including the melt, which is the core part.

It is usually made of high-quality copper and coated with anti-oxidation materials. The melt remains stable under normal current, and melts rapidly in the event of a short circuit or severe overload, cutting off the circuit and protecting downstream equipment.

The melt is filled with high-purity quartz sand and other media, which can absorb the energy generated by the arc when the melt is melted, and quickly cool the arc to achieve the effect of rapid arc extinguishing.

The ceramic shell, which has extremely high mechanical strength, ensures insulation performance and is suitable for harsh high-voltage environments.

Click to view grl Current Limiting Fuse product>>

Read： Understanding HV Fuses and Current Limiting Fuses in Specialized Applications

Current Limiting Fuse Advantage

High-voltage current-limiting fuses have excellent electrical properties. Its rated voltage range is usually between 3.6kV and 40.5kV, which can meet the needs of different high-voltage systems.

At the same time, it also has an extremely high breaking capacity and can withstand short-circuit currents of tens to hundreds of kiloamperes. This HRC fuse’s response time is speedy, and it can cut off the circuit at the moment of fault occurrence to prevent the system from suffering serious damage.

In addition, its excellent current-limiting performance can effectively reduce the peak impact of short-circuit current and reduce the pressure on electrical equipment and systems.

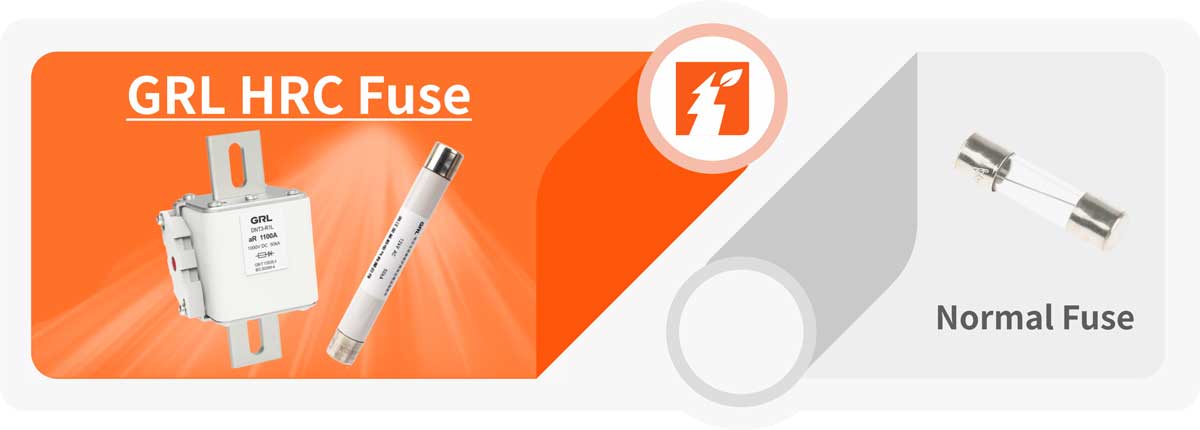

What is the difference between an HRC fuse and a normal fuse?

While both HRC fuses and normal fuses serve the same basic purpose of protecting electrical circuits, HRC fuses are better suited for high-power, industrial, and high-voltage applications where high fault currents are expected. They provide superior protection against larger faults and ensure a faster response to avoid damage.

In contrast, normal fuses are more cost-effective and appropriate for residential and light-duty applications where the risk of high fault currents is minimal.

For more professional and reliable protection, GRL HRC fuses are the ideal choice.

Current Limiting Fuse Application

In specific applications, high-voltage current-limiting fuses are widely used in various links of power systems.

In the distribution system, it protects lines and equipment from short-circuit faults; in transformers, it can prevent equipment damage caused by overload or short circuits; in capacitor bank protection, it can quickly cut off possible short-circuit currents; and in the protection of high-voltage motors, it quickly fuses to avoid equipment damage and safety hazards caused by fault currents.

When selecting a high-voltage current limiting fuse, it is necessary to ensure that its rated voltage and rated current match the actual use environment, and at the same time consider whether the breaking capacity can meet the system short-circuit current requirements. The durability and environmental adaptability of the fuse are also important reference factors for selection.

The high-voltage current limiting fuses produced by GRL have won wide recognition in the market for their excellent performance and reliability.

Our products comply with international standards, support current protection up to 3000A and breaking capacity of 250kA, and can provide safe and reliable protection in energy storage, power distribution, and industrial applications.

If you need more detailed technical support or solutions, please contact us!
