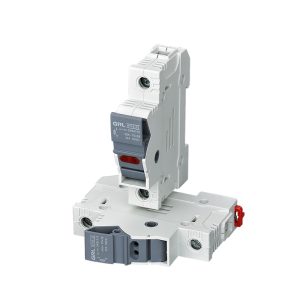

RT18 DIN rail mount fuse holders: the ultimate superman of electrical safety

DIN rail mount fuse holders are essential components in electrical systems, providing a secure and convenient way to integrate fuses into various applications. These devices offer numerous advantages and can be seamlessly integrated with other GRL products to enhance overall system protection and efficiency.

Click to view grl  RT18 fuse holder product>>

How DIN rail mount fuse holders work？

DIN rail mount fuse holders are designed to securely house and connect fuses within electrical circuits, making installation and maintenance straightforward. These holders snap onto a standard 35mm DIN rail, providing stable and organized installation. Terminal contacts within the holder grip the fuse firmly, ensuring a reliable electrical connection. They accommodate various wiring options, including screw terminals and spring-loaded connections, supporting wire sizes from 0.75mm² to 25mm². When a fault occurs, the fuse interrupts the circuit, protecting downstream components from damage. This combination of easy installation, secure connections, and effective circuit protection makes DIN rail mount fuse holders essential for modern electrical systems.

Advantages of DIN rail mount fuse holders

1、Modular Design

These holders offer a modular approach, allowing for easy assembly of multi-pole versions to suit different applications.

For example, DIN rail mounted modular fuse holders are used in industrial control systems.Engineers used modular design to save space and easily integrate new equipment. Maintenance personnel could quickly replace faulty fuses, reducing downtime. This significantly improved space utilization, maintenance efficiency, and system flexibility, showcasing the value of modular design.

2、Visual Indication

LED indicators are available on many models, providing clear visual feedback when a fuse has blown.Maintenance personnel can quickly detect and identify faults, improving maintenance efficiency and avoiding tedious manual checks. Real-time monitoring and rapid response boost system reliability, reduce downtime, and enhance safety by promptly addressing electrical faults and mitigating risks.

This visualization feature excels in various environments, such as industrial control cabinets, data centers, and electric vehicle charging stations, optimizing maintenance processes and enhancing system reliability and safety.

3、High Breaking Capacity

GRL fuse holders, like the RT18 series, offer breaking capacities up to 100kA at 500VAC.

4、Versatility

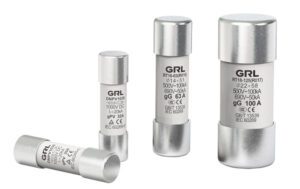

These holders can accommodate various fuse sizes, including 10x38mm, 14x51mm, and others, making them suitable for a wide range of applications.

5、Easy Maintenance

The design allows for quick and safe fuse replacement, often featuring a space for finger access to open the fuse carrier.

Installation steps for DIN rail mount fuse holders

DIN rail mount fuse holders are essential components in electrical systems, providing a secure and organized way to house fuses. Proper installation is crucial to ensure safety and functionality. Here are the detailed steps to install a DIN rail mount fuse holder:

1、Prepare the DIN Rail

Ensure the DIN rail is securely mounted in the desired location within the electrical panel or enclosure.

The DIN rail should be a standard 35mm “hat” type rail, which is the most common type used for mounting electrical components.

2、Position the Fuse Holder

Hold the fuse holder at an angle with the top part of the holder positioned over the top edge of the DIN rail.

Tilt the bottom of the fuse holder towards the DIN rail until it snaps into place. This action secures the fuse holder onto the rail.

3、Secure the Fuse Holder

Ensure the fuse holder is firmly attached to the DIN rail by gently pulling on it. It should not move or come loose.

If the fuse holder has a locking mechanism, engage it to further secure the holder to the rail.

4、Insert the Fuse

Open the fuse holder by either lifting the cover or pulling out the fuse carrier, depending on the design of the holder.

Insert the appropriate fuse into the fuse holder. Ensure the fuse is rated correctly for the application in terms of current and voltage.

Close the fuse holder, ensuring it is securely latched or locked.

5、Connect the Wires

Strip the insulation from the ends of the wires that will be connected to the fuse holder.

Insert the stripped wire ends into the terminal connections of the fuse holder. Most holders have screw terminals or spring-loaded terminals.

Tighten the terminal screws or engage the spring mechanism to secure the wires in place. Ensure a firm and secure connection to prevent any loose connections.

6、Label the Fuse Holder

Apply clear and durable labels to the fuse holder, indicating the type and rating of the installed fuse. This helps with easy identification and maintenance.

Get Quote

Integration with GRL Products

GRL’s range of products integrates seamlessly with DIN rail-mounted fuse holders, enhancing system safety and efficiency.

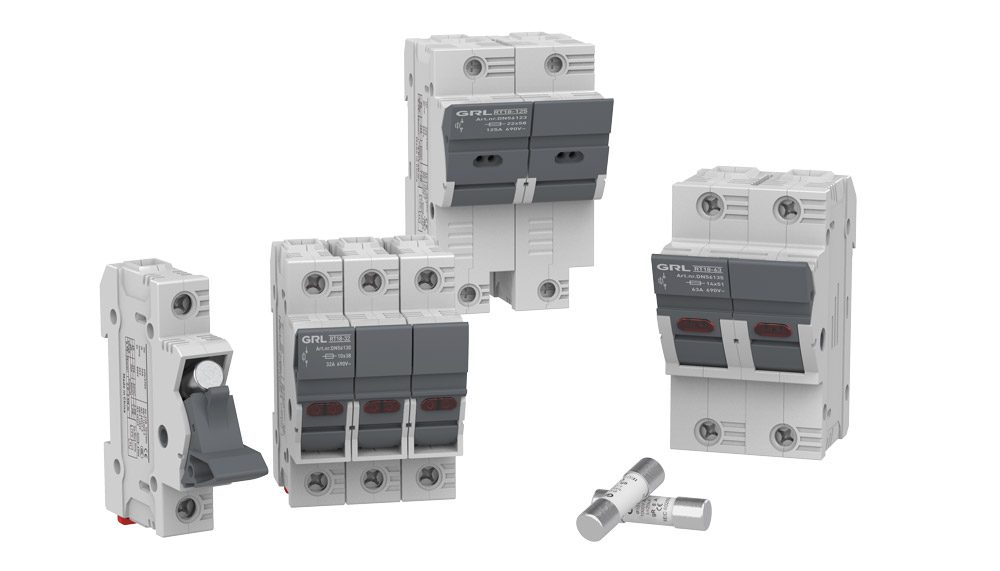

The RT18 series fuse switch disconnectors combine fuse holders and switches for improved safety and control. Multi-pole configurations protect multi-phase systems or multiple circuits within a compact unit, ideal for space-constrained environments.GRL’s fuse holders accommodate various fuse types, including gG fuses, ensuring compatibility with existing protection schemes.

In addition, the RT18 DIN rail mount fuse holders can also be integrated with surge protective devices for use in a power distribution cabinet.

These features make DIN rail-mounted fuse holders essential in modern electrical systems, offering safety, convenience, and reliability. Their modular design, LED indicators, and high breaking capacity suit various applications.

Integrating GRL’s fuse holders with other products, like fuse switch disconnectors and multi-pole configurations, creates tailored protection solutions, enhancing system safety, simplifying maintenance, and improving installation efficiency.
