A GRL fuse switch disconnector combines the functions of a fuse and a switch to interrupt power during overloads or short circuits. When current exceeds safe limits, the internal fuse element melts, instantly breaking the circuit and safeguarding wiring, sensitive electronics, and motors from damage or fire hazards. Unlike circuit breakers, which can be reset, a fuse switch disconnector requires replacing the blown fuse before restoring service.

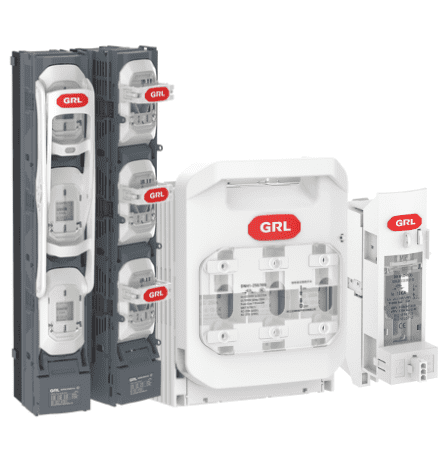

GRL Fuse Switch Disconnector: The Essential Overcurrent Protection and Isolation Device
GRL Fuse Switch Disconnectors Key Benefits
High Interrupting Capacity
Designed for heavy-duty applications, fuse switch disconnectors can safely break fault currents in the hundreds or even thousands of amperes. This makes them ideal for industrial loads and large motors, ensuring rapid disconnection under extreme conditions.
Compact and Cost‑Effective
With fewer moving parts than circuit breakers, these devices occupy less panel space and offer simpler maintenance. After a fault, only the fuse element needs changing—no complex mechanism resets, resulting in lower life‑cycle costs.
Enhanced Safety
The one‑time‑use fuse element guarantees the circuit stays open after a severe fault, eliminating the risk of nuisance reclosure. Many models include a visible handle position and padlock provisions to meet lock‑out/tag‑out (LOTO) requirements and prevent accidental re-energization.
Code Compliance
Most fused disconnect switches adhere to NEC (National Electrical Code) standards, making them suitable for commercial installations in the US and meeting international safety standards.
GRL Fuse Switch Disconnector vs. Circuit Breaker
| Feature | Fuse Switch Disconnector | Circuit Breaker |
| Reset Capability | Replace the fuse link after a fault | Simply reset the trip unit |
| Interrupting Rating | Very high (solidstate fuse link) | Moderate to high (mechanical trip) |
| Size & Complexity | Smaller, fewer moving parts | Larger, complex mechanism |
| Maintenance | Replace the fuse only | Regular testing and mechanical service |
| Cost | Lower initial & replacement cost | Higher initial cost; no spare parts |
Fuse switch disconnectors excel in situations where a robust, one‑time fault interruption is required, particularly when space is limited and budgets are tight. Circuit breakers offer adjustable trip settings and repeated use but generally cost more and need periodic inspection.
Selecting the Right Fuse Switch Disconnector
When choosing a fused switch disconnector for your system, consider the following:
-
Voltage and Current Ratings: Ensure the device’s maximum voltage and continuous current ratings match or exceed your system’s requirements (commonly up to 600 V and 630 A for industrial applications).
-
Breaking Capacity: Select a model whose interrupting rating can handle the highest possible fault current in your installation.
-
Environmental Factors: Opt for enclosures and materials rated for temperature extremes, humidity, and corrosion if used outdoors or in harsh industrial settings.
-
Application Needs: For motor circuits, choose a switch with AC motor duty ratings; for backup power panels, verify it meets generator bypass and transfer switch integration requirements.
-
Accessory Compatibility: Confirm availability of matching fuse links, auxiliary contacts, rotary handles, and padlock kits.
GRL Fuse Switch application
Industrial Power Distribution
Fused switch disconnectors often serve as the main disconnect in motor control centers (MCCs) or feeder panels, protecting large machinery and production lines from short‑circuit damage.
Backup Power & Generator Systems
Installed in generator switchboards and ATS panels, they provide a reliable means to isolate and protect utility and standby sources.
PV and Energy Storage systems
GRL DC fuse switch disconnectors safeguard PV combiner boxes and battery racks, disconnecting faulted strings instantly and isolating battery sections for maintenance.
Required Accessories
-
Fuse Links: Keep appropriate fuse elements (gG, aR) in stock for quick replacement.
-
Auxiliary Contacts: GRL DNH1 fuse switch disconnectors can be equipped with optional electronic fuse monitoring and motor fuse detection auxiliary contacts for real-time line monitoring.
-
Enclosures: Choose lockable, weatherproof housings for outdoor or critical‑use environments.
-
Contactor Integration: Combine with contactors for load‑shedding or sequential switching schemes.

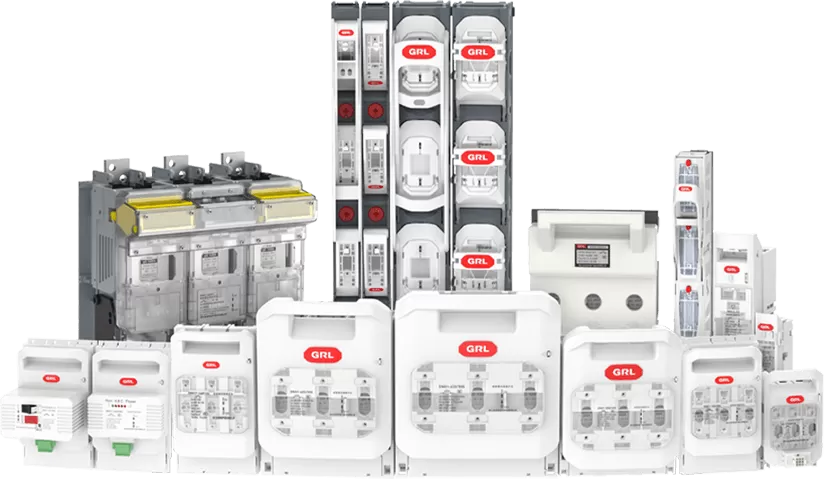

GRL Fuse Switch Disconnector Solutions
GRL Group offers a comprehensive lineup of fuse switch disconnectors engineered for demanding commercial and industrial use:
-
Modular Panel‑Mount Series: From 40 A to 800 A, compatible with NH00–NH3 fuse links, featuring quick‑swap fuse holders and visible-blade isolation.
-
Compact DIN‑Rail Versions: Ideal for control cabinets, available in single‑phase and three‑phase configurations up to 125 A.
-
High‑Capacity Busbar Units: Rated up to 2000 A, designed for enclosed busway systems with flexible expansion.
-
PV/DC‑Rated Disconnects: Certified for photovoltaic and energy storage applications up to 1500 V DC with fast‑acting DC fuse elements.
All GRL products comply with IEC 60947‑3, UL 98, and NEC requirements, offering high interrupting capacity, clear switch indication, padlockability, and optional auxiliary contacts.
Protect your electrical network with a reliable, code‑compliant fuse switch disconnector from GRL.
Click here to explore our full range of solutions, download datasheets, or contact us for samples and price quotations. Ensure your system’s safety, uptime, and compliance—choose GRL for industrial-grade overcurrent protection and isolation.
