An isolation switch provides a visible, physical separation in an electrical circuit, allowing a section to be worked on safely and securely. A fuse switch disconnector combines that isolation function with one or more fuses, providing both isolation and overcurrent protection in a single device. Unlike circuit breakers, which can interrupt current under load, isolator switches are typically off-load devices used to ensure a circuit is dead before maintenance. Fused isolators are common in consumer, industrial, and renewable energy installations because they make safe maintenance straightforward while also protecting equipment from sustained overcurrent.
Common types and configurations
Isolators and fuse switch disconnectors are made in many forms to meet specific application requirements. Pole counts range from single-pole units for simple DC or single-phase circuits up to triple-pole plus neutral (TPN) for three-phase systems. Devices are offered for AC and DC service; DC models are critical in photovoltaic (PV) arrays and battery systems. Mechanical styles include rotary handles, lever actuators, and knife-type contacts. Some models are intended as load-break switches (able to operate at a specified current), while standard isolators are intended only for use after upstream protection clears the supply. Fused switch disconnectors integrate HRC or cartridge fuses and are commonly used where both isolation and short-circuit protection are required in a compact assembly.
Key specifications to check before you buy
When choosing an isolator or fused switch, check the rated voltage, current, pole configuration, breaking capacity, and the device’s suitability for AC or DC service. For PV and battery applications, DC voltage rating is critical: higher DC ratings (for example, devices designed for voltages up to 1500–1800 V DC) extend compati
bility with modern string inverters and large arrays. Current rating must match the system’s expected continuous and fault currents, and fuses must have appropriate characteristic curves (gG, aR, etc.) for the load type. Mechanical mounting (DIN rail, panel, or busbar), IP rating for environmental protection, and temperature range also determine whether a device fits an application. For example, GRL’s DNH1T fuse switch disconnector is developed to meet higher voltage PV and energy storage needs, and the DNH51 series knife switch offers compact, flame-retardant housings and flexible mounting for constrained low-voltage panels.
Installation and wiring best practices
Installations should follow local wiring regulations and be carried out by qualified personnel. Verify conductor sizes, torque values for terminals, and clearances for air-break isolation. Ensure the device is rated for the intended system — never attempt to operate an isolator under load unless it is explicitly a load-break model. When fitting fused switch disconnectors, confirm fuse types and ratings are correct, and that spare fuse carriers are available for safe replacement. For DC systems, pay particular attention to polarity and ensure that any enclosures or gaskets provide the necessary IP protection for outdoor or rooftop PV environments. Regular inspection and thermal scanning during commissioning help catch loose connections or overheating before they become service problems.
How to select the right product for your project
Start from the system requirements: maximum operating voltage, continuous current, expected fault current, and system topology (single-phase, three-phase, DC strings, etc.). Decide whether fused protection is required at that point in the circuit or if upstream protection suffices. Prefer devices with clear specification tables, third-party certifications, and proven temperature and material ratings for the installation environment. For compact installations, look for models that support DIN-rail or screw mounting and provide clear, tool-free access for fuse replacement.
Why choose GRL isolators and fuse switch disconnectorsGet Quote

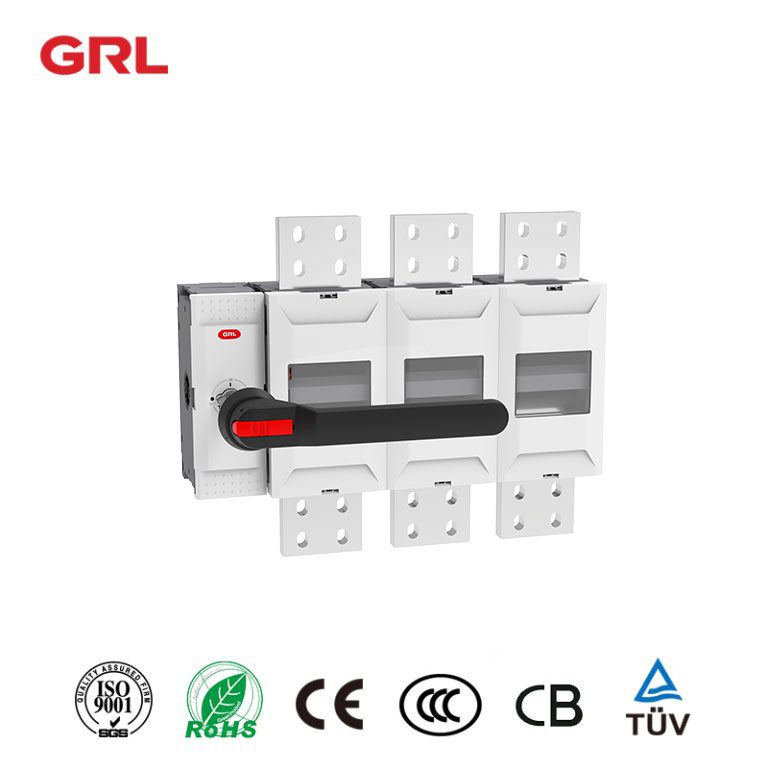

GRL designs components specifically for power distribution and renewable energy applications where reliability and safe maintenance matter. Product lines include DC and AC isolators, fuse switch disconnectors, and accessories compatible with common MCCBs and busbar systems. GRL’s DNH1 series fuse disconnect switch extends voltage capability to support modern PV and energy storage installations, while the DNH8 isolation switch provides multiple mounting options and robust flame-retardant housings for harsh environments. GRL products are tested to industry standards, and many items are covered by third-party certifications appropriate to their intended use, which simplifies project compliance and reduces commissioning risk.
FAQ
What is the difference between a circuit breaker and an isolator?
A circuit breaker can interrupt current under load, and offers reclose functionality; an isolator provides visible disconnection and is used to ensure a circuit is de-energised for safe maintenance. For comprehensive protection, both are frequently used together: the breaker clears the fault, and the isolator provides a safe offline workspace.
Do I need fused isolators in PV arrays?

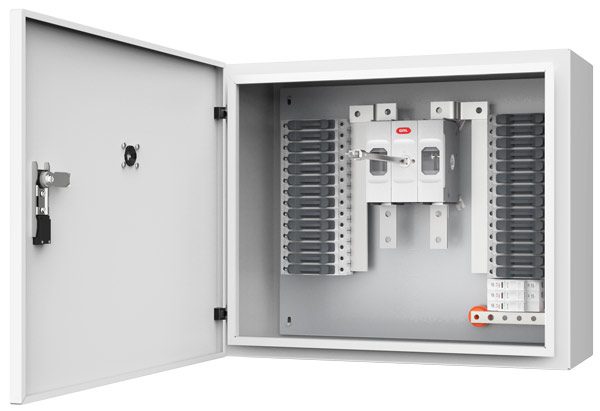

Fused isolators are recommended at the string and combiner levels where overcurrent protection for each string helps contain faults and protect downstream components. Ensure the device’s DC voltage rating matches the maximum system voltage.
Can I replace a fuse in a fused switch disconnector while the system is live? No. Fuses should only be replaced when the circuit is isolated, and the device is confirmed de-energised. Follow safety procedures and local regulations.
How do I choose the right fuse type?
Select fuses with characteristics suited to the load and supply type. Semiconductor protection, motor loads, and general distribution circuits each require different fuse behaviors (fast-blow vs time-delay, aR vs gG), so sizing must consider both continuous and prospective fault currents.
What mounting options should I consider?
Choose DIN-rail, screw-mount, or busbar-mount units depending on panel design and space constraints. Compatibility with existing MCCBs and busbar clamps reduces retrofit work.
How often should isolators be inspected?
Visual inspection and mechanical operation checks are recommended as part of routine maintenance; thermal imaging and torque checks help detect developing issues before failure.
Practical checklist before ordering
Confirm system voltage and whether AC or DC operation is required. Match continuous current rating and anticipated fault levels. Verify mounting style and IP/temperature ratings. Confirm fuse compatibility and whether spare carriers are needed. Check third-party test reports or certificates if the project requires compliance evidence.
