E/M/SV Type, Busbar Bracket

Product:

E type bracket, M type bracket, SV type bracket

Material:

Steel

Surface Treatment:

Galvanized plating (environmental protection color)

G.W.:

0.05KG, 0.22KG, 0.048KG

Keyword:

Busbar bracket, 60mm bBusbar system

Certification Contact Us

Description

Type E/M/SV busbar supports are electrical system components that provide reliable connections between conductors. They’re made to be used with E/M/SV fasteners and are crafted from high-strength aluminum alloy for a dependable hold.

Two sizes of busbar supports are available for use with 3/4″ and 1″ busbars. They have a maximum voltage rating of 600 volts and can support a maximum current of 200 amps.

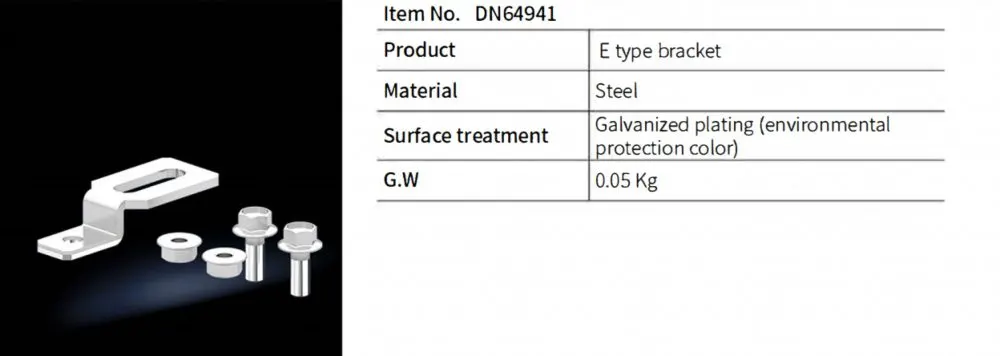

DN64941

Busbar Bracket

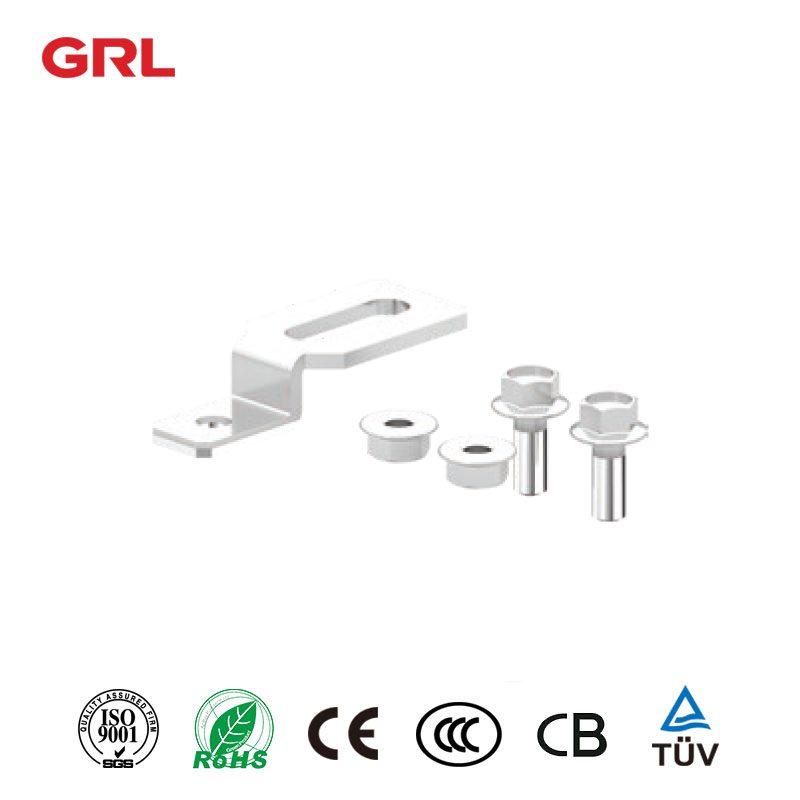

E type bracket

0.05KG

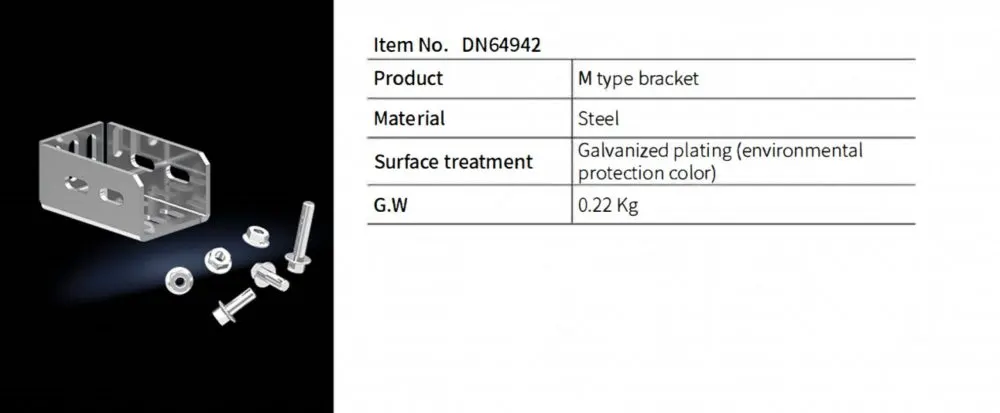

DN64942

Bracket

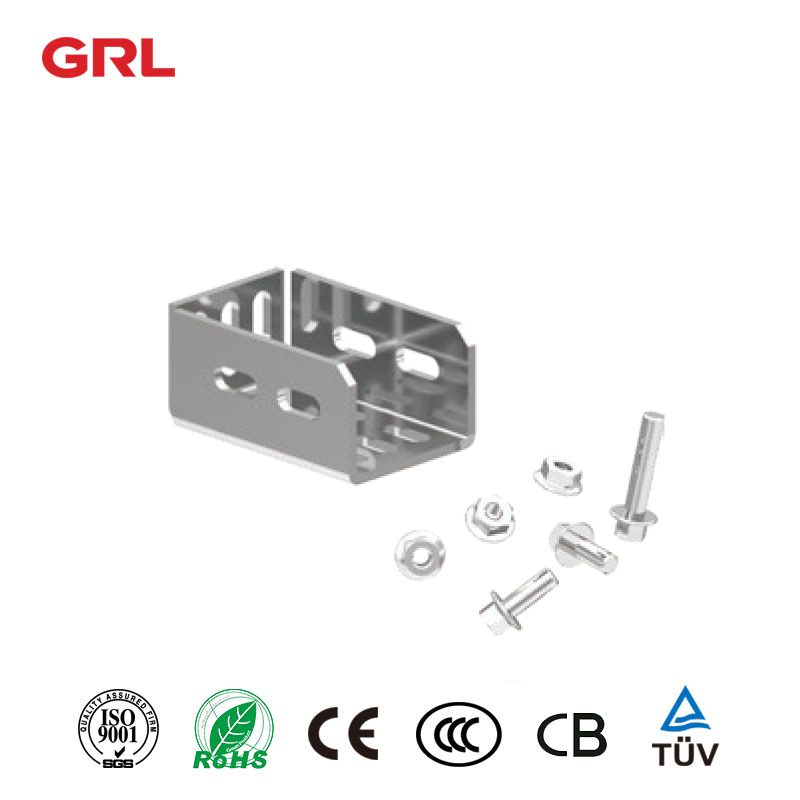

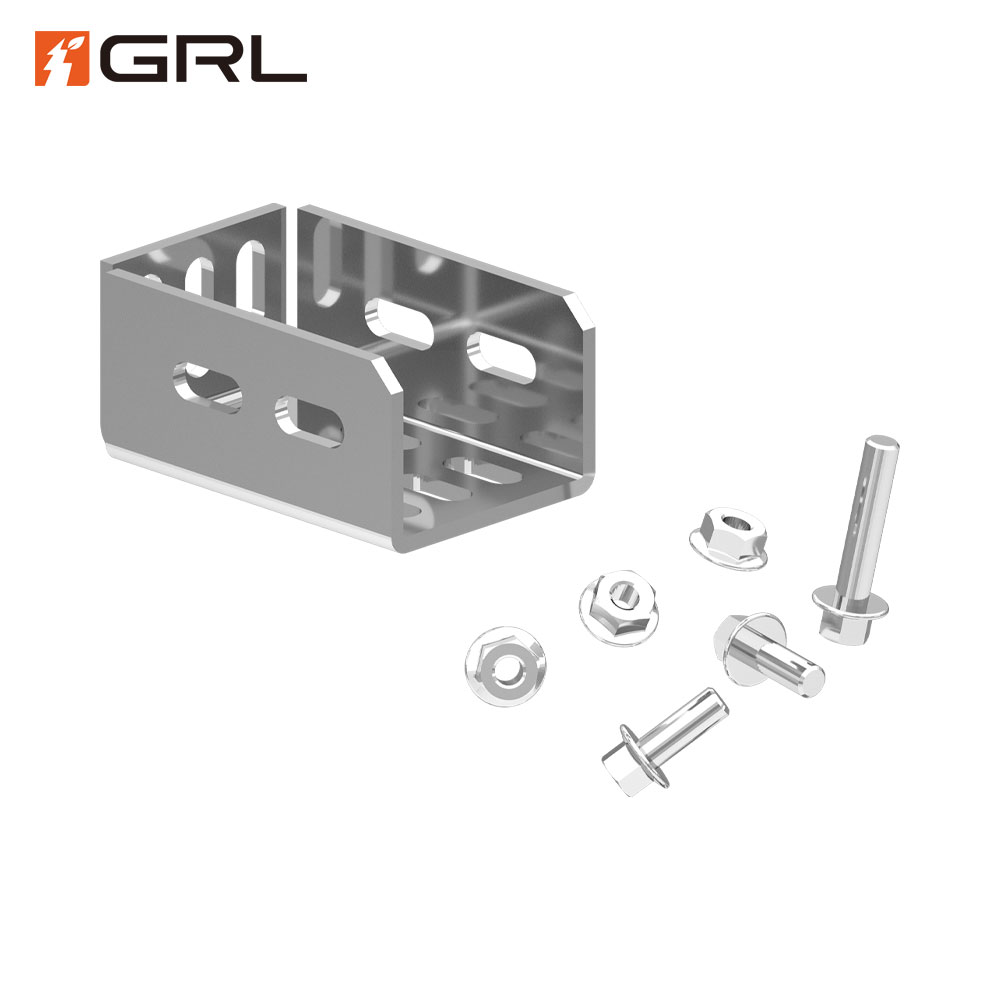

M type bracket

0.22KG

DN64947

Bracket

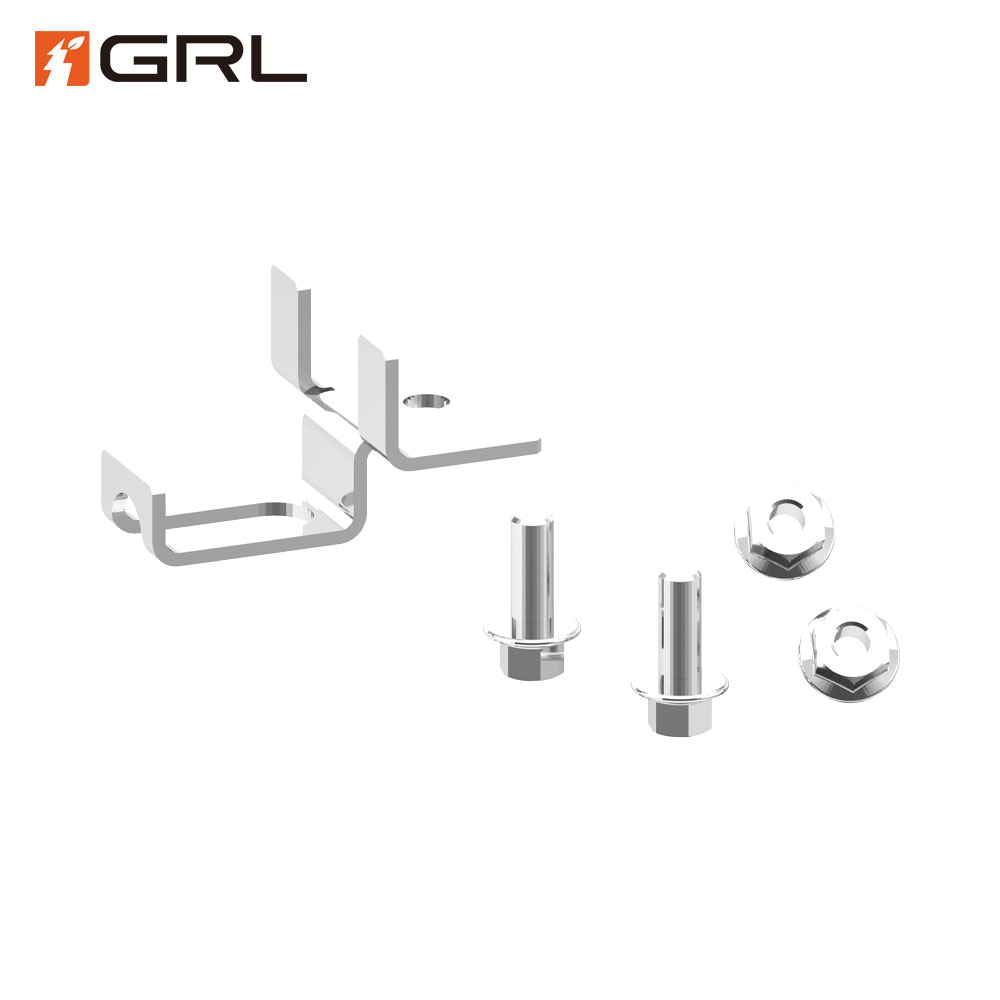

SV type bracket

0.048KG

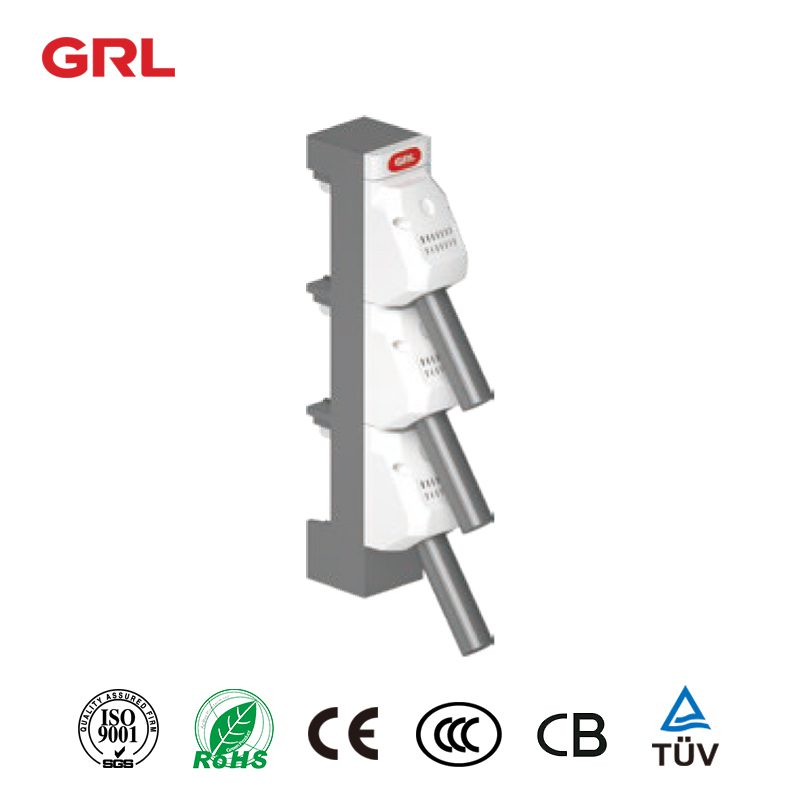

This busbar fuse box base is a necessary component for any 60 busbar system. It is made of a tough plastic material and comes with screws and nuts for easy installation.

Our rated current is 16A, 25A, and 63A respectively. We can withstand a 6kV impulse current, and our breaking capacity of the fuse is 50KA. If you have any questions about our products, please don’t hesitate to contact us at [email protected].
