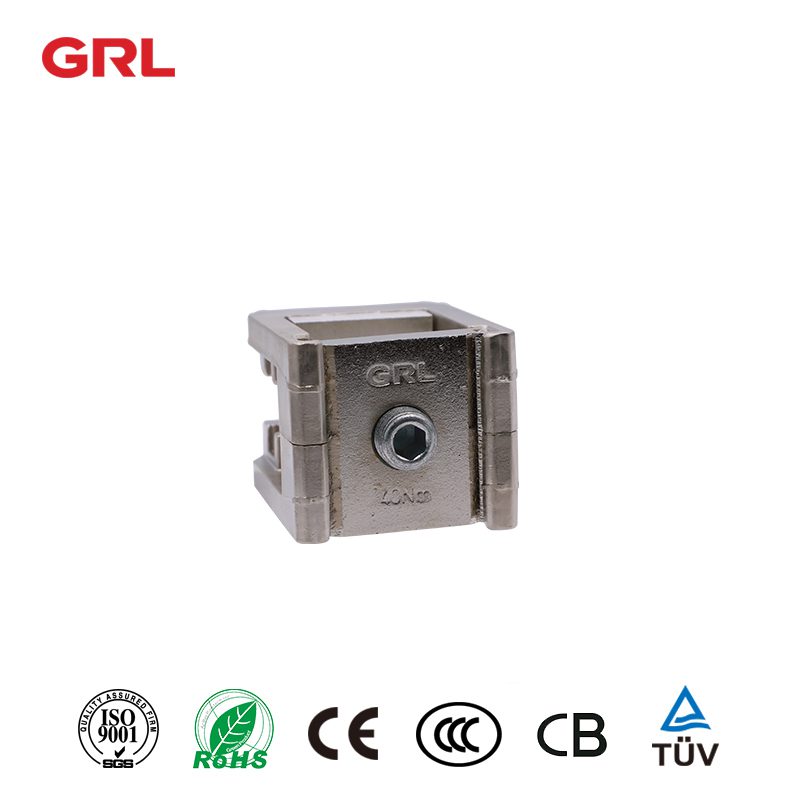

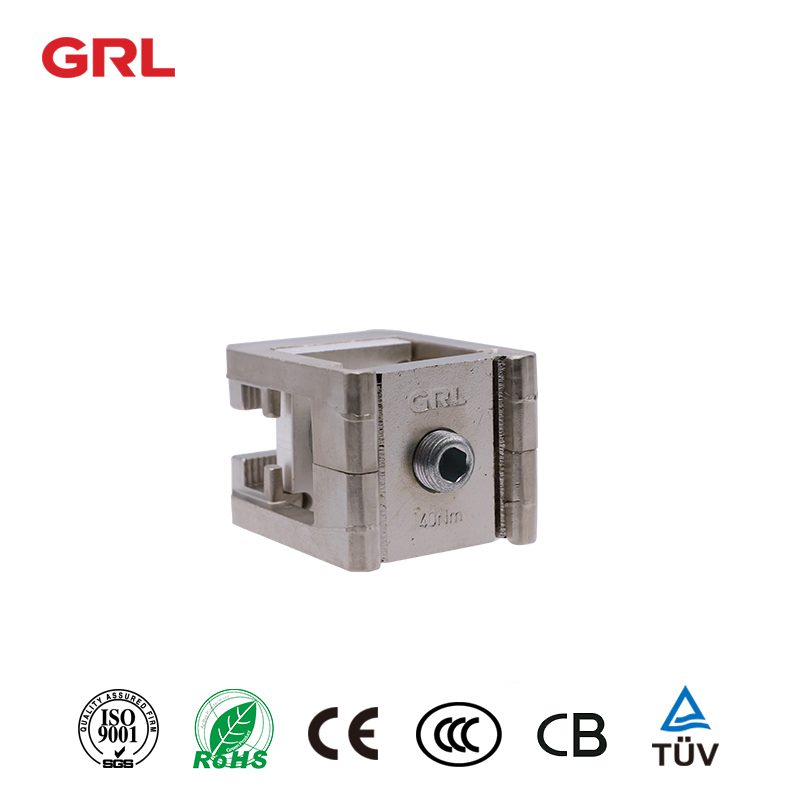

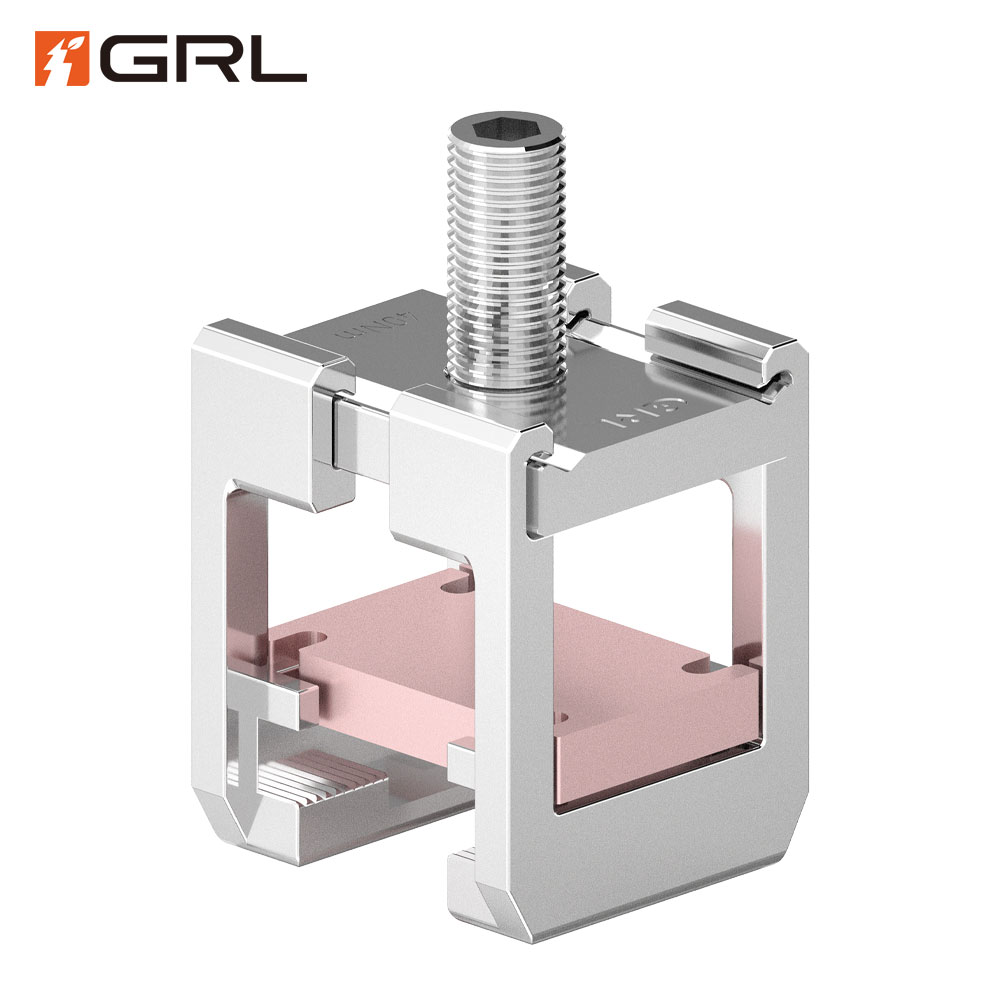

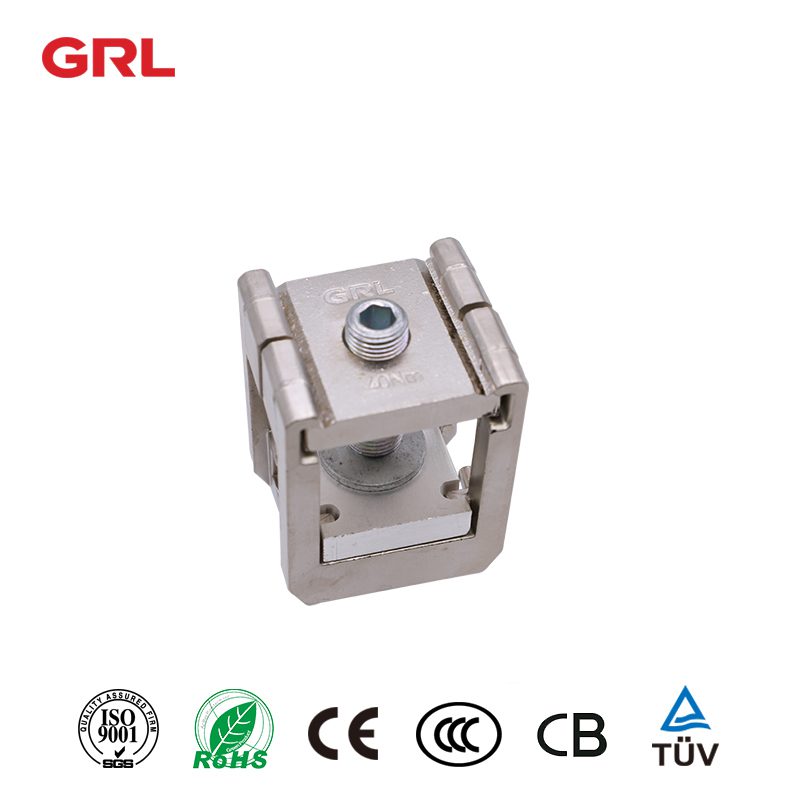

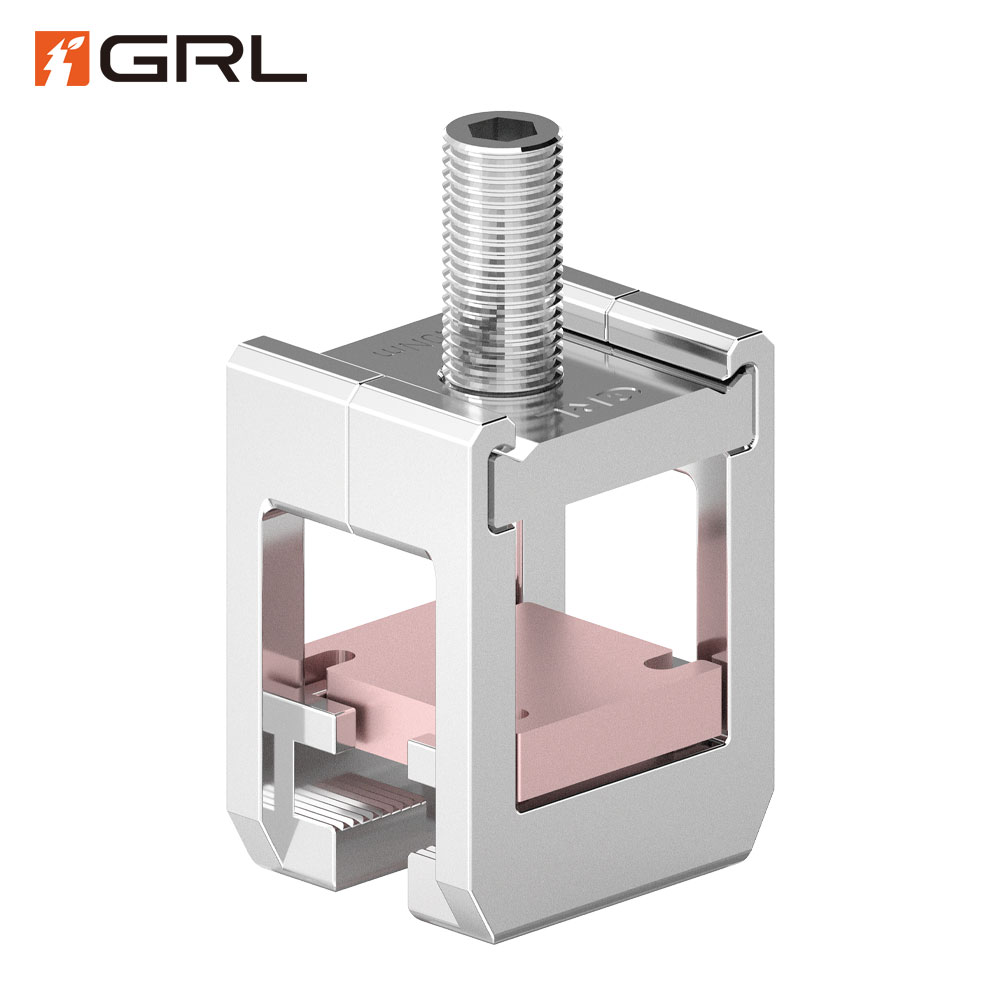

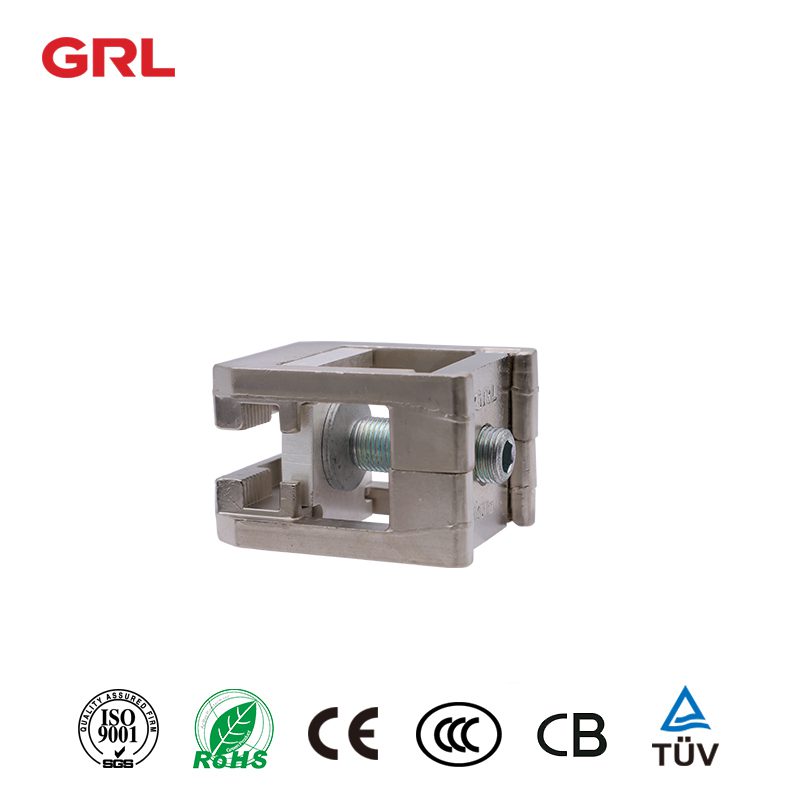

30*10 and irregular copper busbar 690V busbar clamp connector

Mode:

DN54034

Voltage:

690 V

Current:

1250 A

For busbar(mm):

30*10 and irregular copper busbar

Email:

[email protected]

Reference:

IEC 61439-1 ，IEC 60999-1 ， IEC 60999-2 ，GB/T 7251.1

Keyword:

busbar clamp connector

Certification Contact Us

Description

690V busbar clamp connector

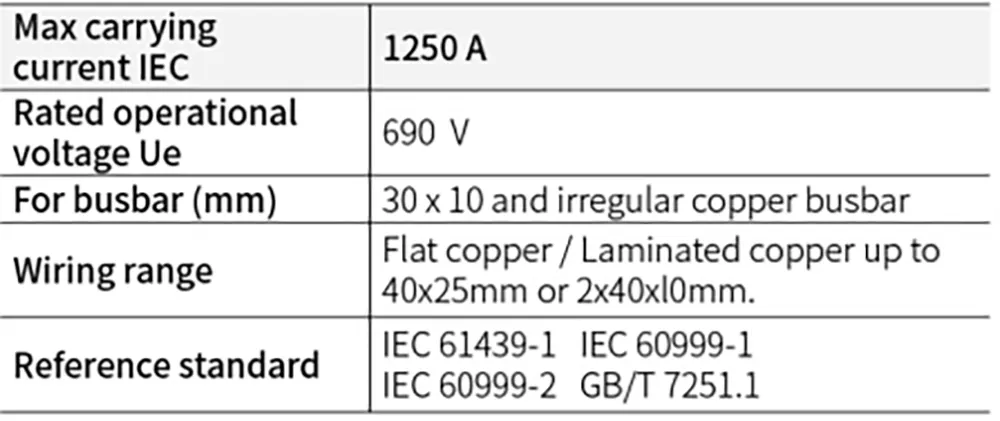

Item No.54092

Max carrying current IEC	1250A
Rate operational voltage Ue	690V
For busbar(mm)	30*10 and irregular copper busbar
Wiring range	Flat copper/Laminated copper up to 4025mm or 240*10mm
Reference standard	IEC 61439-1 IEC 60999-1 IEC 60999-2 GB/T 7251.1

busbar clamp connector

Item No.54034

Max carrying current IEC	1250A
Rate operational voltage Ue	690V
For busbar(mm)	30*10 and irregular copper busbar
Wiring range	Flat copper busbar/Laminated copper busbar max 4025mm or 240*10mm
Reference standard	IEC 61439-1 IEC 60999-1 IEC 60999-2 GB/T 7251.1
