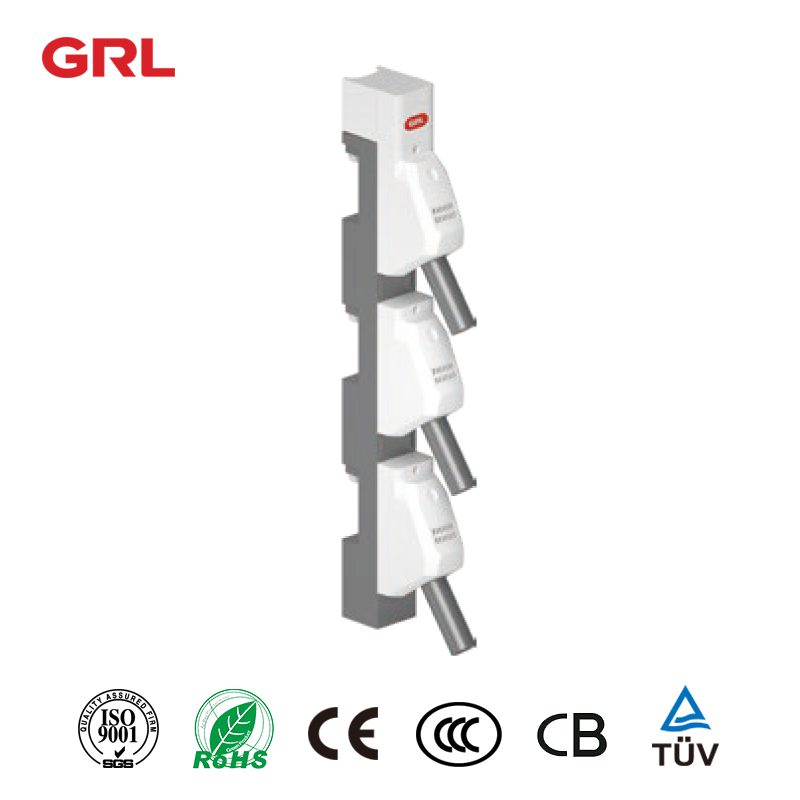

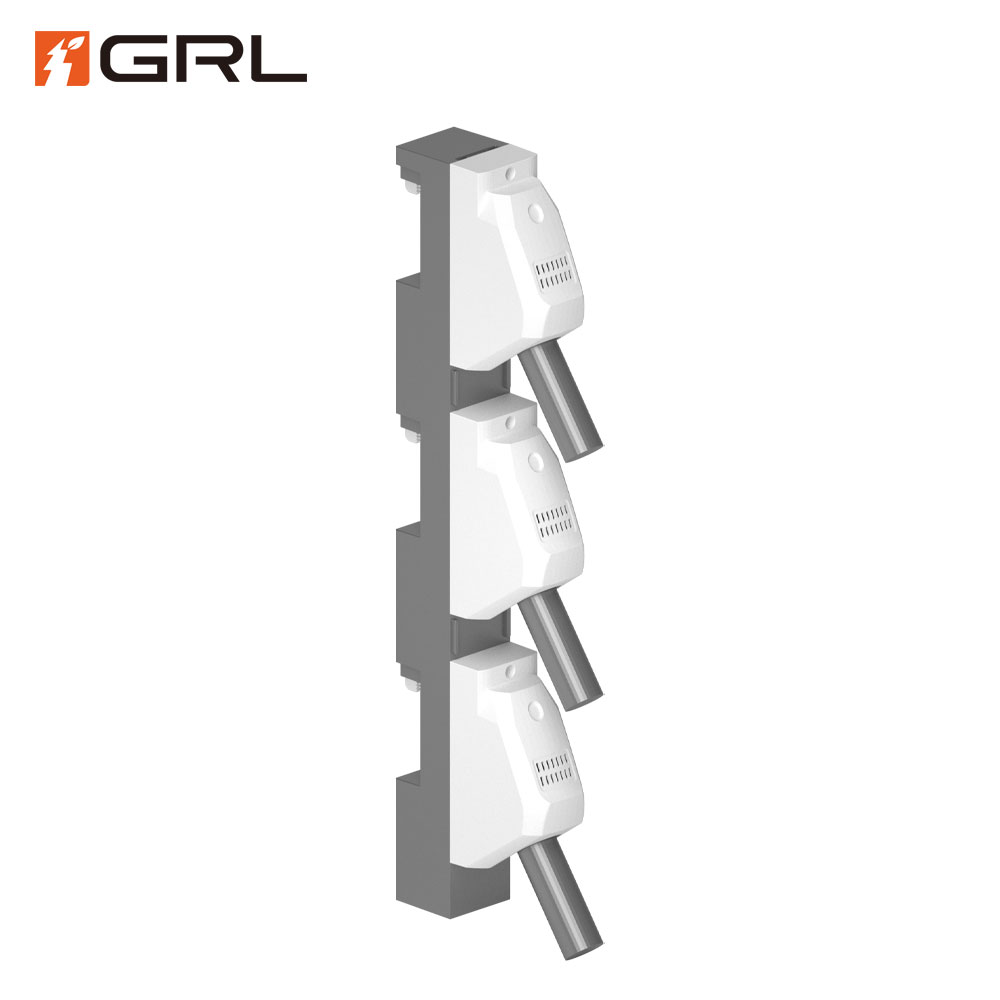

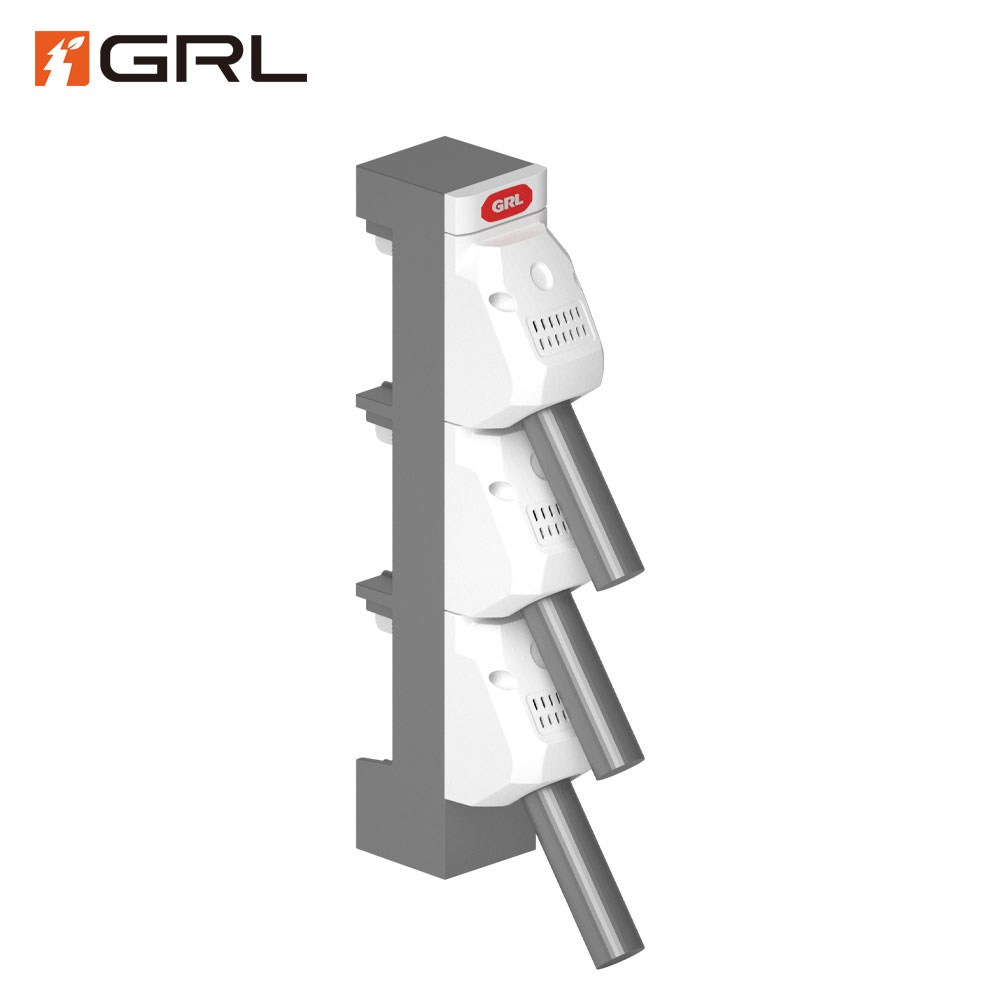

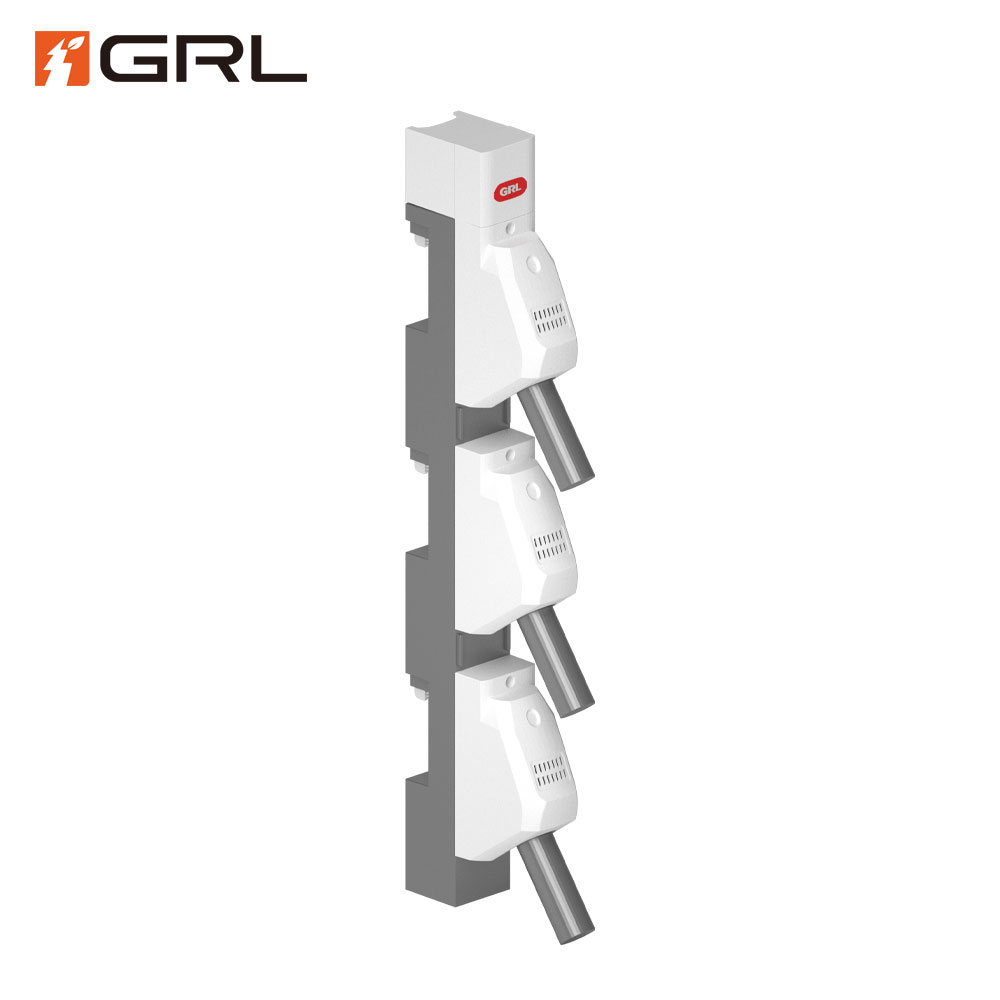

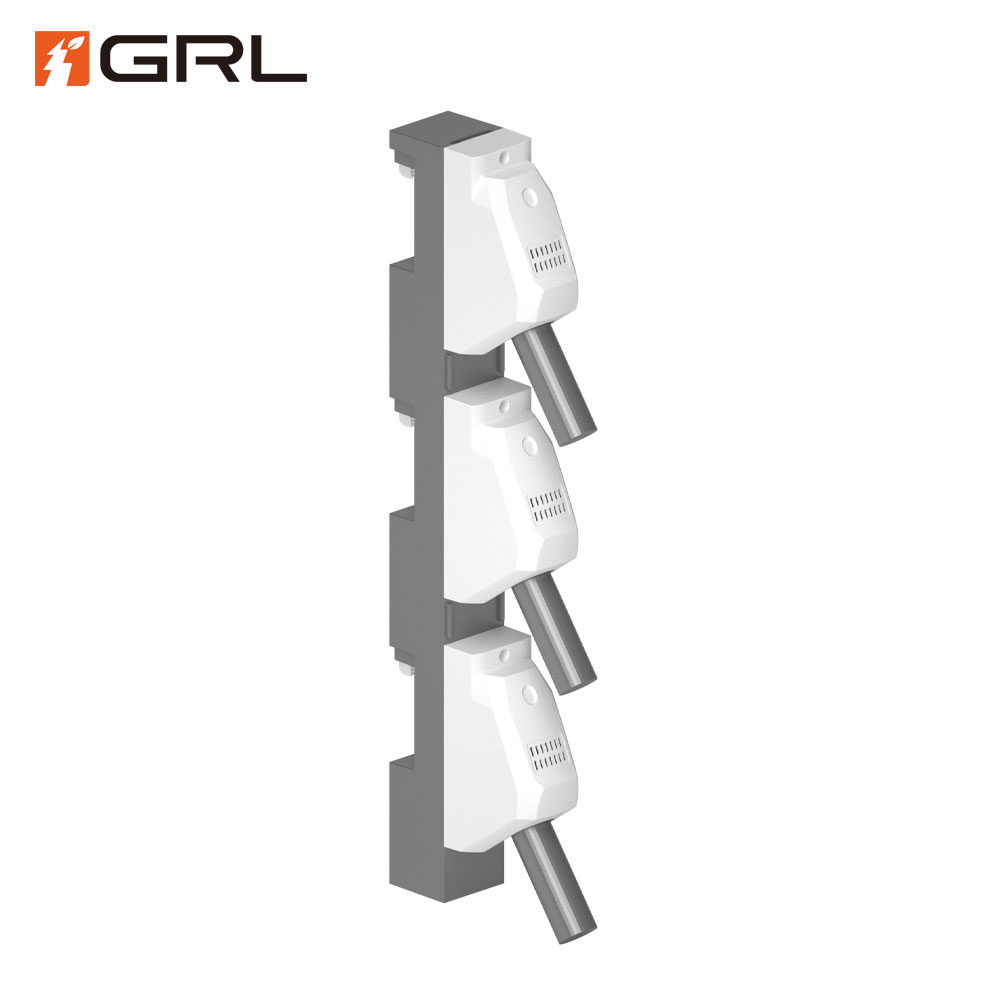

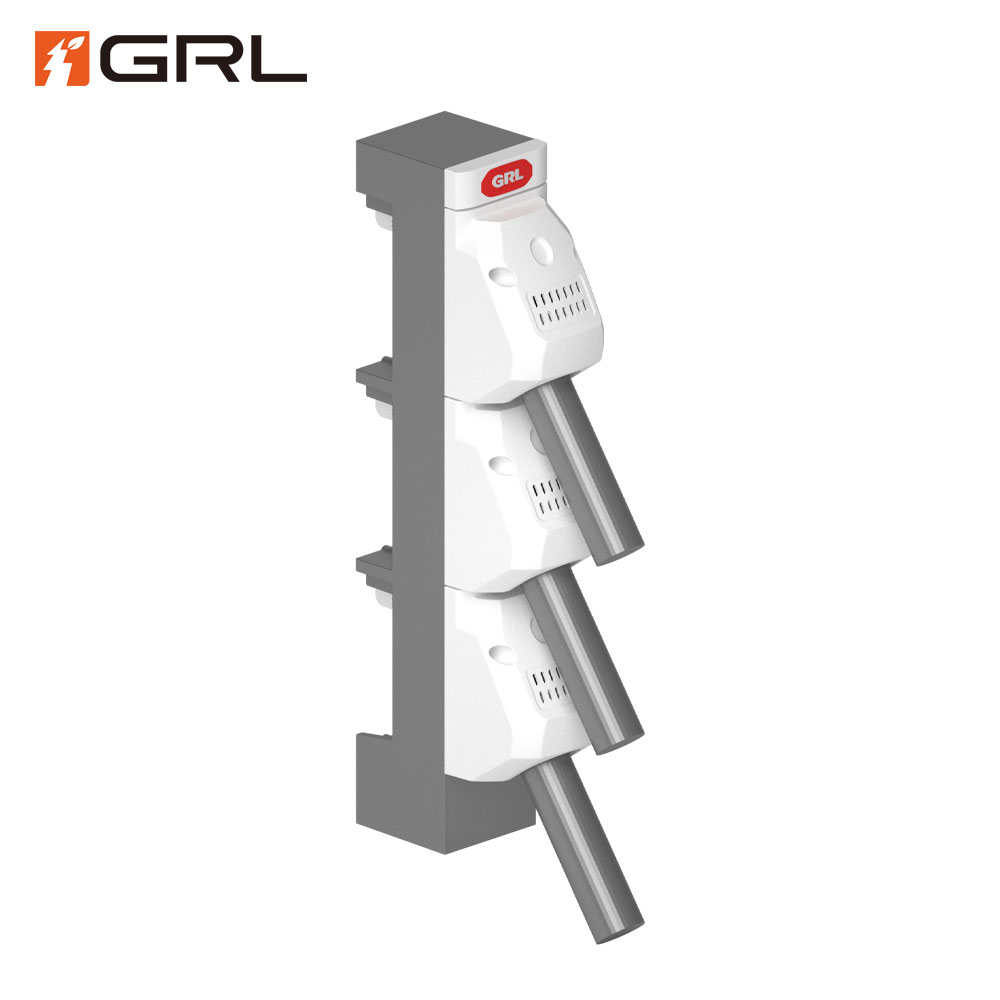

400A-630A, Busbar Electrical System, Cable Connection Module

400A-630A, Busbar Electrical System, Cable Connection Module is an electrical system that uses busbars to connect cables. The system is used to transmit and distribute electricity in a safe and efficient manner, greatly increasing the efficiency of the system. It is also designed to provide protection against electric shock and short circuits.

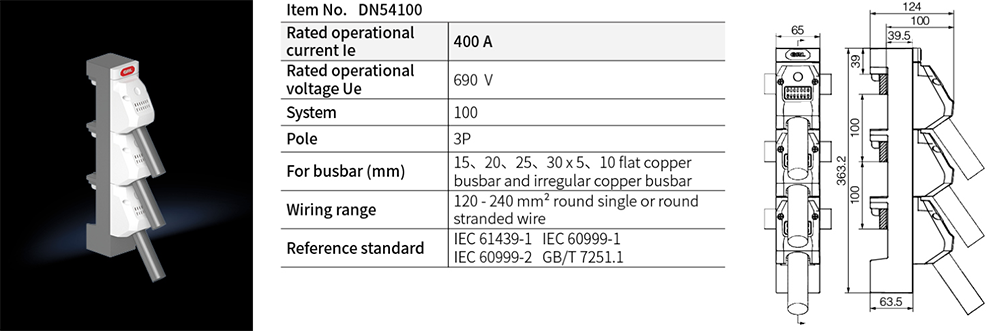

DN54100

Busbar Electrical System

Cable Connection Module

400A 120-240mm²

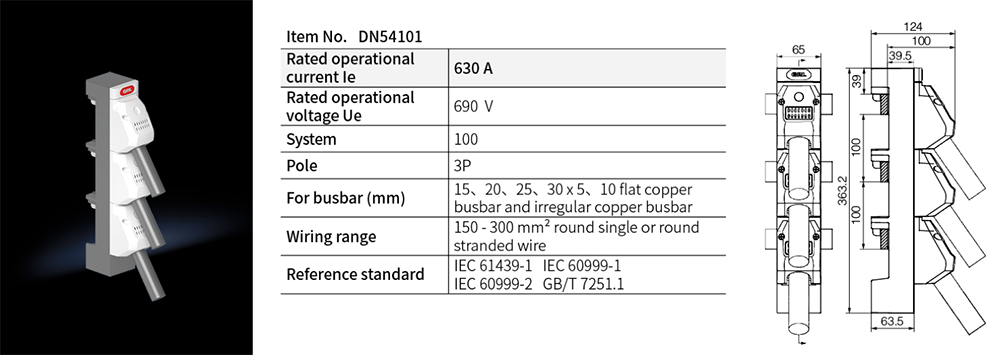

DN54101

Cable Connection Module

630A 150-300mm²

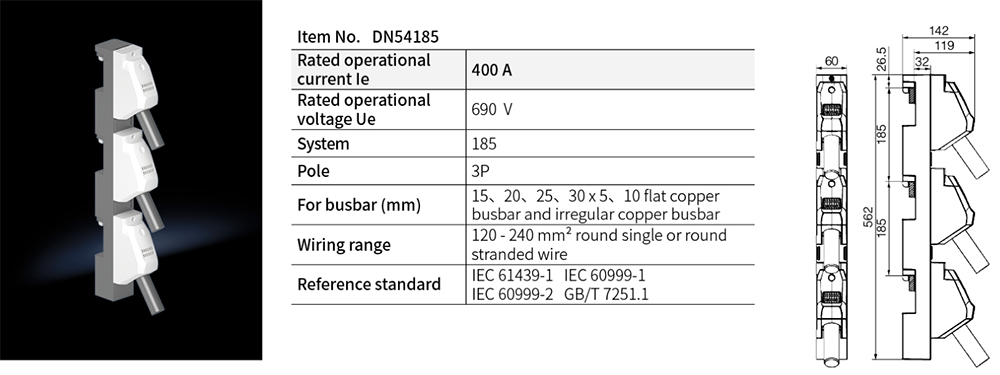

DN54185

Cable Connection Module

400A 120-240mm²

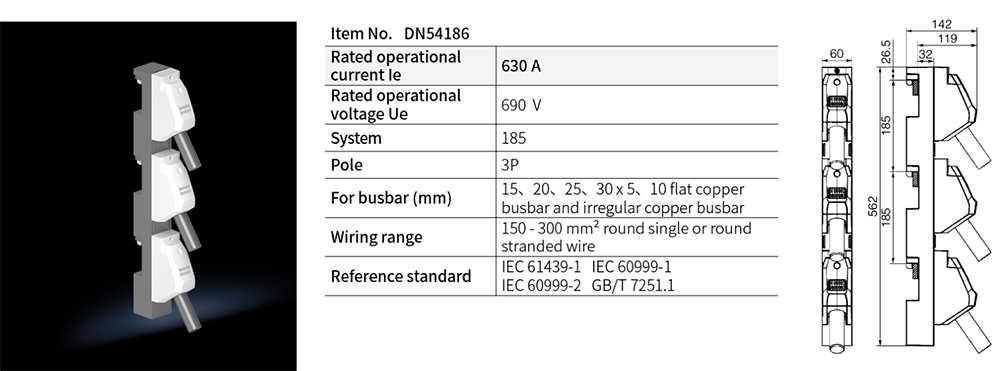

DN54186

Cable Connection Module

630A 150-300mm²

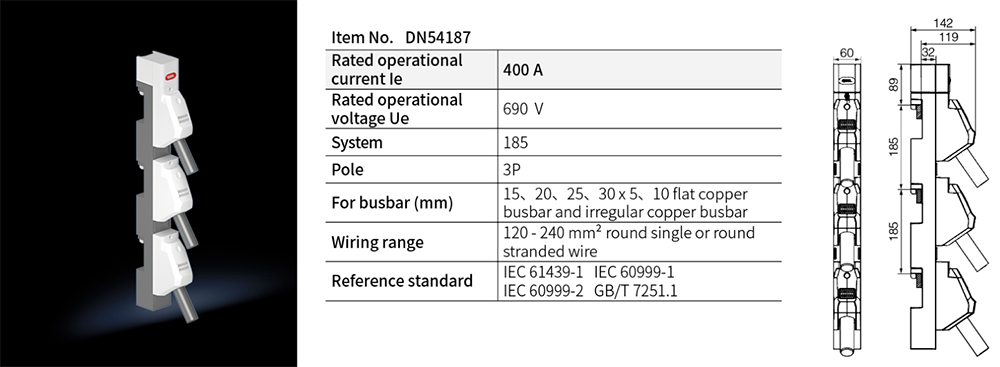

DN54187

Cable Connection Module

400A 150-300mm²

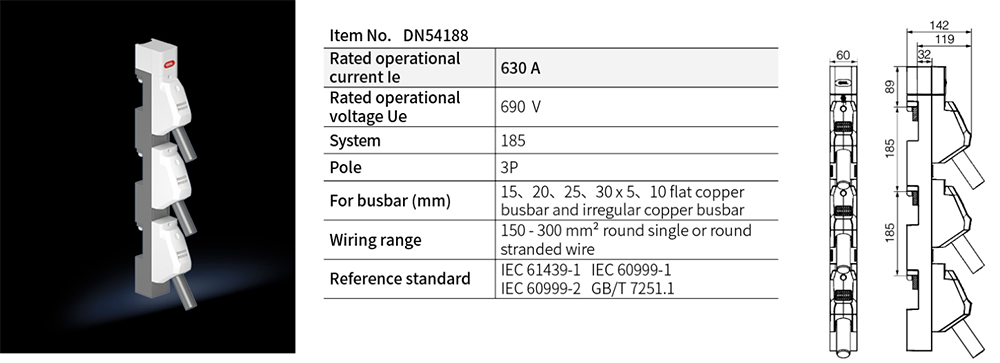

DN54188

Cable Connection Module

630A 150-300mm²

400A-630A busbar electrical systems are ideal for a variety of industrial applications. With a rated voltage of 690V and various current ratings, the system can be used to power a wide variety of equipment and machines. Built-in cable connection modules easily connect to your existing cables and wiring, while rugged construction ensures safe, reliable operation.

GRL’s 400A-630A busbar electrical system is a versatile, easy-to-install option rated up to 690V. The system can be used with flat copper busbars in 15mm, 20mm, 25mm or 30×5mm thickness, making it an excellent choice for many different applications.
