Busbar Protection System, Breaker Adaptor, 16A 3P

Model No.:

ZJQ-16

Applicated to the system:

60mm

Rated operational current Ie:

16A

Rated operational voltage Ue:

690V

Rated impulse withstand current LPK:

6KV

Short circuit stability:

Short circuit protection of circuit breaker adaptor carrying

Pole:

3Pole with cable, 3Pole with cable without terminal

For busbar:

12, 15, 20, 30*5, 10 and irregular copper busbar

Suitable MCB:

GV2 series+LC1 series, MS116 series+AX series, 3RV series+3TF series, GV2 series, MS116 series, 3RV series

Frame material:

Temperature resistance 125℃, flame retardant V0

Reference standard:

IEC 61439-1, GB/T 7251.1

Keywords:

Busbar Protection System Breaker Adaptor 16A 3P

Certification Contact Us

Description

Busbar protection systems are designed to protect the electrical system of your home or office. The system includes a circuit breaker adapter that can be used with any standard circuit breaker panel. The system consists of two parts: the circuit breaker adapter and the busbar. The circuit breaker adapter is responsible for breaking the circuit in the event of an overcurrent, while the busbar protects the busbar from damage. The system is rated for 16A 3P. The system is easy to install and comes with all the necessary hardware.

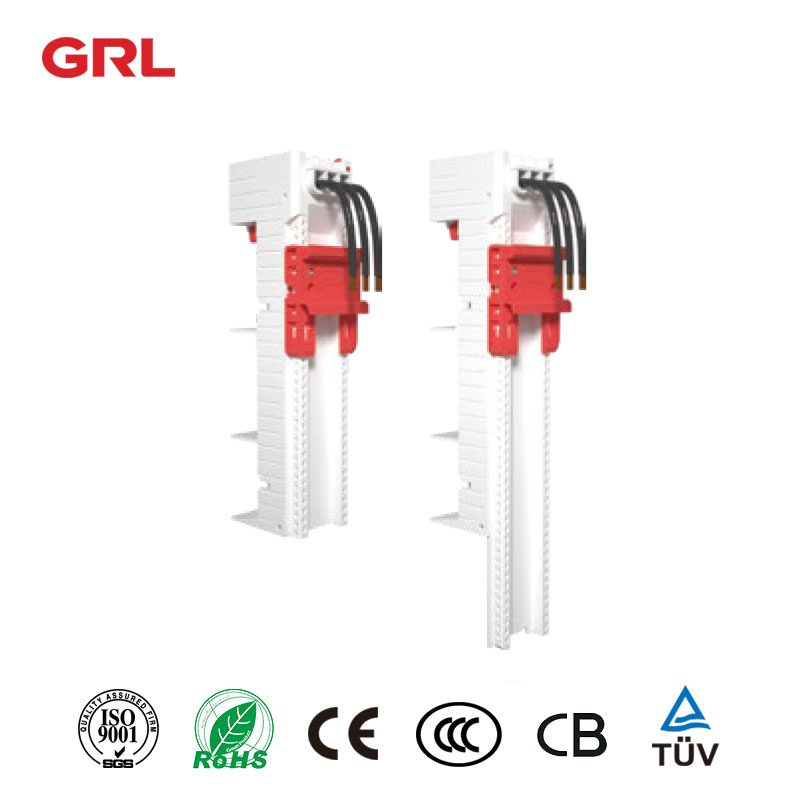

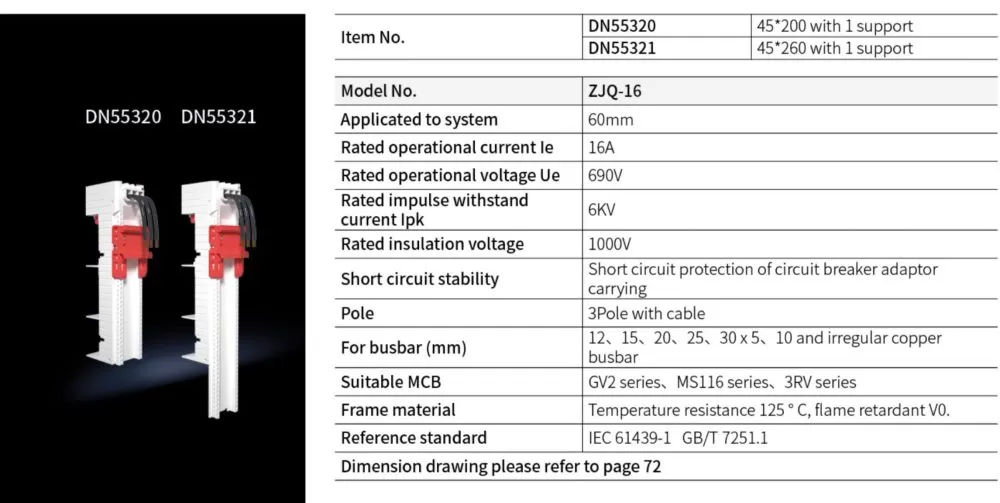

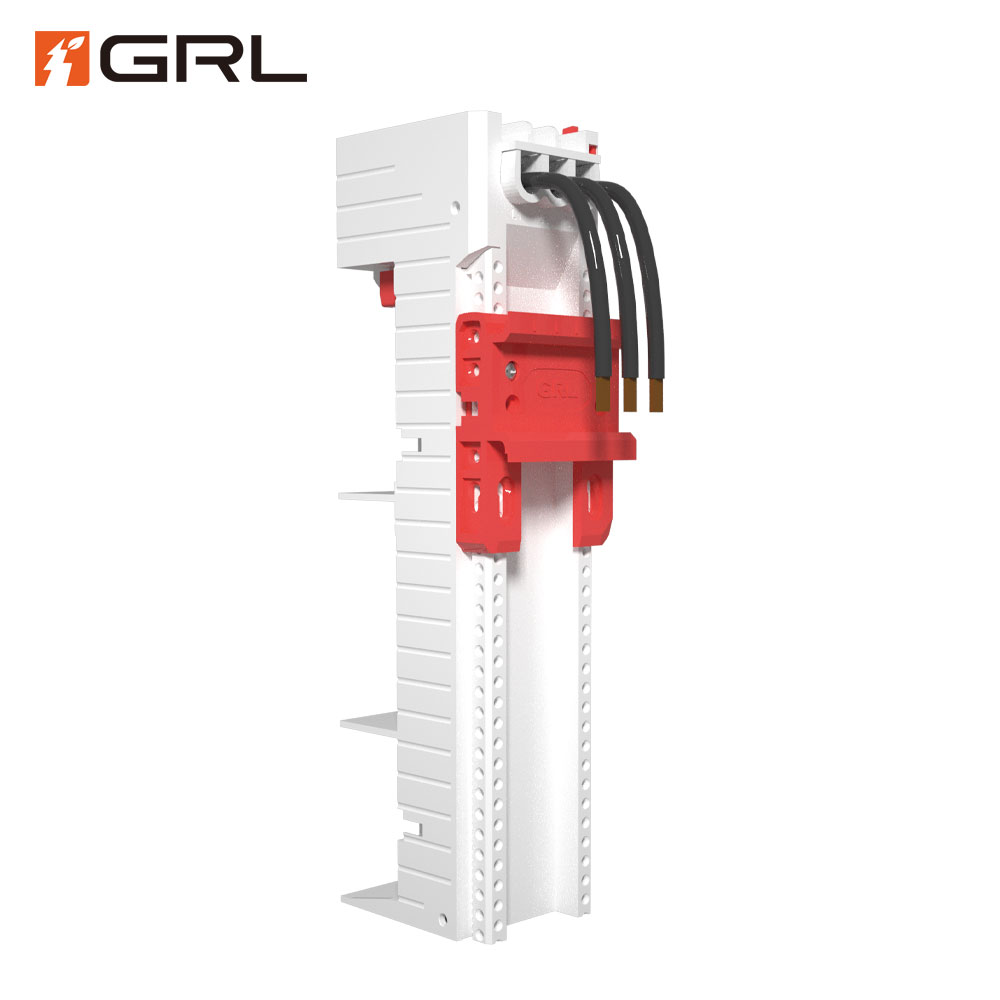

DN55320 45*200 with 1 support

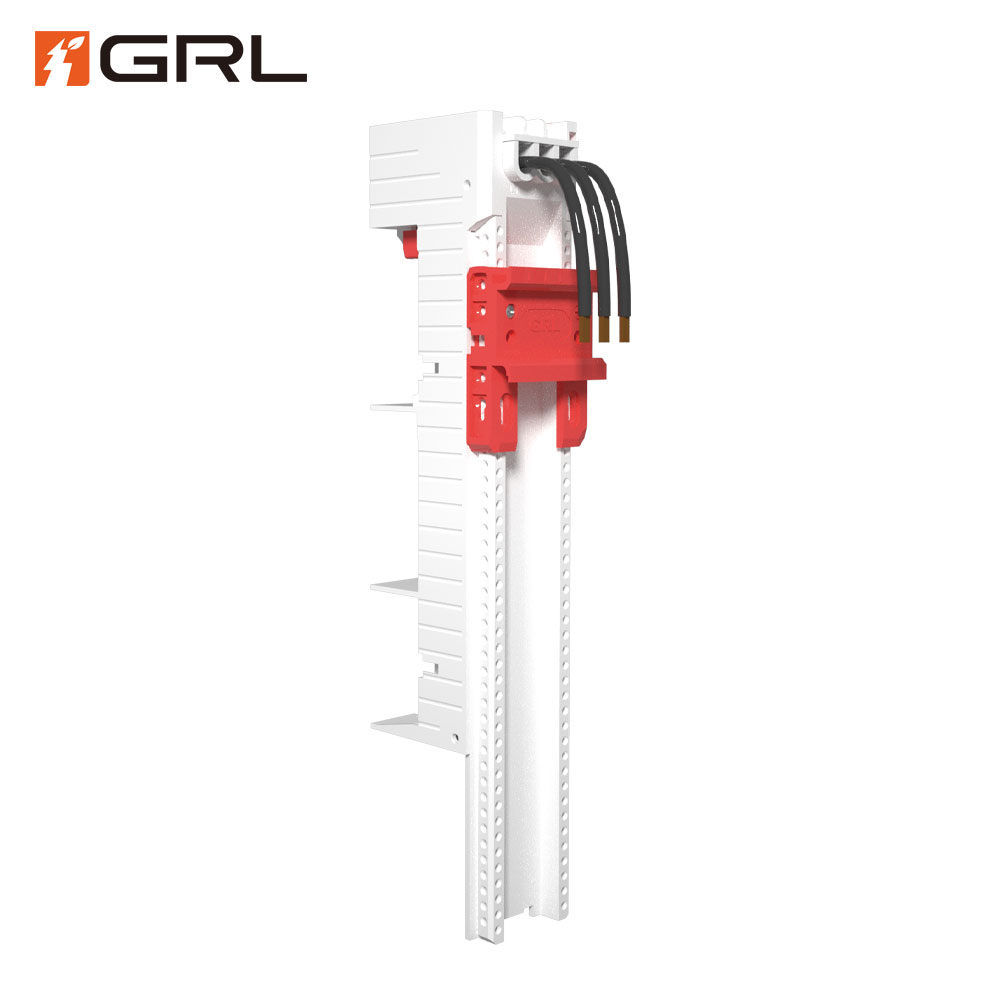

DN55321 45*260 with 1 support

3Pole with cable

Suitable MCB: GV2 series, MS116 series, 3RV series

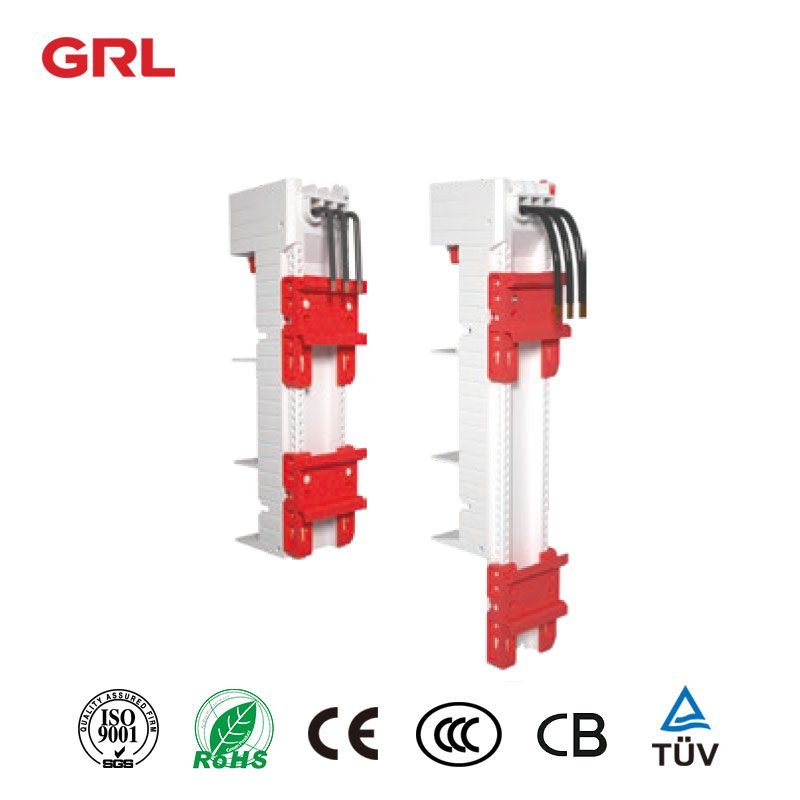

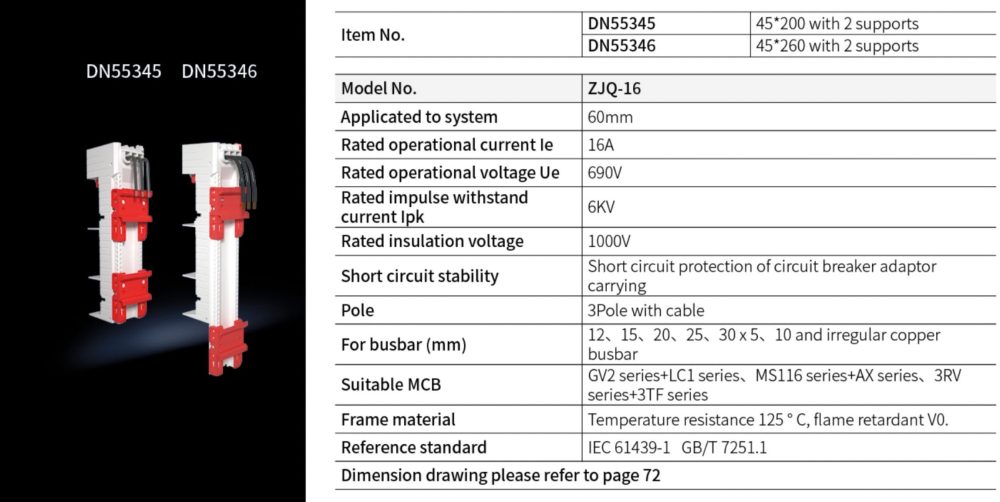

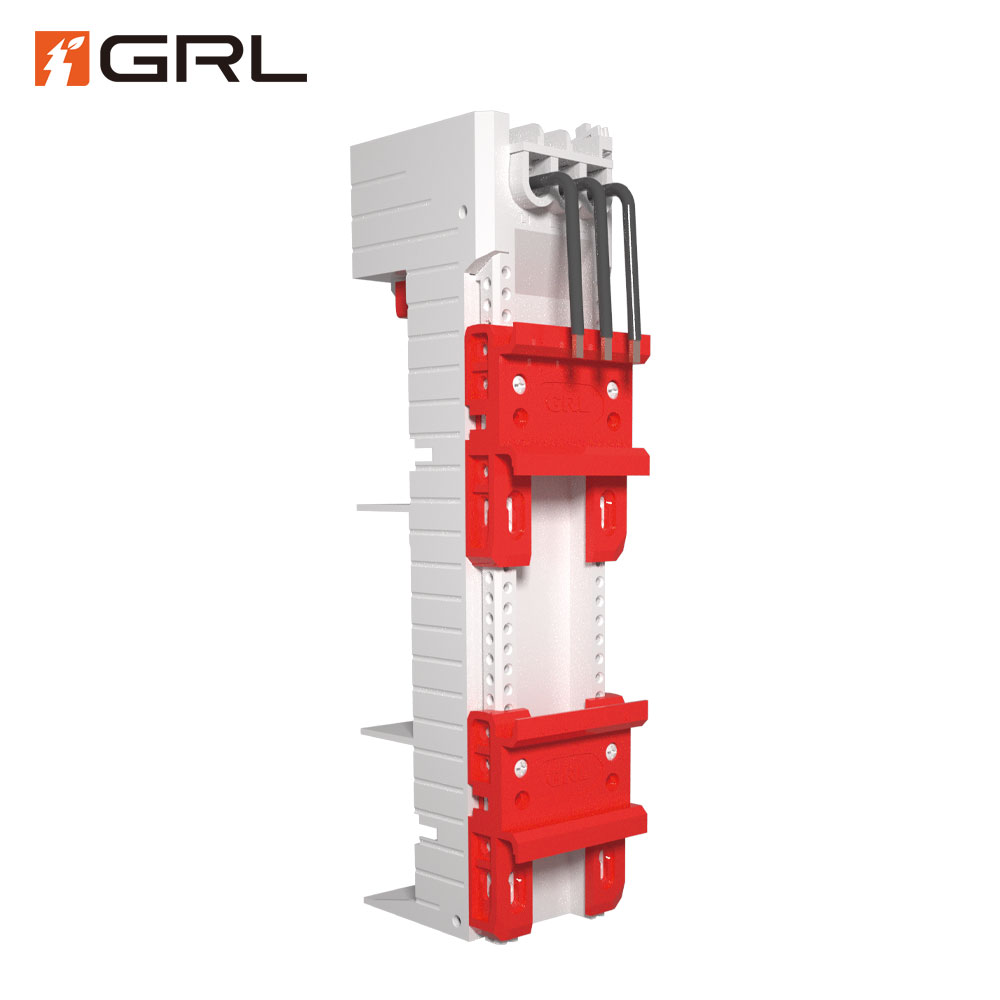

DN55345 45*200 with 2 supports

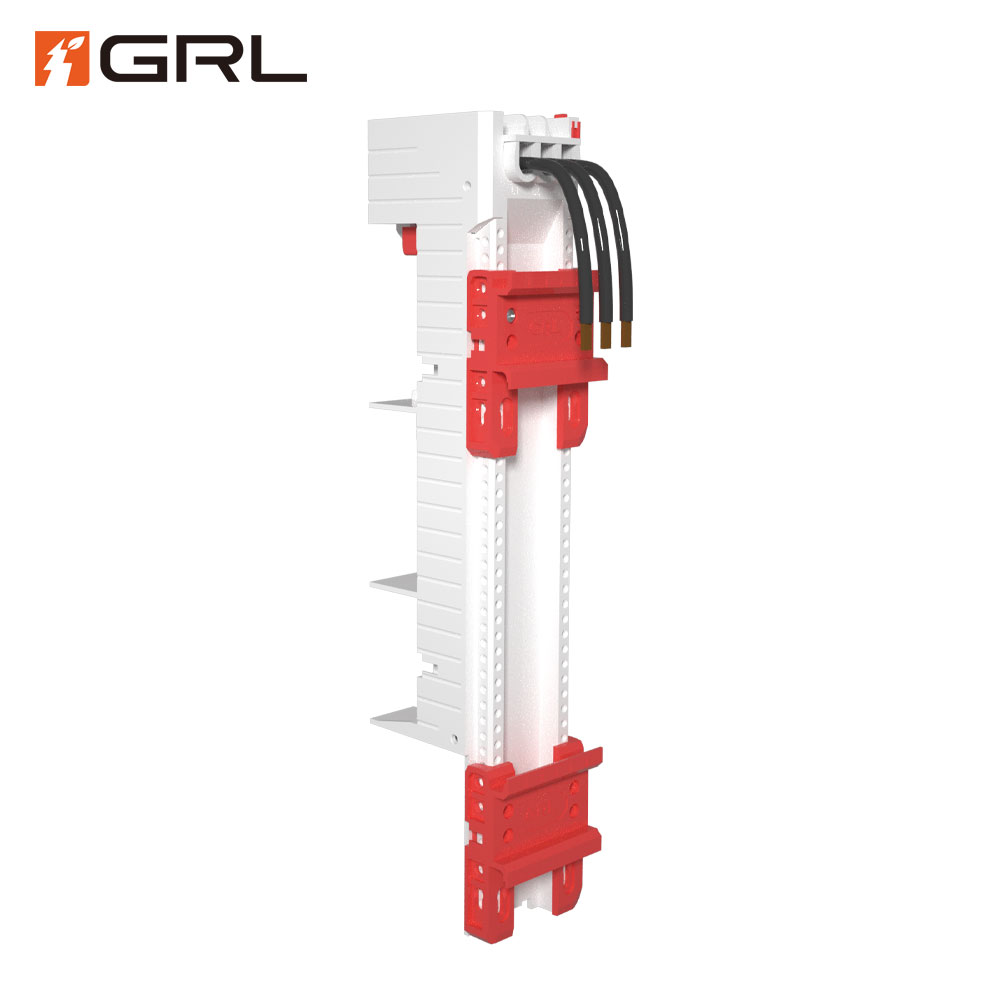

DN55346 45*260 with 2 supports

3Pole with cable

Breaker Adaptor 16A 3P

Suitable MCB: GV2 series+LC1 series, MS116 series+AX series, 3RV series+ 3TF series

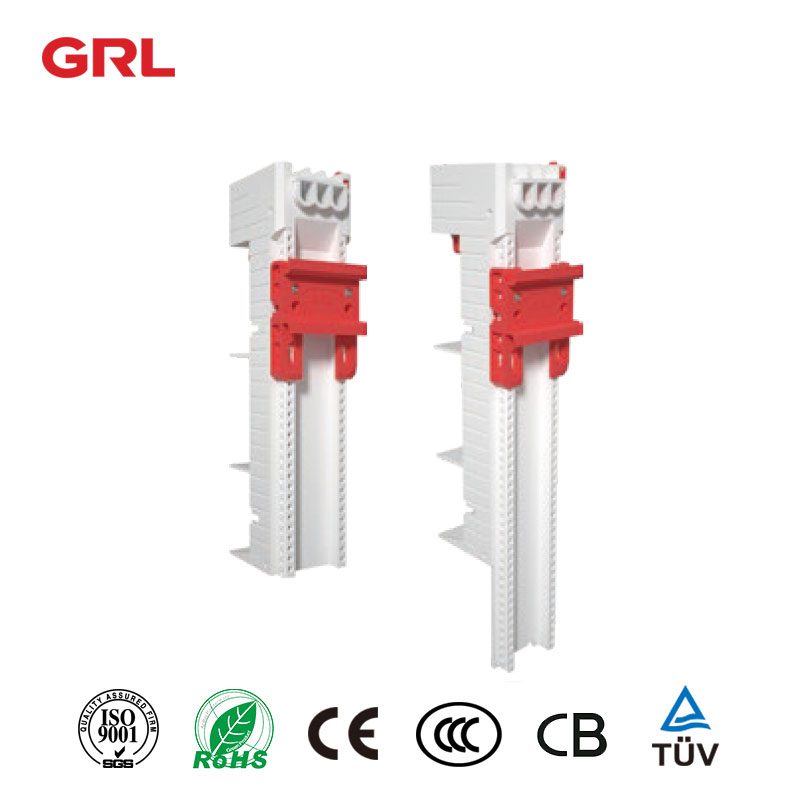

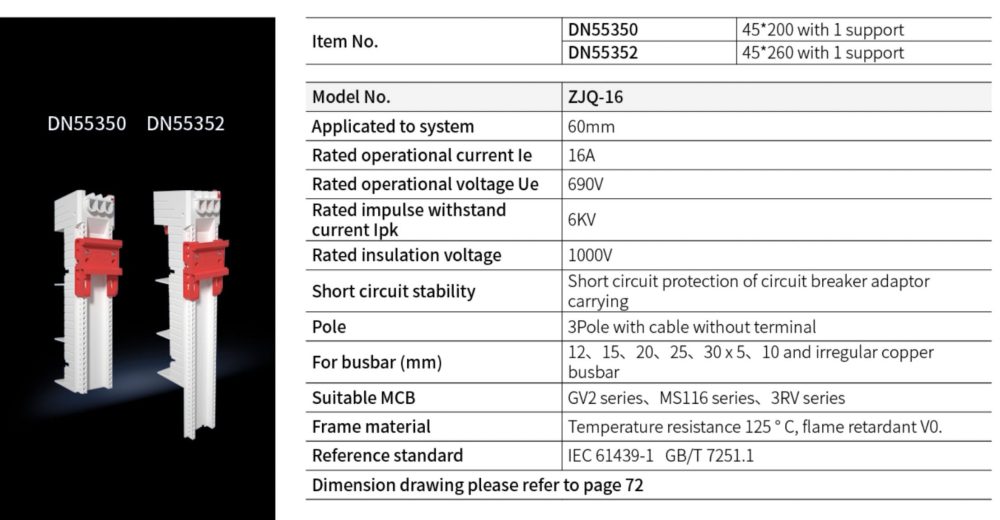

DN55350 45*200 with 1 support

DN55352 45*260 with 1 support

3Pole with cable without terminal

Breaker Adaptor 16A 3P

Suitable MCB: GV2 series, MS116 series, 3RV series

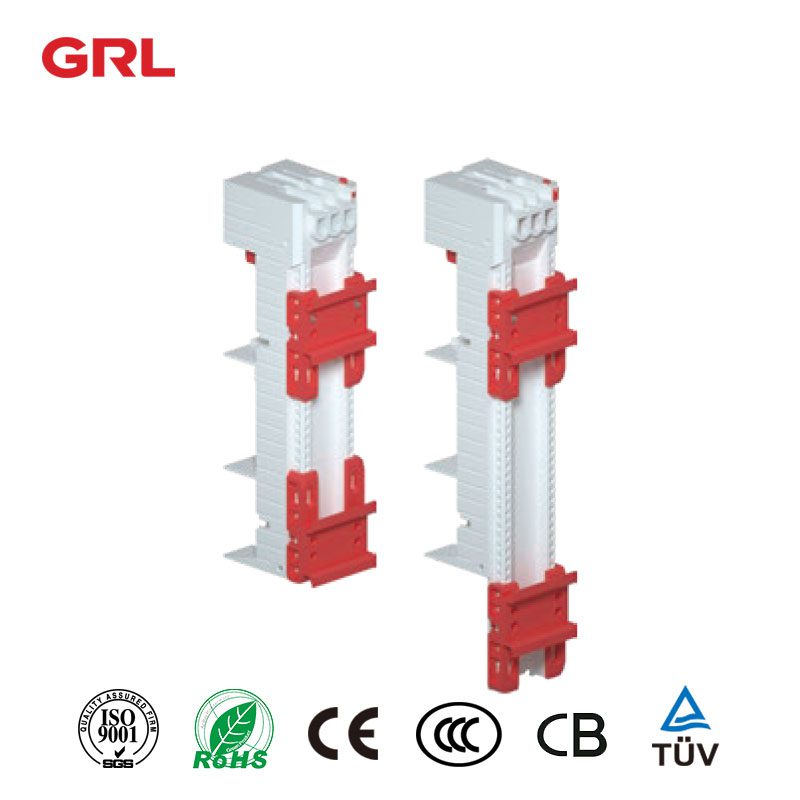

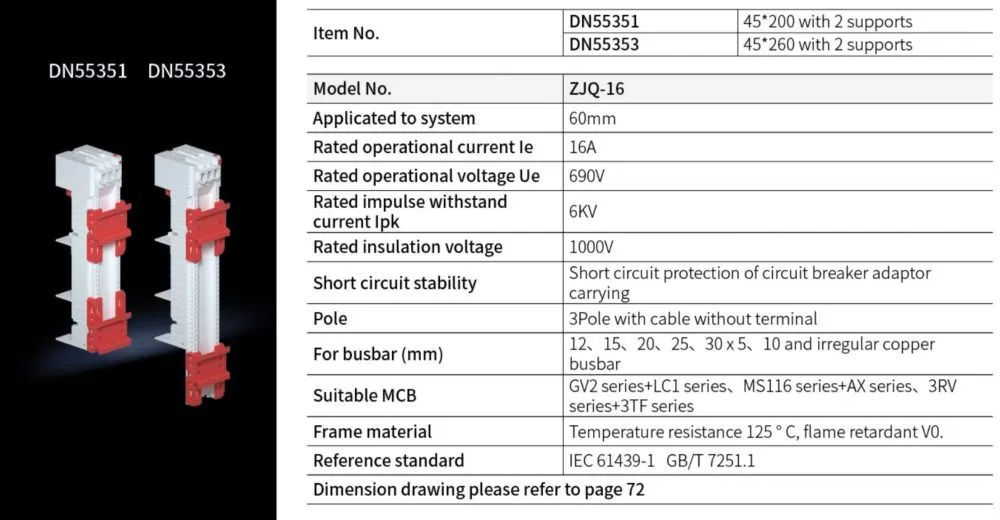

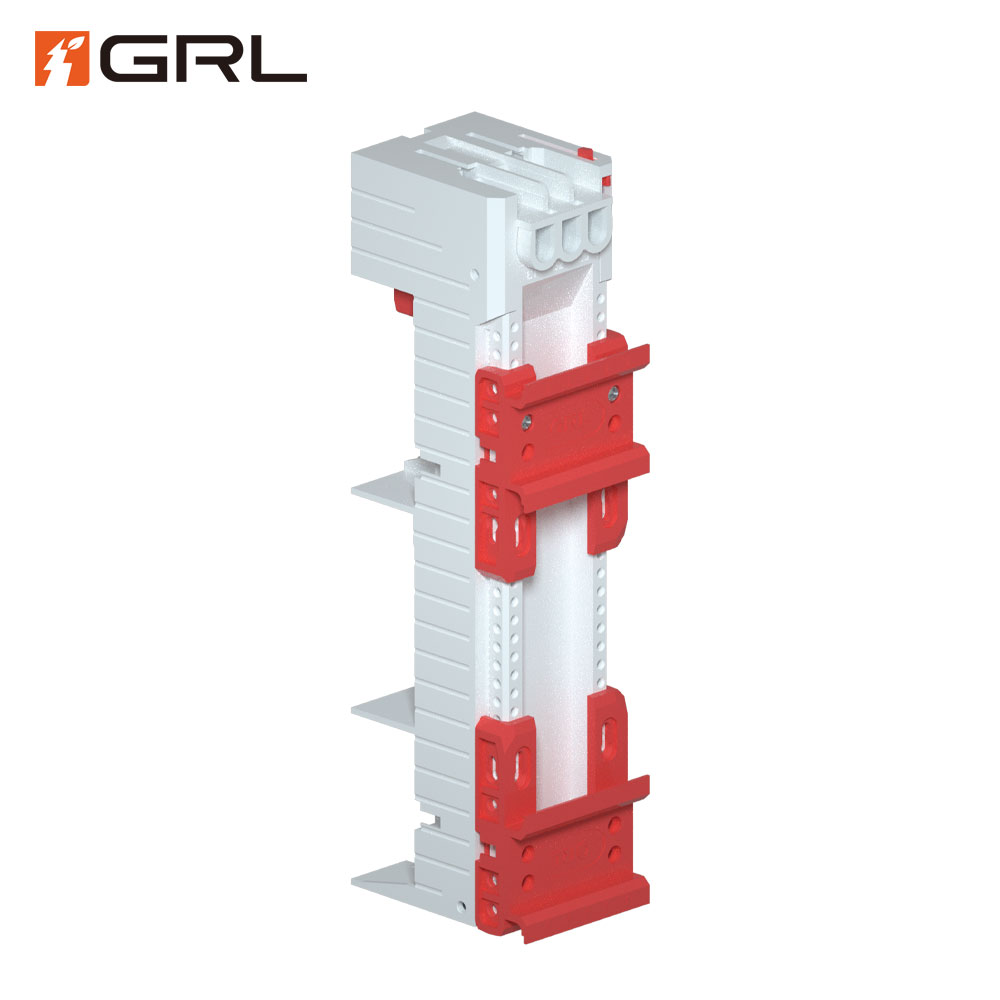

DN55351 45*200 with 2 supports

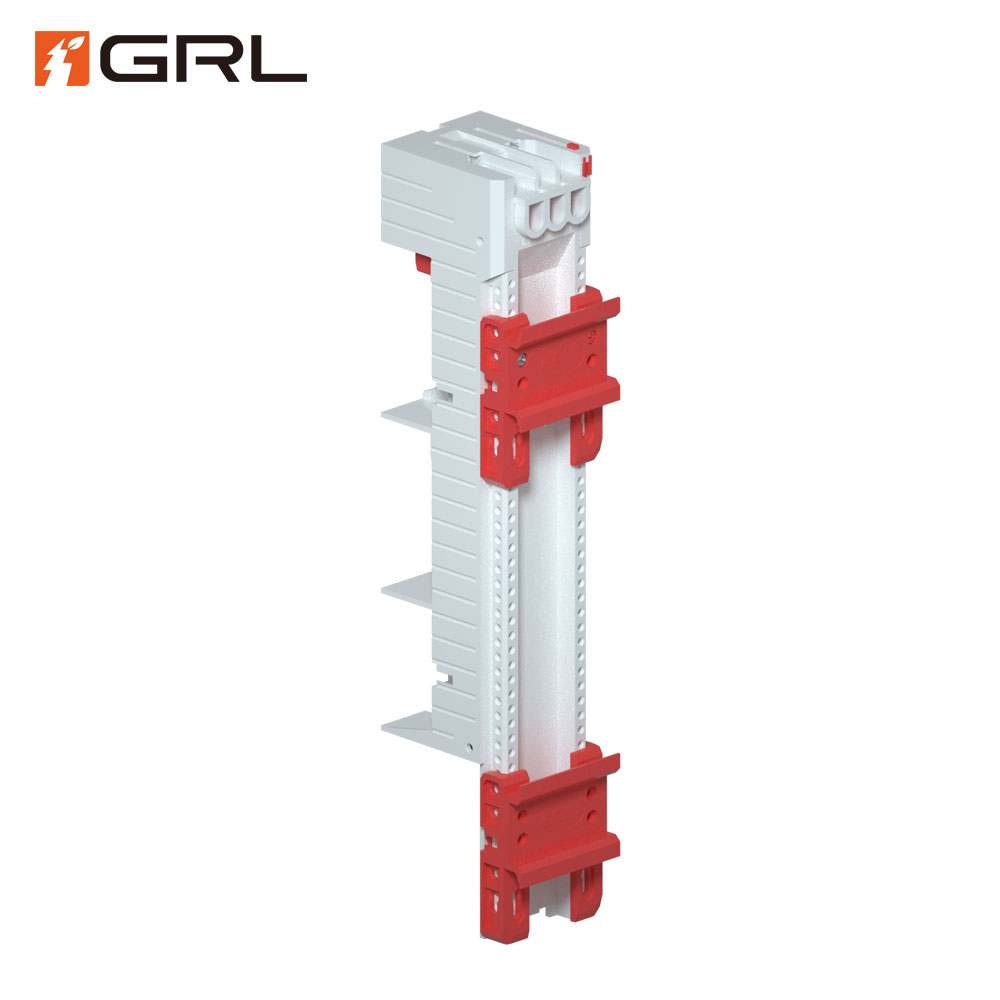

DN55353 45*260 with 2 supports

3Pole with cable without terminal

Breaker Adaptor 16A 3P

Suitable MCB: GV2 series+LC1 series, MS116 series+AX series, 3RV series+ 3TF series

ZJQ-16 busbar protection system is the perfect solution to protect busbars from short circuit damage. The system uses a circuit breaker adapter rated for 16 amps and 690 volts, making it ideal for a variety of applications. The frame is made of temperature resistant 125℃ material, flame retardant V0 grade, to ensure your safety. The product also boasts a short circuit stability rating of 6kV, making it one of the most resilient products on the market. If you have any questions about this product, please feel free to contact us at [email protected].
