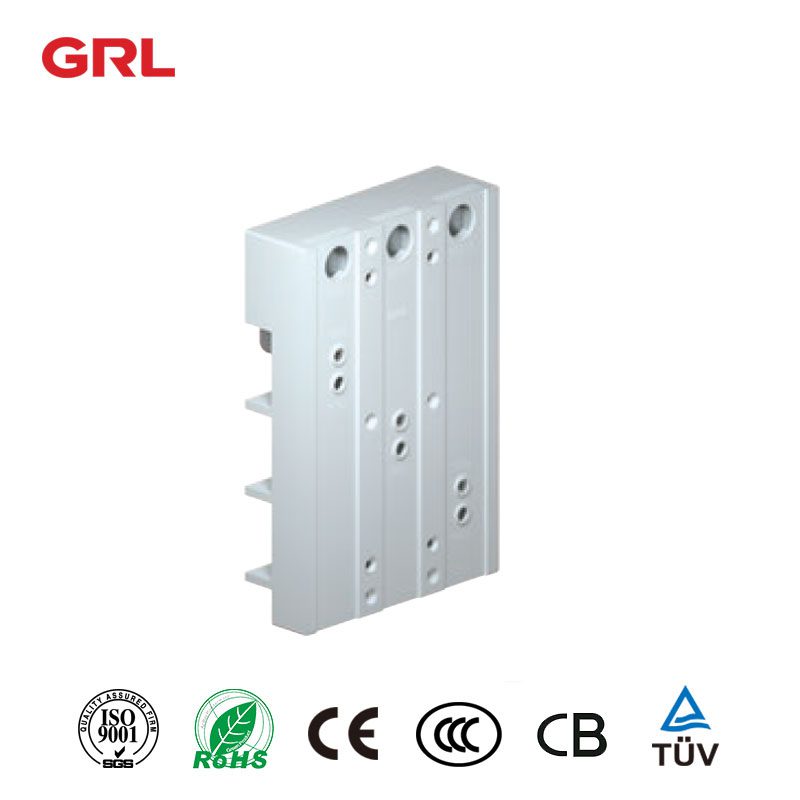

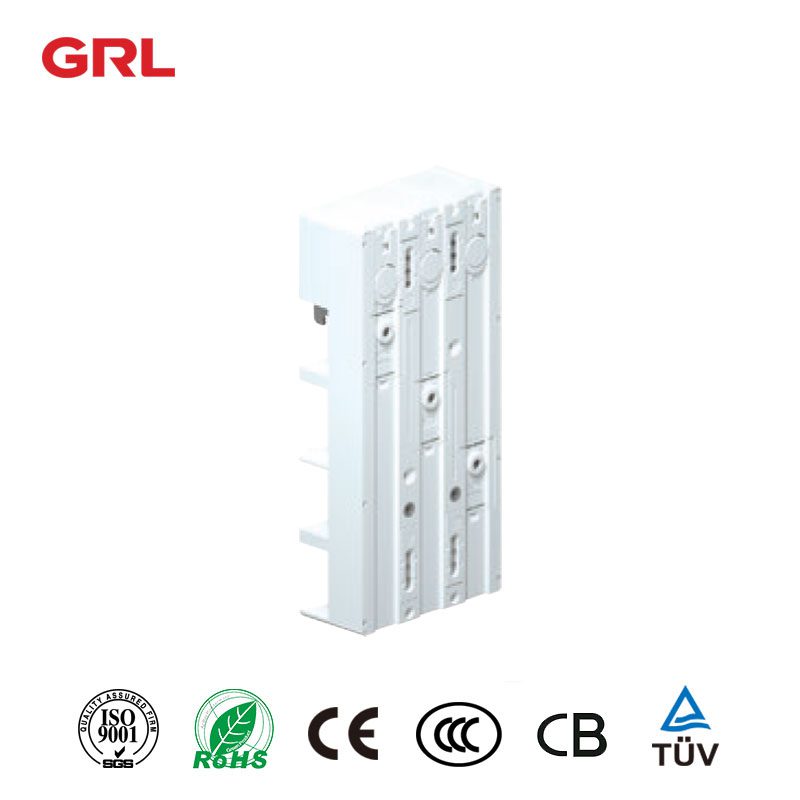

Busbar Systems, Breaker Adaptor, 630A & 800A 3P

Modle No.:

ZJQ-630, ZJQ-800

Rated operational current Ie:

630A, 800A

Rated operational voltage Ue:

690V

Rated impulse withstand current Ipk:

6KV

Rated insulation voltage:

1000V

System:

60mm

For busbar:

15, 20, 25, 30*10 Flat copper busbar & irregular copper busbar

Accessories:

DN28003 3Pole, Terminal accessory, with laminated copper & installation plate

Reference standard:

IEC 61439-1, GB/T 7251.1

Special requirement:

Front side connection type, Support connection at back side

Keywords:

Busbar Systems Breaker Adaptor 630A&800A 3P

Certification Contact Us

Description

This busbar system circuit breaker adapter is ideal for use with 630A and 800A busbar system circuit breakers. With its robust construction and ease of use, it is ideal for a variety of applications.

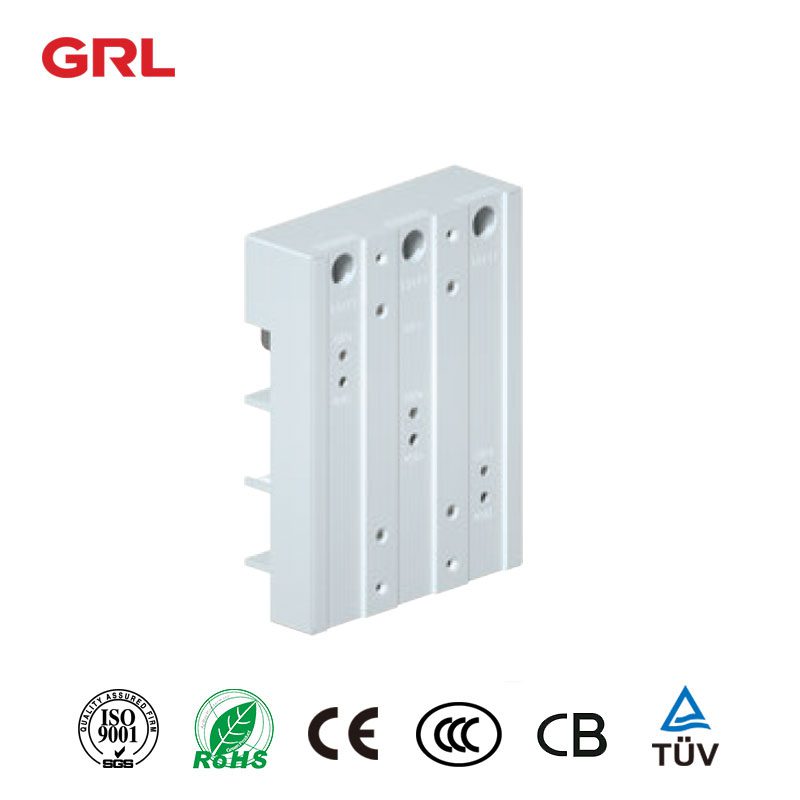

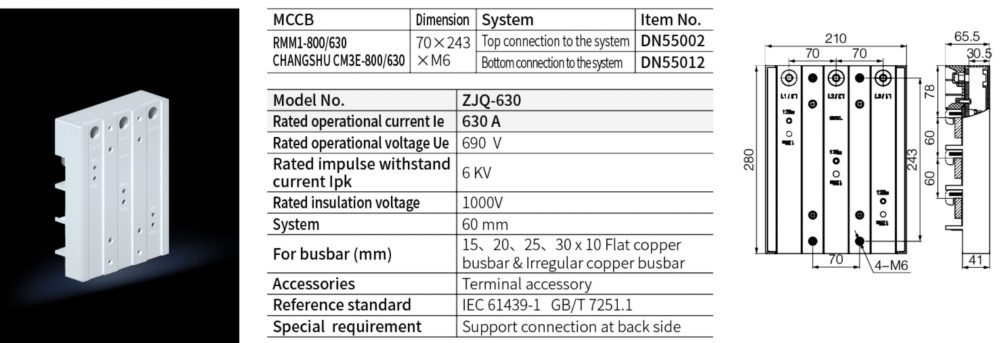

Dimension 70243M6

Busbar Systems

Breaker Adaptor

630A 3P

Breaker Adaptor Dimension 70*243*M6

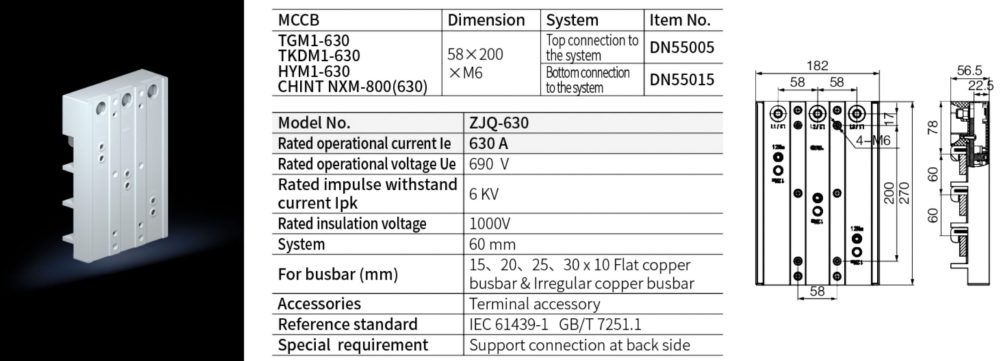

Dimension 58200M6

Breaker Adaptor

630A 3P

Breaker Adaptor Dimension 58*200*M6

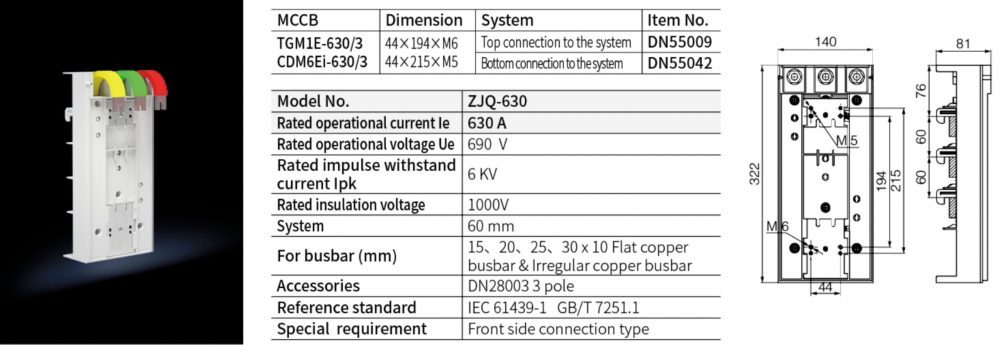

Dimension 44194M6, 44215M5

Breaker Adaptor

630A 3P

Breaker Adaptor Dimension 44*194*M6, 44*215*M5

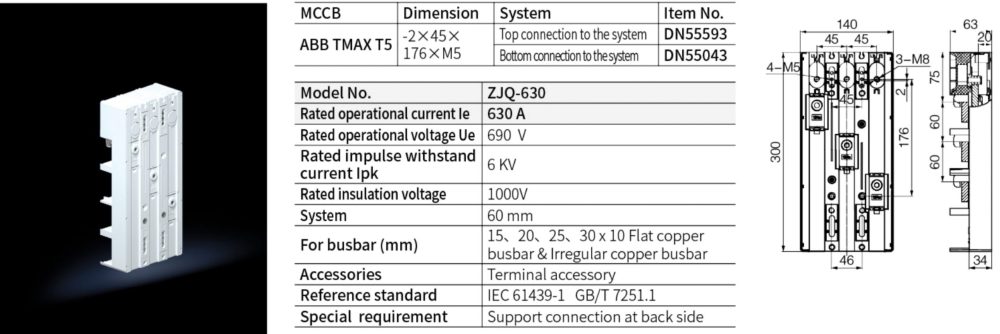

Dimension -245176*M5

Breaker Adaptor

630A 3P

Breaker Adaptor Dimension -2*45*176*M5

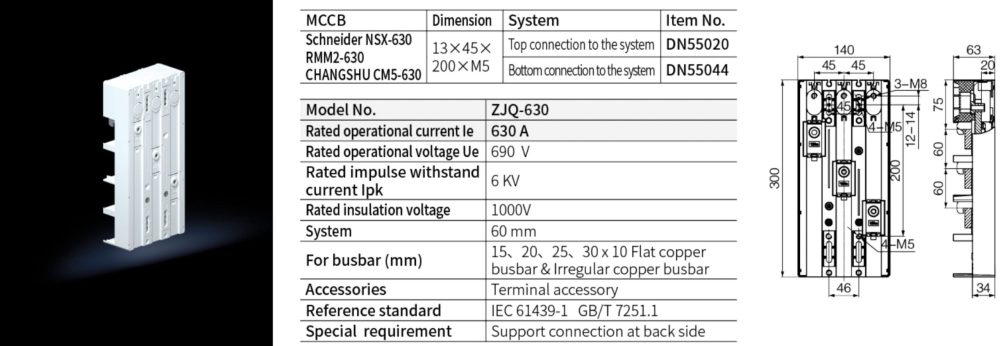

Dimension 1345200*M5

Breaker Adaptor

630A 3P

Dimension 13*45*200*M5 Breaker Adaptor

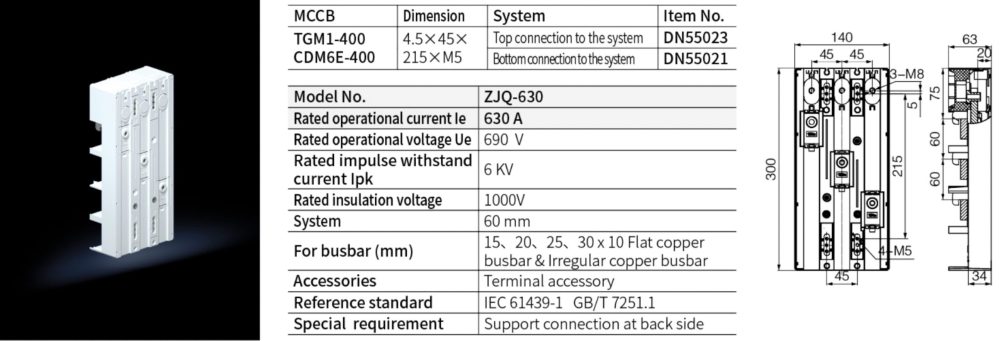

Dimension 4.545215*M5

Breaker Adaptor

630A 3P

Breaker Adaptor Dimension 4.5*45*215*M5

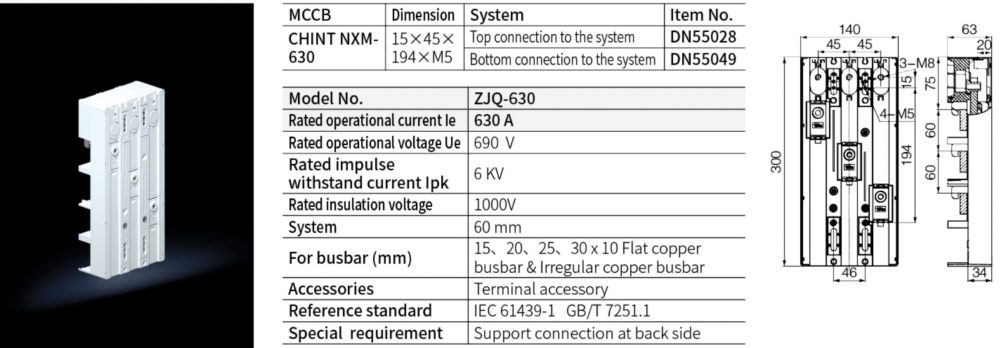

Dimension 1545194*M5

Breaker Adaptor

630A 3P

Breaker Adaptor Dimension 15*45*194*M5

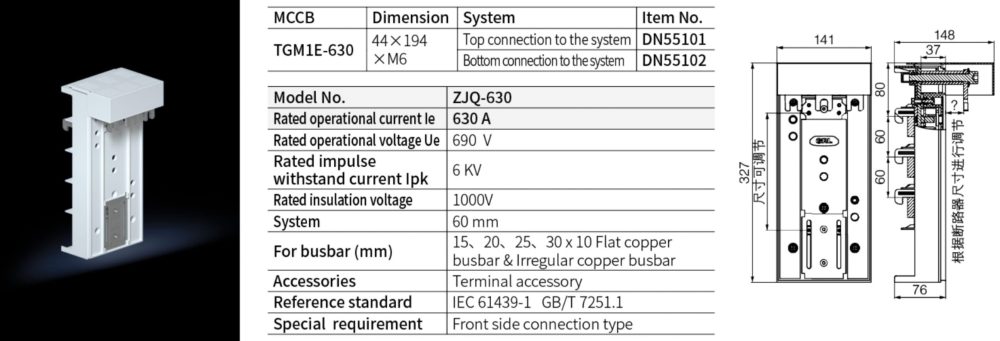

Dimension 44194M6

Breaker Adaptor

630A 3P

Breaker Adaptor Dimension 44*194*M6

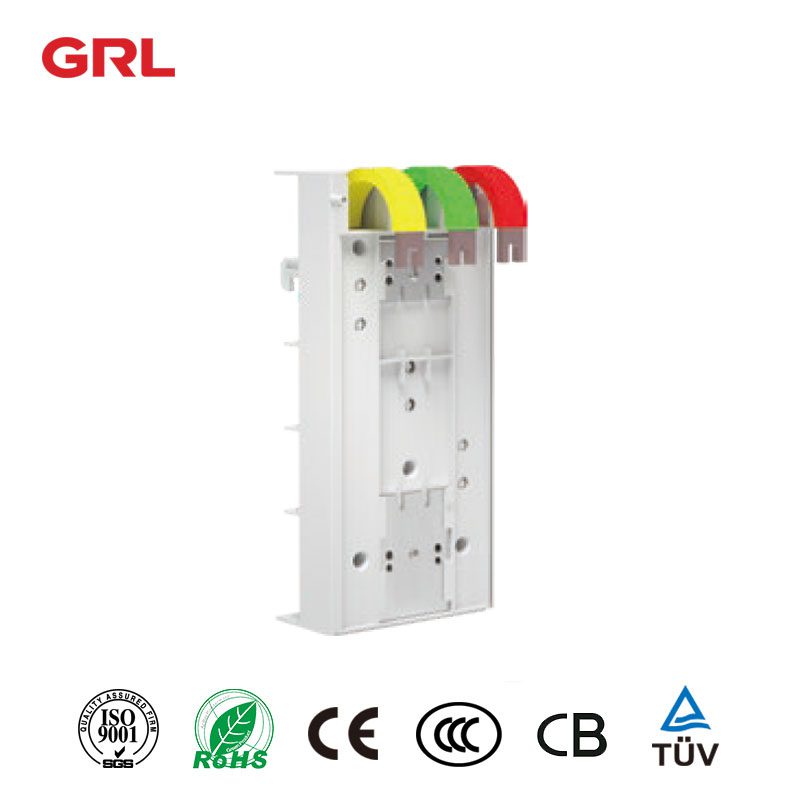

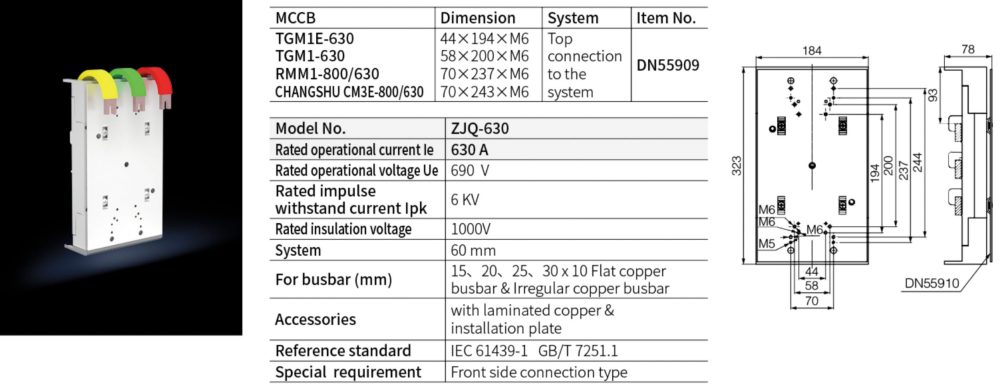

Dimension 44194M6, 58200M6, 70237M6, 70243M6

Breaker Adaptor

630A 3P

Breaker Adaptor Dimension 44*194*M6, 58*200*M6, 70*237*M6, 70*243*M6

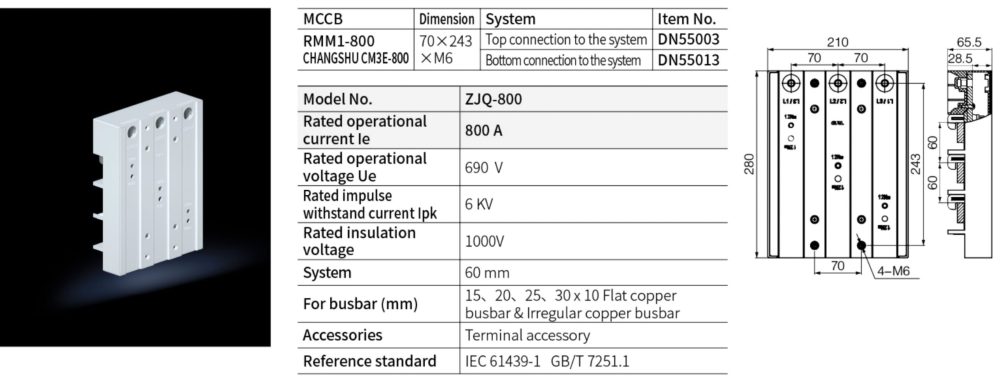

Dimension 70243M6

Panel Busbar System

Breaker Adaptor

800A 3P 60mm

Breaker Adaptor Dimension 70*243*M6

The Busbar System Breaker Adapter 630A&800A 3P is an electrical device that allows the use of standard plug-in circuit breakers on busbar systems. This product is ideal for electrical systems that require circuit breakers instead of fuses to protect equipment. The Busbar System Breaker Adapters 630A and 800A 3P make installation and maintenance of electrical systems easier and faster. If you have any questions please feel free to contact us at [email protected].
