Normal working conditions
- The air temperature is -5℃~+40℃, the average value within 24 hours should not be over 35℃.
- The relative humidity should not exceed 50% at max temperature +40℃, the higher relative humidity is permissible at lower temperature, for instance, 90% at +20℃, but the condensation will be produced due to temperature change, which should be considered.
- The altitude of mounting place should not exceed 2000m. Classification: IV.
- Inclination is not more than±23°.
- Pollution grade: 3.

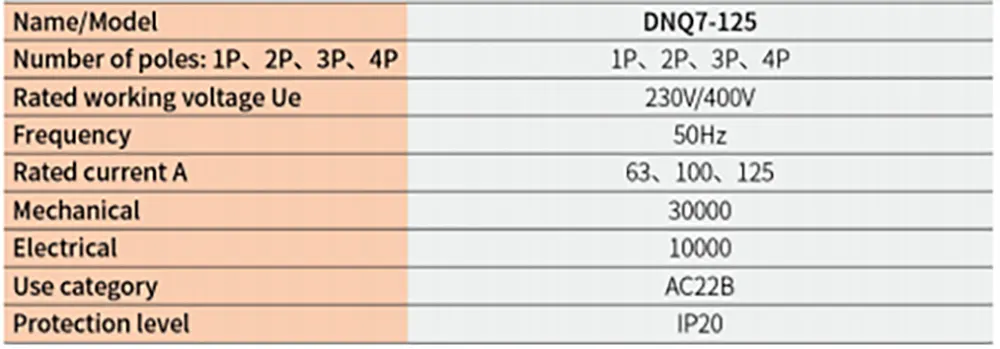

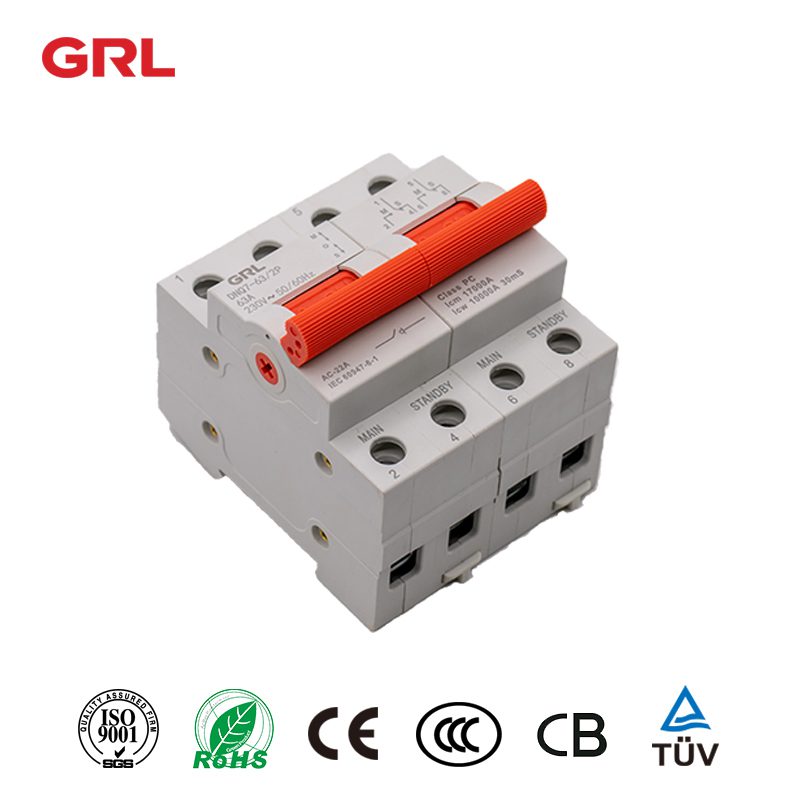

Technical Parameter
| Name/Model | DNQ7-125 |
| Number of poles:1P, 2P, 3P, 4P | 1P, 2P, 3P, 4P |
| Rated working voltage Ue | 230V/400V |
| Frequency | 50Hz |
| Rated current A | 63,100,125 |
| Mechanical | 30000 |
| Electrical | 10000 |
| Use category | AC22B |
| Protection level | IP20 |

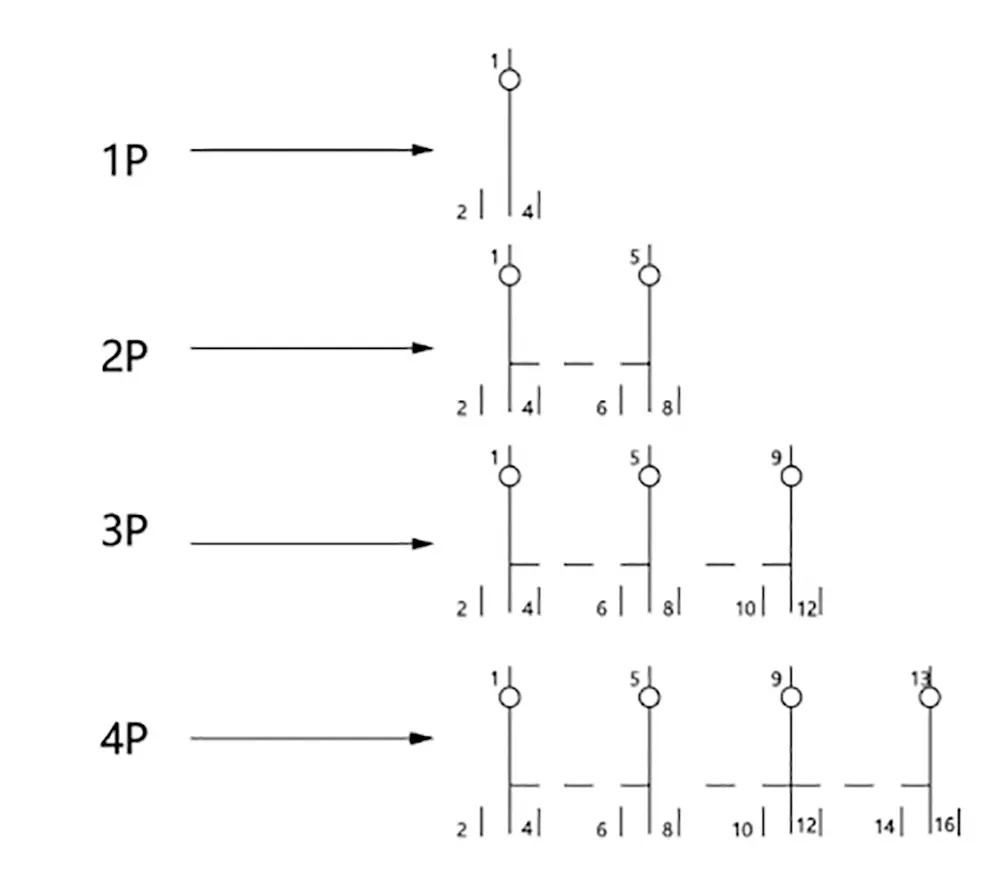

Switch wiring diagram

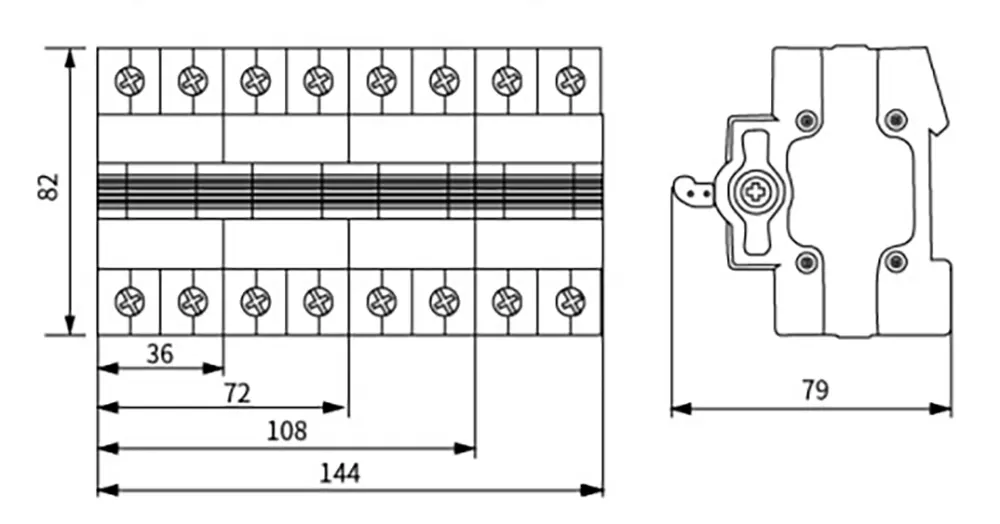

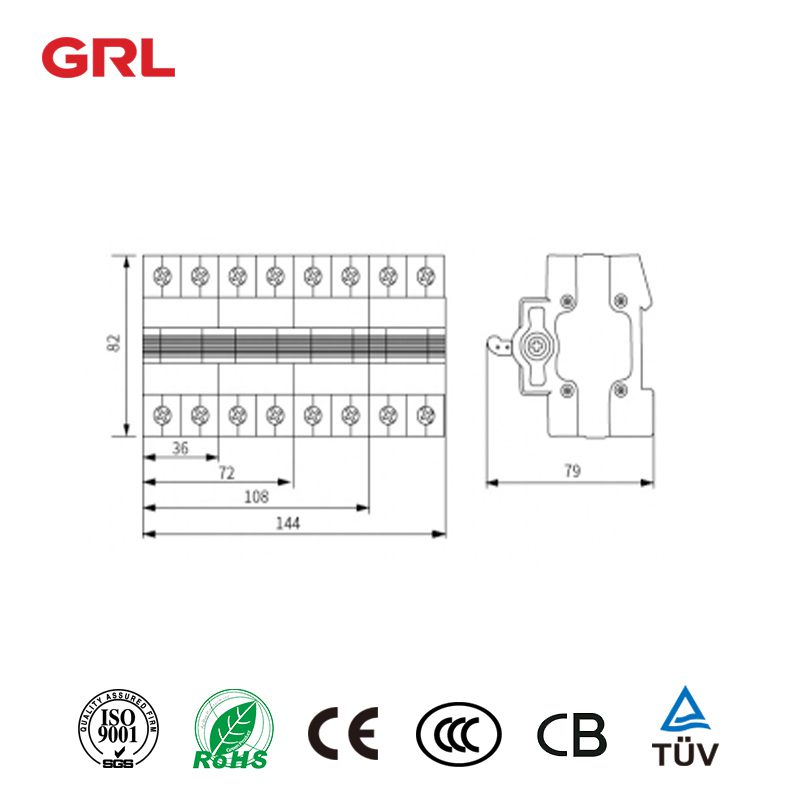

Shape and mounting dimensions
