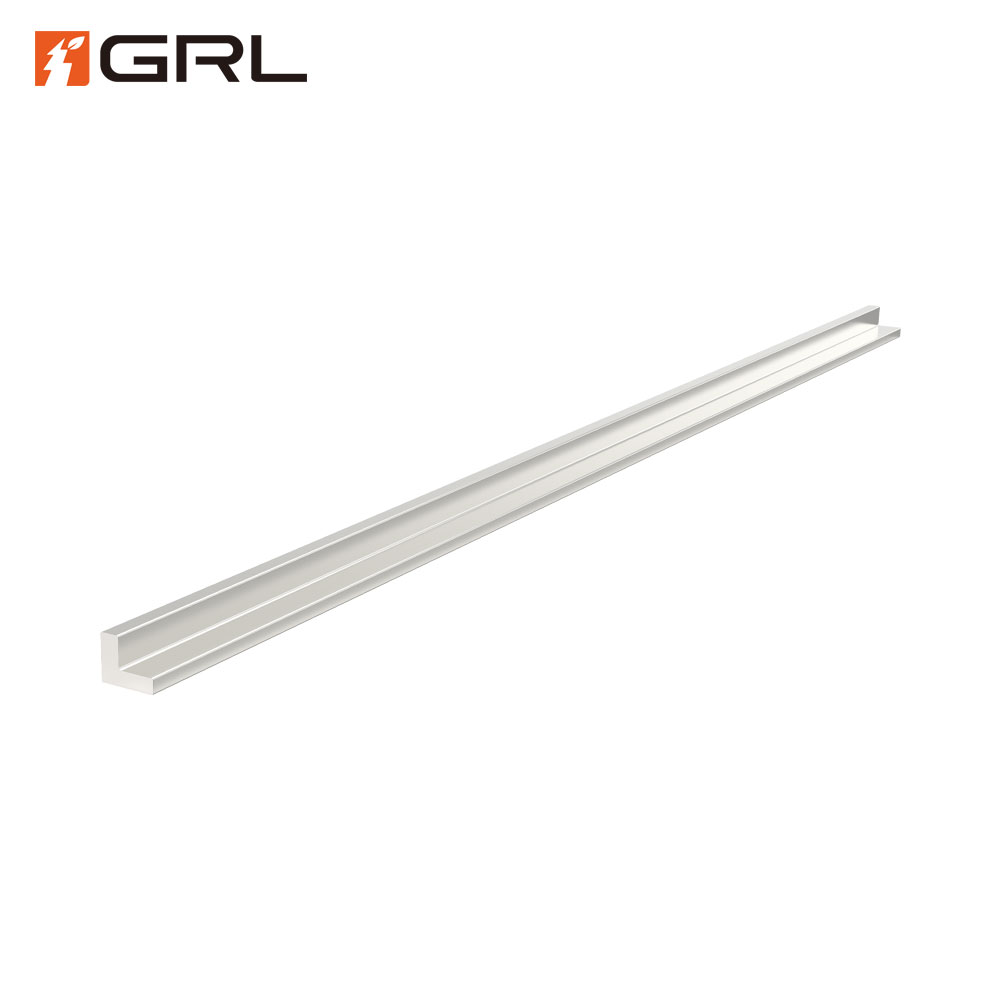

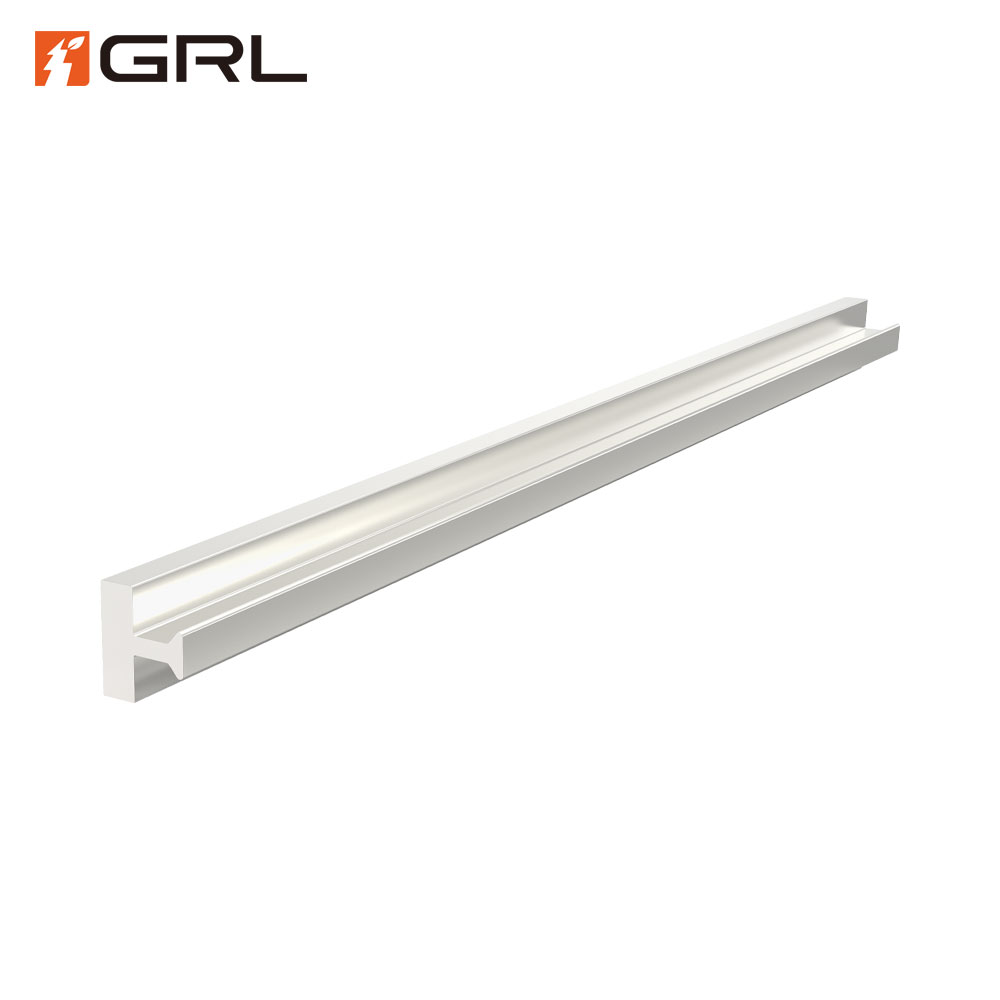

Non-Standard Customized Busbars

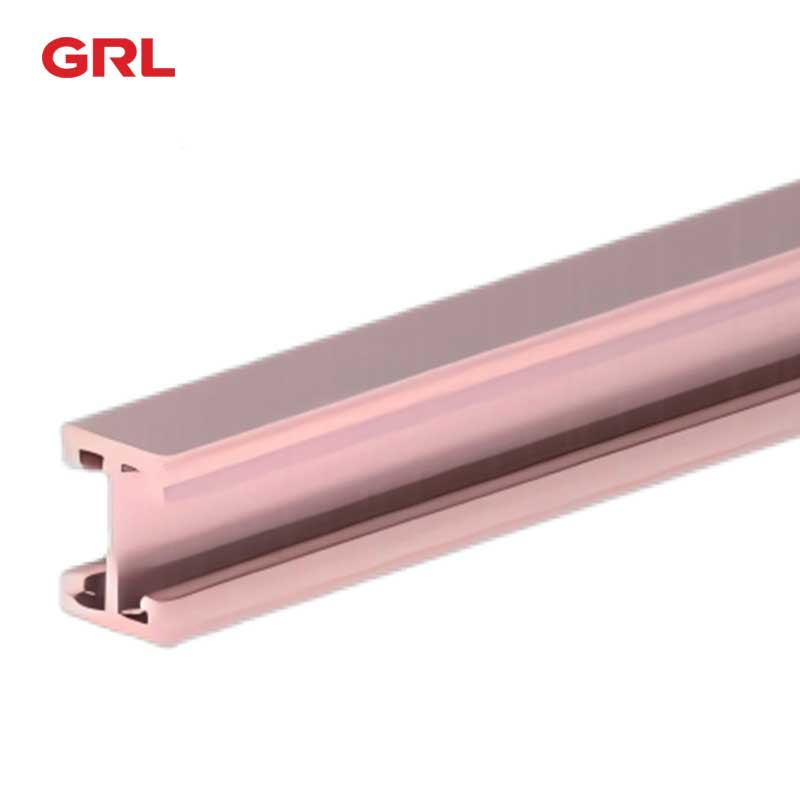

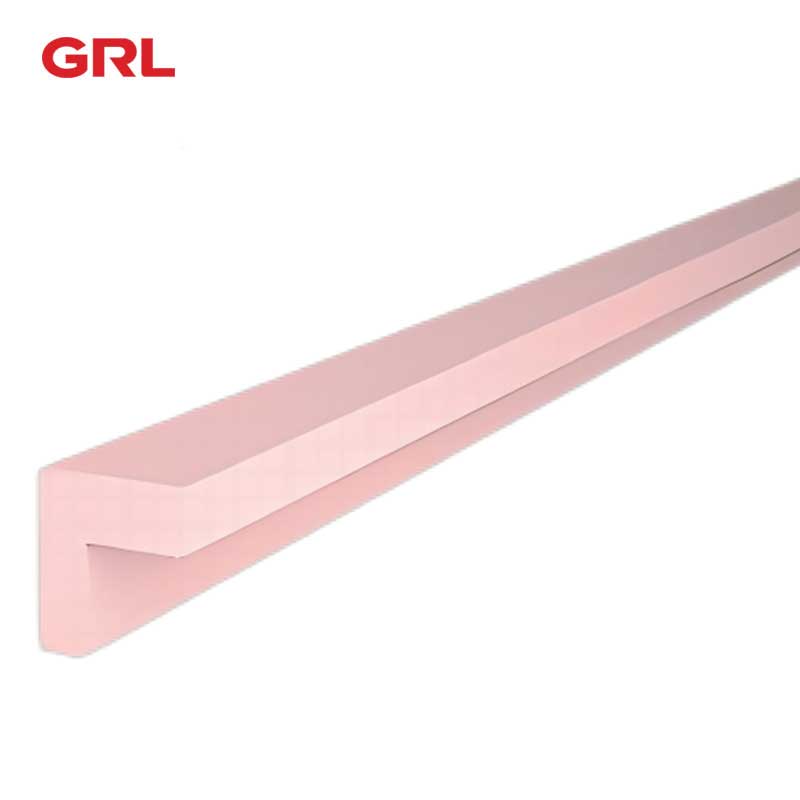

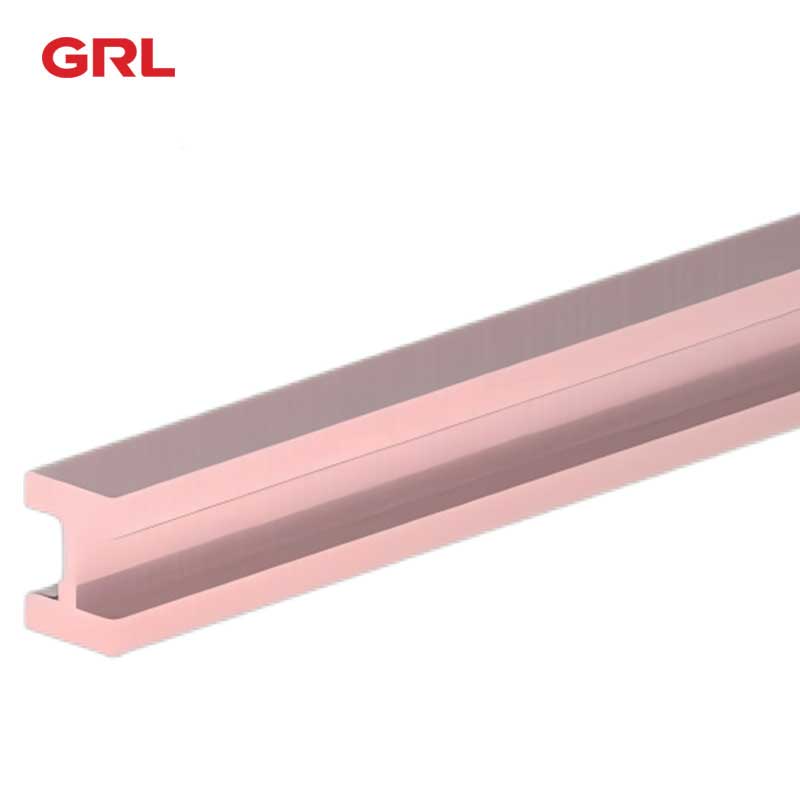

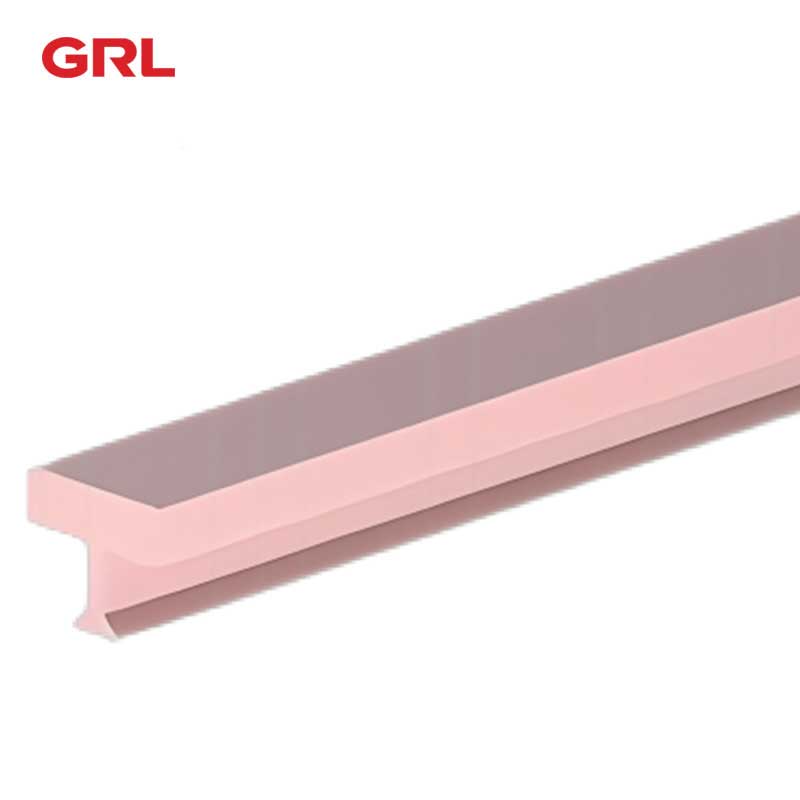

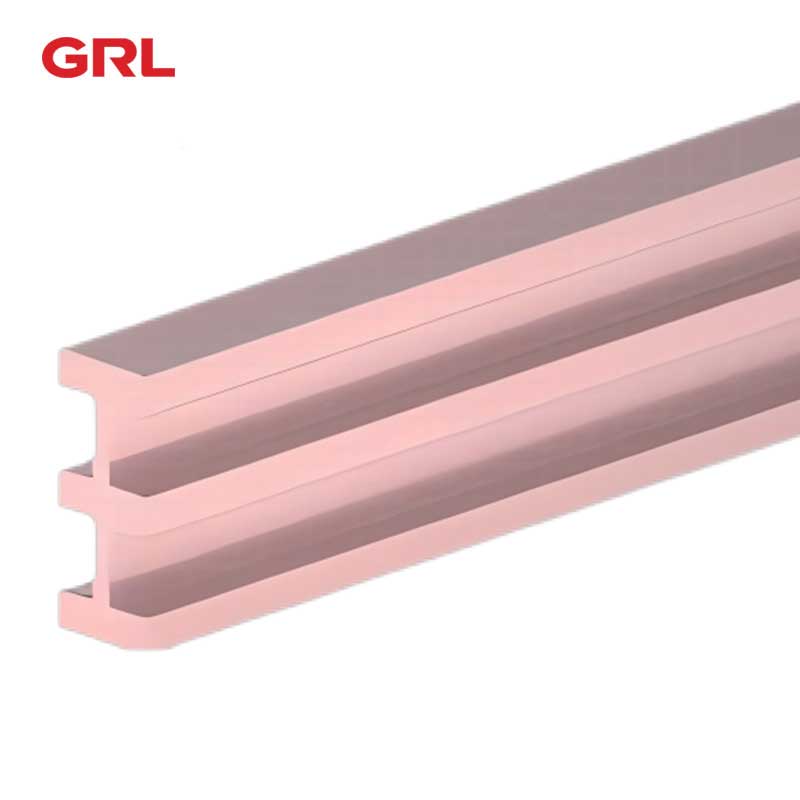

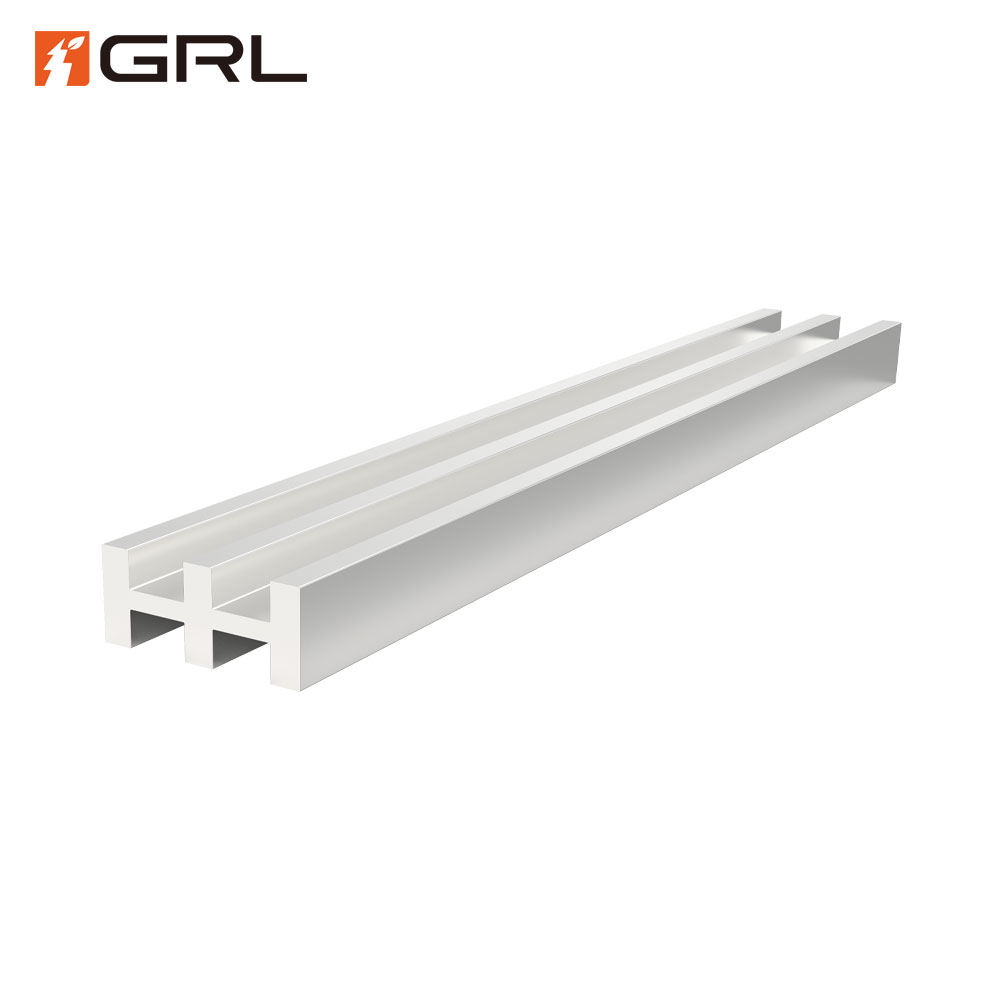

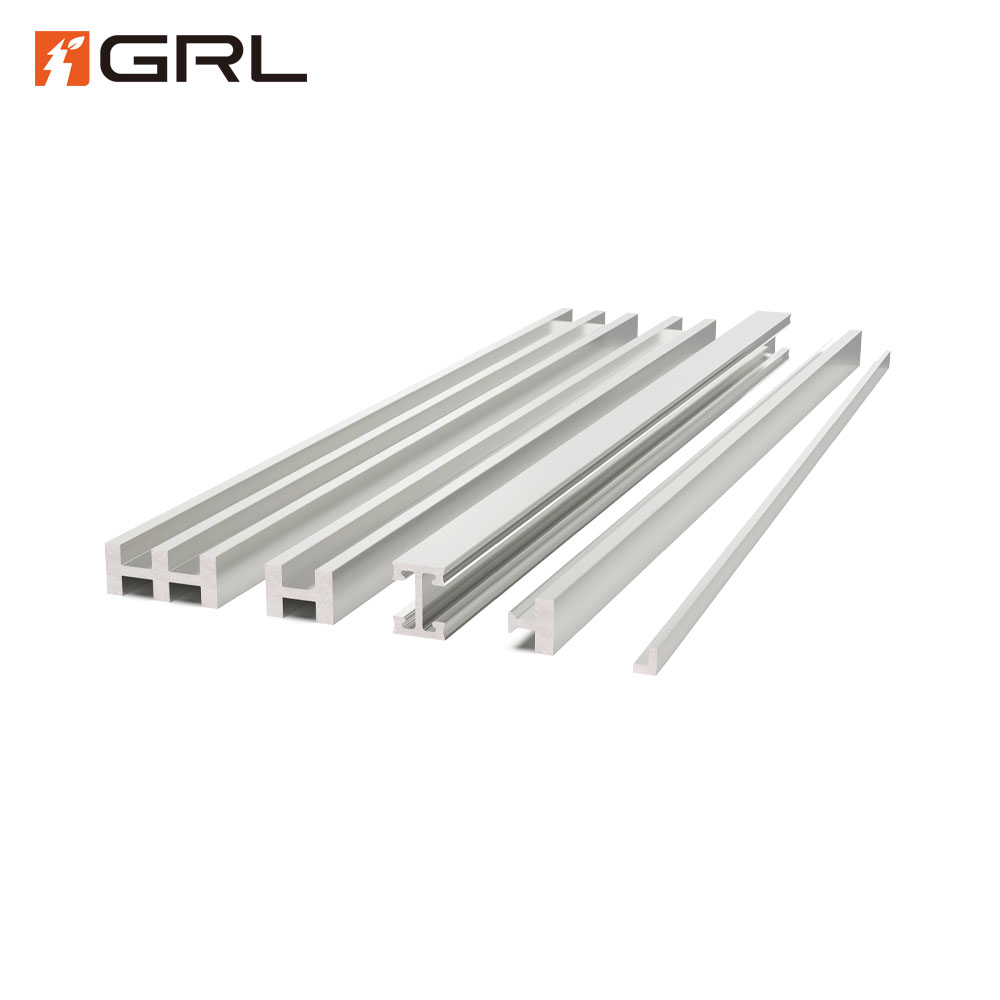

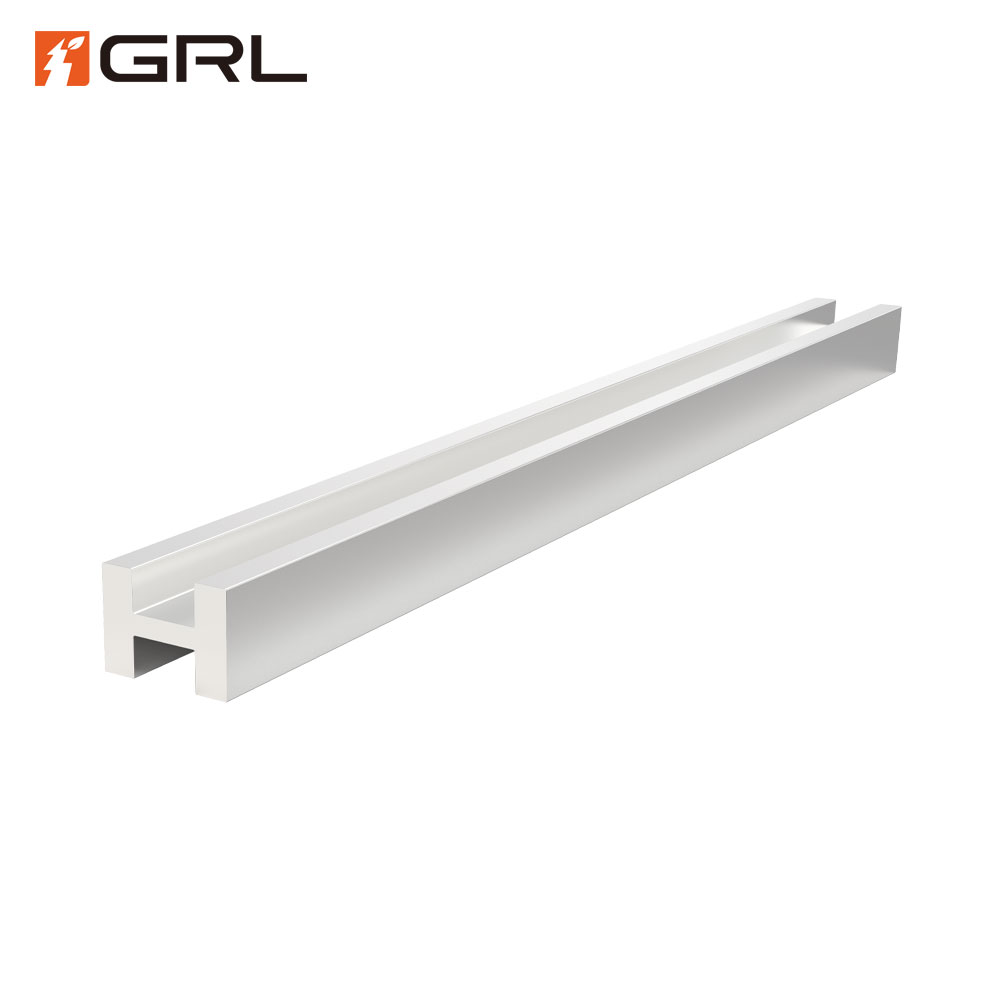

In the busbar system, system components can be directly installed on the busbar, which has both conductive and supporting functions. GRL’s busbar products are made of copper (T2) and include standard copper busbar, T-shaped busbar, 2T-shaped busbar, 3T-shaped busbar, soft busbar and other models, with cross-sectional areas ranging from 60mm² to 1600mm².

Certification Download PDF Contact Us

Description

Description

The busbar customization service can provide a variety of choices in shape, size, material, etc. according to the special needs and project requirements of customers. The high-precision processing technology is used to ensure that the busbar has excellent conductivity and mechanical strength, while optimizing space utilization to meet customers’ stringent requirements for personalized electrical solutions.

Technical Specifications

Section (mm²) × Length (mm)	Current load capacity Bus temperature 65℃
100×2400	320

Customized Busbars

400X3600	850
400X2400
400X790
400X650
400X590
400X450

Non-Standard-Busbar-size2

500X3600	1250
500X2400
500X790
500X650
500X590
500X450

Non-Standard-Busbar-size3

720X3600	1600
720X2400
720X790
720X650
720X590
720X450

Non-Standard-Busbar-size4

1140X3600	2500
1140X2400
1140X790
1140X650
1140X590
1140X450

Non-Standard-Busbar-size5
