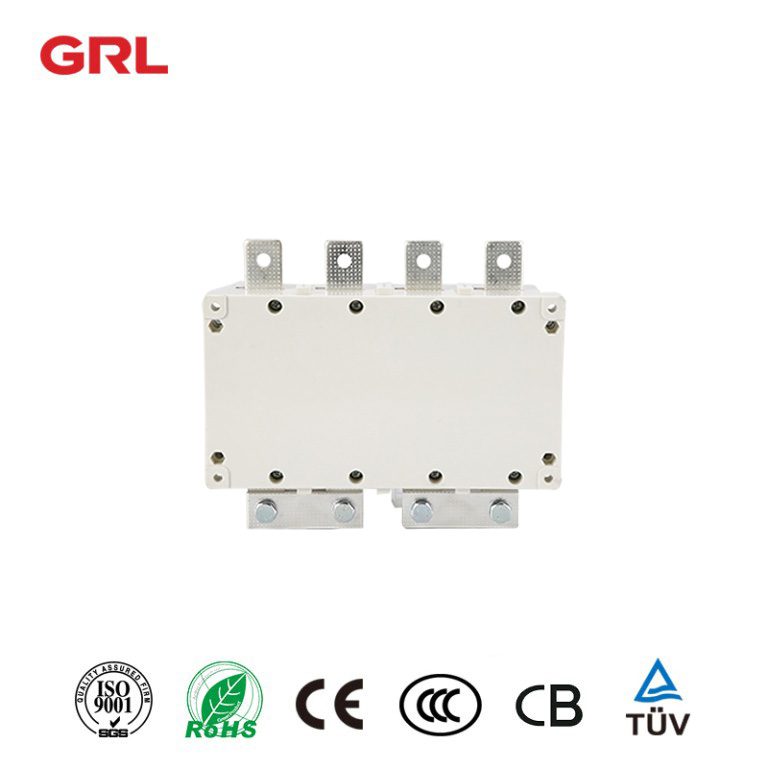

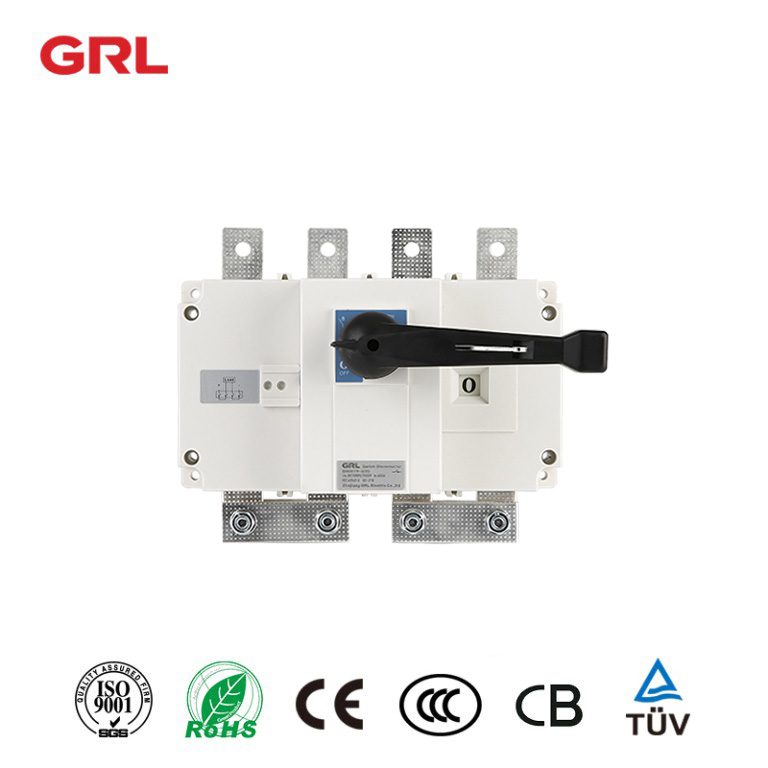

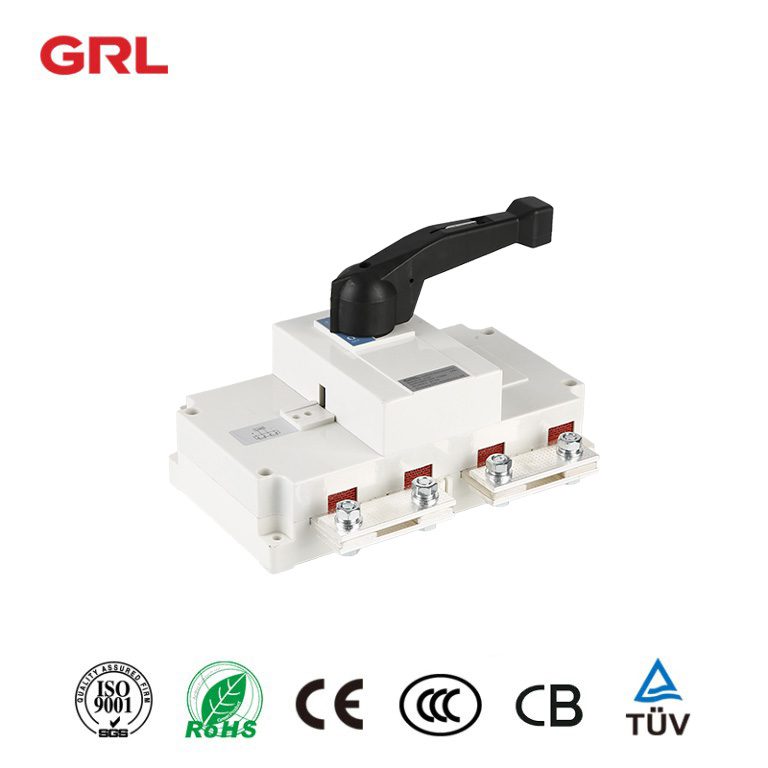

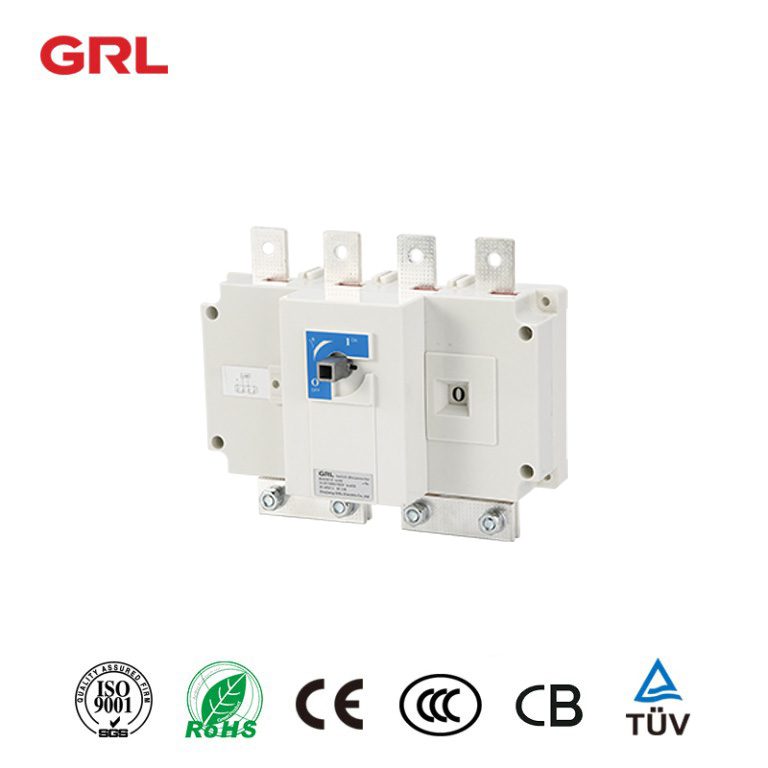

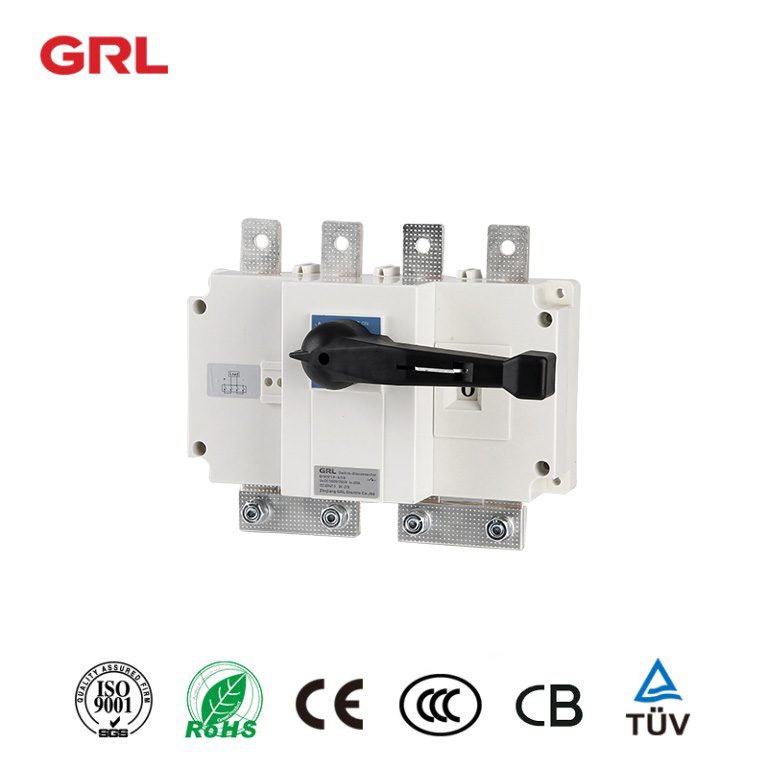

Mode：DNH19
Current：250A，400A，1250A
Voltage：DC1000V，DC1500V
Certificate：CE，CB
Email: [email protected]
1.Product Drawings
2.Parameters
3.The Components
4.Certificate

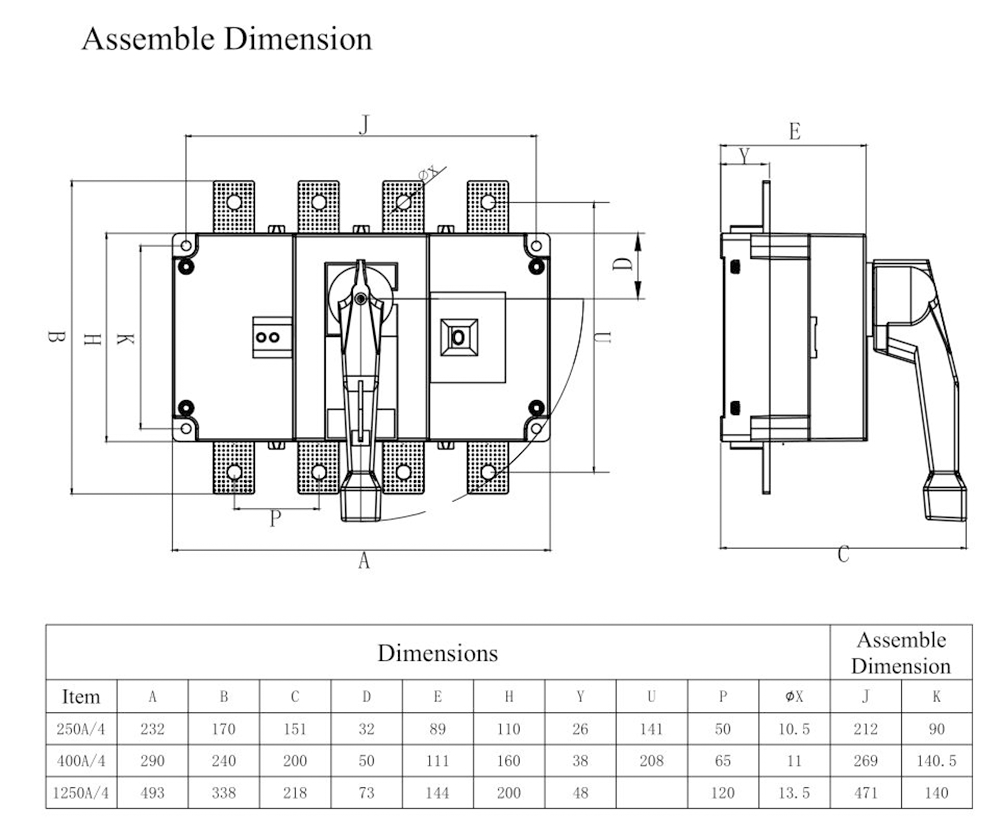

DNH19 series DC1000V 1500V Switch Disconnectors Product Drawings
DNH19 series DC1000V 1500V Switch Disconnectors parameters
| Electrical Parameters | |||
| Conventional Thermal Current Ith (A) | 250 | 400 | 1250 |
| Use Category | DC-21B | DC-21B | DC-21B |
| Rated Operation Votage Ue (DC) | 1000（1500） | 1000（1500） | 1000 |
| Rated Opreation Current Ie (A) | 250 | 400 | 1250 |
| Rated insulation voltage Ui (V) | 1600 | 1600 | 1600 |
| Circuits | 1 | 1 | 1 |
| Rated Short-time withstand current Icw（kA eff）IS | 5 | 12.6 | 30 |
| Rated Short-Current Making Capability Icw(kA)50ms | 9 | 17 | 63 |
| Rated surge-resistant voltage Uimp(KV) | 12 | 12 | 12 |
| Mechanical Parameter | |||
| Mechanical life（No load ） | 7000 | 7000 | 7000 |
| Electrical life（Loading times） | 200 | 200 | 200 |
| Operating torque（Nm） | 12 | 16 | 38 |
| Connection Parameters | |||
| Standard copper（mm²） | 120 | 22*150 | 2*500 |
| Standard copper width（mm） | 25 | 32 | 80 |
| Screw torque Min（Nm） | 20 | 20 | 20 |
| Screw torque Max（Nm） | 26 | 26 | 26 |
The components of the DNH19 series DC1000V 1500V Switch Disconnectors
> GRL DNH19 series DC1000V 1500V Switch Disconnectors ,The DNH19 range of switch-disconnectors from 100A to 1250A is specially designed for DC applications.
The DNH19 switch-disconnectors are designed to offer efficient and reliable performance even in high ambient temperatures and harsh environmental conditions. They are virtually maintenance-free. The unique contact design results in a lower temperature rise.
The HD13 Knife changeover switch is suitable for distribution panels at AC 50HZ ,rated voltage up to AC690V and rated ampere t to 3150A. Used for infrequently manually closing and breaking current circuits, or disconnector switches.With a middle operate handle, the switch is mainly applied in power system, be worked as a load break switch ,don’t cut off the circuit with current.
