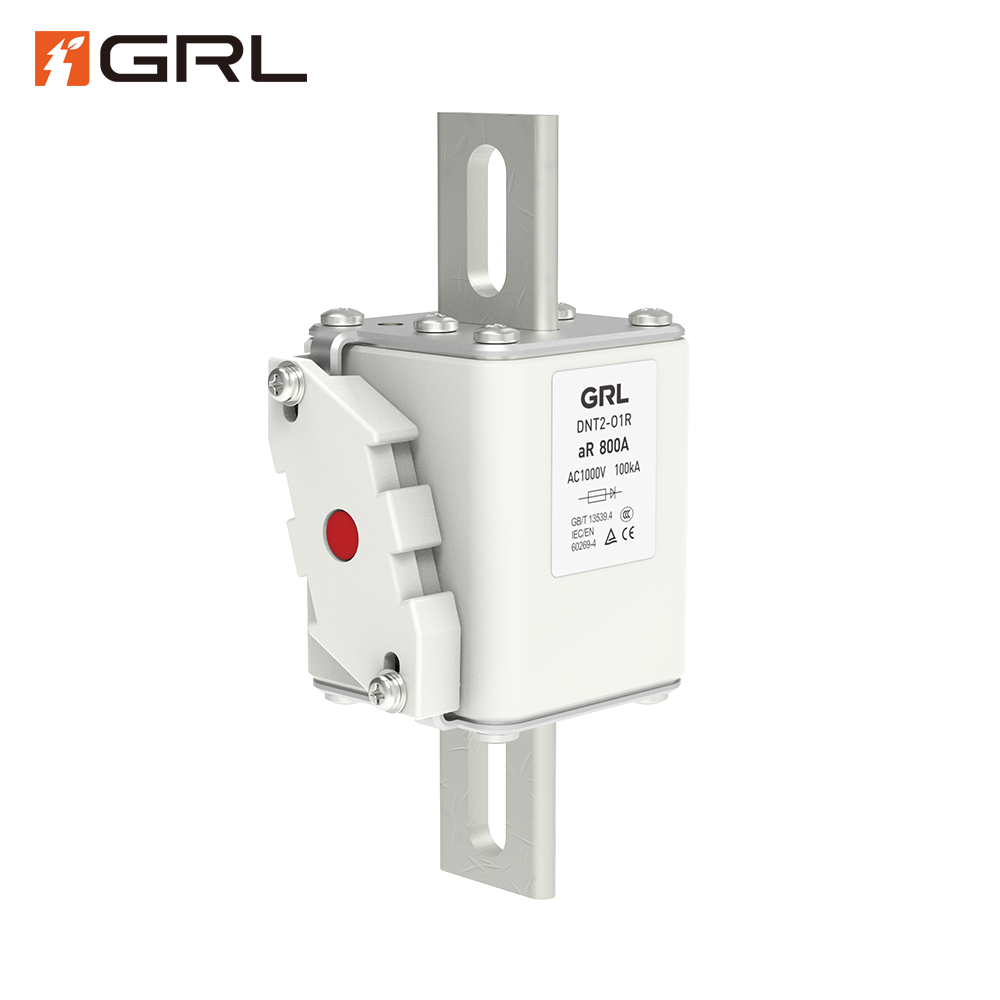

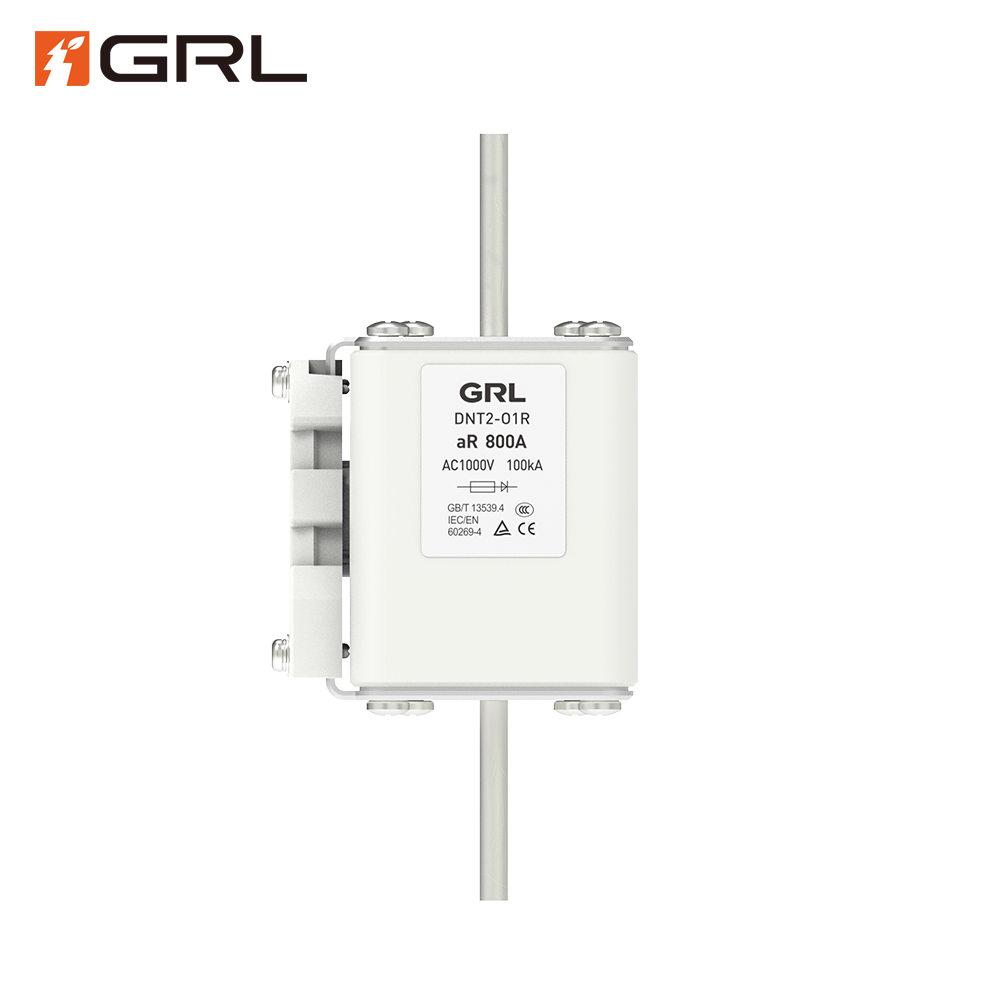

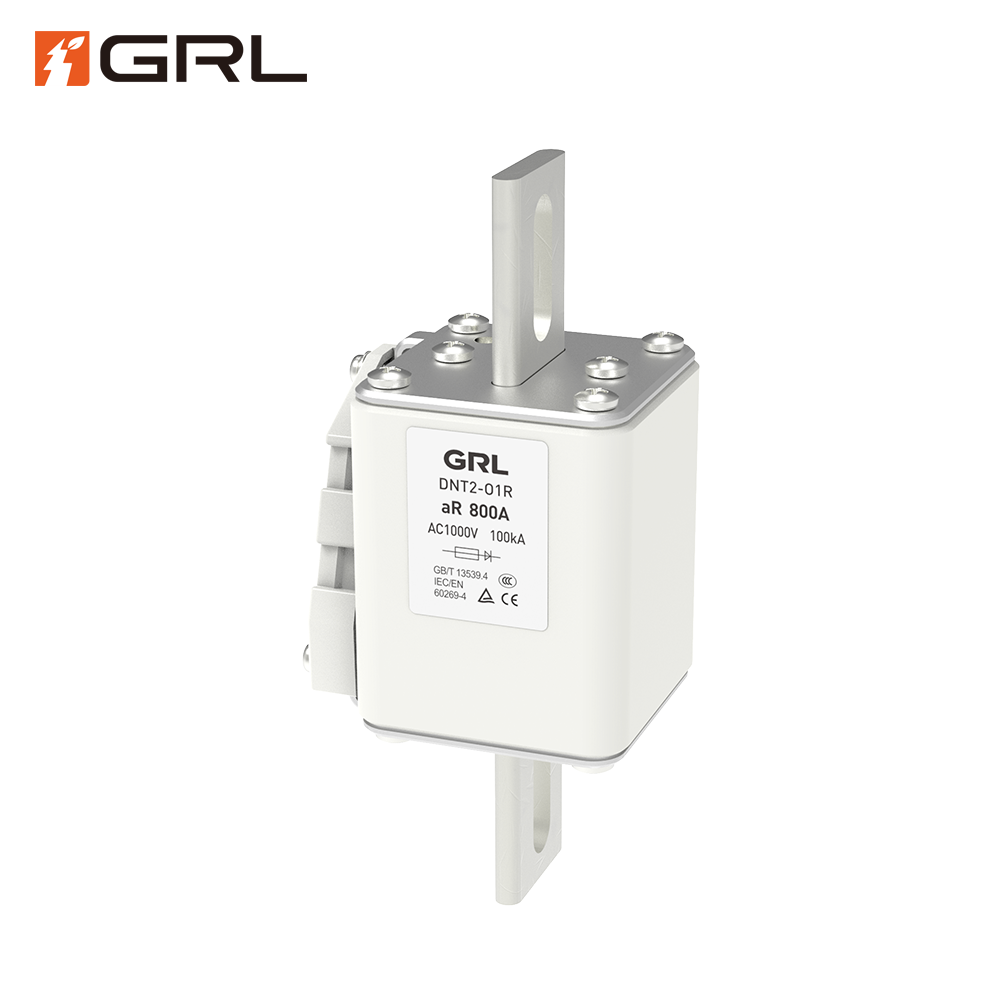

DNT2-O1R Semiconductor Fuse Overview
In today’s demanding power electronics landscape, the integrity of high-value components like IGBTs, Thyristors, and power diodes is paramount. The GRL DNT2-O1R Series is engineered to meet this critical need, serving as a cutting-edge ultra-rapid semiconductor fuse designed for AC systems up to 1000V AC.
As a specialized aR fuse (partial-range rapid fuse), the DNT2-O1R is specifically calibrated for the most effective short-circuit protection of sensitive power devices. Its defining characteristic is its extremely fast response time and low I^2t value, ensuring that fault current energy is interrupted instantaneously, thereby preventing catastrophic damage and maximizing system reliability in critical industrial and renewable energy systems. This high-voltage fuse is your ultimate solution for reliable, fast-acting circuit protection, compliant with the global standard IEC 60269-4.
DNT2-O1R Semiconductor Fuse Features
The GRL DNT2-O1R series is built using premium, non-magnetic materials to deliver superior performance.
- Optimized Square Body Fuse Design: The compact, modular square body fuse structure allows for high current ratings within a smaller footprint, simplifying installation in Variable Frequency Drives (VFD) and large inverter protection modules. The robust ceramic body provides excellent mechanical strength and thermal resistance.
- Pure Silver Elements: Utilizes high-purity silver melting elements, which are key to achieving the ultra-rapid response time and the exceptionally low I^2t value required for semiconductor fuse applications. This element design ensures the fault current is extinguished before it can reach a damaging peak.
- Advanced Arc Quenching: The internal chamber is filled with solidified quartz sand, a high-efficiency medium that rapidly cools and extinguishes the electric arc during a fault, contributing to the fuse’s high Interrupting Capacity (HIC) of 100kA.
- Low Power Dissipation: Engineered for minimal power loss under normal operating conditions, resulting in cooler running temperatures and increased overall system energy efficiency.
DNT2-O1R Semiconductor Fuse Advantages
Choosing the DNT2-O1R High-Speed Fuse means investing in maximum protection and operational longevity for your equipment.
- Ultimate Component Protection: The Low I^2t Value is the most critical feature, as it directly translates to less thermal stress on expensive power semiconductor devices, significantly extending the lifespan of IGBTs and reducing replacement costs.
- Guaranteed System Uptime: By isolating faults in the shortest possible time (measured in milliseconds), the DNT2-O1R minimizes the duration of the short-circuit event, leading to reduced equipment downtime and maintenance efforts.
- High Voltage AC Performance: With a rating of 1000V AC, this series is perfectly suited for modern high-power systems where conventional low-voltage fuses fall short, providing reliable electrical safety across the entire operation.
- Global Standard Compliance: Conformance to IEC 60269-4 ensures international compatibility and compliance for global projects, making it a globally ready fast-acting fuse.
DNT2-O1R Semiconductor Fuse Applications
The GRL DNT2-O1R Ultra-Rapid Fuse is essential for high-power, high-reliability AC circuits where precise and rapid interruption is mandatory.
- Renewable Energy: Protection for DC/AC inverter protection units and rectifiers within Solar Power (PV) Systems and wind power converter protection.
- Energy Storage Systems (ESS): Safeguarding battery system power conversion and charging circuits.
- Industrial Automation: Core protection for Variable Frequency Drives (VFDs), motor soft starters, and industrial heating systems.
- Power Quality: Used in Uninterruptible Power Supplies (UPS), Static Switches, and Active Harmonic Filter (AHF) circuits to protect sensitive downstream equipment.
- Rail and Transportation: Protection in traction power supplies and auxiliary power electronics equipment.
DNT2-O1R Semiconductor Fuse FAQs
Q: What does the “aR” designation mean for the DNT2-O1R fuse?
A: The “aR” stands for partial-range rapid fuse. It indicates that the fuse is optimized exclusively for short-circuit protection (high overcurrents). Unlike a full-range “gR” fuse, the DNT2-O1R is specifically designed to work in coordination with the natural overload capability of the protected semiconductor device, ensuring the most precise and rapid protection against severe faults.
Q: Why is the I^2t (let-through energy) value so important in a semiconductor fuse?
A: The I^2t value represents the amount of thermal energy passed through the fuse to the protected component before the fuse opens. Because power semiconductor devices have very low thermal mass and can be instantly destroyed by a short-circuit current, a fuse with an extremely low I^2t value—like the GRL DNT2-O1R—is crucial to minimize this destructive energy, guaranteeing effective IGBT protection.
Q: Is the DNT2-O1R suitable for DC circuits?
A: The DNT2-O1R is primarily rated for 1000V AC. While semiconductor fuses can often be used in DC circuits, the specific DC voltage and time constant must be confirmed with the manufacturer’s characteristic curves and derating data to ensure proper arc extinguishing and electrical safety. Always consult the relevant datasheet for DC application limits.
