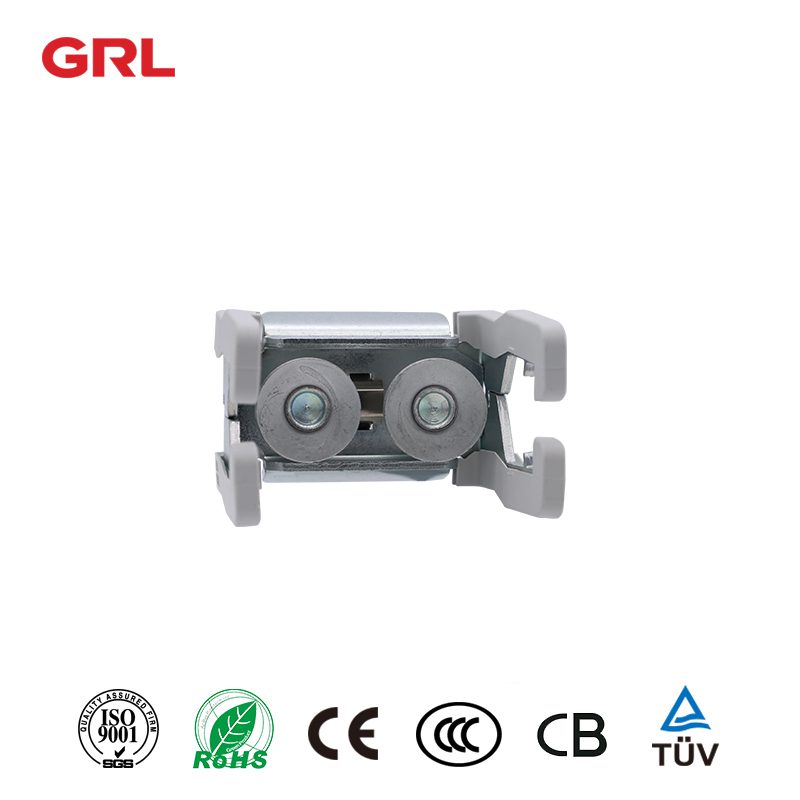

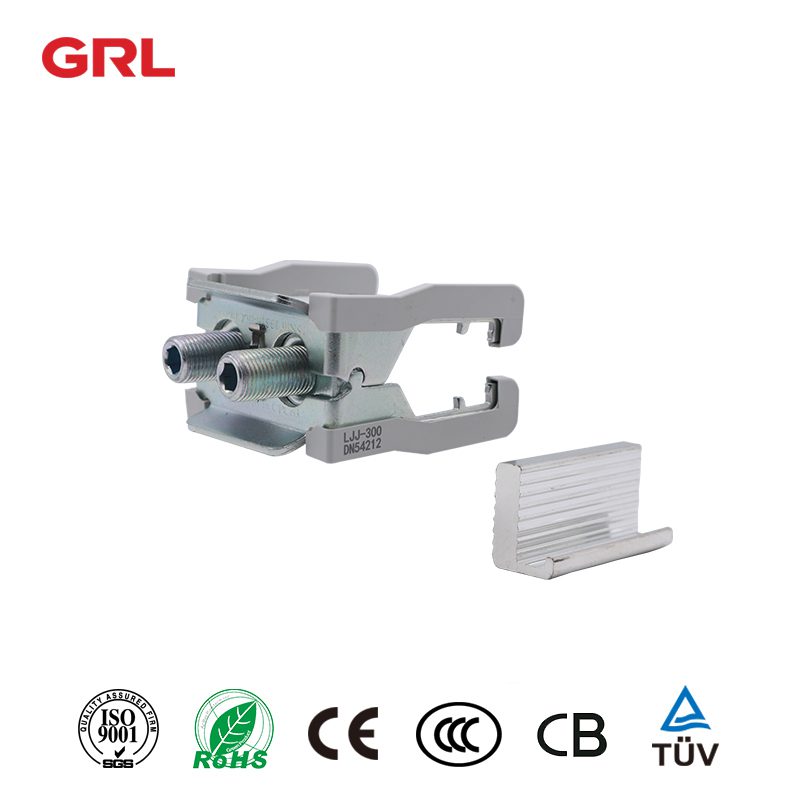

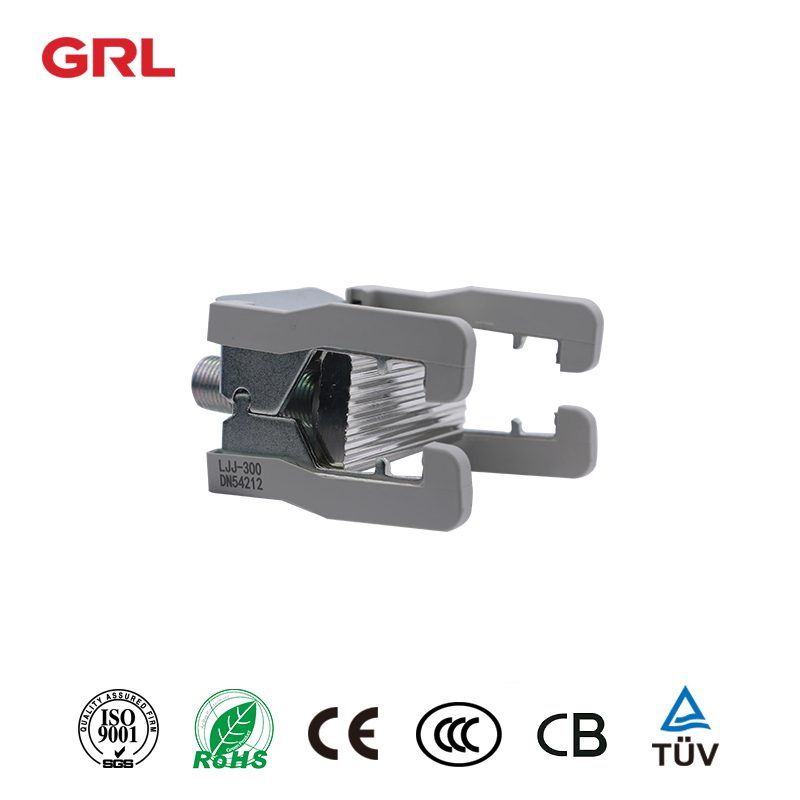

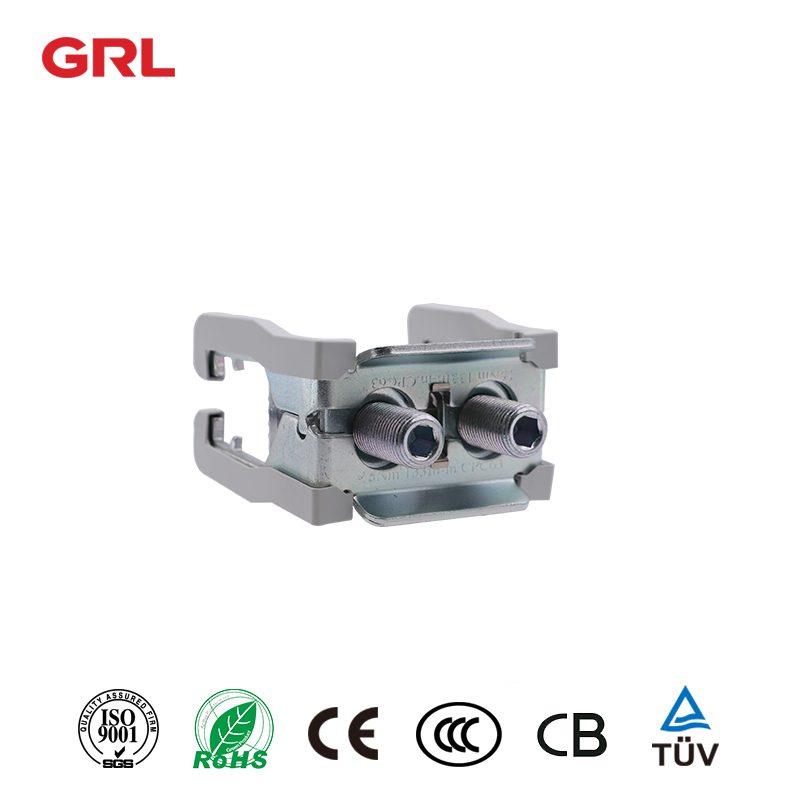

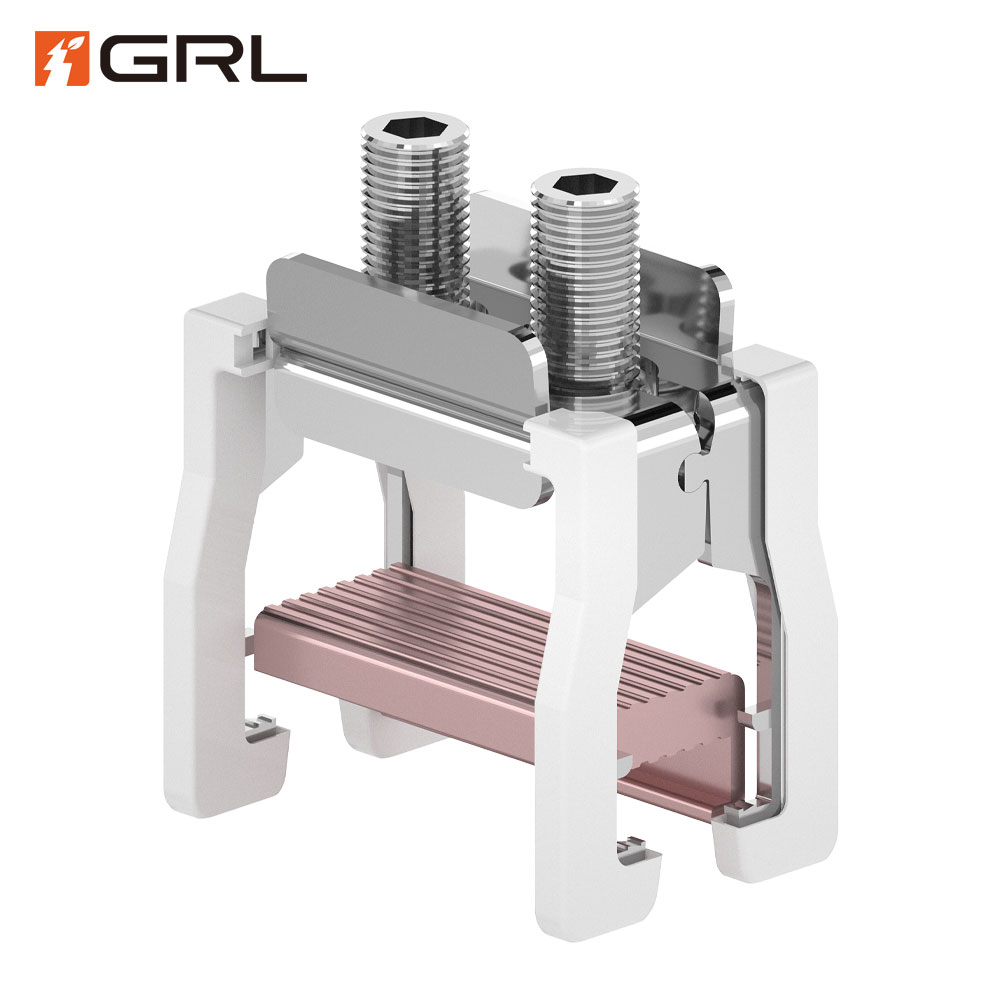

LJJ-300 electrical busbar system Connecting clip

Mode:

LJJ-300

Voltage:

690 V

Current:

1600 A

For busbar(mm):

30*10 and irregular copper busbar

Email:

[email protected]

Reference:

IEC 61439-1 , IEC 60999-1 , IEC 60999-2 , GB/T 7251.1

Keyword:

electrical busbar system

Certification Contact Us

Description

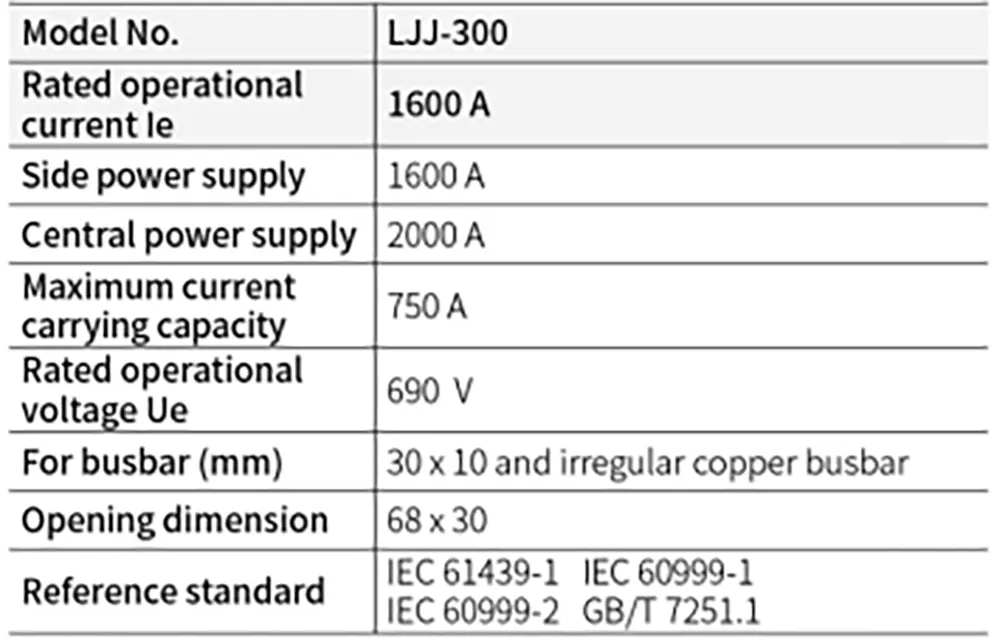

LJJ-300 electrical busbar system

Item No.DN54212

Model No.	LJJ-300
Rated operational current le	1600 A
Side power supply	1600 A
Central power supply	2000 A
Maximum current carrying capacity	750 A
Rate operational voltage Ue	690 V
For busbar(mm)	30*10 and irregular copper busbar

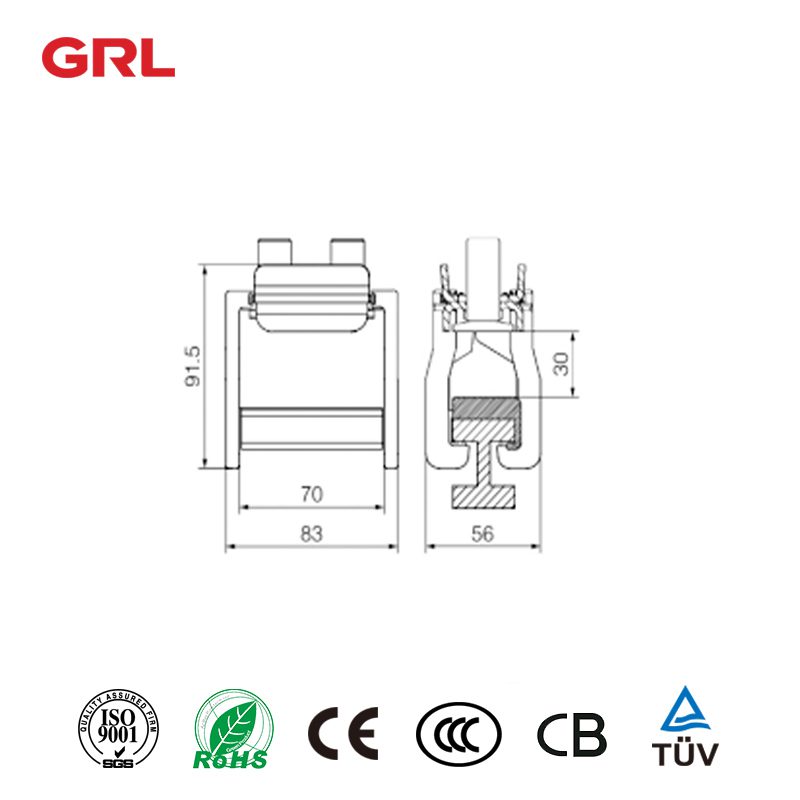

Opening dimension	68*30
Reference standard	IEC 61439-1 IEC 60999-1 IEC 60999-2 GB/T 7251.1
