Knife Switch

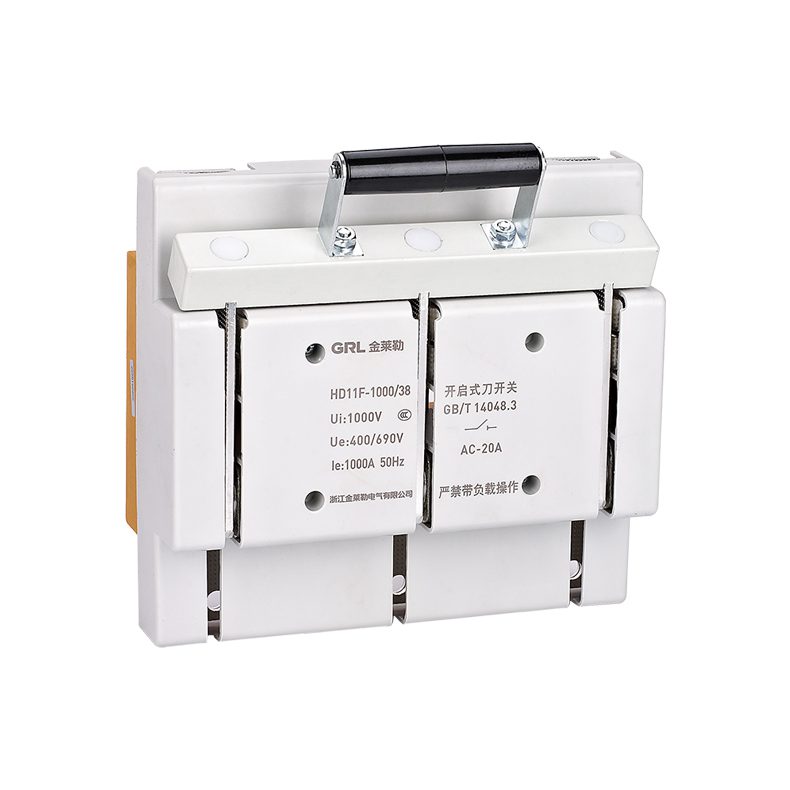

Electrical knife switch


Model: HD11FG-1000

current: 1000A

Voltage: 400VAC/690VAC

Color: White

Material: copper T2,DMC,PA66,PC

Certification: CE, CCC

Email: [email protected]

Keywords: electric blade switch, knife switch disconnect, knife switch suppliers

Electrical knife switch parameters

Product Item HD11FG
Rated Current 1000A
Rated voltage 400VAC/690VAC
Applications industrial control cabinets

What is a electrical knife switch, and how does it work?

Electrical knife switch is mainly made up of moving contact knife, fixed contact knife block, incoming and outgoing line block, these conductive parts are fixed on the porcelain bottom plate. Together with other protective devices: arc-extinguishing chamber, fuse, etc., all covered by an insulating cover.

So when the knife is closed, the operator does not touch the live part. The protective cover is to make sure the poles are separated from each other to prevent the short circuit caused by the arc between poles;

Prevent arc flying out of the cover, burn the operator; Prevent metal parts from falling on the knife to form a short circuit between poles.

The role of electrical knife switch in the circuit is mainly used for isolating power supply or manually connecting and disconnecting AC and DC circuits, but also for infrequent connecting and disconnecting load below rated current, such as small motors, electric furnaces, etc., act as a power switch, isolating switch, emergency switch and circuit protection.

What is the difference between a single throw and double throw switch?

Single throw electrical knife switch has only one on and one-off, two action states.

Double throw electrical knife switch has two on and one-off, three action states.

Single throw knife switch: two wiring points, one in and one out;

Double throw knife switch: three wiring points, two in and one out;

HD series knife switch is a single throw knife switch, which refers to single direction closing.

HS series knife switch is a double-throw switch, which can switch to 2 sides to changeover from one to another circuit.

Read on what is a knife switch?

How to choose a electrical knife switch?

There are many different types of knife switches, such as 2 phases knife switch, 3 phase and 4 phases electrical knife switch, regular rated current is 10A~3000A. For ordinary load, the rated current of the knife switch disconnect can be selected according to the rated current of the load;

For motor, consider its starting peak current up to 4~7 times the rated current, when selecting the rated current of the electric blade switch, it is better to choose about 3 times the rated current of the motor.

How to install a electrical knife switch?

When installing the electrical knife switch, choose the dry, dust-free, not affected by vibration bright place, and equipped with a special distribution box or installed on the switchboard.

The power supply is connected to the fixed contact, and the switch is installed in the formal form according to the regulations, that is, the bottom plate of the knife should be perpendicular to the ground, the handle is upward, the fixed contact is located above the power supply, and the moving contact is located below the load.

In addition, the action of pulling and closing the knife should be convenient and flexible. Can not be reversed, that is, the connection state handle should be upward.

Otherwise, in the state of breaking, the knife switch may lose and fall causing misconnection. At the same time, it is not good for acr-extinguishing, because in the formal installation, hot air rises, the arc will be stretched and easy to extinguish.

When wiring, the incoming line and the outgoing line can not be connected inversely, otherwise an electric shock accident may occurs when replacing the fuse. Do not install horizontally either.
