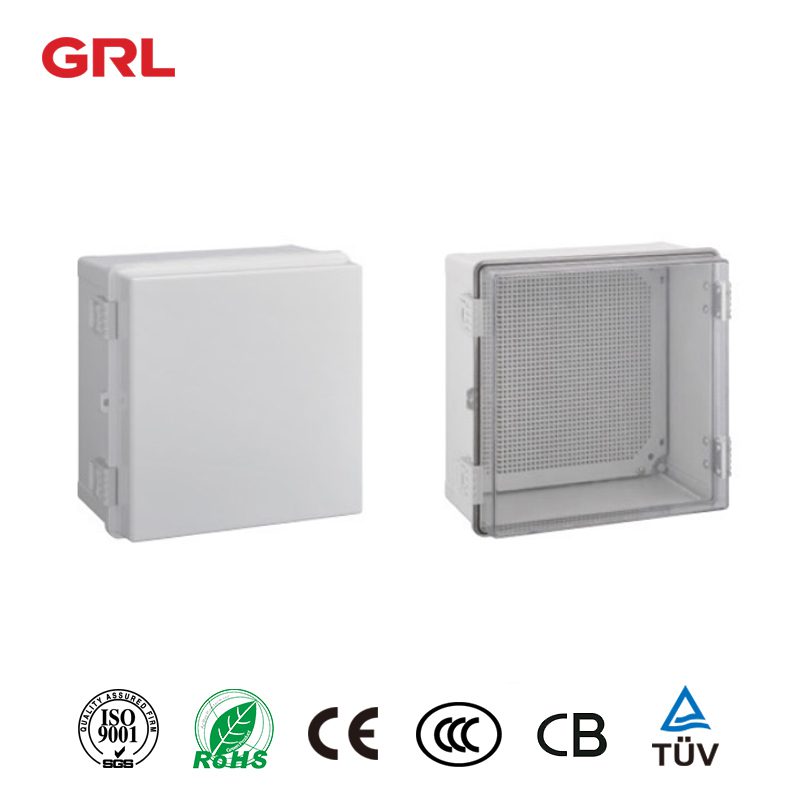

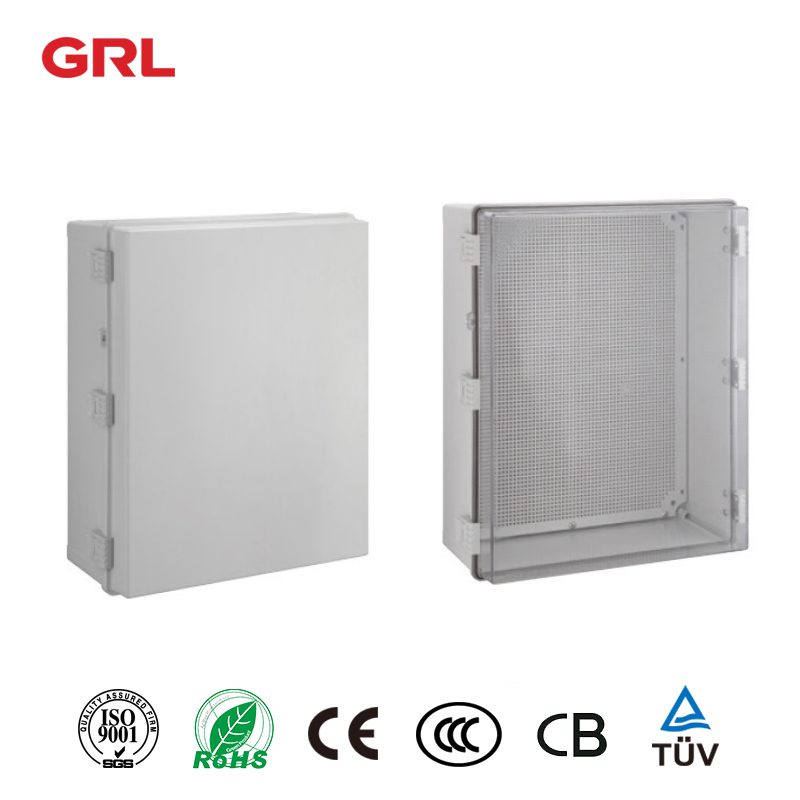

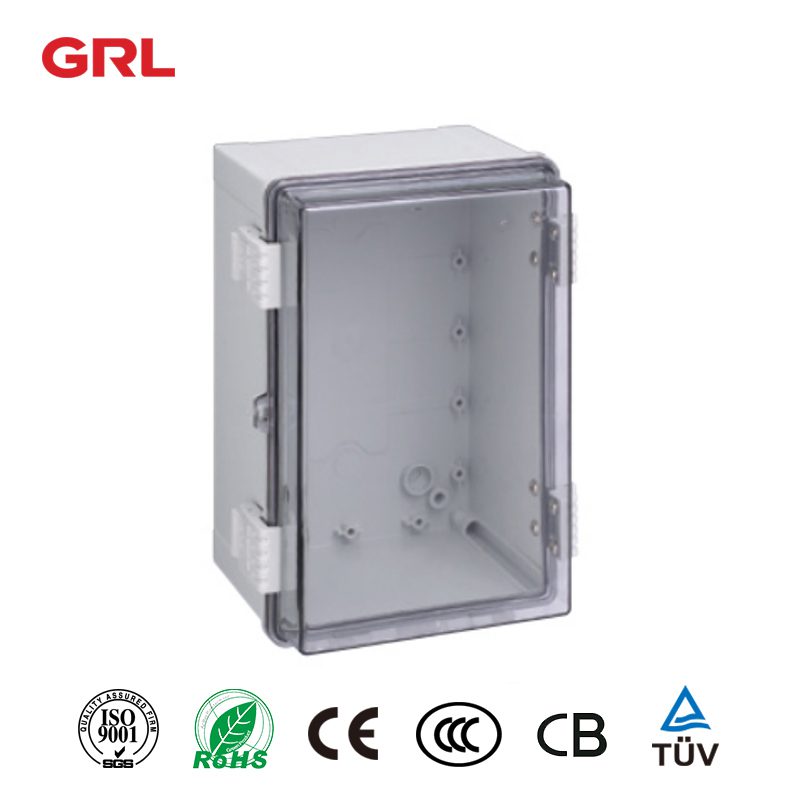

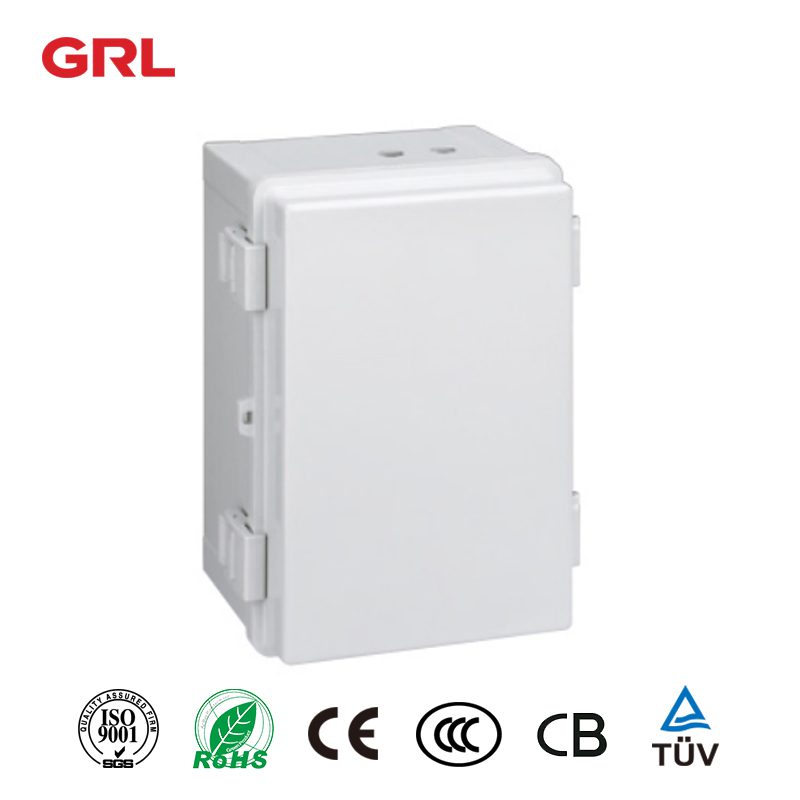

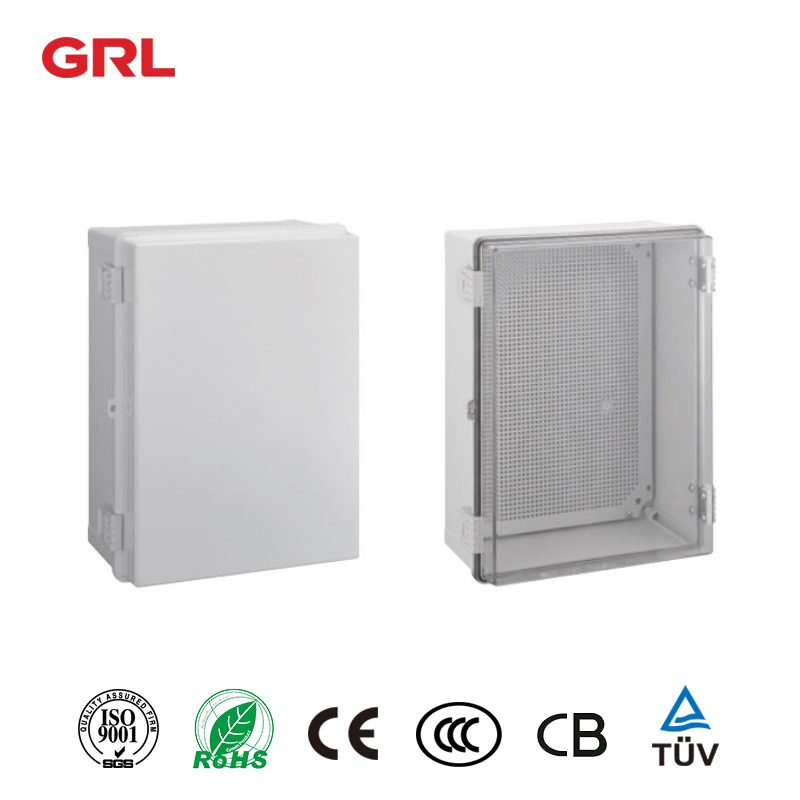

Full-Plastic Sealing Box IP66 high strength insulation Waterproof Box

Full-Plastic Sealing Box IP66 high strength insulation Waterproof Box

Full-Plastic Sealing Box IP66 high strength insulation Waterproof Box

Full-Plastic Sealing Box IP66 high strength insulation Waterproof Box

Full-Plastic Sealing Box IP66 high strength insulation Waterproof Box

Full-Plastic Sealing Box IP66 high strength insulation Waterproof Box

Product overview

Waterproof, dustproof, corrosion resistance, high strength insulation.

Can be opened according to user needs, complete specifications, easy to install!

Protection level: IP66

Key words:Full-Plastic Sealing Box

Description

Full-Plastic Sealing Box

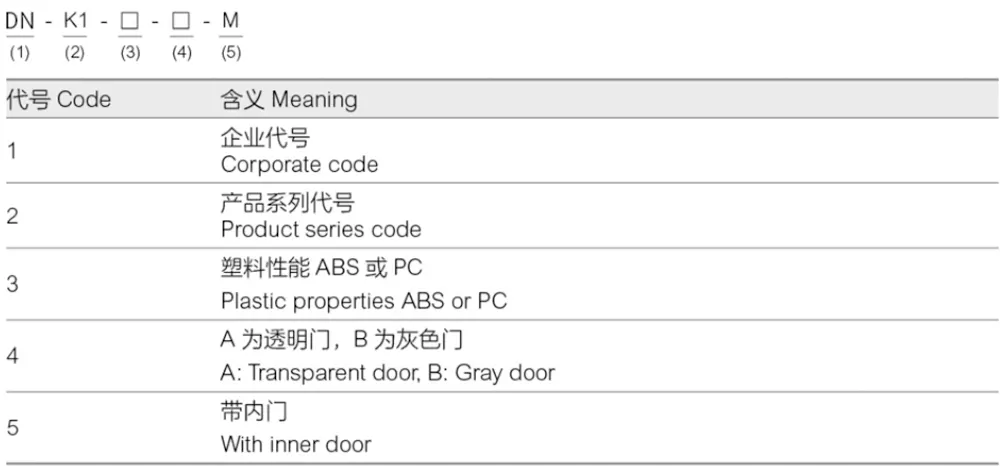

Model meaning

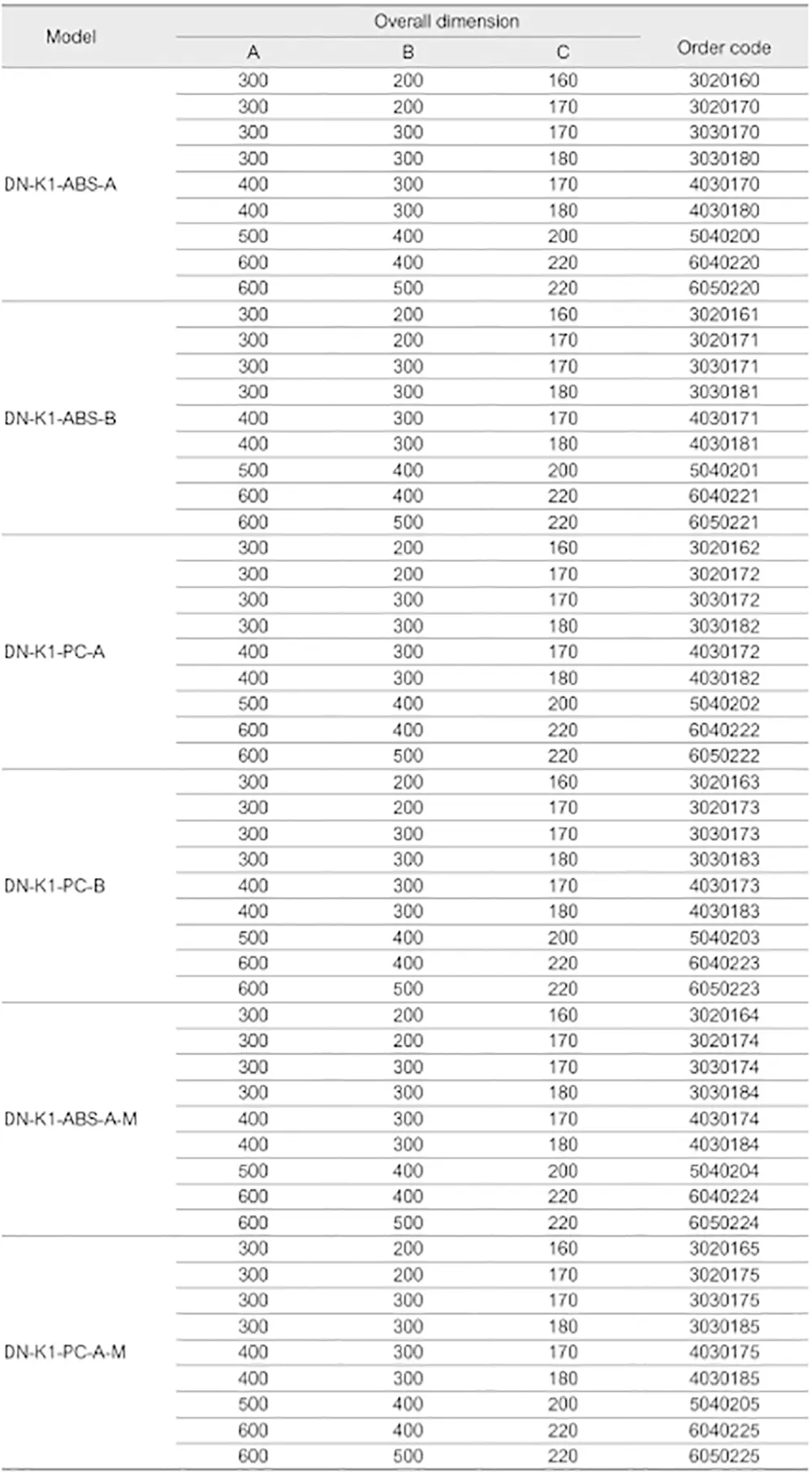

Main technical parameters

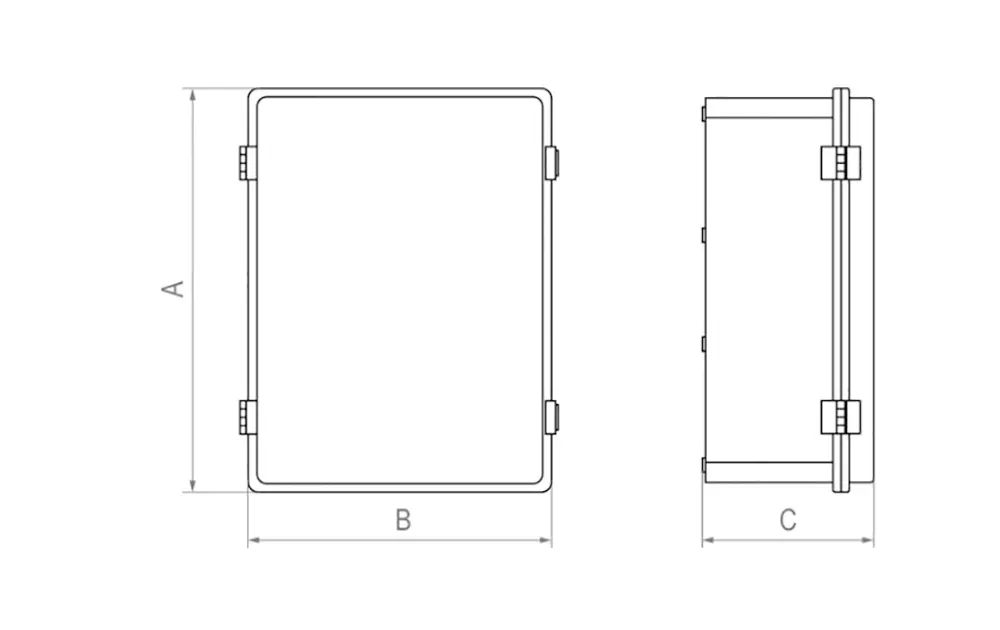

Model	Overall dimension			Order code
Model	A	B	C	Order code
DN-K1-ABS-A	300	200	160	3020160

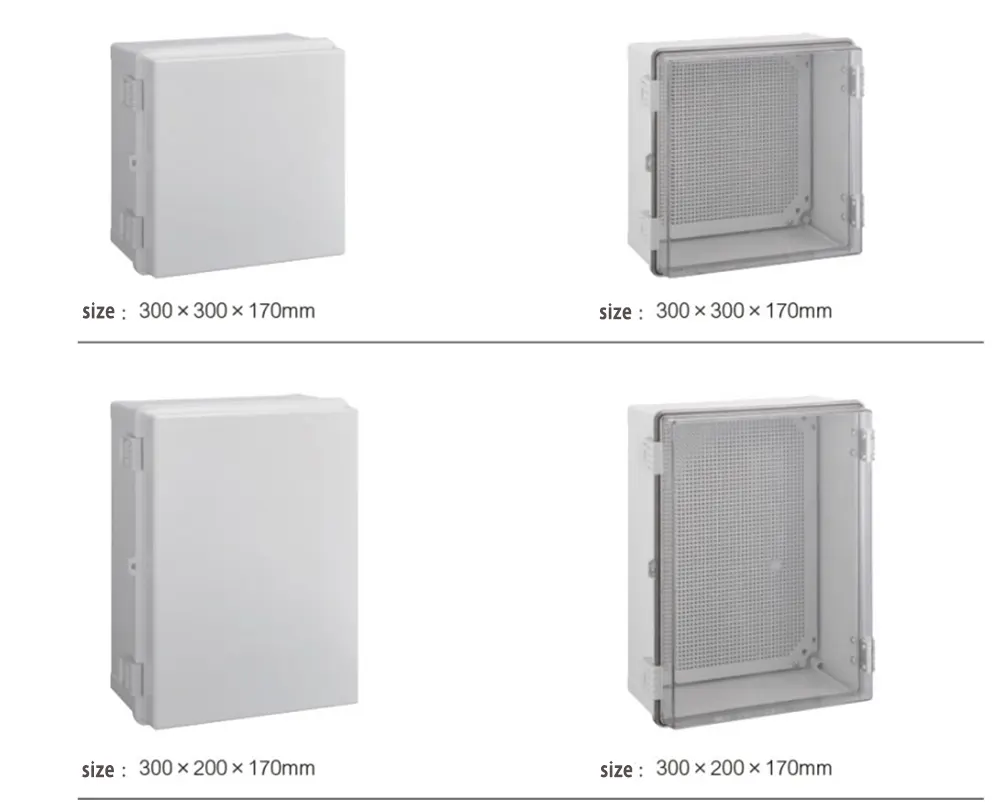

	300	200	170	3020170
	300	300	170	3030170
	300	300	180	3030180

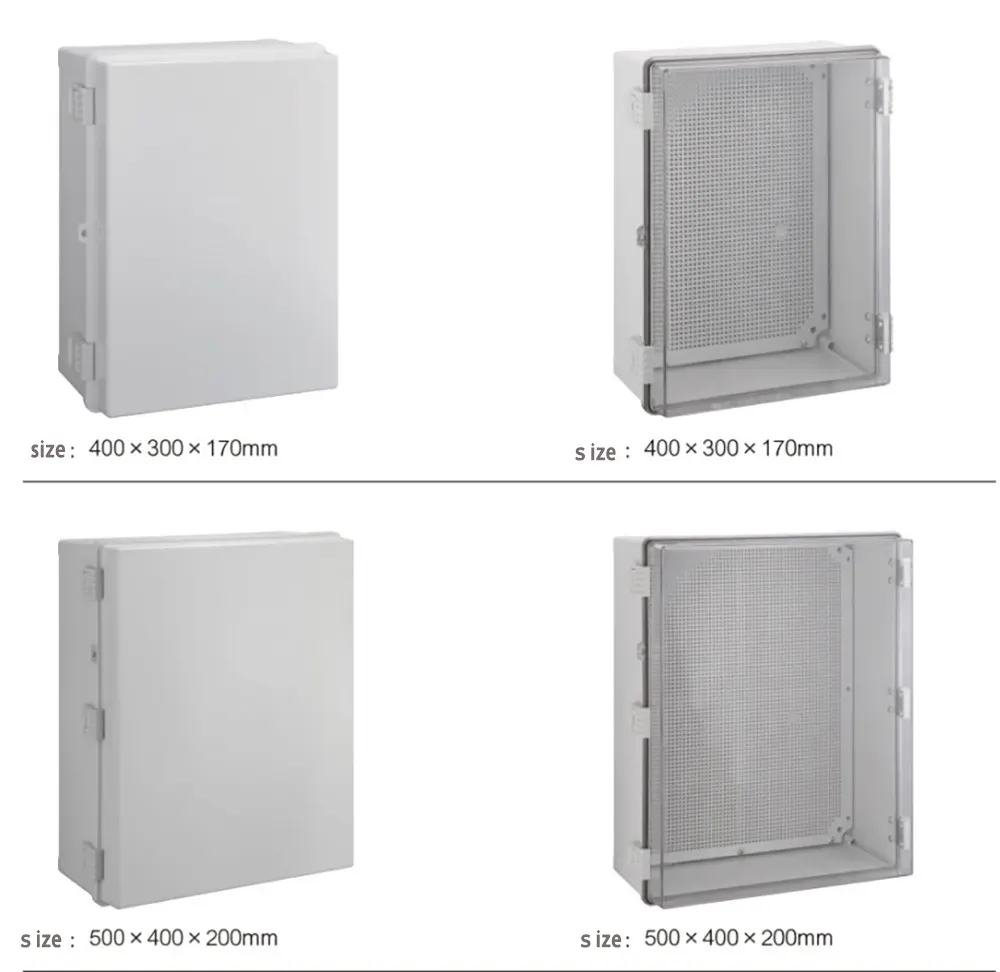

	400	300	170	4030170
	400	300	180	4030180
	500	400	200	5040200
	600	400	220	6040220
	600	500	220	6050220
DN-K1-ABS-B	300	200	160	3020161
	300	200	170	3020171
	300	300	170	3030171
	300	300	180	3030181
	400	300	170	4030171
	400	300	180	4030181
	500	400	200	5040201
	600	400	220	6040221
	600	500	220	6050221
DN-K1-PC-A	300	200	160	3020162
	300	200	170	3020172
	300	300	170	3030172
	300	300	180	3030182
	400	300	170	4030172
	400	300	180	4030172
	500	400	200	5040202
	600	400	220	6040222
	600	500	220	6050222
DN-K1-PC-B	300	200	160	3020163
	300	200	170	3020173
	300	300	170	3030173
	300	300	180	3030183
	400	300	170	4030173
	400	300	180	4030183
	500	400	200	5040203
	600	400	220	6040223
	600	500	220	6050223
DN-K1-ABSA-M	300	200	160	3020164
	300	200	170	3020174
	300	300	170	3030174
	300	300	180	3030184
	400	300	170	4030174
	400	300	180	4030184
	500	400	200	5040204
	600	400	220	6040224
	600	500	220	6050224
DN-K1-PC-A-M	300	200	160	3020165
	300	200	170	3020175
	300	300	170	3030175
	300	300	180	3030185
	400	300	170	4030175
	400	300	180	4030185
	500	400	200	5040205
	600	400	220	6040225
	600	500	220	6050225

Full-Plastic Sealing Box
