The latest DNF series NT(NH) fuse BASE there are different size for different application.There are 1 pole , 2 pole and 3 pole. Match HRC NH fuse link NH00,NH1,NH2 to NH3. It is mounting type.The NT(NH) fuse hoders are widely applied in both DC and AC power distributionsystem.Suitable for AC690V,AC500V ,DC 440V, DC 250V ,etc.
NT fuse base

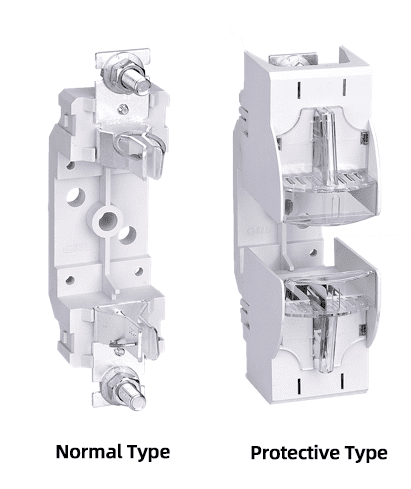

Two styles are available: Normal type and protective type. Except for protection, there is no difference in material and performance between the two products.
| Maximum current | 630A |
| Rated operating voltage | AC690V/DC440V |
| Rated isolation voltage | 1000VAC |
| Breaking capacity | 50kA |
| Poles | 1P/2P/P |
| GB/T 13539.2 IEC60269-2 | |

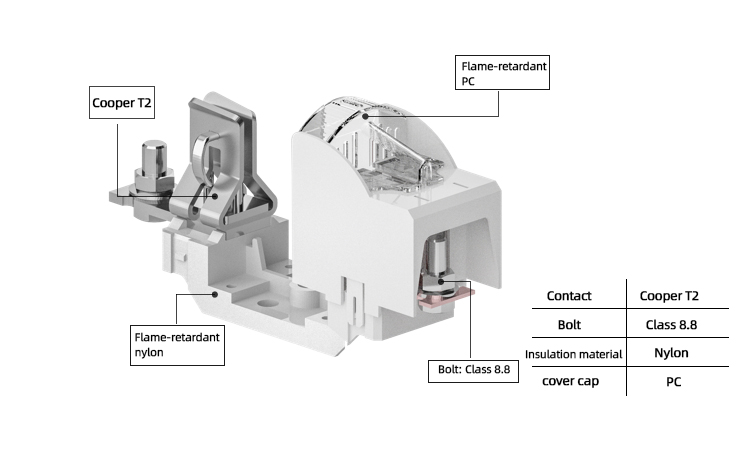

Material
Features.
Protective Cover: GRL adds a protective cover with anti-touch protection, which brings a safe user experience.

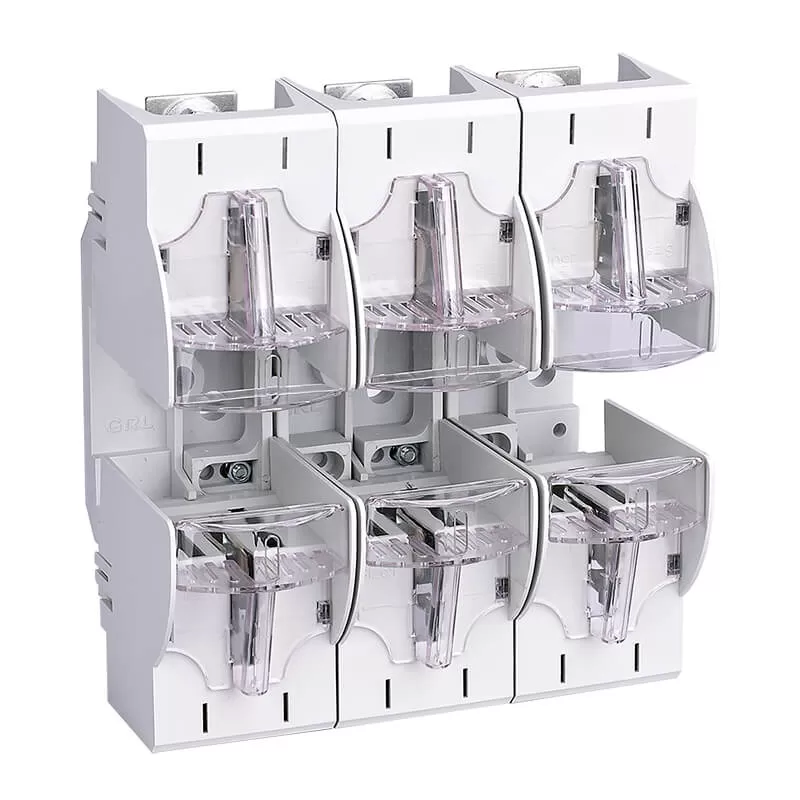

Free combination of poles: Above 250A, 1 pole, 2 poles and 3 poles can be freely combined (adding a zero line base to form 3P+N);
Connection Modes: GRL select Screw connection or pressing plate connection to meet different wiring requirements

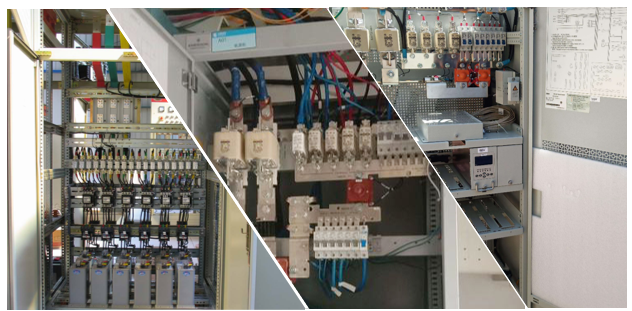

Application scenario
Fuse base can be widely used in power distribution, industrial control and new energy fields. For example: Capacitor cabinet, power cabinet, Combiner box and industrial control cabinet.
Company Profile
Founded in 2003, GRL is a professional company integrating R&D, production and sales of electrical components and accessories such as low-voltage bus system, fuse switch dieconnector&fuse link, vertical fuse switch disconnector and knife switch.
The products are widely used in low-voltage distribution systems and industrial control systems in power, construction, photovoltaic, petroleum, chemical, metallurgy, railway and other industry power control systems.
Our product sales network covers large and medium-sized cities across the country and is exported to more than 80 countries and regions such as Europe, America, Russia, Central Asia, the Middle East, Latin America, Africa and Oceania etc..
There are 18 professional international sales engineers and about 30 technical R & D engineers. Our well-trained sales engineers and technical engineers are here to help you!
Service:
We also have a large inventory, in case urgent demands.
There are more than 40 test equipment in GRL lab, such as temperature rise tester, mechanical life tester, salt spray test machine, switch calibration bench, Rockwell hardness tester and so on. GRL focus on quality control management. we provide qualified products to customer from all of the world.
We have professional sales team and after-sales team are online 24 hours, which respond quickly and provide help at any time.
