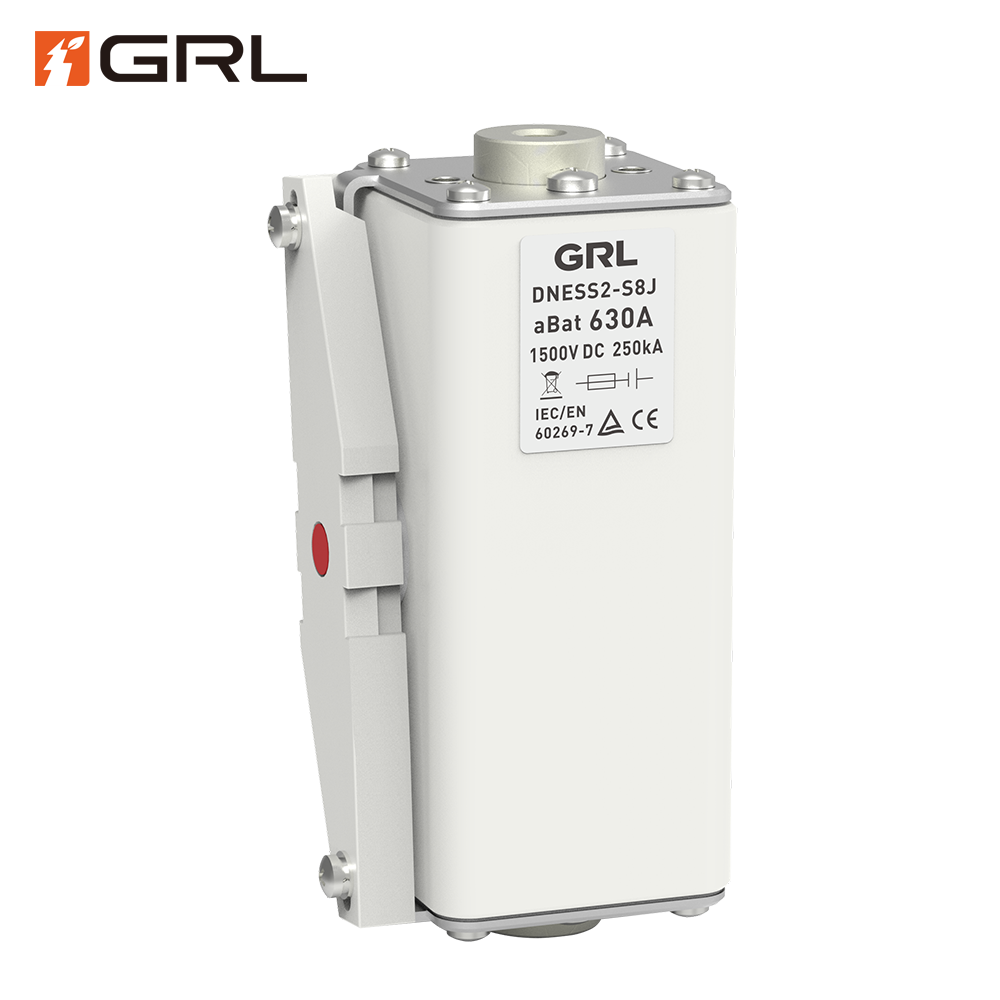

GRL DNESS2-S8J aBat Battery Fuse Link DC 1500V 100-630A Short Circuit Protection Of Battery And Battery System

Semiconductor Protection Fuse Technical Parameters

GRL DNESS2-S8J: The Ultimate Sentinel for $1500\text{V DC}$ Energy Storage Systems

1. The Power of Specialization: Decoding the aBat Utilization Category

The DNESS2-S8J’s core functional identity is defined by its aBat (Partial Range Breaking Capacity for Battery Protection) utilization category, adhering to the specialized requirements of the IEC $60269-7$ standard for battery fuses. This classification is crucial for system coordination:

Focusing on the Fatal Flaw

Unlike a general-purpose fuse (gG or gPV) which must manage both light overloads and short circuits, the aBat classification permits a narrow, high-impact focus. In large-scale ESS, routine overload events and mild current imbalances are managed by the sophisticated Battery Management System (BMS) and main contactors.

The aBat fuse, therefore, dedicates its design to mitigating the single, most destructive event: the high-energy short circuit. This specialization allows the fuse’s internal architecture to be entirely optimized for speed and current-limiting performance, ensuring a decisive response to faults without compromising integrity under normal operating conditions.

The I²t Imperative

The most critical function of an aBat fuse in a BESS is its ability to achieve an extremely low I2t (Joule Integral) value. I2t represents the total thermal energy allowed to pass through the circuit during the fault-clearing process. The DNESS2-S8J must limit this energy to protect the most sensitive and expensive downstream components, such as power semiconductors within the Power Conversion System (PCS) and main busbars, from instantaneous thermal damage and degradation. Its $\text{aBat}$ designation is a guarantee of this uncompromising thermal control.

2. Engineering the Extreme: $1500\text{V DC}$ and the $250\text{kA}$ Fortress

The DNESS2-S8J’s raw performance specifications position it at the cutting edge of industrial circuit protection:

DC 1500V Arc Quenching Mastery

High-voltage DC fault interruption is a technical minefield. Without a natural zero-crossing point, the fault current attempts to sustain an arc indefinitely, leading to thermal runaway and fire. To defeat this, the DNESS2-S8J employs an advanced internal design featuring:

• Optimized Melt Elements: Precision-formed silver elements are designed to vaporize rapidly and symmetrically, creating multiple high-resistance arcs in series almost simultaneously.
• High-Density Quenching Media: The cylindrical ceramic body is densely packed with high-purity quartz sand. As the arc forms, the intense heat causes the quartz to melt and fuse into a non-conductive, glass-like structure that quickly cools, confines, and extinguishes the $1500\text{V}$ arc plasma, guaranteeing complete current lockout.

The $250\text{kA}$ Assurance: Structural Integrity and Robustness

The fuse’s $250\text{kA}$ Breaking Capacity is a measure of its absolute structural resilience. This enormous rating signifies that the fuse is guaranteed to interrupt a prospective short circuit of up to 250,000 amperes without failing structurally—meaning no casing rupture, no release of molten materials, and no propagation of the fault.

This $250\text{kA}$ capacity provides an essential safety margin beyond the typical calculated short-circuit currents (which might be in the $80\text{kA}$ to $150\text{kA}$ range). This substantial buffer is critical for real-world BESS deployment where complex wiring, transient conditions, and high-energy faults can push currents to unanticipated levels. The DNESS2-S8J acts as an Impregnable Safety Barrier, ensuring the physical containment of the fault energy.

3. Beyond Protection: Ensuring System Longevity and Efficiency

The design of the DNESS2-S8J extends beyond just clearing faults; it contributes to the long-term reliability and efficiency of the BESS:

Optimized Thermal Management

The fuse features a bolt-on, flat-blade contact plate type mounting mechanism, which is critical for high-current applications. This robust mechanical connection minimizes contact resistance, which directly translates to reduced power loss (low Watt Loss) during continuous operation. In an environment where every watt of lost energy impacts efficiency and system cooling demands, this optimization is a core economic advantage.

Resilience to Cycling and Vibration

BESS applications are characterized by relentless power cycling (charge/discharge) and physical vibration, especially in containerized solutions. The internal construction and the choice of materials in the DNESS2-S8J are specifically selected for mechanical durability and thermal fatigue resistance, ensuring that the fuse’s electrical characteristics remain consistent over its projected service life, maximizing system uptime and minimizing maintenance-related interventions.

In essence, the GRL DNESS2-S8J is engineered to secure the investment in large-scale energy storage. Through its highly specialized aBat function and its unyielding capacity to manage $1500\text{V DC}$ and $250\text{kA}$ faults, it guarantees the safe, efficient, and reliable integration of battery power into the modern electrical grid.

Semiconductor Protection Fuse FAQs

Q1: What is the primary application environment for the DNESS2-S8J fuse?

A1: The DNESS2-S8J fuse is specifically designed for high-voltage direct current (DC) Battery Energy Storage Systems (BESS). Its main function is short-circuit protection in critical areas, including:

• Protection of battery clusters or individual battery sections.
• Protection of the main DC busbar or main circuit connecting to the Power Conversion System (PCS) or inverter inputs.
• Other high-current DC circuits requiring high-voltage capability, high breaking capacity, and ultra-fast short-circuit response.

Q2: Why is the rated voltage of the DNESS2-S8J DC $1500\text{V}$? What is the significance for ESS?

A2: The trend in large-scale BESS is to increase system voltage to $1500\text{V DC}$ to improve efficiency and reduce cable costs. The DNESS2-S8J is designed to reliably operate at this voltage, ensuring it can extinguish the high-voltage DC arc during a fault. This capability is paramount, as the lack of a natural zero-crossing point in DC power means the fuse must forcibly stop the current, preventing the arc from reigniting and causing thermal runaway or fire.

Q3: What does the $250\text{kA}$ Breaking Capacity of the DNESS2-S8J signify?

A3: A $250\text{kA}$ ($250,000\text{A}$) breaking capacity is the maximum prospective fault current the fuse is guaranteed to interrupt safely and completely. Due to the very low impedance of battery systems, short-circuit currents can momentarily soar to extremely high levels. The $250\text{kA}$ rating provides a massive safety margin, ensuring that the fuse maintains structural integrity and safely isolates the fault energy under the most extreme conditions without casing rupture.

Q4: How does the aBat Utilization Category differ from traditional gG or gPV fuses?

A4:

• gG / gPV: These are “Full Range” fuses, designed to provide protection against both overloads (low-level overcurrents) and short circuits.
• aBat: This is a “Partial Range” category, specializing exclusively in short-circuit protection as defined by the IEC $60269-7$ standard.
• Design Purpose: In BESS, the aBat fuse assumes that mild overloads are handled by the BMS or contactors/breakers. The $\text{aBat}$ focus is on providing ultra-fast current limiting with extremely low I2t values to protect sensitive components, such as power semiconductors in the PCS, from destructive thermal shock during a major fault.

Q5: What is I2t (Joule Integral), and how does the DNESS2-S8J control it?

A5: I2t is the fundamental measure of the thermal energy allowed to pass through the circuit during the fault duration. A lower I2t value means better Current Limiting Capability and less thermal damage to downstream components. The DNESS2-S8J achieves an extremely low I2t value by using precision-engineered silver elements and internal arc-quenching media (quartz sand) to ensure the current is interrupted and cleared well before it reaches its theoretical peak value.

Q6: How does the DNESS2-S8J coordinate with contactors or circuit breakers in the ESS?

A6: The DNESS2-S8J ($\text{aBat}$) is typically selected for selective coordination with contactors or high-speed DC circuit breakers:

• The fuse provides the ultimate, high-energy-limiting short-circuit protection.
• The contactor/breaker handles normal operational switching and low-multiples-of-rated-current overloads.
• Proper coordination ensures that in the event of an extreme short circuit, the DNESS2-S8J operates faster than the contactor’s clearing time, thereby protecting the contactor’s contacts from the damage of the high prospective fault current.

Q7: What are the primary parameters for selecting an ESS fuse?

A7: The selection process must be rigorous and based on several critical parameters:

1. Rated Voltage: Must be $\ge$ the system’s maximum operating voltage ($1500\text{V DC}$).
2. Rated Current: Must be $\ge$ the maximum continuous current of the battery cluster or circuit (factoring in ambient temperature and thermal derating).
3. Rated Breaking Capacity: Must be $\ge$ the maximum prospective short-circuit current of the system ($250\text{kA}$ provides ample margin).
4. I2t Coordination: Ensuring the fuse’s I2t value is low enough to protect the most thermally vulnerable component downstream.

Q8: What are the key installation considerations for the DNESS2-S8J?

A8: The DNESS2-S8J typically utilizes a bolt-on, flat-blade connection structure:

• Torque: The connection bolts must be tightened precisely to the manufacturer’s specified torque values to ensure minimal contact resistance and low power loss. Incorrect torque can lead to overheating (if too low) or mechanical failure (if too high).
• Thermal Management: Fuses are thermal devices. The installation environment must allow for adequate cooling. Avoid installing in confined, high-temperature, or poorly ventilated spaces to prevent thermal derating, which would reduce the fuse’s continuous current carrying capability.

Q9: How does the power dissipation (Watt Loss) of the DNESS2-S8J series affect system efficiency?

A9: The DNESS2-S8J is designed for low power dissipation (low Watt Loss). This is crucial because:

1. Efficiency: Lower watt loss means less energy wasted, improving the system’s overall efficiency.
2. Temperature Rise: Low power loss results in a lower internal temperature rise, which enhances the fuse’s service life and helps it maintain its rated current capacity, particularly important in the often high-ambient temperatures of BESS containers.

— Actual Situational Data Requires Email Inquiry —

Specific models, dimensions, and current ratings within the GRL DNESS2-S8J series vary. For accurate selection, installation instructions, and detailed engineering data (e.g., I2t and Watt Loss values at different L/R time constants), please refer to the official product catalog.

Please contact the GRL Certified Engineering Team via email to receive a customized protection solution for your energy storage application.
