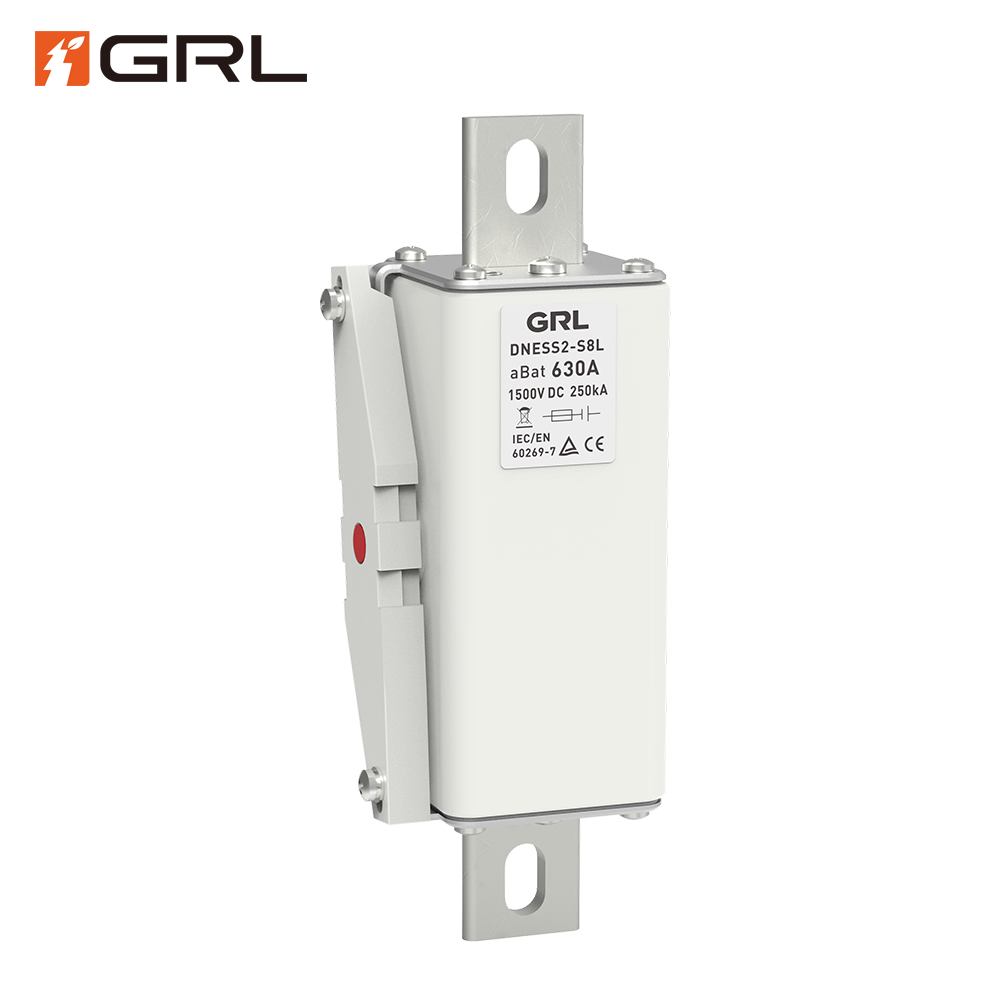

GRL DNESS2-S8L: Defining 1500V Safety—The Mechanical and Electrical Precision of ESS Protection
1. Electrical Prowess: The aBat Standard for Short-Circuit Extremes
The DNESS2-S8L is classified under the aBat (Partial Range Breaking Capacity for Battery Protection) category, a designation critical for its role in ESS:
- Dedicated Speed: As an aBat fuse, its design is exclusively optimized for ultra-fast interruption of high-level short circuits. In a low-impedance battery stack, a fault current can surge from zero to catastrophic levels in milliseconds. The DNESS2-S8L is engineered to react immediately.
- The I²t Barrier: The primary measure of the fuse’s protective quality is its extremely low I²t (Joule Integral) value. This low let-through energy is vital for preserving the integrity of expensive power electronics (PCS inverters) and the high-current busbars, preventing them from being compromised by instantaneous thermal stress during a fault event.
The ability of the DNESS2-S8L to safely clear 250kA faults at 1500V DC is a testament to its internal arc-quenching system. Utilizing finely tuned silver elements within a high-density quartz sand medium, the fuse ensures the violent DC arc is rapidly cooled, confined, and extinguished, providing a final, non-reclosing line of defense against system failure.
2. Mechanical Innovation: The Slotted Contact Advantage
Where its counterpart (DNESS2-S8J) might use solid, conventional terminals, the DNESS2-S8L differentiates itself with a connector geometry specifically engineered for ESS cabinet constraints. The slotted, front-facing terminal offers several practical benefits:
- Enhanced Accessibility: By facing the contacts outwards, the design facilitates easier assembly and connection within tight, multi-layered combiner boxes and battery racks. This front-entry connection simplifies cabling and maintenance procedures, reducing the time and complexity associated with field installation.
- Precise Alignment and Inspection: The central slot or “hollow” in the contact plate serves a practical purpose. It allows installation personnel to use alignment tools and, crucially, provides a visual check of the bolt seating and alignment. This seemingly minor feature significantly reduces the risk of improper contact seating, which is the leading cause of resistive hot spots and fuse failure in high-current applications.
- Optimal Integration: This terminal style often provides greater compatibility with specialized connection mechanisms, such as contactor mounting bases or blade switches, which require a specific mating geometry, allowing the DNESS2-S8L to seamlessly integrate into diverse ESS topologies.
3. Reliability through Low Loss and Durability
The long-term success of an ESS component is measured not just by its reaction to faults, but by its performance during continuous operation:
- Low Watt Loss Performance: The robust bolted connection design, coupled with precision-machined contacts, minimizes contact resistance. This translates directly to low power dissipation (Watt Loss), which is critical in energy storage. Low Watt Loss maximizes system efficiency and minimizes self-heating, thereby preventing the fuse from undergoing unnecessary thermal derating in the high ambient temperatures of containerized BESS units.
- Cycle Fatigue Resistance: ESS components are subjected to aggressive thermal cycling as the battery system rapidly charges and discharges. The DNESS2-S8L’s construction uses materials and welding processes optimized to resist metal fatigue and maintain reliable performance over the projected lifespan of the battery bank.
The GRL DNESS2-S8L series is thus the definitive choice for next-generation 1500V BESS architecture. It marries state-of-the-art aBat electrical performance with intelligent mechanical design, ensuring both maximum safety during a 250kA fault and optimal integration during initial installation.
