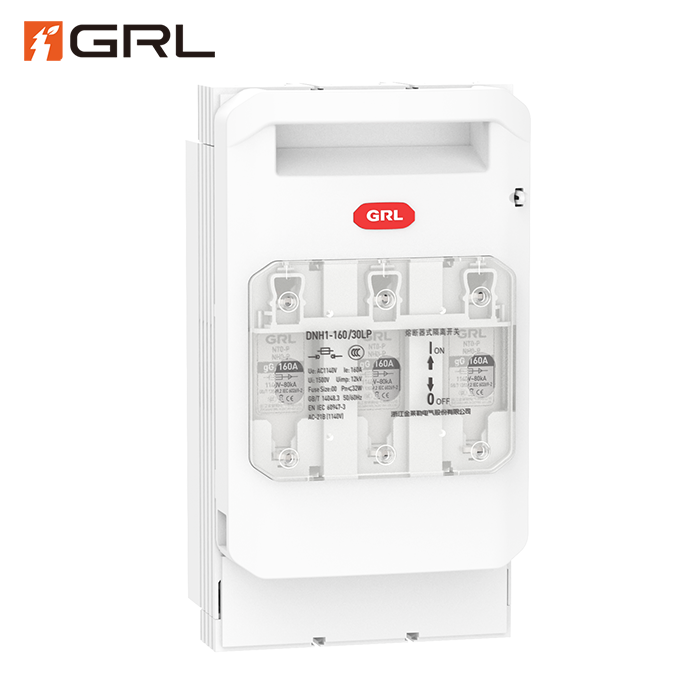

GRL DNH1-160/30LP Fuse Switch Disconnector 1140V AC Use NH0-P fuse link

 Fuse Switch Disconnector DNH1-160/30LP Series Technical Parameters

GRL DNH1-160/30LP Fuse Switch Disconnector: Advanced 1140V Protection for Wind Power Applications

1. Introduction: Engineered for Emerging Energy Demands

The GRL DNH1-160/30LP Fuse Switch Disconnector is a newly designed solution developed specifically to address the evolving market demands of renewable energy sectors, particularly wind power box transformers. Combining a sophisticated aesthetic with a highly compact structure, this device solves space constraints in modern distribution cabinets while delivering robust performance.

As a versatile component, it functions primarily as a line isolation device while simultaneously equipping the circuit with critical overload and short-circuit protection capabilities. The product is designed and manufactured in strict compliance with international standards GB/T 14048.3 and IEC 60947-3, ensuring global applicability and safety compliance.

Click to download product catalog DNH1 Series Fuse Switch Disconnector

2. High-Voltage Performance and Technical Specifications

The DNH1-160/30LP is optimized for high-voltage environments, a common requirement in wind energy generation and transmission.

• Voltage Capabilities: The device features a Rated operating voltage (Ue) of AC 1140V, making it suitable for systems exceeding standard low-voltage limits. To ensure long-term safety and resistance to electrical stress, it boasts a Rated insulation voltage (Ui) of 1500V and a Rated impulse withstand voltage (Uimp) of 12kV, providing exceptional resilience against transient voltage spikes.

• Current and Fuse Integration: The unit is rated for a Frame-rated Operational Current (Ie) of 100A. It is designed to accommodate Fuse size 0 (NH0-P type), supporting a flexible fuse rated operating current range from 2A up to 100A. This allows engineers to precisely tailor the protection level to the specific load requirements.

Get Quote

3. Robust Protection and Safety

Safety and reliability are at the core of the DNH1-160/30LP design.

• Short-Circuit Breaking Capacity: In the event of a fault, the device offers a high Rated short-circuit current (Iq) of 80kA (when equipped with the appropriate fuse), ensuring that massive fault currents are interrupted safely to prevent equipment damage.

• Ingress Protection: The switch is designed to protect operators from accidental contact. It offers a protection level of IP20 when in the ON position and IP30 when in the OFF position.

• Usage Category: It is classified under the usage category AC-20B, which typically denotes use as an isolator for connecting and disconnecting circuits under no-load or specified conditions.

4. Installation and Accessories

The DNH1-160/30LP is built for ease of integration into varied switchgear layouts.

• Mounting: The device is specified for Fixed installation and must be mounted in a Vertical installation orientation to ensure proper heat dissipation and mechanical operation.

• Connection: Secure connections are vital for high-voltage reliability. The specification mandates a Maximum tightening torque of less than or equal to 12 N.m, ensuring optimal contact pressure without damaging terminals.

• Customization: To meet complex monitoring needs, the system supports accessories that can be ordered separately, including an auxiliary switch for remote status signaling, mechanical fuse monitoring for instant fault detection, and a phase separation plate for enhanced isolation between phases.

DNH1 Fuse Switch Disconnector Wiring method

With its specialized design for 1140V AC systems and 100A capacity, the GRL DNH1-160/30LP is the ideal choice for wind power box transformers and other demanding industrial applications. Its combination of high insulation voltage (1500V), compact form factor, and compliance with IEC/GB standards makes it a premier solution for engineers seeking reliable line isolation and circuit protection.

DNH1 Fuse Switch Disconnector Product Showcase

Q: What is the primary application for the DNH1-160/30LP?

A: This device is specifically designed to meet market demands for wind power box transformers and other renewable energy applications. It serves as a line isolation device that also provides overload and short-circuit protection.

Q: What is the rated operating voltage for this switch?

A: The switch is rated for AC 1140V, making it suitable for high-voltage industrial and wind energy systems that exceed standard 690V limits.

Q: What standards does this product comply with?

A: The DNH1-160/30LP complies with applicable standards GB/T 14048.3 and IEC 60947-3.

Q: What size fuse link does this disconnector accept?

A: It is designed for Fuse size 0 (specifically NH0-P type fuse links).

Q: What is the current range for the fuses used in this device?

A: While the frame-rated operational current is 100A, the device supports fuse rated operating currents ranging from 2A up to 100A. This allows for flexible protection scaling based on your load.

Q: What is the short-circuit breaking capacity?

A: When equipped with the correct fuse, the rated short-circuit current (Iq) is 80kA. This high rating ensures reliable interruption of severe faults.

Q: Can this switch be used to switch motors directly?

A: The usage category is AC-20B. This category generally implies connecting and disconnecting under no-load conditions or switching resistive loads where the load is isolated. It is primarily an isolator, not a motor control switch.

Q: Does the switch support remote monitoring?

A: Yes. You can order separate accessories such as an auxiliary switch (for status signaling) and mechanical fuse monitoring (to detect blown fuses).

Q: Are there options for phase isolation?

A: Yes, a phase separation plate is listed as an item that can be ordered separately to enhance insulation between phases.

Q: What is the rated impulse withstand voltage?

A: The device has a rated impulse withstand voltage (Uimp) of 12kV, providing robust protection against voltage surges and lightning strikes.
