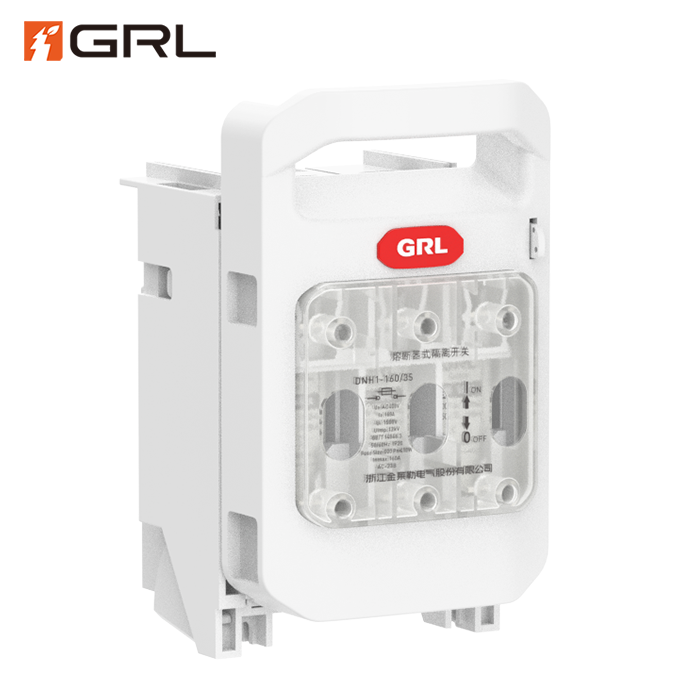

GRL DNH1-160-3S Series Fuse Switch Disconnector 400V 690V 800V 1140V AC Use NH000 fuse link

 Fuse Switch Disconnector DNH1-160-3S Series Technical Parameters

The GRL DNH1-160-3S Series Fuse Switch Disconnector: A Comprehensive Solution for Multi-Voltage AC System Protection

1. Introduction and Market Position

In the rapidly evolving landscape of industrial and power distribution systems, the need for electrical components that offer robust protection, reliable isolation, and system versatility is paramount. The GRL DNH1-160-3S Series Fuse Switch Disconnector emerges as a definitive answer to this demand, offering an integrated solution that combines the safety of a manual disconnector with the crucial overcurrent and short-circuit protection provided by high-performance fuses.

Specifically designed for versatility, the DNH1-160-3S Series is engineered to operate seamlessly across a broad spectrum of AC voltages, including 400V, 690V, 800V, and even 1140V. This exceptional multi-voltage compatibility positions it as an indispensable component in complex electrical infrastructures, ranging from standard low-voltage distribution panels to high-voltage industrial applications and renewable energy systems. By accommodating the widely used NH000 fuse link, the GRL DNH1-160-3S series ensures compliance with established protection standards while offering the flexibility required by modern electrical engineers.

This comprehensive document delves into the architecture, technical specifications, and application advantages of the GRL DNH1-160-3S Series, illustrating why it represents a superior choice for reliable circuit protection and isolation.

The DNH1-160/3S□ series Fuse Switch Disconnector switch (hereinafter referred to as the switch) is mainly used in distribution circuits and motor circuits with high short-circuit

currents. It serves as a power switch, isolation switch, emergency switch, and is also used for AC circuit protection.

Click to download product catalog DNH1 Series Fuse Switch Disconnector

2. Core Features and Design Philosophy

The design of the DNH1-160-3S series is anchored in three fundamental principles: Safety, Reliability, and Versatility.

2.1. Dual Functionality: Protection and Isolation

Unlike a standalone fuse base or a simple circuit breaker, this device serves a dual critical purpose:

• Protection (Fuse Function): When equipped with the appropriate NH000 fuse link, it provides rapid fault clearance under short-circuit conditions and timely interruption during prolonged overloads, protecting expensive downstream equipment from damage.

• Isolation (Switch Disconnector Function): The manual switching mechanism allows operators to safely isolate a section of the circuit from the power source for maintenance, repair, or troubleshooting activities, fulfilling crucial safety protocols.

Get Quote

2.2. Robust 3-Pole Design (3S)

The 3-pole configuration is standard for three-phase AC power systems, ensuring simultaneous switching and protection across all three phases. The “3S” designation often implies a solid, secure switching mechanism designed for frequent, yet safe, operation under rated conditions. The contacts are typically fabricated from highly conductive, arc-resistant materials to ensure minimal power loss and long operational life, even after interrupting fault currents.

2.3. Optimization for NH000 Fuse Links

The choice to utilize the NH000 standard is strategic. NH (low-voltage high-rupturing capacity) fuses are known for their high breaking capacity and reliability. The compact size of the NH000 form factor allows the DNH1-160-3S to maintain a relatively small footprint, optimizing panel space without compromising protective capability.

DNH1 Fuse Switch Disconnector Wiring method

Multi-Voltage Capability Explained

The standout feature of the DNH1-160-3S is its versatility across significantly different AC voltage levels (400V to 1140V). This is achieved through careful engineering of the contact system and arc suppression chambers.

Arc Extinguishing Mechanism

The ability to safely and quickly extinguish the electrical arc generated during switching or fault interruption is crucial, especially at higher voltages like 1140V AC. The GRL design incorporates advanced arc chutes and materials that rapidly cool, elongate, and extinguish the arc. This robust mechanism ensures a clean break and minimizes contact erosion, allowing the device to maintain its AC-23B utilization category even at the highest operating voltages.

Insulation Coordination

The high Rated Insulation Voltage (Ui) ensures that the device can operate reliably at lower voltages without thermal or dielectric breakdown concerns. The physical separation (clearance and creepage distances) between live parts is specifically designed to handle the highest specified voltage (1140V AC) plus required safety margins.

Targeted Industry Applications

The broad AC voltage range and high performance make the DNH1-160-3S a versatile solution across several key industries:

• Industrial Machinery and Automation: Used for motor protection and control, particularly alongside Variable Frequency Drives (VFDs) which require robust short-circuit protection in AC systems.

• Main Distribution Boards (MDBs): Serving as a main or sectional isolator and protective device within low-voltage MDBs, ensuring selective coordination across the facility.

• Commercial Building Infrastructure: Providing reliable disconnect means and overcurrent protection for large mechanical systems (e.g., HVAC) in three-phase AC installations.

Installation, Operation, and Maintenance

The DNH1-160-3S series is engineered for user-friendly installation and maintenance.

DNH1 Fuse Switch Disconnector Product Showcase

Click to view GRL LinkedIn  >>

Click to view GRL YouTube>>

The GRL DNH1-160-3S Series Fuse Switch Disconnector is more than just a component; it is a vital safety and control nexus for modern AC power systems. Its unparalleled capability to handle a wide range of AC voltages, from 400V up to 1140V, combined with its robust protection mechanism using the NH000 fuse link, offers system integrators and electrical professionals a high degree of confidence and design flexibility.

By choosing the DNH1-160-3S, users invest in a reliable, safety-compliant, and technically sophisticated solution designed for the complex demands of today’s industrial and energy sectors.
