250A High Current Terminal for Control Cabinets, Busbar Systems and Low Voltage Power Distribution
Technical Specifications
| Parameter | DNJ1-250 |
| Rated Current (Ie) | 250A |
| Rated Insulation Voltage (Ui) | 1000V |

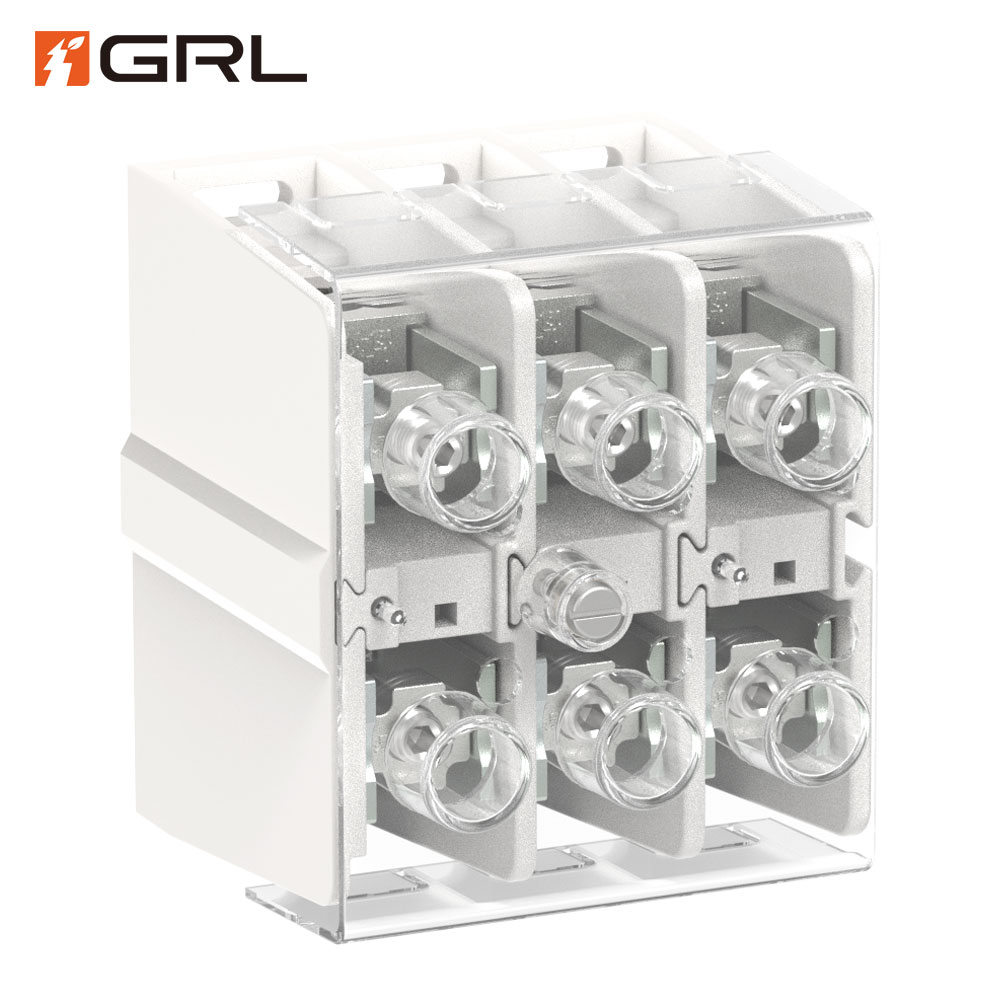

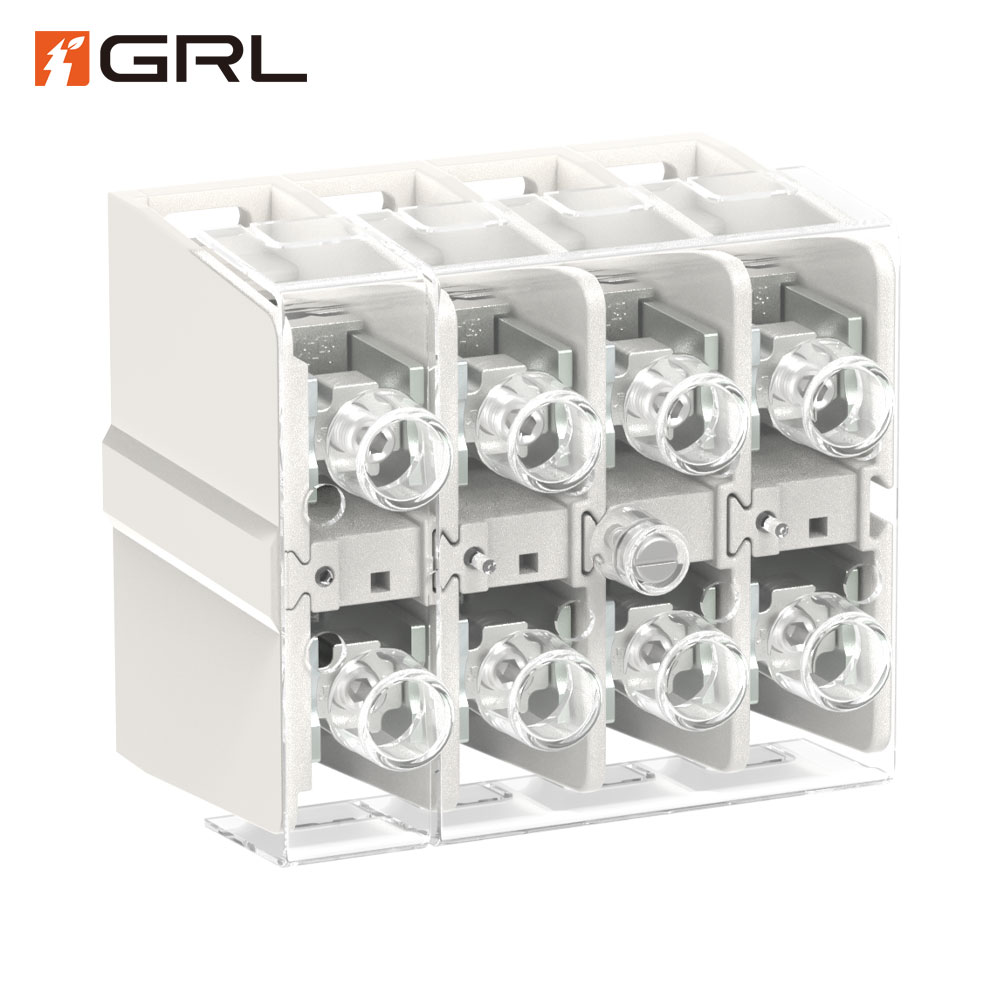

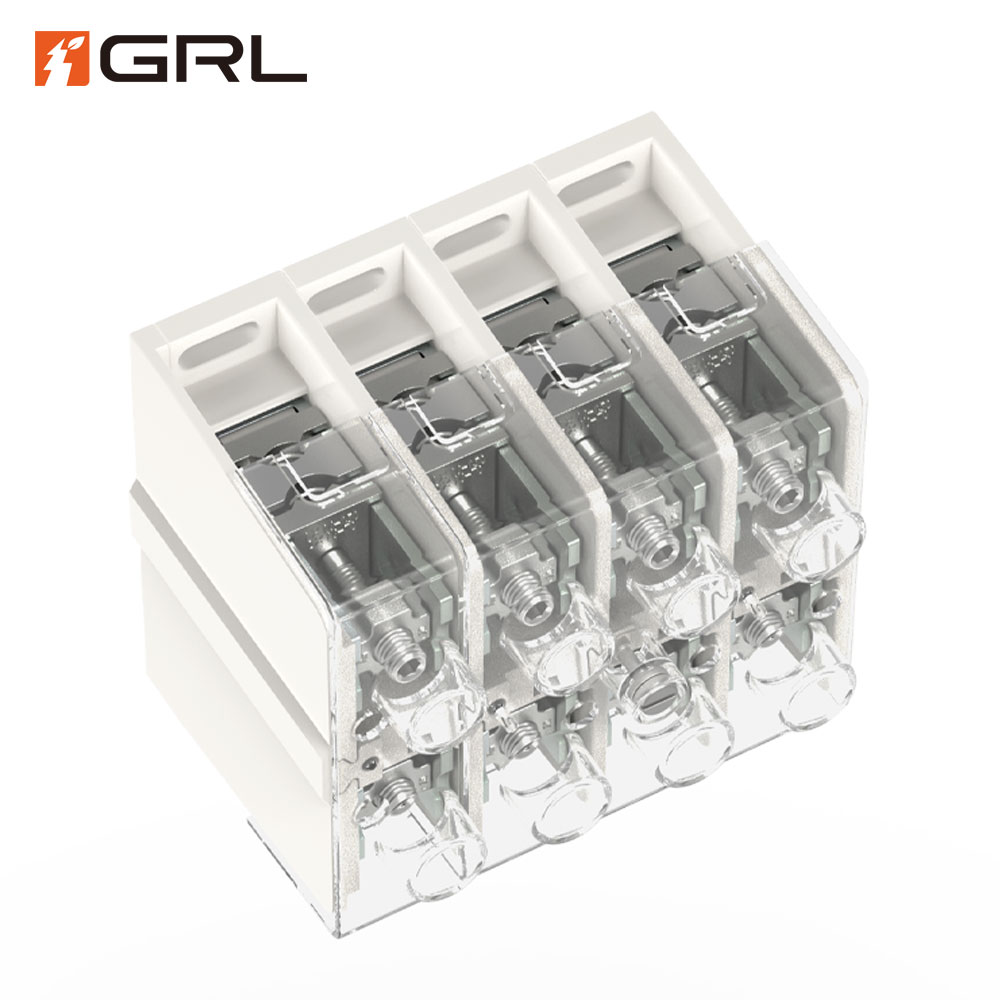

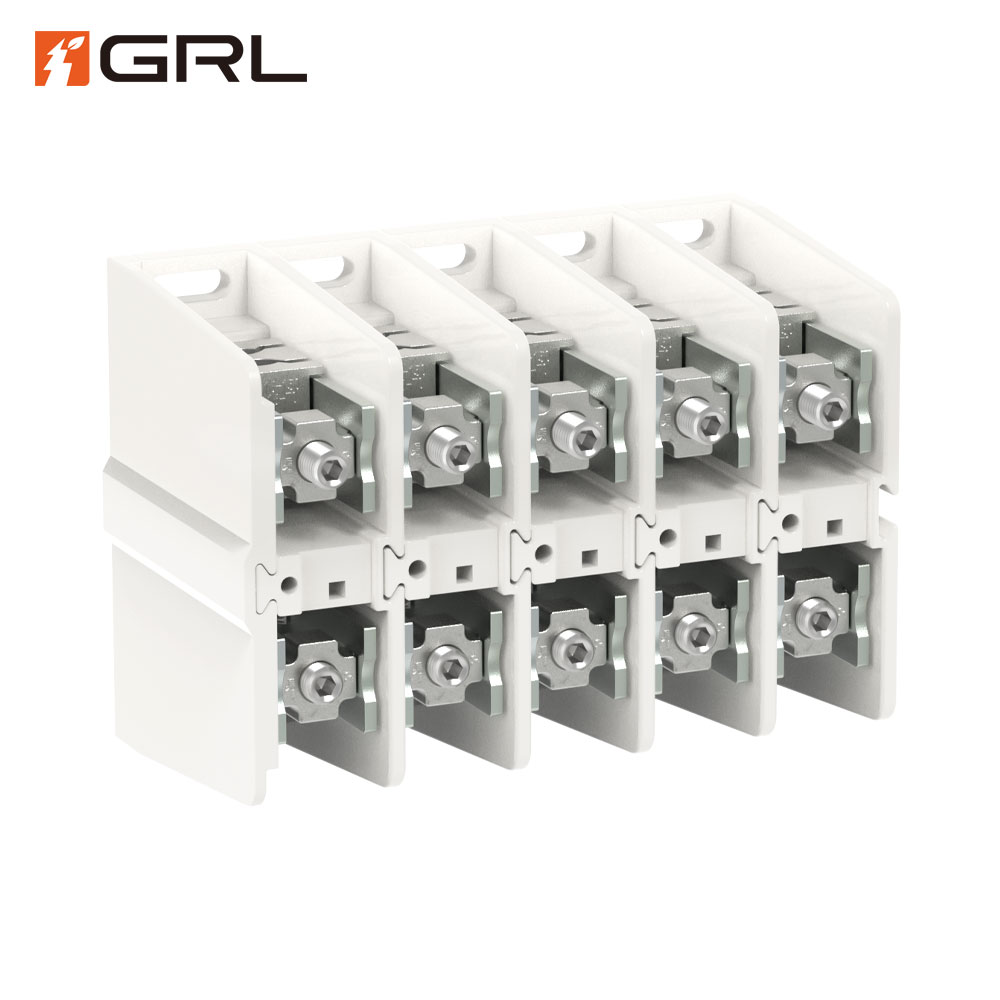

| Pole Options | 3P / 4P / 5P |
| Maximum Cable Cross Section | 150 mm² |
| Minimum Cable Cross Section | 16 mm² |
| Cable Capacity | 35–150 mm² (1×) / 16–70 mm² (2×) |
| Flat Busbar Capacity | 18 × 10 mm |

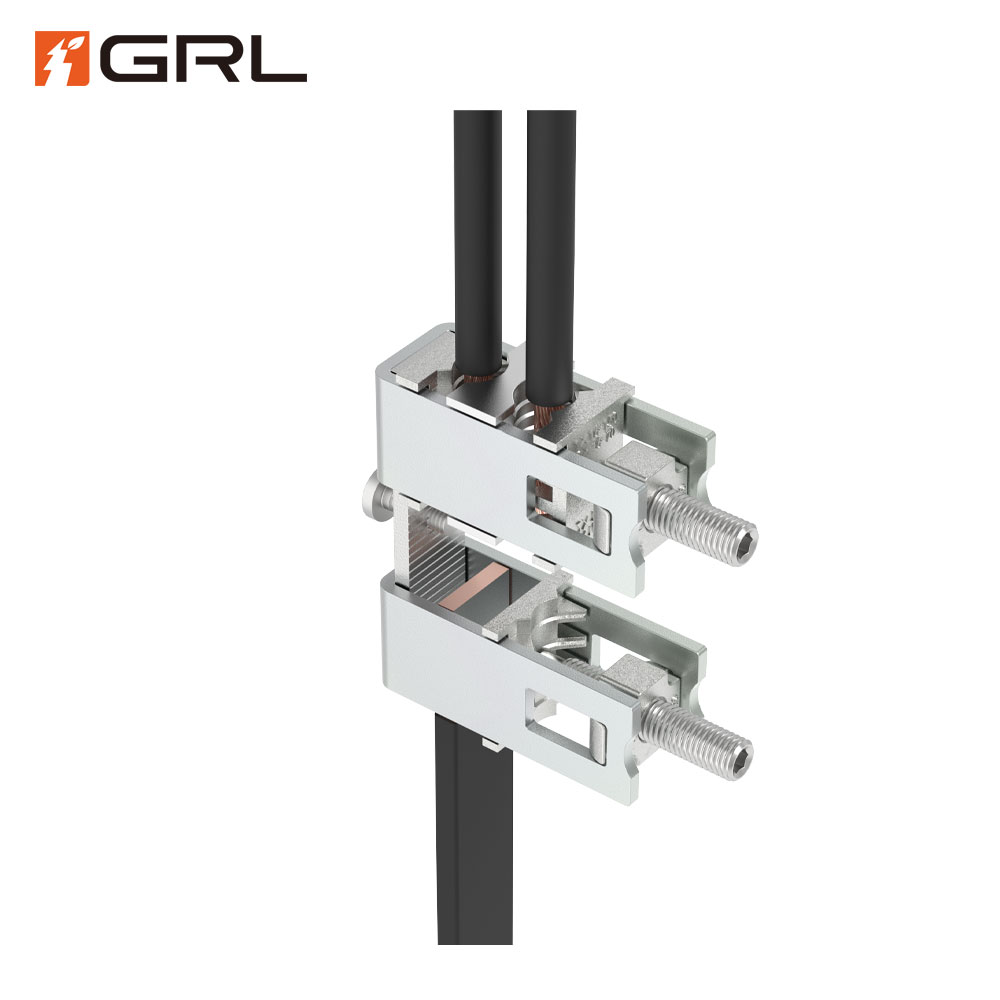

| Wire Connections per Pole | 2 |
| Busbar Connections per Pole | 1 |
| Operating Temperature | -5°C to +40°C |
| Pollution Degree | 3 |
| Installation Altitude | ≤ 2000m |
| Standard | IEC60947-7-1 / GB/T 14048.7 |
Product Overview
The DNJ1-250 High Current Terminal is designed for safe and efficient cable connections within industrial power distribution systems, control cabinets, and low-voltage switchgear.
Rated at 250A, it creates an intermediate connection structure between external power cables and switching equipment:
External Cable → High Current Terminal → Main Switch → Busbar System
Compared with traditional direct wiring methods, this approach improves installation flexibility, cabinet organization, and maintenance accessibility while helping reduce cable stress on switching devices.
Why Choose DNJ1-250?
DNJ1-250 combines structured cable management with reliable high-current transmission capability, helping engineers create cleaner and more maintainable electrical systems.
