Solar Fuse Link Overview

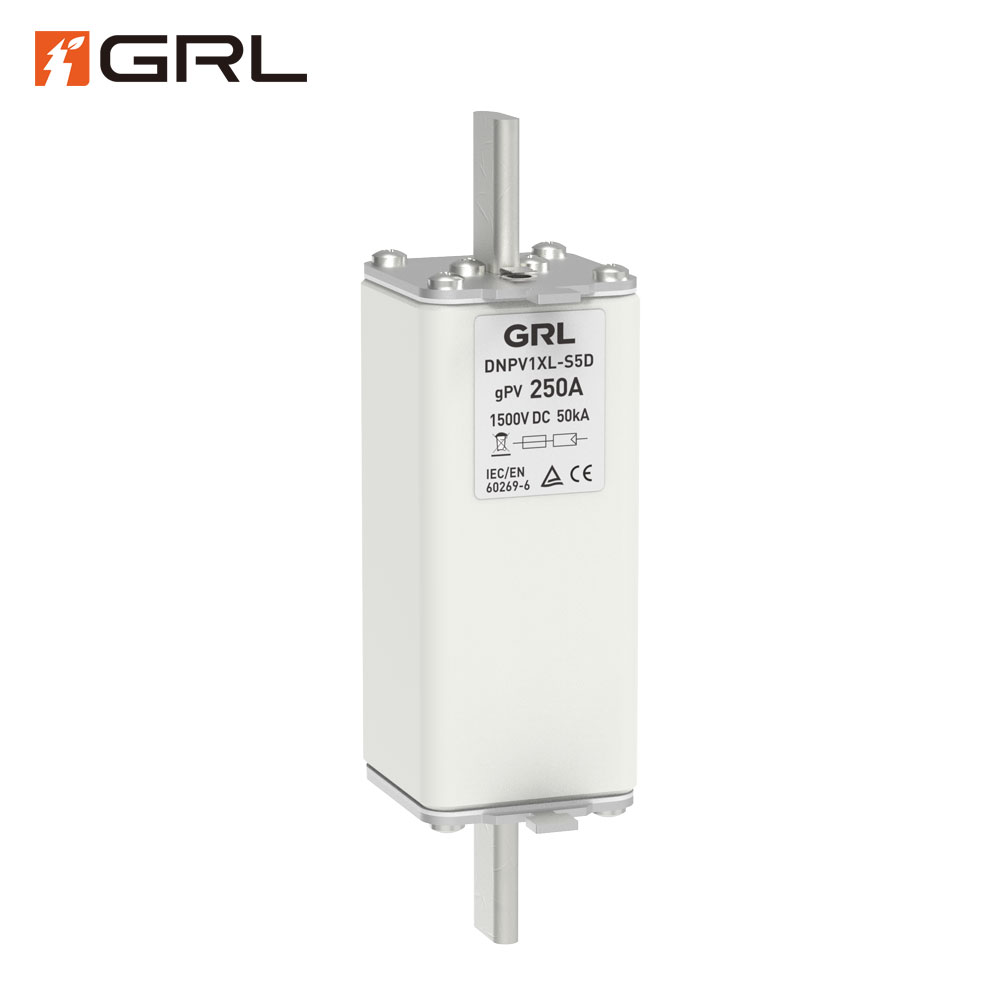

The DNPV1XL-S5D Solar Fuse Link is a high-performance photovoltaic fuse designed to provide reliable overcurrent protection in modern solar power systems. Operating at a rated voltage of 1500V DC and a current range from 50A to 250A, it ensures safe and efficient circuit protection across photovoltaic strings, arrays, and inverter input circuits. As part of GRL’s professional PV fuse link series, the DNPV1XL-S5D is engineered according to IEC 60269-6 and GB/T 13539.6 standards, guaranteeing consistent operation under extreme DC conditions.
This solar fuse link uses advanced fuse-element technology and optimized heat-dissipation design to deliver fast-acting response, high breaking capacity up to 50 kA, and low power loss, ensuring both electrical safety and energy efficiency. It is suitable for use in residential, commercial, and utility-scale photovoltaic installations, providing dependable protection against reverse currents, short circuits, and overloads.
Solar Fuse Link Advantages
-
High DC voltage rating (1500 V DC): Enables protection for new-generation high-efficiency solar systems and large-scale PV arrays.
-
Wide current range (50 A – 250 A): Meets different circuit protection needs from small residential to industrial PV applications.
-
Excellent breaking capacity (50 kA): Provides safe circuit isolation even during severe short-circuit faults.
-
Fast-acting and precise response: The gPV design ensures rapid disconnection, minimizing energy loss and preventing equipment failure.
-
Reliable thermal and mechanical endurance: Maintains stable performance in extreme temperature or humidity environments.
-
Compact and modular structure: Facilitates integration into PV combiner boxes, inverters, and fuse holders.
-
Compliance with international standards: Certified to IEC 60269-6 and GB/T 13539.6, ensuring global compatibility and user confidence.
These advantages make the DNPV1XL-S5D one of the most efficient and durable solar fuse links in the market for DC protection systems.
Solar Fuse Link Applications
The DNPV1XL-S5D solar fuse link is specifically designed for low-voltage DC photovoltaic systems. It provides string-level and array-level protection in various PV applications:
-
Photovoltaic strings and combiner boxes: Prevent reverse current and short-circuit damage between parallel strings.
-
PV inverters: Protect the DC side from overcurrent conditions caused by internal faults or external disturbances.
-
Energy-storage systems: Safeguards DC busbars and battery connections within hybrid solar-storage solutions.
-
DC distribution and protection panels: Ensures safe isolation and reliable performance across multi-circuit configurations.
Its adaptability and robust design make it suitable for rooftop solar projects, utility-scale solar farms, and commercial power-distribution systems, providing stable and efficient protection under continuous solar operation.
Solar Fuse Link FAQs
1、What is a solar fuse?
A solar fuse, also known as a PV fuse link, is a protective device that interrupts excessive DC in a photovoltaic system. When a fault such as a short circuit or reverse current occurs, the fuse melts its internal element, quickly disconnecting the circuit to protect solar panels, inverters, and cables from damage.
2、Where should the fuse be located in a solar system?
In a solar PV system, fuse links are typically installed at the string level, inside combiner boxes or junction boxes, and at the inverter input terminals. They ensure that each solar string is individually protected, preventing fault currents from flowing backward through other connected modules.
3、Do solar panels need fuses?
Yes. Solar panels require fuses to protect against overcurrent conditions caused by system faults or environmental factors. Using properly rated photovoltaic fuse links like the DNPV1XL-S5D ensures that DC circuits remain safe, compliant, and stable throughout system operation.
4、What is the difference between a DC fuse and an AC fuse?
A DC fuse is specially designed to extinguish arcs in direct-current systems, which are more difficult to break than alternating current. The DNPV1XL-S5D’s high-performance arc-quenching structure ensures fast and reliable DC circuit interruption up to 1500 V, making it ideal for PV applications.
5、How do I select the right PV fuse link?
When selecting a solar fuse link, consider parameters such as system voltage (1500 V DC), rated current, breaking capacity, and installation environment. The DNPV1XL-S5D offers a versatile range of current ratings, allowing easy selection for both small and large photovoltaic circuits.
The DNPV1XL-S5D Solar Fuse Link from GRL Electric delivers outstanding protection performance for 1500 V DC photovoltaic systems, ensuring safety, reliability, and efficiency across all solar applications. Engineered with precision and tested under international standards, this PV fuse link is the trusted choice for engineers, system integrators, and renewable-energy professionals seeking a dependable DC fuse link solution.
By combining fast-acting protection, compact design, and robust durability, the DNPV1XL-S5D supports the long-term stability and safety of modern solar installations — making it a key component in achieving sustainable and high-efficiency photovoltaic power systems.
