GRL DNPV1XL-S5R Solar Fuse Link DC 1500V 50-250A Ceramic PV Fuse Link Manufacturer

Solar Fuse Link Overview

Solar Fuse Link Technical Parameters

The DNPV1XL-S5R PV fuse link is rated at 1500V DC, supporting current capacities from 50A to 250A, covering a wide range of PV system designs. It belongs to the gPV utilization category, meaning it provides complete protection—from overloads to short-circuit conditions—across the full operating current range of photovoltaic circuits.

Click to read： How do semiconductor fuse links protect against short-circuit conditions?

Solar Fuse Link Features

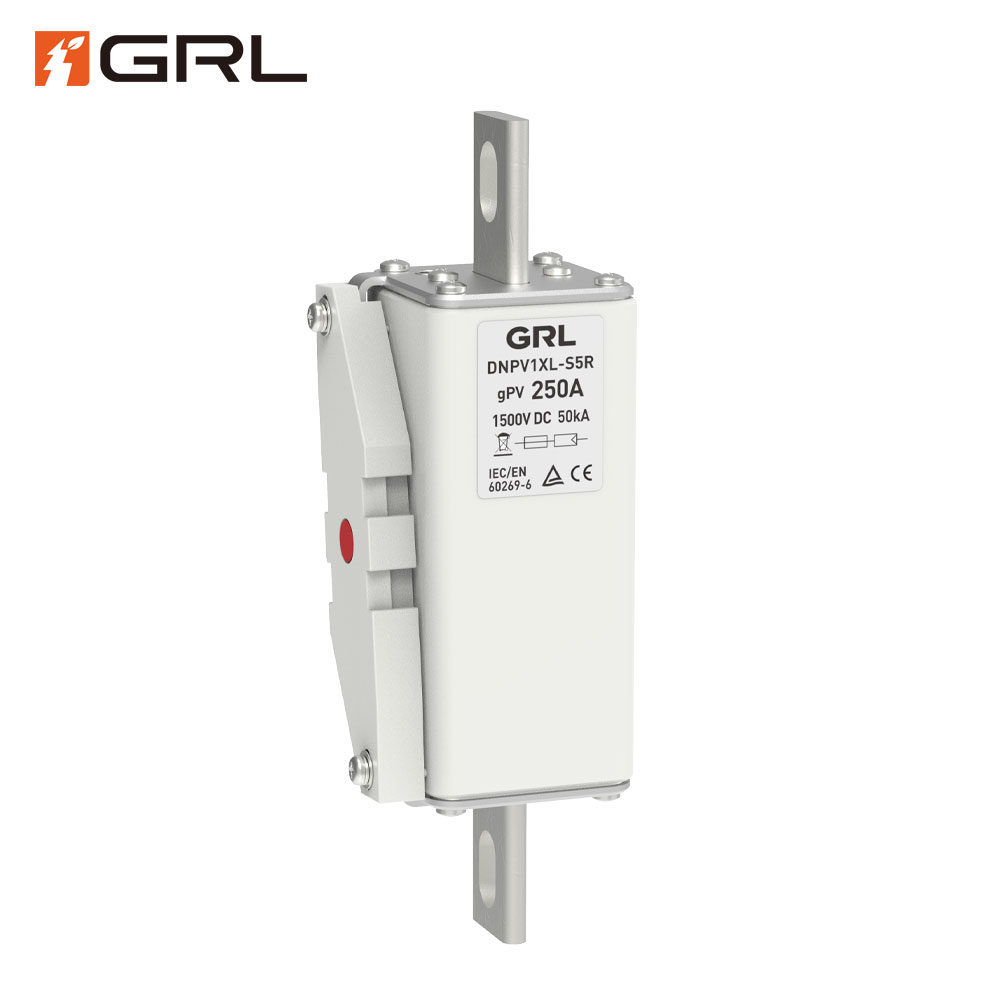

The DNPV1XL-S5R Solar Fuse Link utilizes a cylindrical body structure with plug-in contact terminals, designed for convenient installation, compact integration, and quick replacement during maintenance. The S5R type integrates seamlessly with GRL’s compatible fuse holders and fuse bases, providing a secure and low-resistance electrical interface suitable for modular PV protection systems.

The internal fuse element is made from high-purity silver, ensuring precise melting behavior and stable electrical conductivity throughout its service life. The high-strength ceramic housing offers excellent arc-quenching capability, allowing the fuse to safely interrupt DC arcs at voltages up to 1500V.

Solar Fuse Link Advantages

The DNPV1XL-S5R Solar Fuse Link delivers comprehensive protection and system reliability through a range of outstanding benefits:

• High voltage capability (1500V DC): Supports next-generation PV systems with higher efficiency and power density.

• Wide current range (50A–250A): Accommodates various PV circuit designs and capacities.

• Fast-acting gPV characteristics: Ensures immediate response to short-circuit and reverse-current faults.

• High breaking capacity (50kA): Guarantees safe circuit interruption under extreme fault conditions.

• High-purity silver element: Provides consistent performance and long operating life.

• Excellent thermal and electrical endurance: Maintains stability under continuous load and environmental stress.

• Compact, modular structure: Simplifies installation and maintenance, reducing downtime.

• Low temperature rise: Improves efficiency and ensures reliable operation in high-density systems.

• Compliant with IEC and GB/T standards: Suitable for international markets across Asia, Europe, and Africa.

These attributes make the DNPV1XL-S5R PV fuse link an ideal choice for high-reliability photovoltaic protection in demanding renewable energy environments.

Solar Fuse Link Applications

The DNPV1XL-S5R is designed for use across a variety of solar and DC electrical applications, including:

• Photovoltaic string protection: Prevents reverse currents and short-circuit faults between parallel PV module strings.

• PV combiner boxes: Provide individual circuit protection for each solar array connection.

• Inverter DC input protection: Safeguards the inverter’s input terminals from overcurrent faults.

• Battery energy storage systems: Protects DC busbars, battery banks, and energy storage connections.

• Hybrid renewable systems: Integrates into solar-storage hybrid systems for stable power transmission.

• DC power distribution panels: Used in low-voltage DC switchgear, ensuring safe operation and easy isolation.

With its 1500V DC capability, the DNPV1XL-S5R fuse link is suitable for residential rooftop systems, large-scale solar farms, and commercial or industrial PV power stations, providing consistent protection performance and easy integration into existing systems.

Click to download product catalog

Solar Fuse Link FAQs

1、What is a solar fuse?

A solar fuse, also known as a PV fuse link, is a safety component that protects photovoltaic systems from overcurrent and short-circuit faults. When the abnormal current exceeds the rated value, the fuse element melts and disconnects the circuit, preventing damage to solar panels, inverters, and wiring.

2、Where should the fuse be located in a solar system?

In a solar PV system, fuses are typically installed at the string level, inside combiner boxes, and at the inverter input terminals. This ensures each PV string or array is individually protected, preventing one faulty string from affecting the others.

3、Do solar panels need fuses?

Yes. Solar panels require fuses for safety and compliance with electrical standards. Fuses like the DNPV1XL-S5R protect against reverse current flow, short circuits, and overloads that could lead to component failure or fire risk.

4、What makes a gPV fuse different from other DC fuses?

A gPV fuse link is specifically designed for photovoltaic systems. It provides full-range protection for DC circuits, covering both overload and short-circuit currents. The DNPV1XL-S5R gPV fuse is optimized for high-voltage DC operation and fast response, unlike general-purpose fuses that may fail to interrupt sustained DC arcs.

5、How can I choose the right fuse for my solar installation?

Select a fuse with a rated voltage equal to or higher than your system voltage (e.g., 1500V DC), and a current rating suitable for your circuit. The DNPV1XL-S5R solar fuse link offers a wide range of ratings, ensuring compatibility with various PV configurations and inverter capacities.

Conclusion

The DNPV1XL-S5R Solar Fuse Link by GRL Electric is an advanced, high-reliability protection device engineered for modern 1500V DC photovoltaic systems. With its superior gPV-rated performance, fast response, and robust construction, it ensures stable operation, minimal energy loss, and extended equipment life.

Engineers and system designers worldwide choose GRL’s DNPV1XL-S5R for its proven quality, compliance with international standards, and long-term reliability. It represents a professional-grade solar fuse link solution for all levels of PV systems — from small distributed rooftops to large-scale renewable energy plants.
