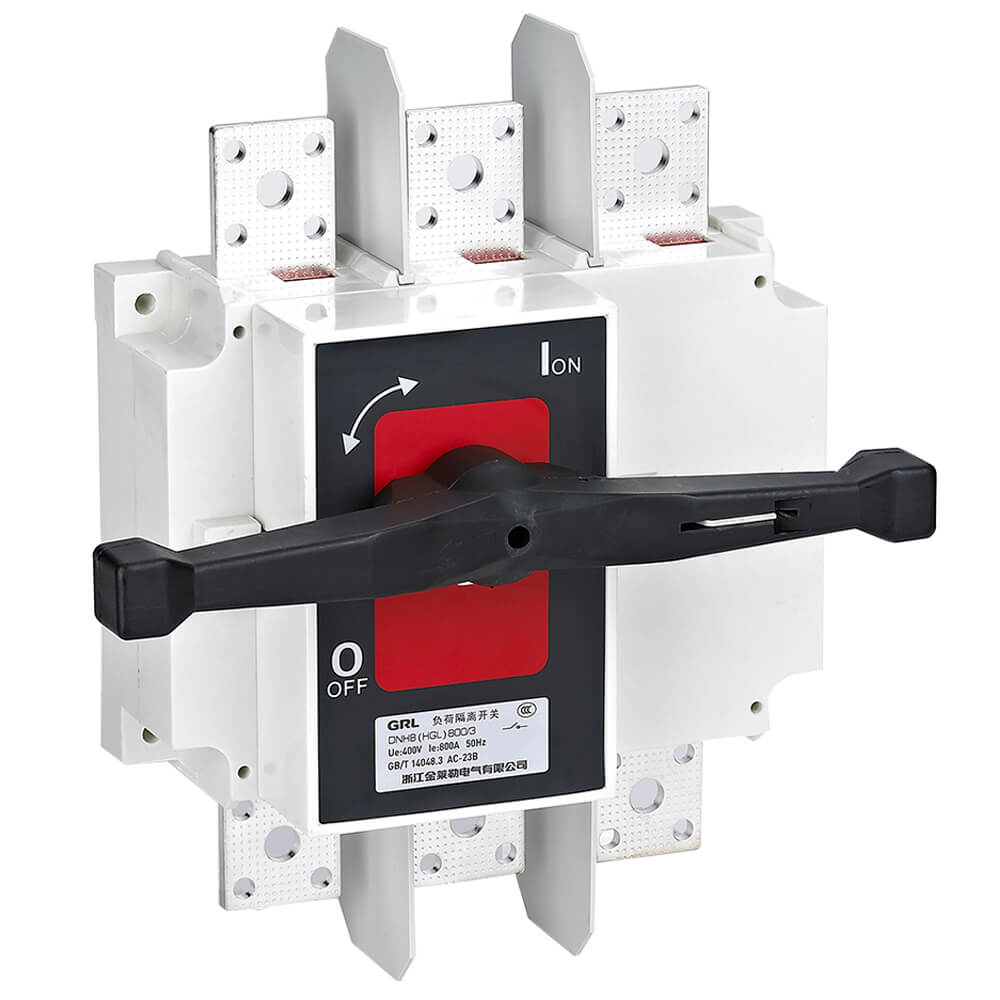

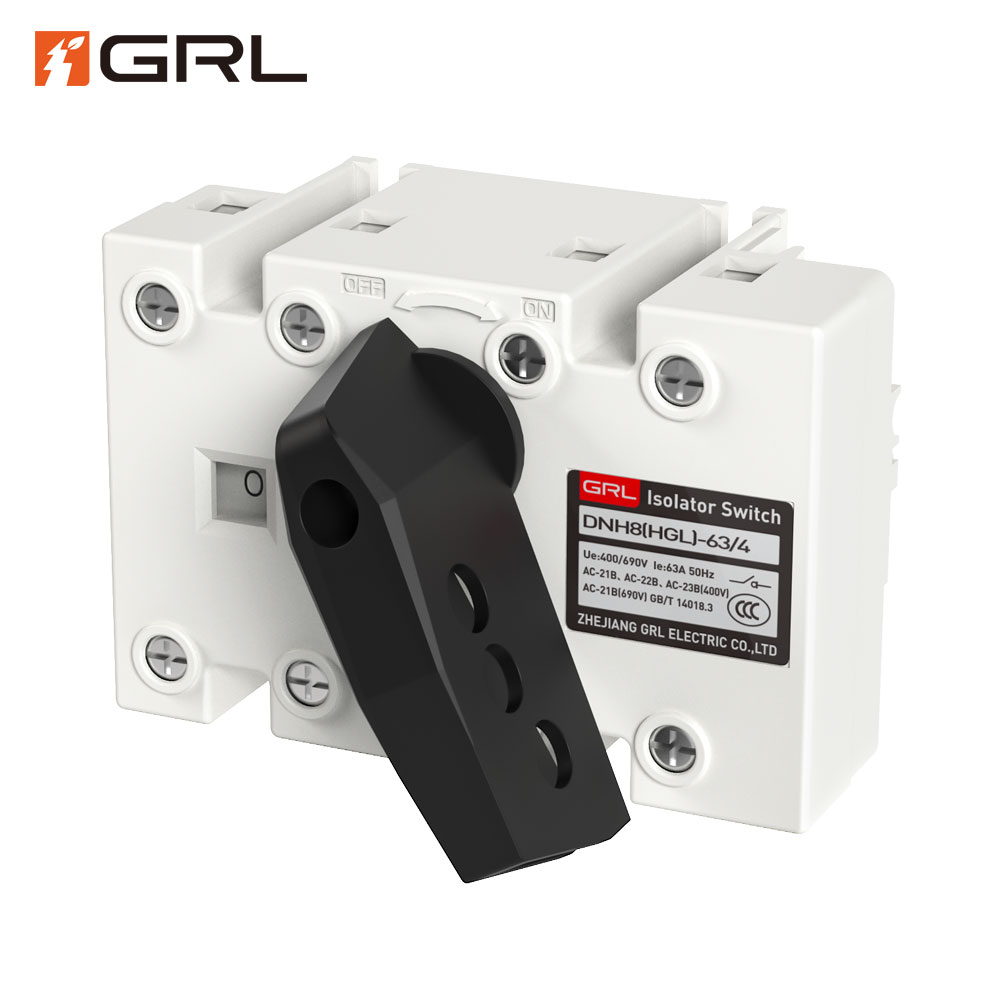

Isolator Switch

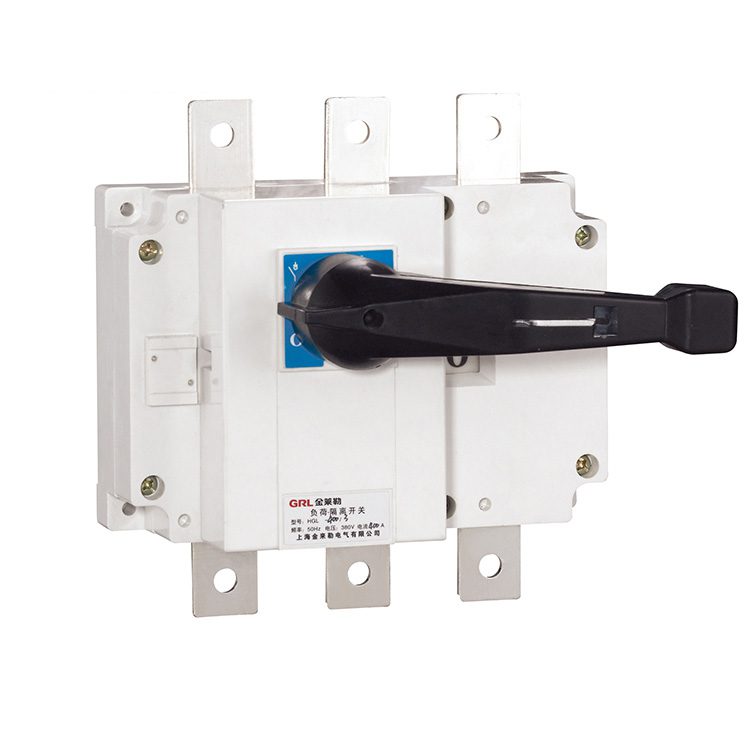

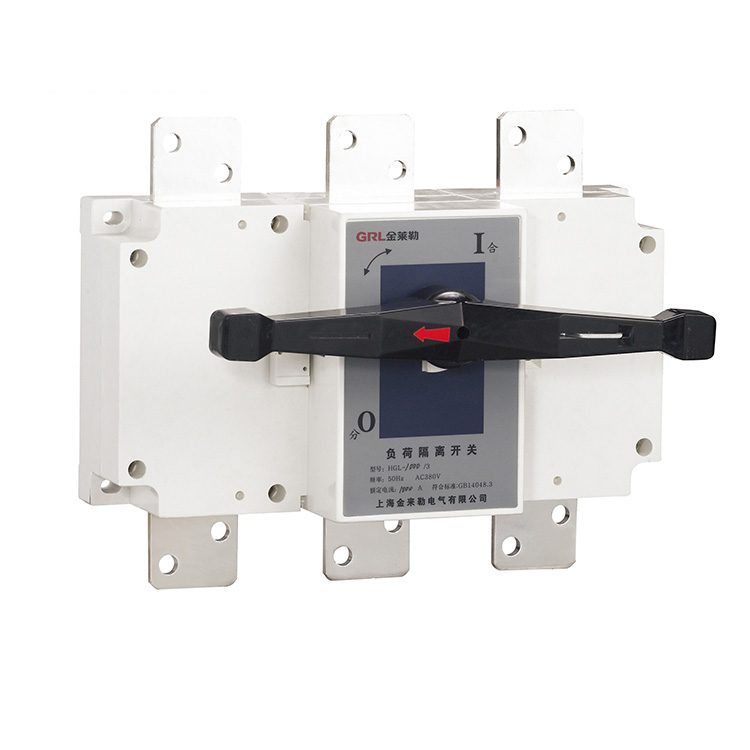

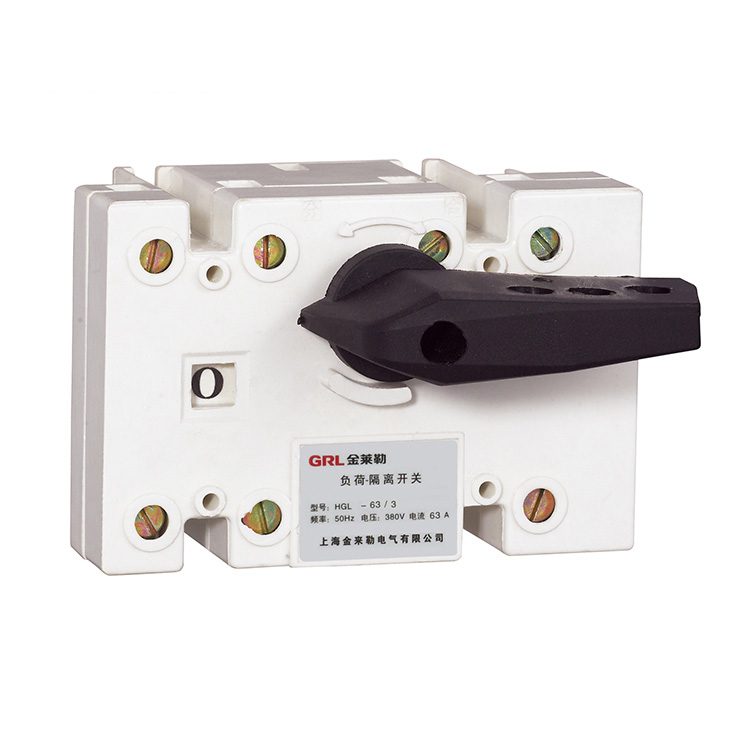

HGL Switch Disconnector


Mode:HGL

Current:63A,100A,125A,160A,200A,250A,315A,400A,500A,630A,800A,1000A,1250A,1600A,2000A,2500A,3150A

Voltage:AC400V/690V

Material:DMC frame,copper contact PA66 handle

Certificate:CE

Email: [email protected]

Mode:HGL

Current:63A,100A,125A,160A,200A,250A,315A,400A,500A,630A,800A,1000A,1250A,1600A,2000A,2500A,3150A

Voltage:AC400V/690V

Material:DMC frame,copper contact PA66 handle Certificate:CE

Email: [email protected]

1.Model no.

2.Dimension

3.parameters

4.The components

5.Packing

6.Packaging&shipping

Model no.

 Item Order No. Current   Working Condition
1 DNH8(HGL)-63/3 63A The ambient temperature : +5 ° C~ +40 ° C  installation location  must be at an altitude of less than 2000 m



Humidity: When the highest temperature is +40℃, the relative humidity of the air does not exceed 50%. Higher relative humidity can be allowed at lower temperature, such as 90% at 20℃.Measures should be taken for occasional condensation due to ambient temperature changes.



n No explosive hazard medium.



No wind and snow invade the environment



· Be noted:

Special ambient temperature Please let  manufacturer know  in advance.



2 DNH8(HGL)-100/3 100A
3 DNH8(HGL)-160/3 160A
4 DNH8(HGL)-250/3 250A
5 DNH8(HGL)-400/3 400A
6 DNH8(HGL)-630/3 630A
7 DNH8(HGL)-630/3 加厚 630A
8 DNH8(HGL)-800/3 800A
9 DNH8(HGL)-1000/3 1000A
10 DNH8(HGL)-1250/3 1250A
11 DNH8(HGL)-1600/3 1600A
12 DNH8(HGL)-2500/3 2500A
13 DNH8(HGL)-3150/3 3150A
14 DNH8(HGL)-63/4 63A
15 DNH8(HGL)-100/4 100A
16 DNH8(HGL)-160/4 160A
17 DNH8(HGL)-250/4 250A
18 DNH8(HGL)-400/4 400A
19 DNH8(HGL)-630/4 630A
20 DNH8(HGL)-1000/4 1000A
21 DNH8(HGL)-1250/4 1250A
22 DNH8(HGL)-1600/4 1600A
23 DNH8(HGL)-2500/4 2500A
24 DNH8(HGL)-3150/4 3150A

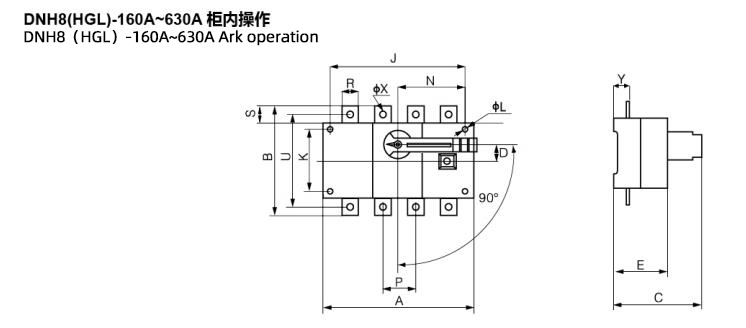

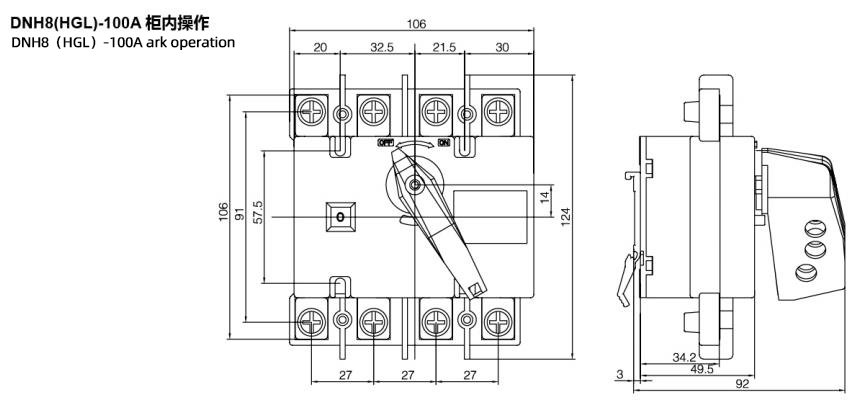

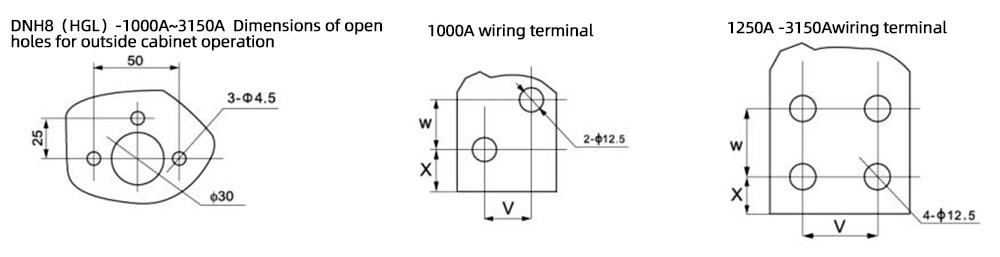

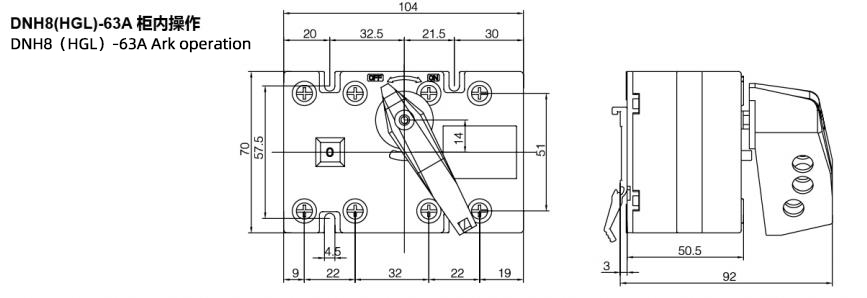

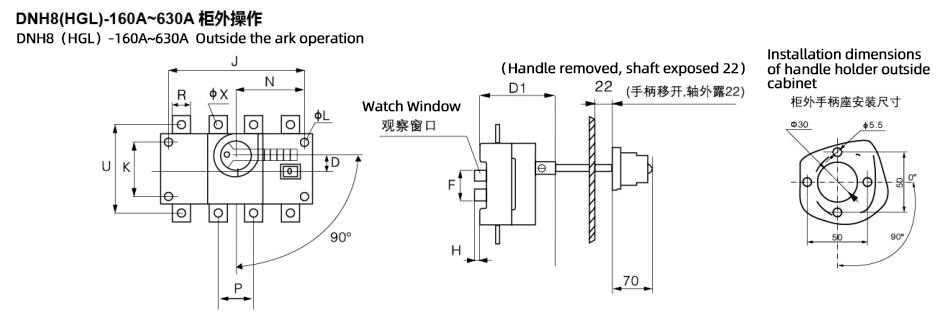

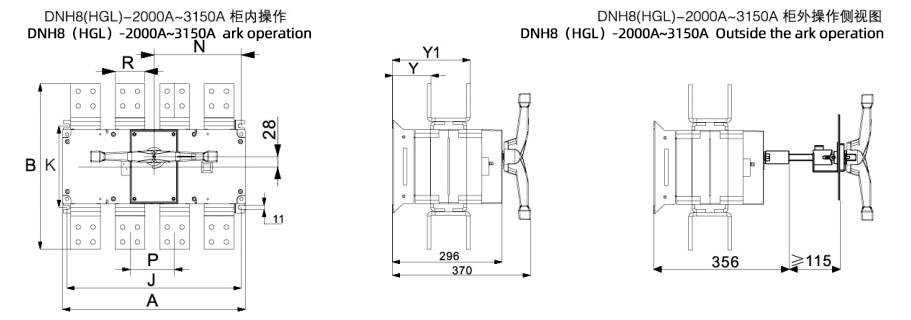

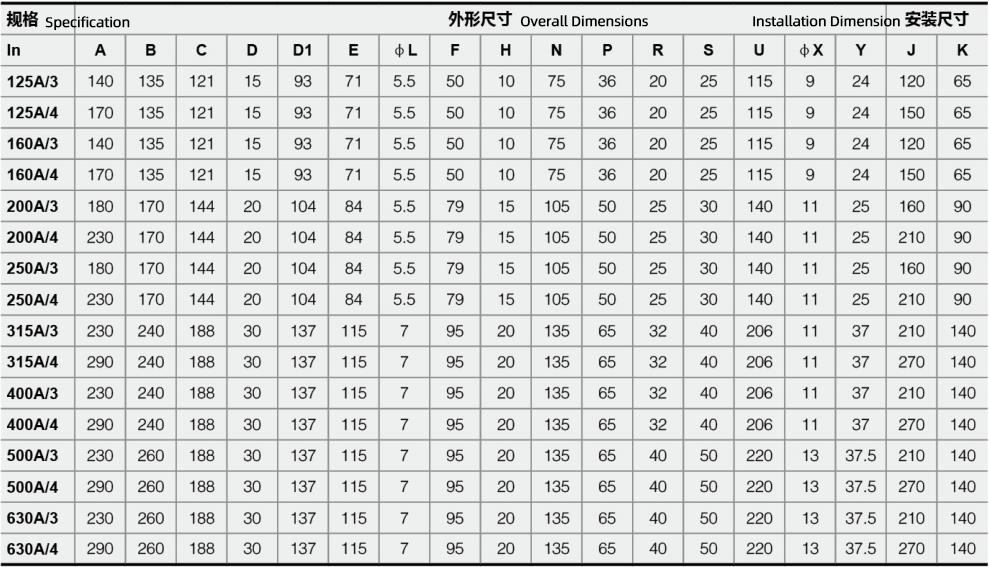

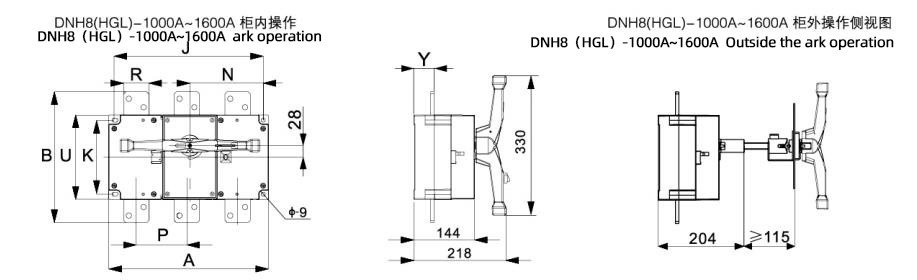

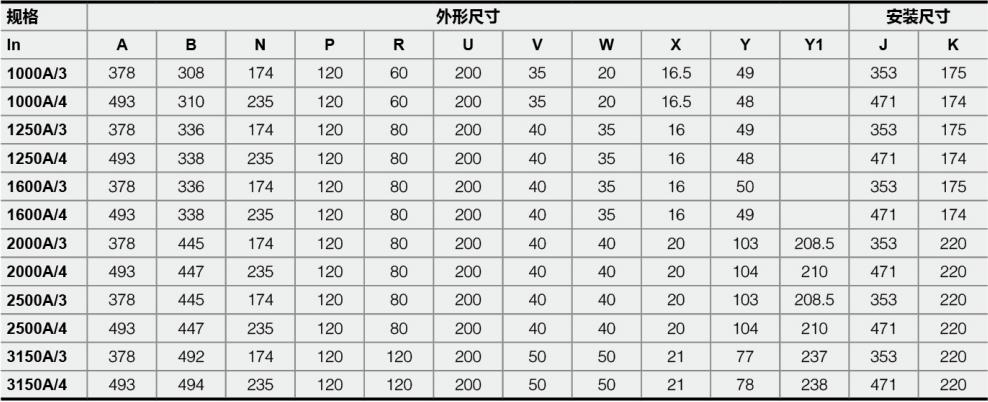

Dimension

Parameters

Rated current Ie/A(A) 63A 100A 160A 250A 630A
Thermal current Ith(A) 40 63 80 100 125 160 200 250 315 400 500 630
Rated voltage  Ue/V 690 690 1000 1000 1000
Dielectric intesity(V) 1890 1890 2200 2200 2200
Withstand voltage Uimp kV 8 8 12 12 12
Rated current Ie(A) AC-21B 40 63 80 100 125 160 200 250 315 400 500 630
AC-22B 40 63 80 100 125 160 200 250 315 400 500 630
AC-23B 40 63 80 100 125 160 200 250 315 400 500 630
Moror Power P(kW) 400V 18.5 25 40 40 63 80 100 132 160 220 280 315
Rated short-time

withstand current Icw(kA Rms)1s

2 2 2 2 6 6 9 9 12.6 12.6 12.6 12.6
Rated breaking capacity Icn(A rms)AC-23B 400V 320 504 640 800 100 1080 1600 2000 2520 3200 4000 5040
Rated switching capacity Icm(A rms)AC-23B 400V 400 630 800 1000 1250 1600 2000 2500 3150 4000 5000 6300
Rated short- time withstand current Icm(kA) 2.84 2.84 2.84 2.84 9.2 9.2 15.3 15.3 25.2 25.2 25.2 25.2
Electric endurance times 400V 1700 1700 1700 1700 1400 1400 1400 1400 800 800 800 800
electrical life  400V 300 300 300 300 200 200 200 200 200 200 200 200
Operating torque(Nm) 1.2 1.2 1.2 1.2 6.5 6.5 10 10 21 21 21 21
Weight(kg) 3pole 0.4 0.4 0.55 0.55 1.2 1.2 2 2 4.4 4.4 4.9 4.9
4pole 0.42 0.42 0.62 0.62 1.4 1.4 2.35 2.35 5.5 5.5 6.3 6.3

The components of the HGL Switch Disconnector Introduction

GRL offers a serious of disconnector switches for different applications.

There are 3 poles and 4 poles ,from ampere 63A to 3150A. The products adapt to all types of cut off requirements.

Normally, be used as  main  incoming  switches.

The unique  structure and  high quality raw materials makes the  break capacity much higher than other brands.

GRL also  provide customized application according to your specificities.

Characteristics

—— Copper(99.99%) contacts ;DMC frame;PA66-V0 handle

—— with arching chambers

—— AC-23B(AC400V),AC-21B(AC690V)

—— 29 years’ classic disconnector switch

Selection Help

——  63A to 3150A

一一  3pole & 4 pole

—— Indoor type & outdoor type

—— With auxiliary contact or not

—— Visible type & invisible type

isolator switch on or off

Packing Data

Model No. Carton Size Packing Quantity Single/G.W.(kg)

Unit/G.W.(kg)

HGL-63/3 48*26.5*28 33 0.388 13.804
HGL-100/3 48*26.5*27.5 24 0.55 14.2
HGL-160/3 44*30*26.5 15 1.15 18.25
HGL-250/3 39*37*36 12 2 25
HGL-400/3 31*28*32 2 4.35 9.7
HGL-630/3 31*28*32 2 4.9 10.8
HGL-1000/3 45*36*21 1 11.75 12.75
HGL-1250/3 45*36*21 1 13.35 14.35
HGL-1600/3 45*36*21 1 13.35 14.35
HGL-2500/3 47.5*40.5*37(内径) 1 1
HGL-3150/3 53*40.5*37(内径) 1 1
HGL-63/4 48*26.5*28 33 0.4 14.2
HGL-100/4 48*26.5*27.5 24 0.6 15.4
HGL-160/4 45*36*21 12 1.35 17.2
HGL-250/4 51*37*24 8 2.35 19.8
HGL-400/4 37*28*32 2 5.4 11.8
HGL-630/4 37*28*32 2 6.2 13.4
HGL-1000/4 57*36*21 1 1
HGL-1250/4 57*36*21 1
HGL-1600/4 57*36*21 1
HGL-2500/4 47.5*52.5*37(内径) 1 46 47
HGL-3150/4 53*52.5*37(内径) 1 56 57
HGL-100/3Z1 43*37*18 6 1.95 12.7
HGL-160/3Z1 47*22.5*42 6 3 19
HGL-250/3Z1 51.5*38.5*24.5 4 4.8 20.2
HGL-400/3Z1 56*32*32 2 9.85 20.7
HGL-630/3Z1 56*32*32 2 11.2 23.4
HGL-1000/3Z1 49*36*34.5(内径) 1 28 29
HGL-1250/3Z1 49*36*34.5(内径) 1 31 32
HGL-1600/3Z1 49*36*34.5(内径) 1 1
HGL-2500/3Z1 61*53*53(内径) 1 1
HGL-3150/3Z1 61*53*53(内径) 1 1
HGL-100/4Z1 43*37*18 6 2.05 13.3
HGL-160/4Z1 47*25.5*42 6 3.05 19.3
HGL-250/4Z1 61.5*38.5*24.5 4 5.5 23
HGL-400/4Z1 56*39*32 2 12.05 25.1
HGL-630/4Z1 56*39*32 2 13.65 28.3
HGL-1000/4Z1 61*36*34.5(内径) 1 1
HGL-1250/4Z1 61*36*34.5(内径) 1 1
HGL-1600/4Z1 61*36*34.5(内径) 1 1
HGL-2500/4Z1 61*53*53(内径) 1 1
HGL-3150/4Z1 61*53*53(内径) 1 1

Read on what is isolator switch?

If you are interested in our product and need it, or you need the samples, please contact us directly. Our email address is [email protected].
