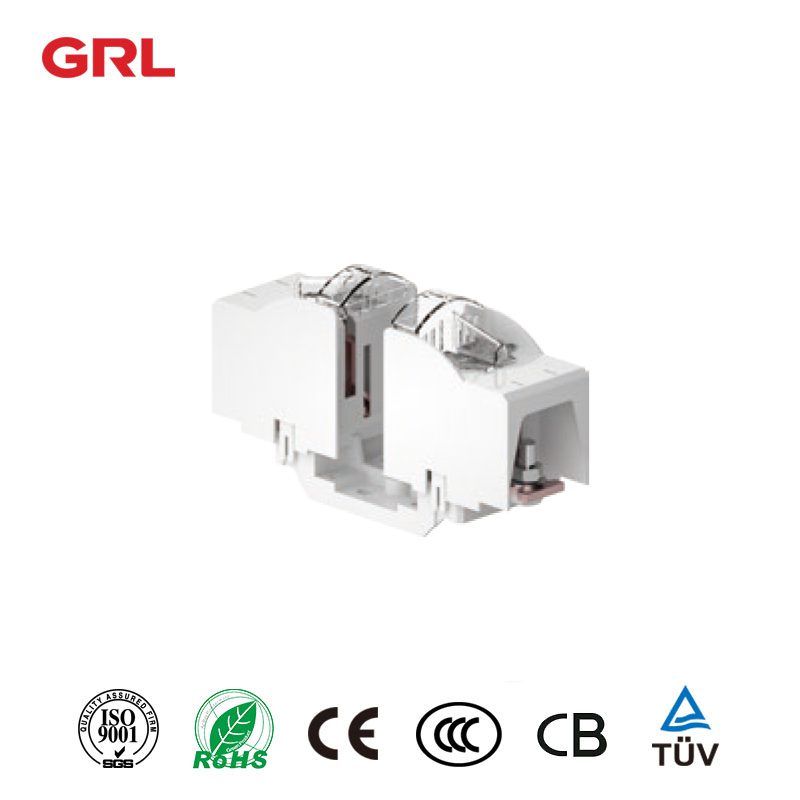

DNF1-2 series inline blade fuse holder NH2 Fuse link

Rated current Ie:

400A(500VAC, 440VDC)/315A(690VAC)

Rated voltage Ue:

500VAC/690VAC/440VAC

Rated insulation voltage :

690V

Rated impulse withstand current Ipk:

6kV

Breaking capacity with fuse :

120kA(500VAC)/50kA(690VAC)/100kA(440VAC)

Fuse size:

NH2

Feature:

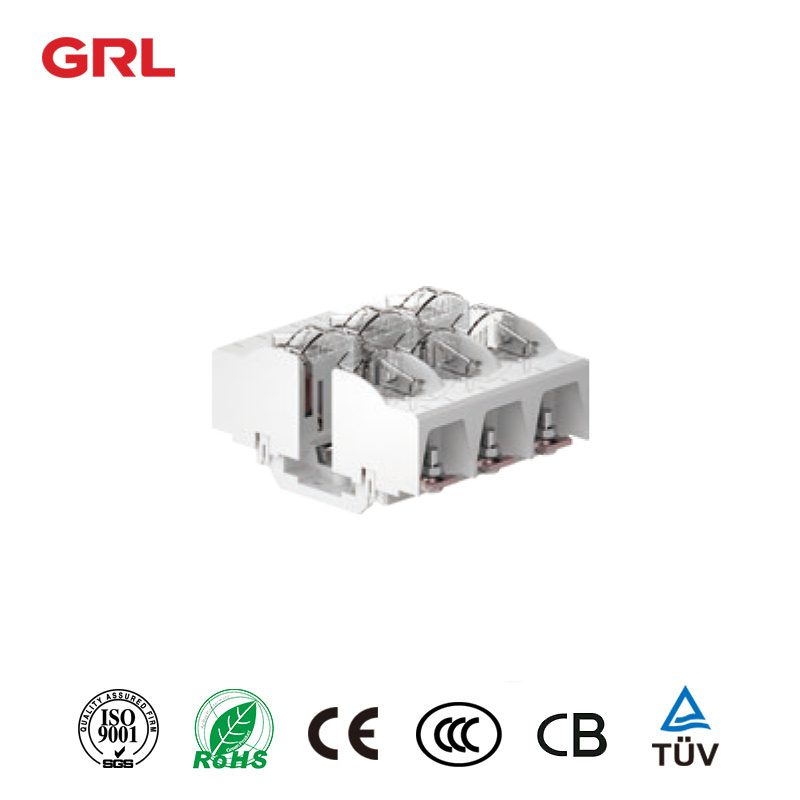

1P,3P, with or without touch protection device, N pole with breaking capacity without touch protection device

Mounting method:

Fixed type

Reference standard:

IEC 60269-1 IEC 60269-2 GB/T 13539.2

Key words:

inline blade fuse holder

Certification Download PDF Contact Us

Description

DNF1-2 series inline blade fuse holder

DNF series Electrical Fuse Box-4

Order No.:DN56323

Model No.:DNF1-2

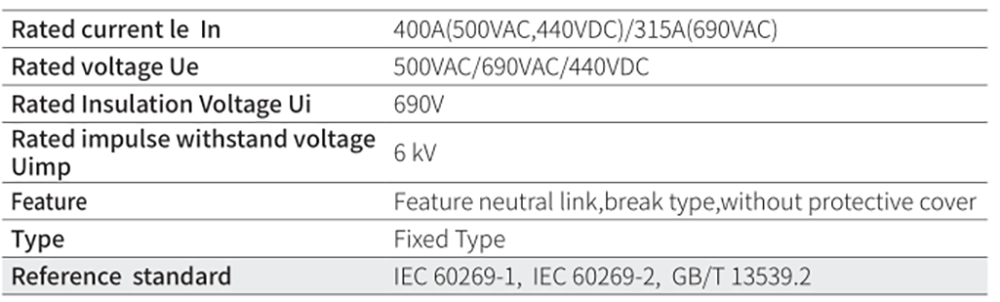

Rated Current le In	400A(500VAC,440VDC)/315A(690VAC)
Rated voltage Ue	500VAC/690VAC/440VDC
Rated Insulation Voltage Ui	690V
Rated Impulse Withstand Voltage Uimp	6KV

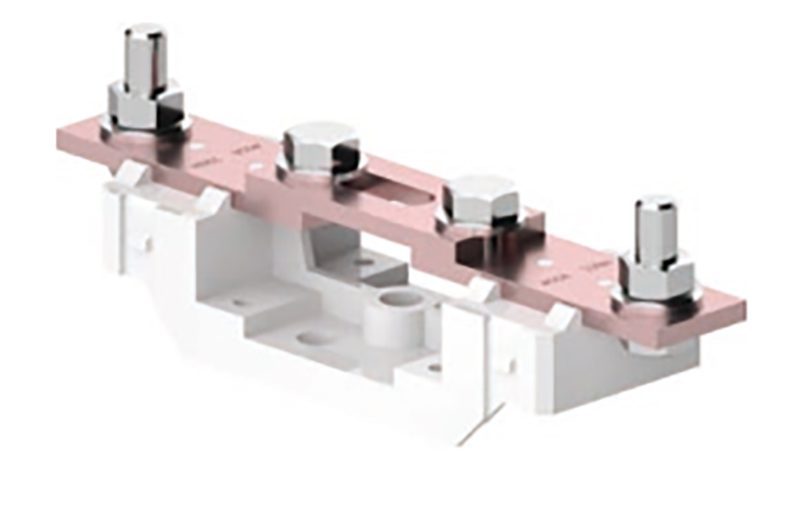

Feature	Feature neutral link, break type,without protective cover
Type	Fixed Type
Reference Standard	IEC 60269-1,IEC 60269-2,GB/T 13539.2

inline blade fuse holder
