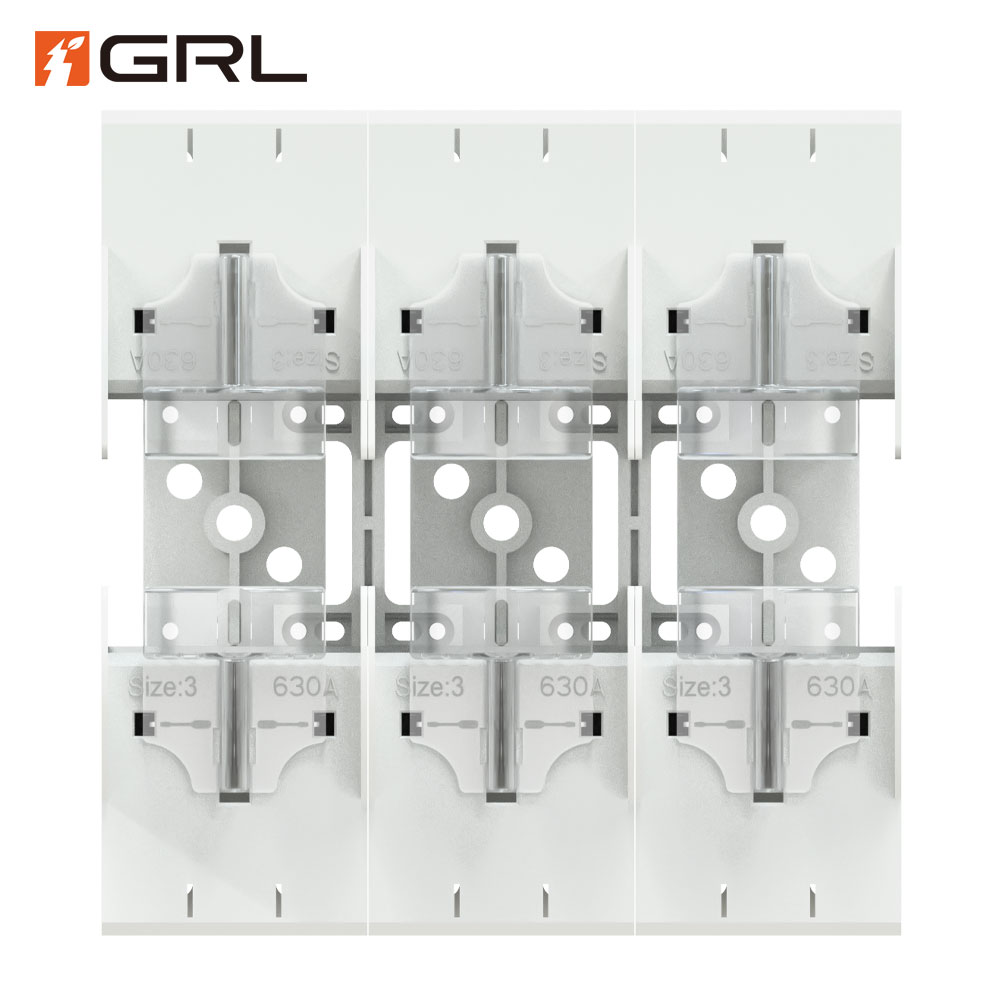

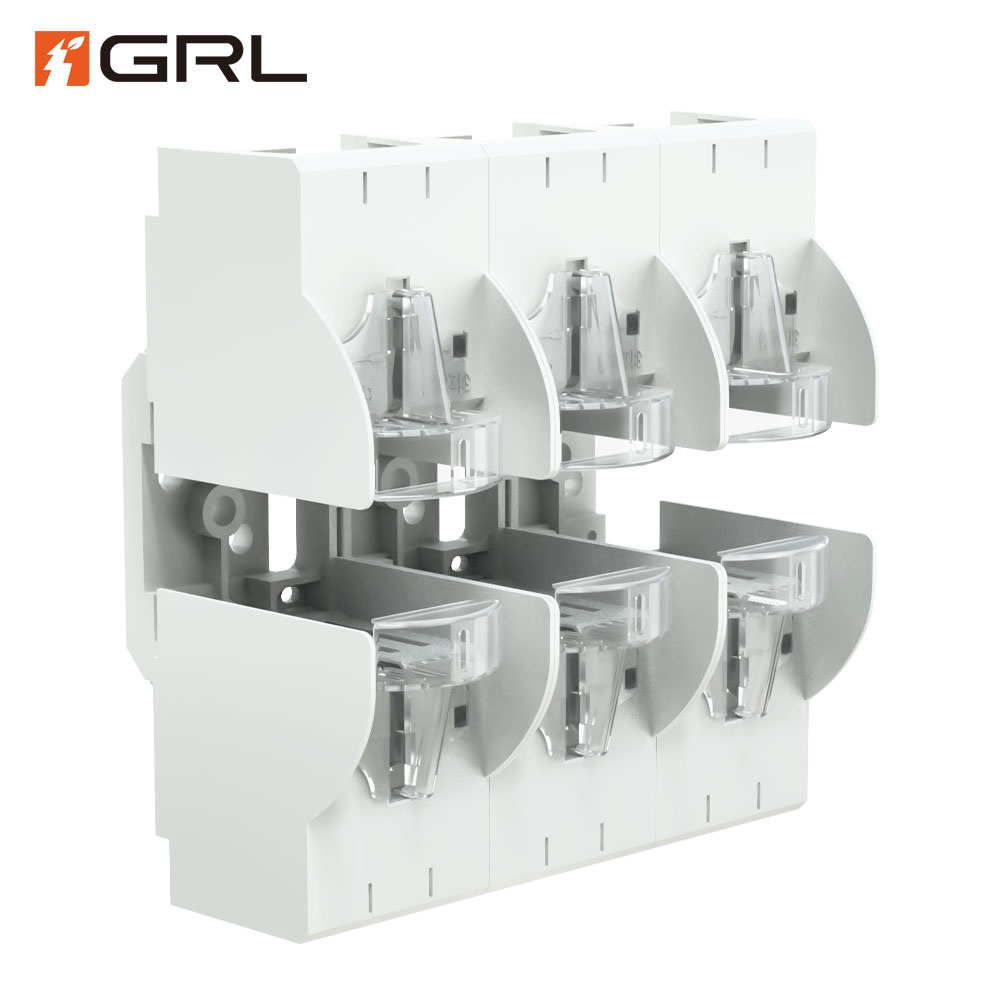

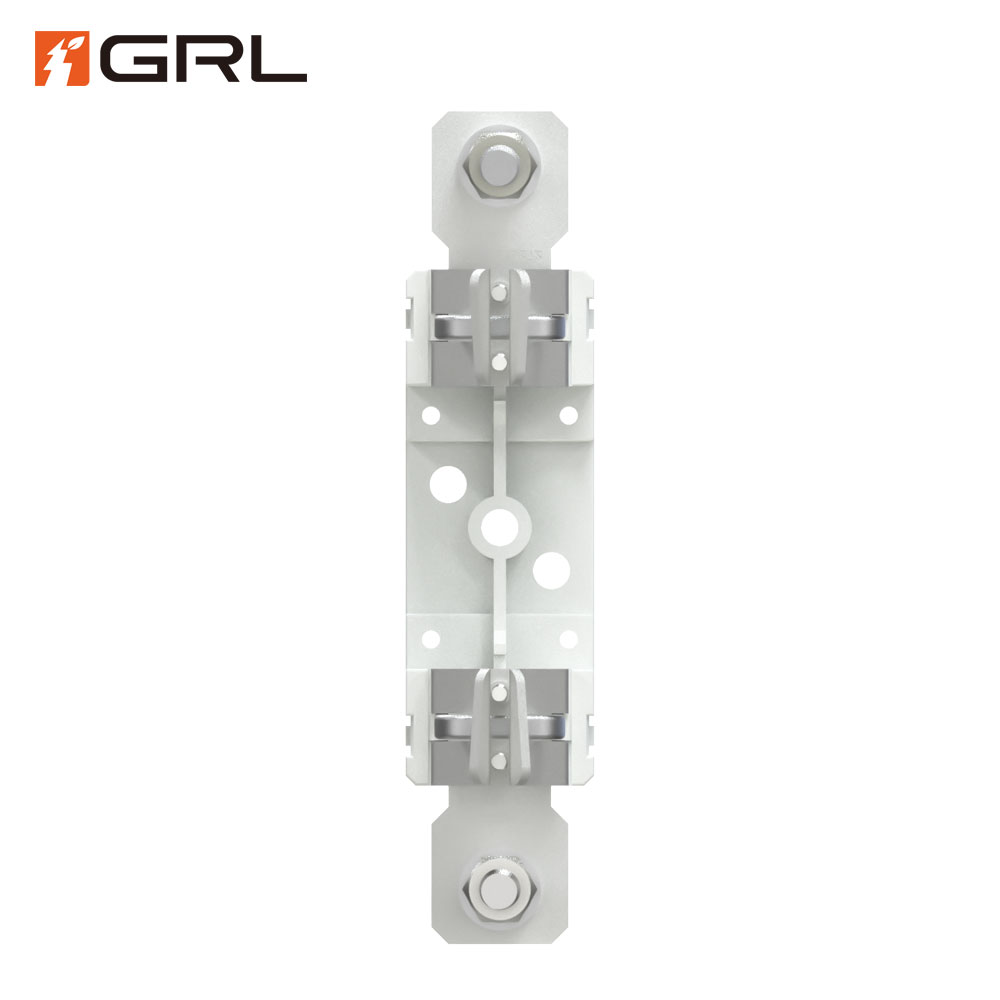

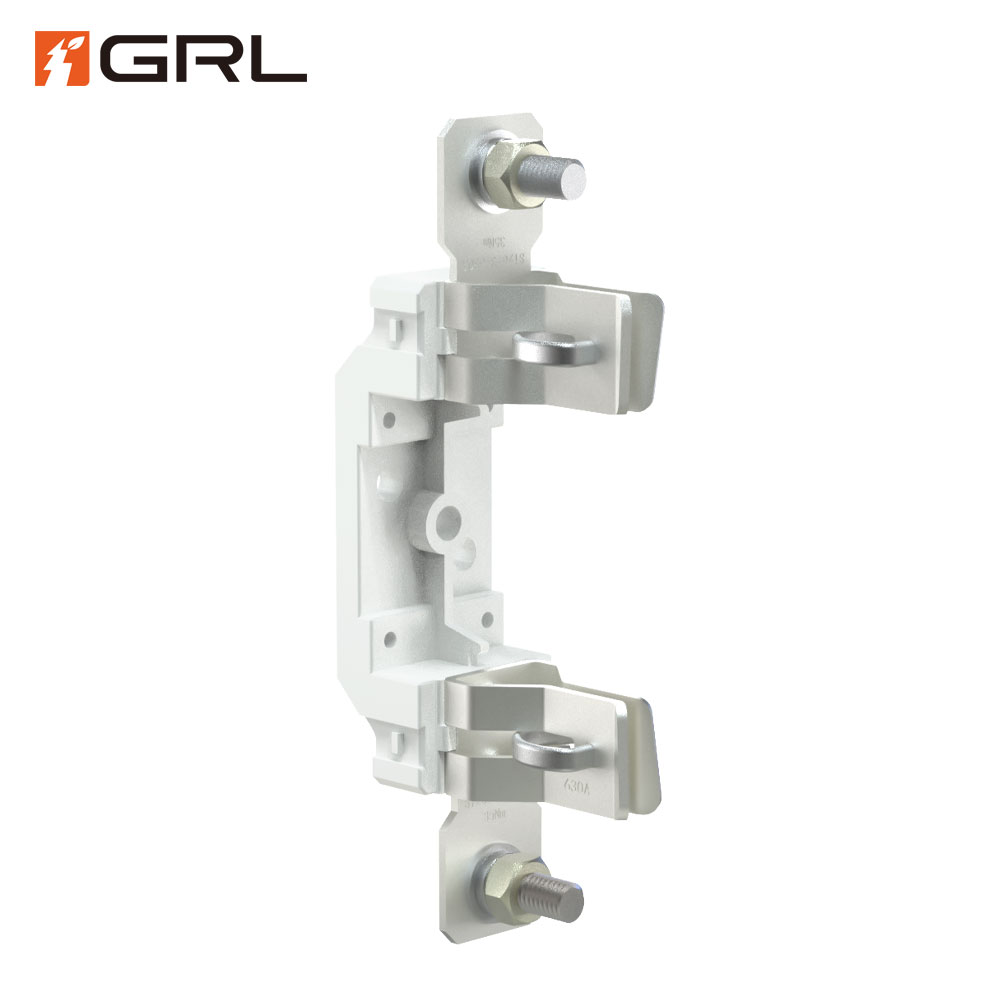

DNF1-3 series line fuse holder NH3 Fuse link

Rated current Ie:

630A(500VAC, 440VDC)/500A(690VAC)

Rated voltage Ue:

500VAC/690VAC/440VAC

Rated insulation voltage :

690V

Rated impulse withstand current Ipk:

6kV

Breaking capacity with fuse :

120kA(500VAC)/50kA(690VAC)/100kA(440VAC)

Fuse size:

Feature:

1P,3P, with or without touch protection device, N pole with breaking capacity without touch protection device

Mounting method:

Fixed type

Reference standard:

IEC 60269-1 IEC 60269-2 GB/T 13539.2

Key words:

line fuse holder

Certification Download PDF Contact Us

Description

DNF1-3 series line fuse holder

Order No.:DN56330

Model No.:DNF1-3

Rated Current le In	630A(500VAC,440VDC)/500A(690VAC)
Rated voltage Ue	500VAC/690VAC/440VDC
Rated Insulation Voltage Ui	690V
Rated Impulse Withstand Voltage Uimp	6KV
Fuse link size	3
Feature	1 Pole, without protective cover
Type	Fixed Type
Reference Standard	IEC 60269-1,IEC 60269-2,GB/T 13539.2
