NH series nh fuse holder 630A(500VAC, 440VDC)/500A(690VAC)

Rated current Ie:

630A(500VAC, 440VDC)/500A(690VAC)

Rated voltage Ue:

500VAC/690VAC/440VAC

Rated insulation voltage :

690V

Rated impulse withstand current Ipk:

6kV

Breaking capacity with fuse :

120kA(500VAC)/50kA(690VAC)/100kA(440VAC)

Fuse size:

3

Feature:

1P,3P, with or without touch protection device, N pole with breaking capacity without touch protection device

Mounting method:

Fixed type

Reference standard:

IEC 60269-1 IEC 60269-2 GB/T 13539.2

nh fuse holder

Certification Download PDF Contact Us

Description

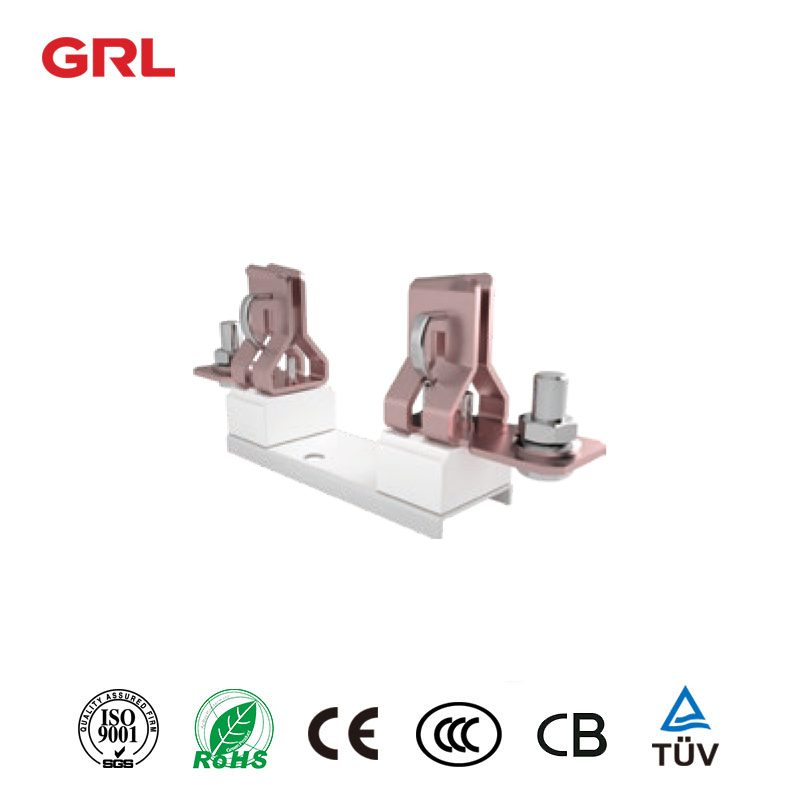

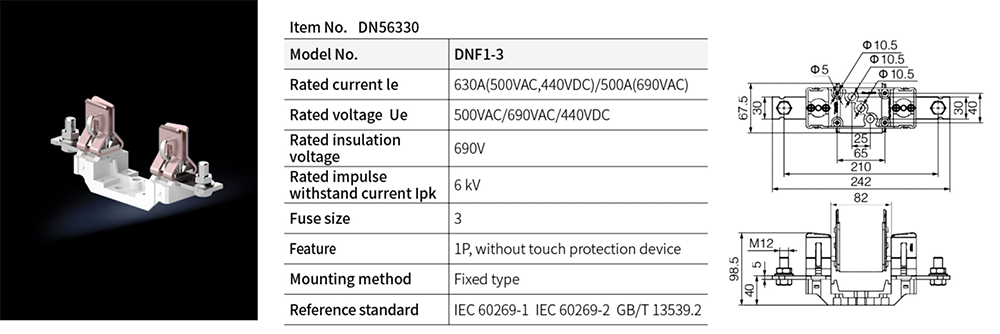

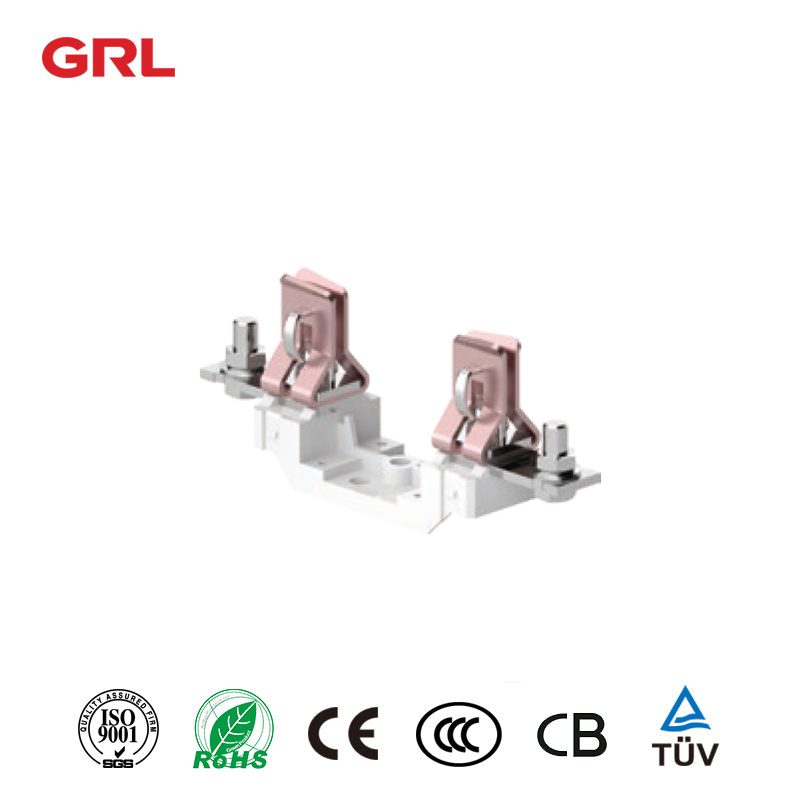

nh fuse holder NH 1 series Fuse Base 1P without touch protection device

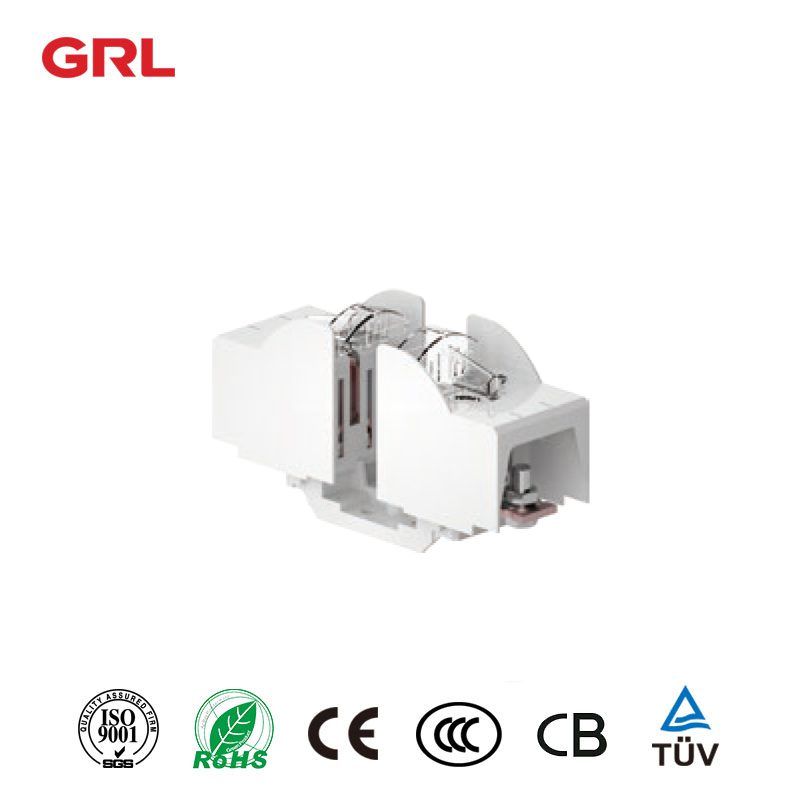

NH 1 series Fuse Base 1P with touch protection device

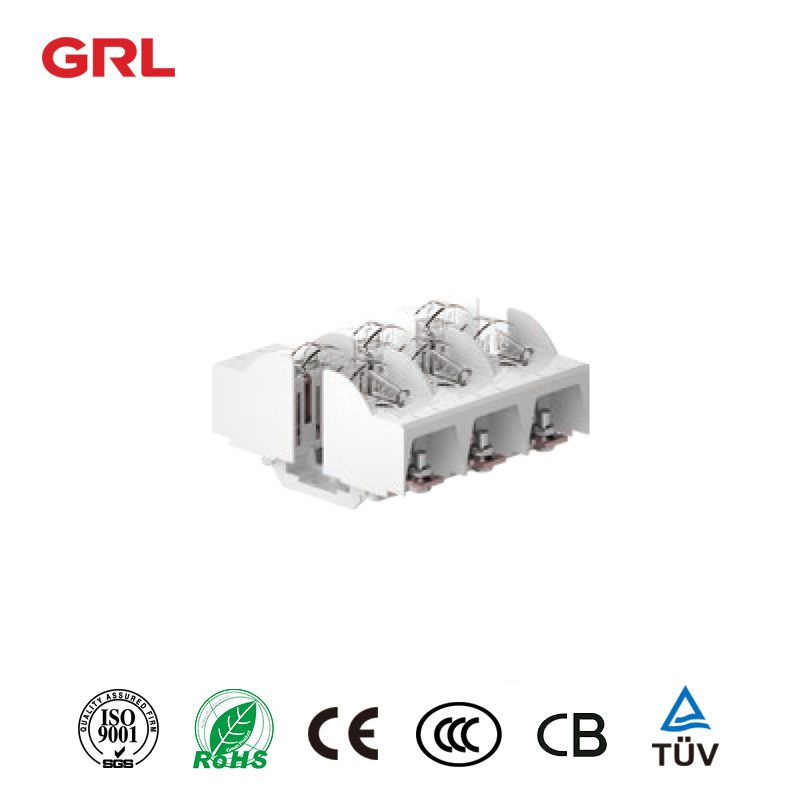

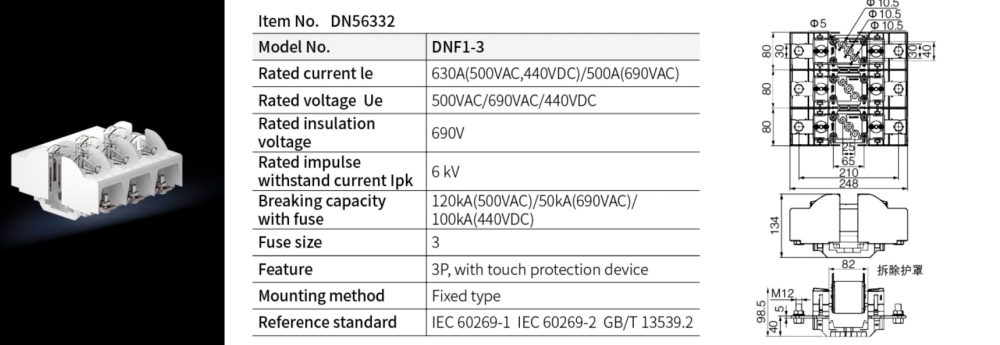

NH 1 series Fuse Base 3P with touch protection device

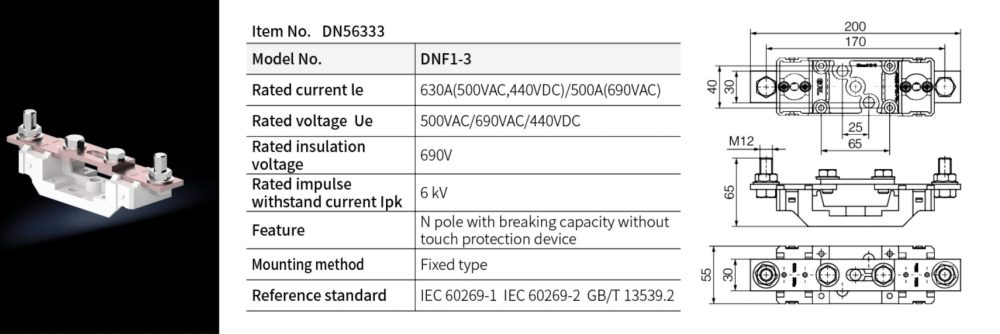

NH 1 series Fuse Base N pole with breaking capacity without touch protection device

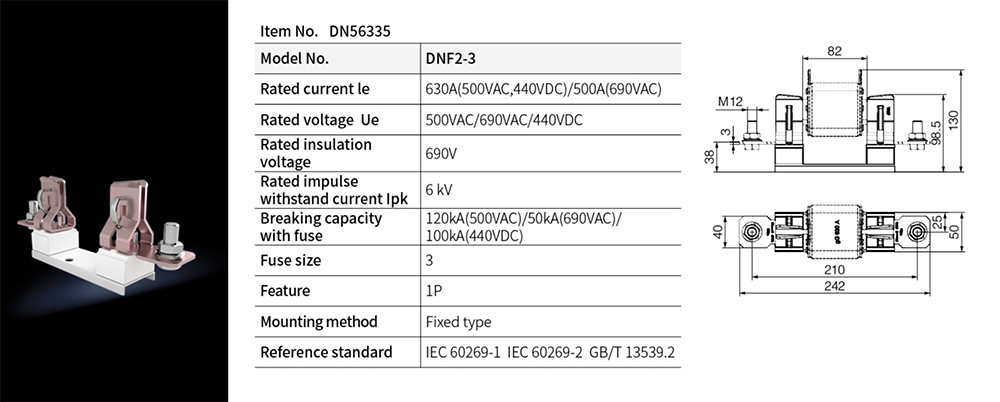

NH 2 series Fuse Base 1P
