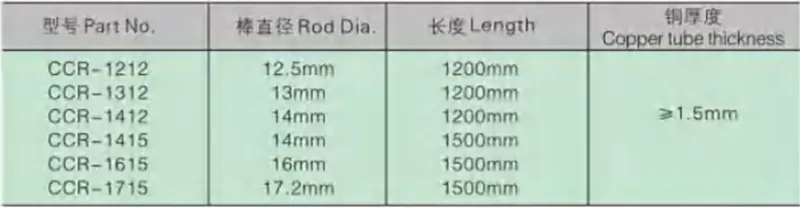

| PartNo | Rod Dia. | Length | Copper tube thickness |
| CCR-1212 | 12.5mm | 1200mm | ≥1.5mm |
| CCR-1312 | 13mm | 1200mm | |
| CCR-1412 | 14mm | 1200mm | |
| CCR-1415 | 14mm | 1500mm | |
| CCR-1615 | 16mm | 1500mm | |
| CCR-1715 | 17.2mm | 1500mm |

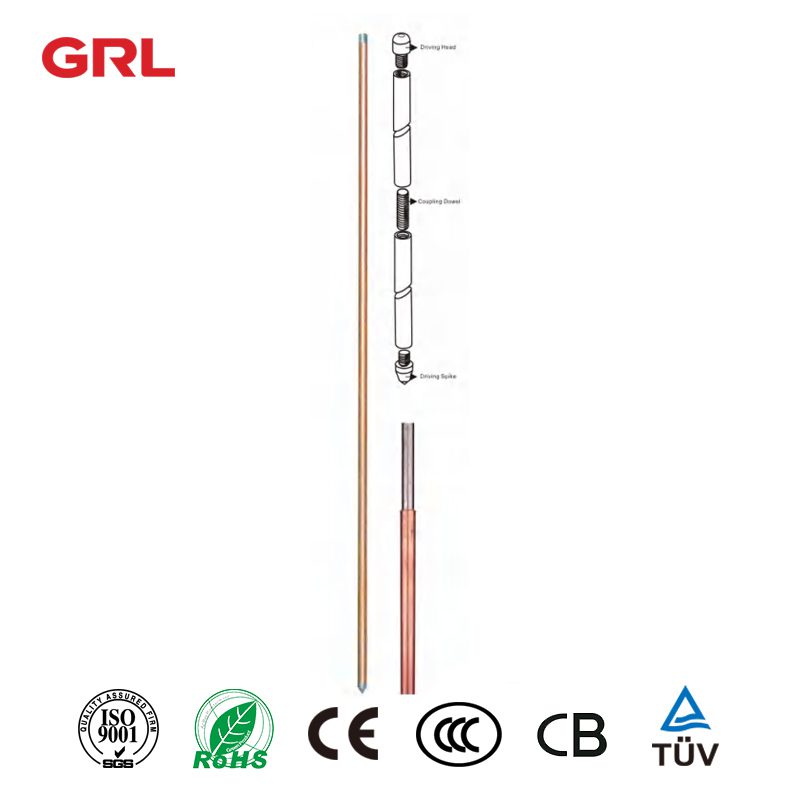

copper claded earth rod are made from 99.9% pure electrolytic copper tube and non magnetic stainless steel.
This product claded copper thickness more than 1.5mm,so the conductive good performance low resistance,and can be comparable to pure copper ground rod.
| Part No | Length(mm) | Thread Dia(mm） | Material |
| DH16 | 38 | 10 | Hardened steel |
| DH20 | 41 | 10 | Hardened steel |
Driving Heads are made from hardened and tempered steel.lt is used protect the internal thread and the top of the earth electrode when being driven into the ground.Non Magnetic
| Part No | Length(mm) | Thread Dia(mm） | Material |
| CD16 | 40 | 10 | stainless steel |
| CD20 | 50 | 10 | stainless steel |
Coupling dowels for stainless steel earth rods are made from stainless steel or brass,It used to join either the solid copper and stainless steelrods.
| Part No | Length(mm) | Thread Dia(mm） | Material |
| DS16 | 40 | 10 | stainless steel |
| DS20 | 50 | 20 | stainless steel |
Driving spikes are made from case hardened steel .it is used to enable the earth Electrode to be driven into the ground more easily and stops the earth electrode from Being damaged.
