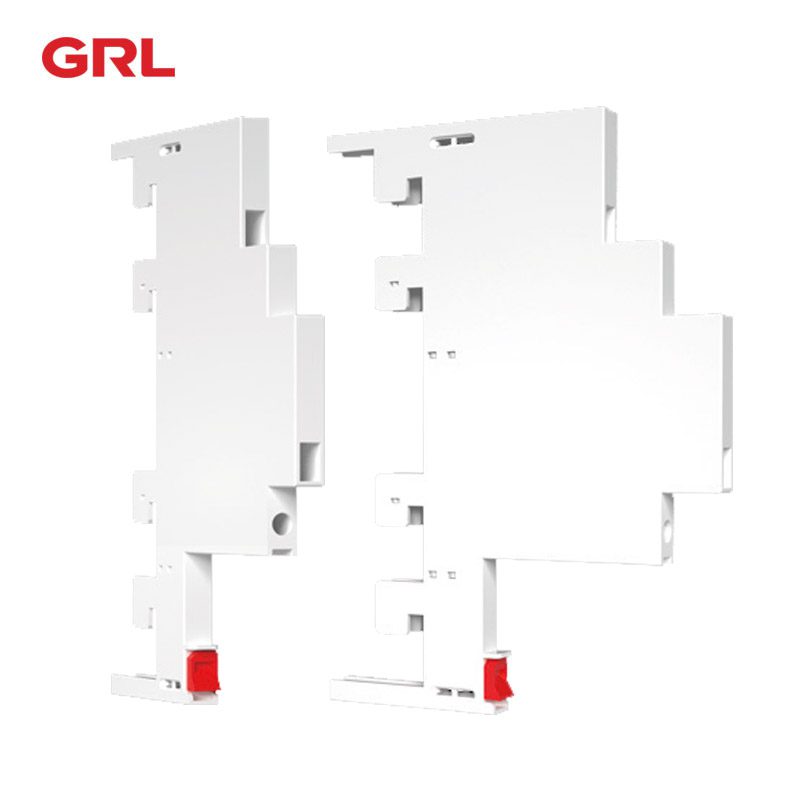

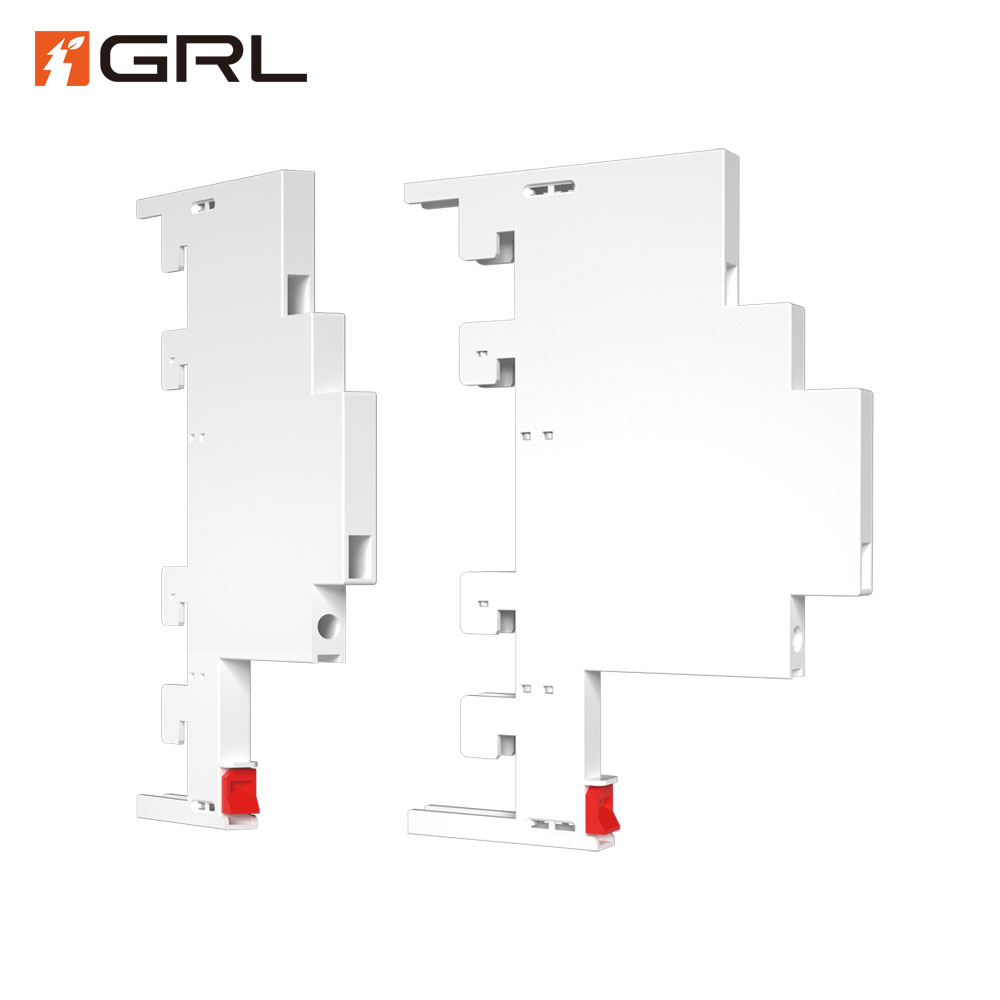

Outlet module N PE for 30 mm busbar system

Terminal distribution busbar system Outlet module N PE, with protective cover

Description

Outlet module Overview

Description
Technical Specifications

Description

The 30mm busbar system Outlet module module is designed for efficient and reliable power distribution in five-wire configurations. This module ensures seamless connections between the busbar and Outlet module circuits, supporting safe and stable current flow. With precise spacing for the 30mm system, it provides excellent compatibility, ease of installation, and secure connections for enhanced electrical performance. Ideal for industrial and commercial applications, this Outlet module module meets the demands of modern power distribution systems with reliability and durability.

Technical Specifications

Order Number	DN54634
Rated operational voltage Ue	690 V
System	30 mm
Pole	N
Applicable busbar	12 x 5 standard copper busbars or L-shaped busbars
Terminal block	1.5-16mm²
Reference standard	IEC 61439-1:2011 GB/T 7251.1

Order Number	DN54635
Rated operational voltage Ue	690 V
System	30 mm
Pole	PE
Applicable busbar	12 x 5 standard copper busbars or L-shaped busbars
Terminal block	1.5-16mm²
Reference standard	IEC 61439-1:2011 GB/T 7251.1

What is an outlet module for busbar?

An outlet module for a busbar system is a specialized component used to connect external circuits or devices to the main busbar system. It serves as the interface between the busbar and outgoing electrical lines, enabling the efficient transfer of power from the busbar to other components in the electrical network.

Key Features of an Outlet Module:

Electrical Connectivity: Provides a secure and stable connection for transferring power from the busbar to external devices or circuits.
Compatibility: Designed to fit specific busbar systems, such as 30mm or 60mm pitch configurations, ensuring precise alignment and reliable performance.
Safety and Insulation: Often includes protective features such as insulation barriers to prevent electrical faults and enhance safety during operation.
Ease of Installation: Facilitates quick and straightforward connections, reducing setup time and maintenance efforts.
Durability: Built from robust materials to withstand electrical loads, mechanical stress, and environmental factors like heat and vibration.

Outlet modules are widely used in power distribution panels, switchgear, and industrial systems where efficient and flexible connections to busbar systems are essential for managing complex electrical networks.

GRL’s busbar outlet modules are expertly designed to deliver reliable and efficient connections between busbar systems and outgoing circuits. Engineered for precision and durability, these modules ensure seamless integration into power distribution networks, supporting safe and stable current flow for demanding applications.

With compatibility for various busbar systems, including 30mm and 60mm configurations, GRL outlet modules offer quick installation, secure connections, and robust performance in both industrial and commercial settings. Built with high-quality materials and advanced insulation, they provide enhanced safety and long-lasting reliability, even in harsh operating environments.

Choose GRL busbar outlet modules for a trusted solution that optimizes your power distribution system with ease, efficiency, and unmatched durability.

We also have related 30mm busbar system connection modules
