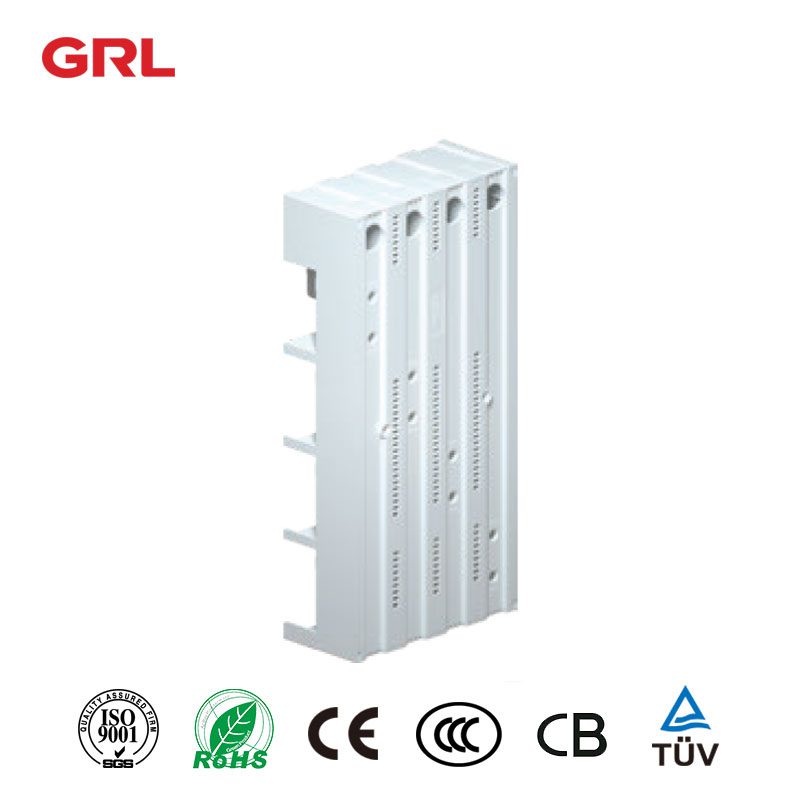

Plug In Busbar System, Breaker Adaptor, 250A 3P&4P

A busbar insertion system is an electrical connector used to connect two or more devices together. It is a safe and reliable way to connect electrical equipment and is easy to use. The system consists of busbars, which are metal bars used to conduct electricity, and circuit breakers, which are electrical devices used to interrupt the current. The busbar plug-in system is available in two different sizes, 250A and 400A. The 250A size is for three-pole and four-pole circuit breakers, and the 400A size is for four-pole circuit breakers. The busbar plug-in system is UL listed and CSA certified.

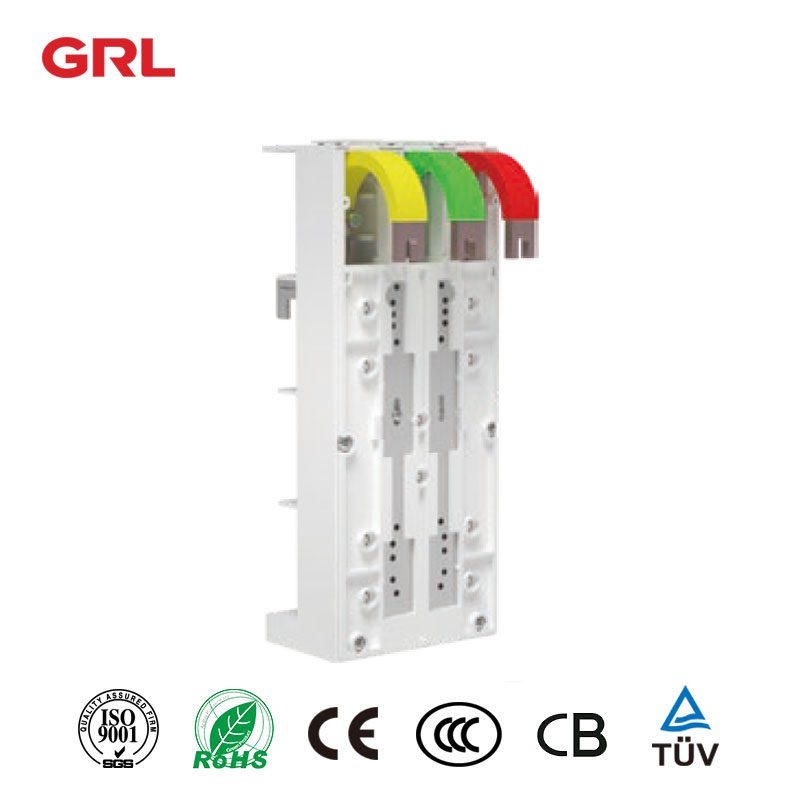

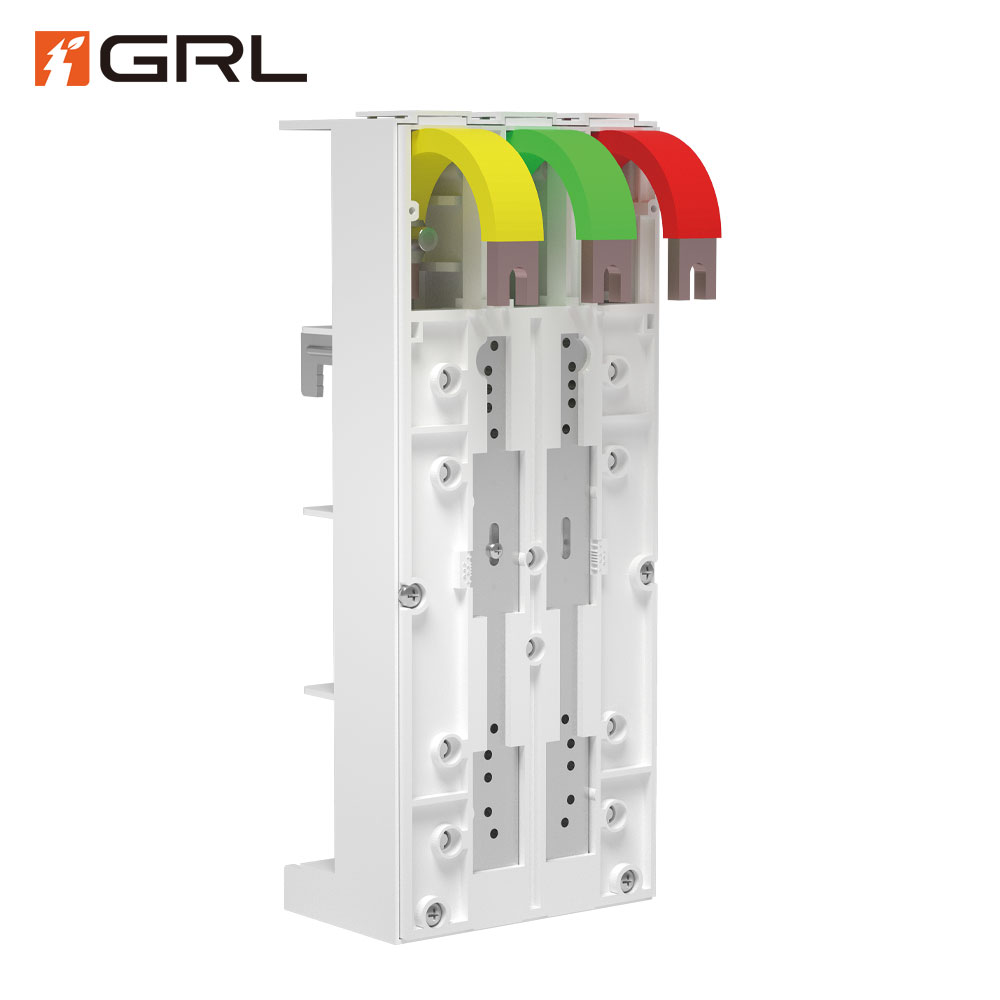

Dimension 35*126(132, 139)*M4 Soft Connection copper bar 3pcs

Plug In Busbar System

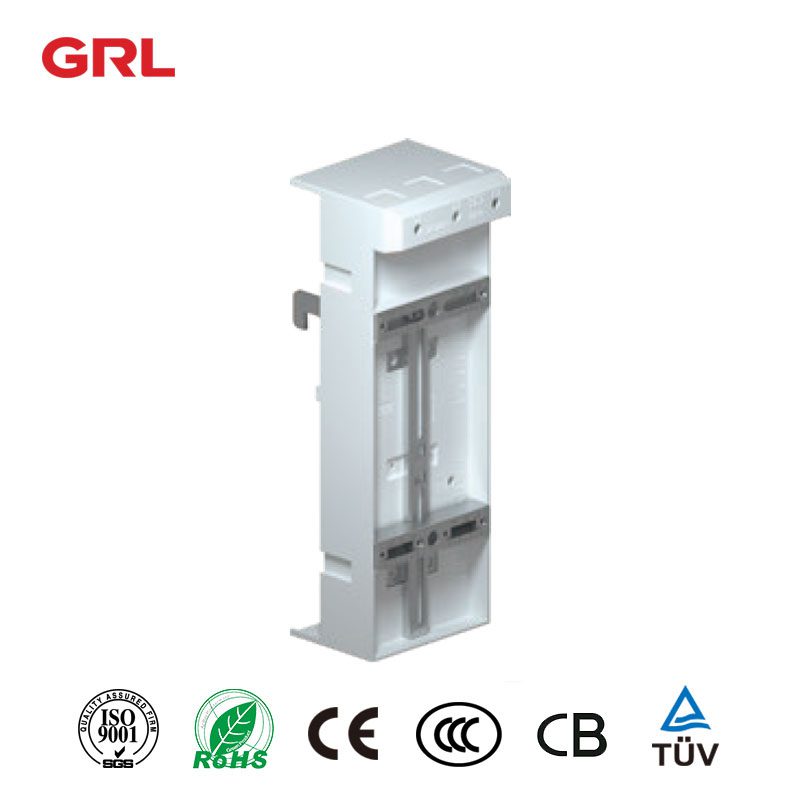

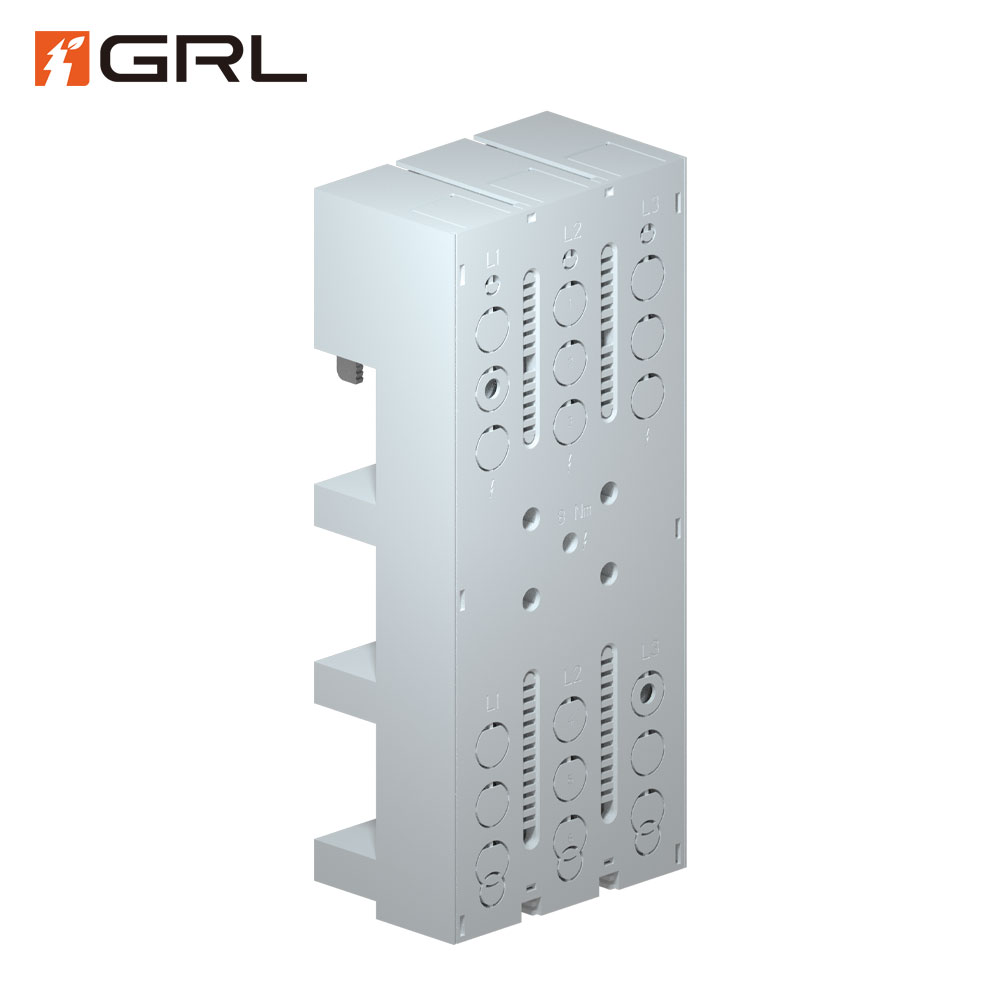

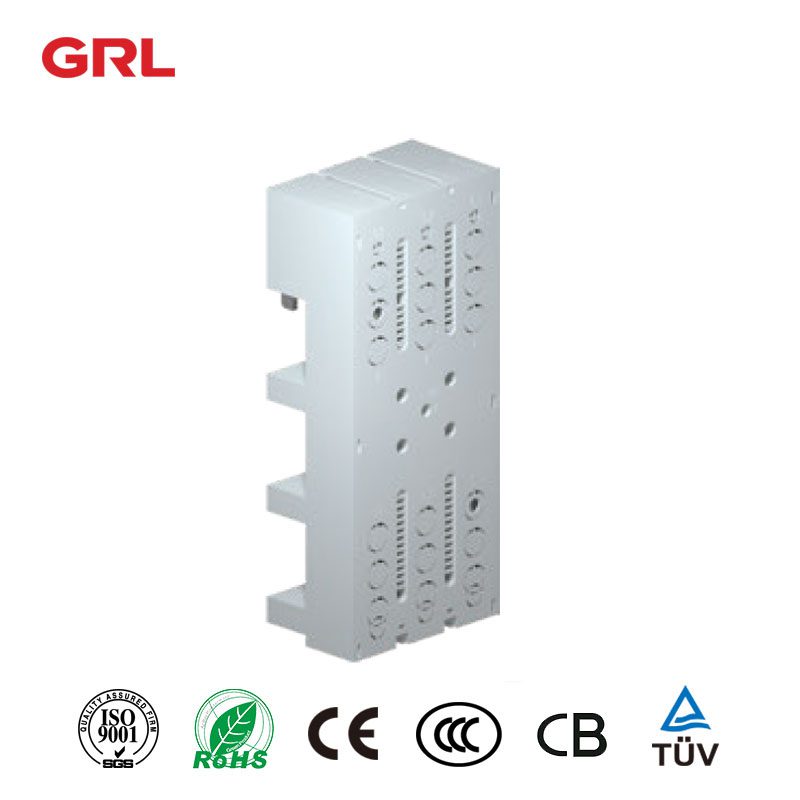

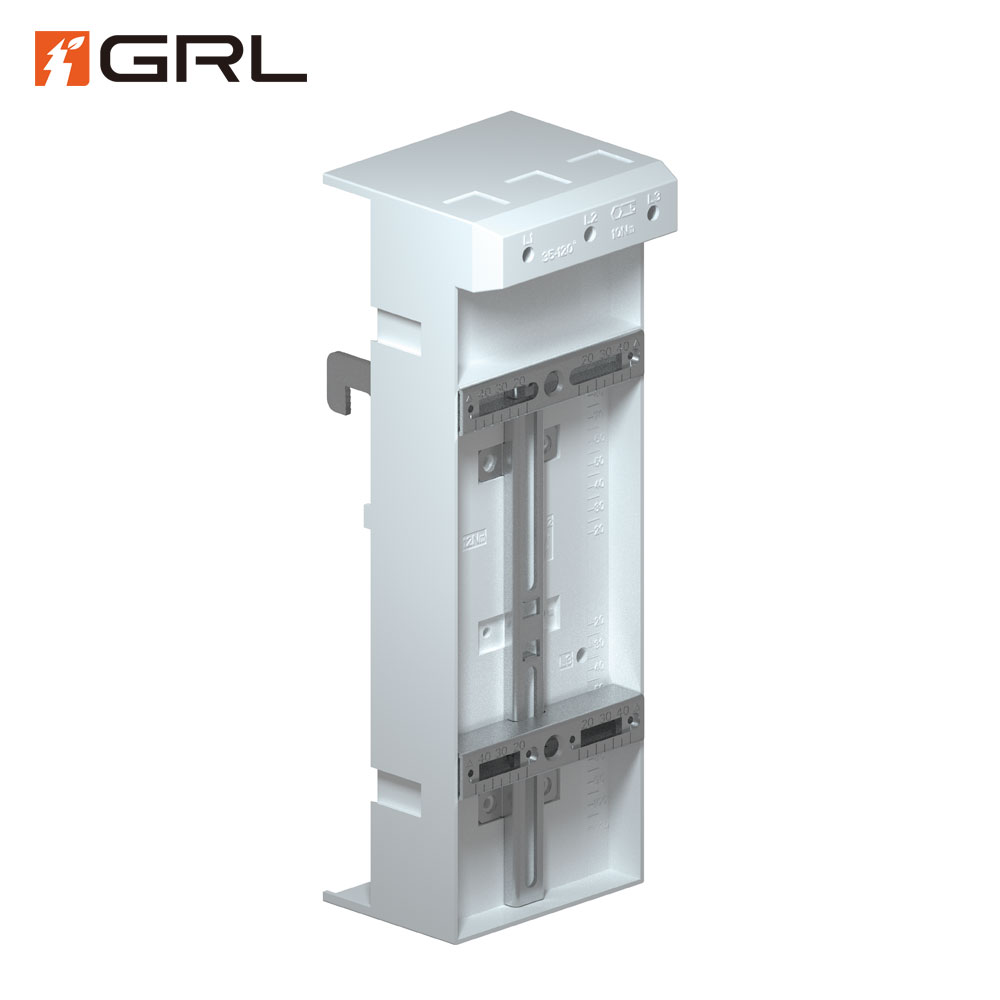

Breaker Adaptor

250A 3P

Dimension 35*126(132, 139)*M4

Breaker Adaptor

250A 3P

Dimension 15*35*162*M4, 2*35*139*M4

Breaker Adaptor

250A 3P

Dimension 35*126*M4, 35*122*M4, 35*139*M4, 35*146*M4

Breaker Adaptor

250A 3P

Dimension 35*139*M5

Breaker Adaptor

250A 3P

Dimension 35*126*M4V

Breaker Adaptor

250A 3P

Dimension 35*126*M5

Breaker Adaptor

250A 3P

Dimension 35*130*M4

Breaker Adaptor

250A 3P

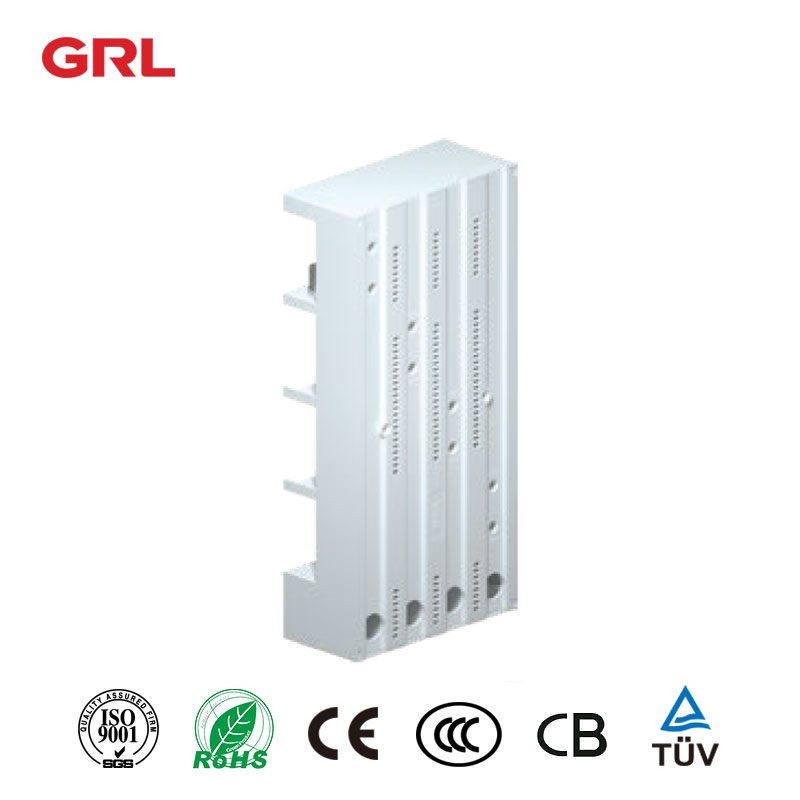

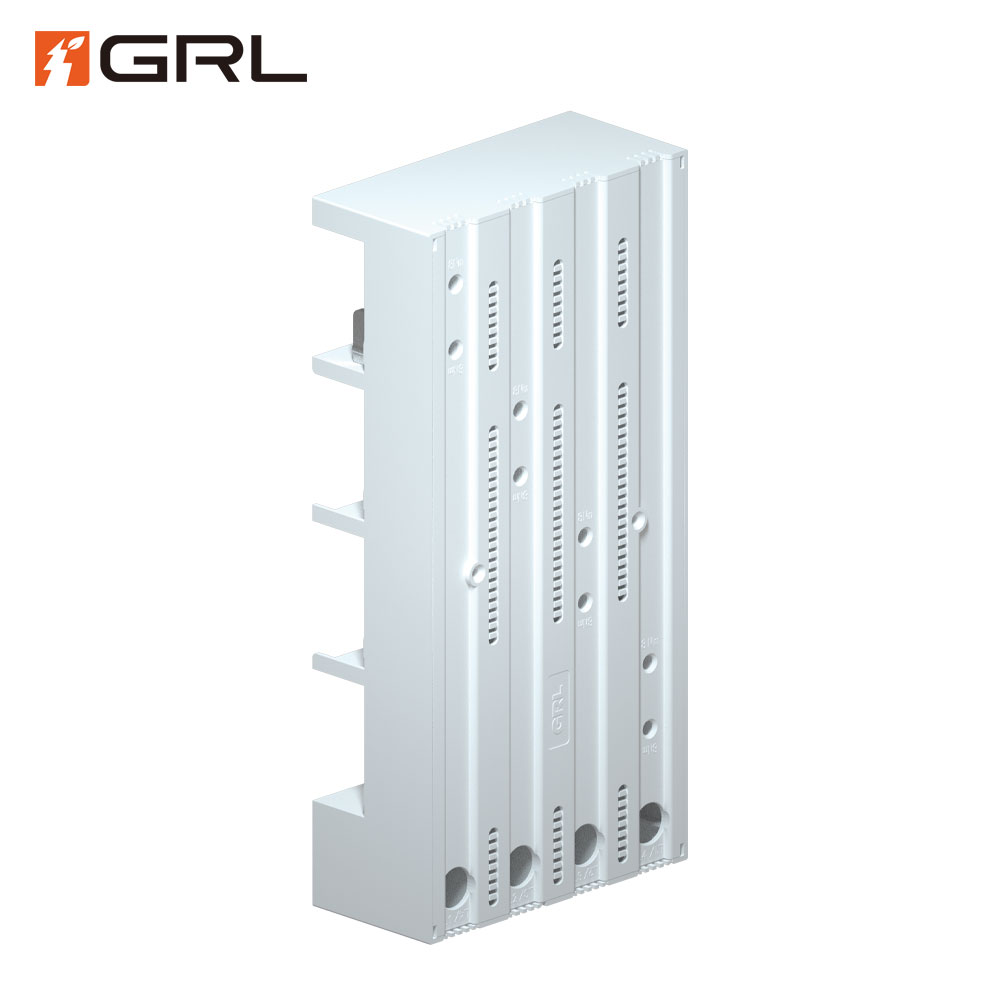

Dimension 70*204*M4, 70*126*M4, 70*200*M4, 70*131*M4, 70*188.5*M4 Top Connection

Breaker Adaptor

250A 4P

Dimension 70*204*M4, 70*126*M4, 70*200*M4, 70*131*M4, 70*188.5*M4 Bottom Connection

Breaker Adaptor

250A 4P

Plug-in Busbar System, Circuit Breaker Adapter, 250A 3P&4P is a versatile and handy tool that allows you to adjust your electrical system quickly and easily. This product is ideal for use in a variety of environments and is easy to install and use. The system is rated to operate at 250 amps and can handle loads up to 690 volts. The busbar system is rated at 6KV impulse withstand current, making it ideal for high voltage applications. The system also has an insulation voltage rating of 1000V for safe use in a variety of environments.
