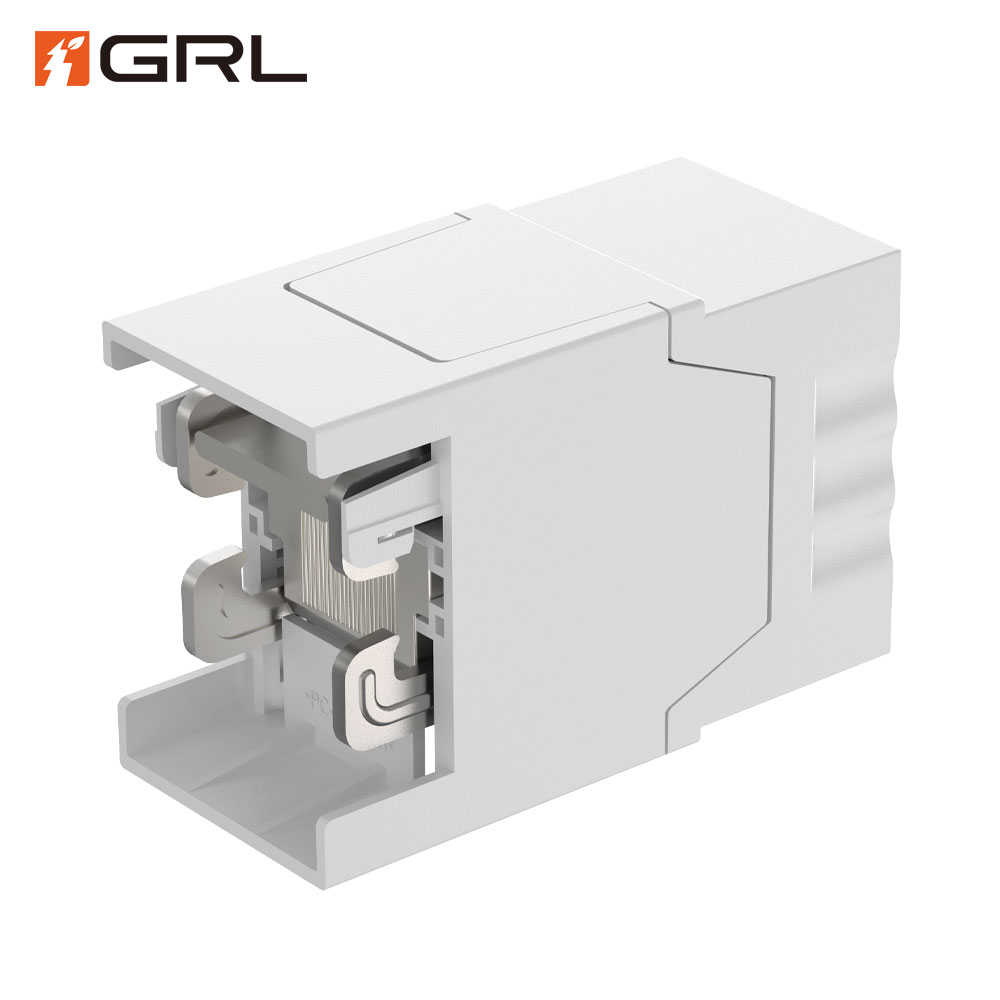

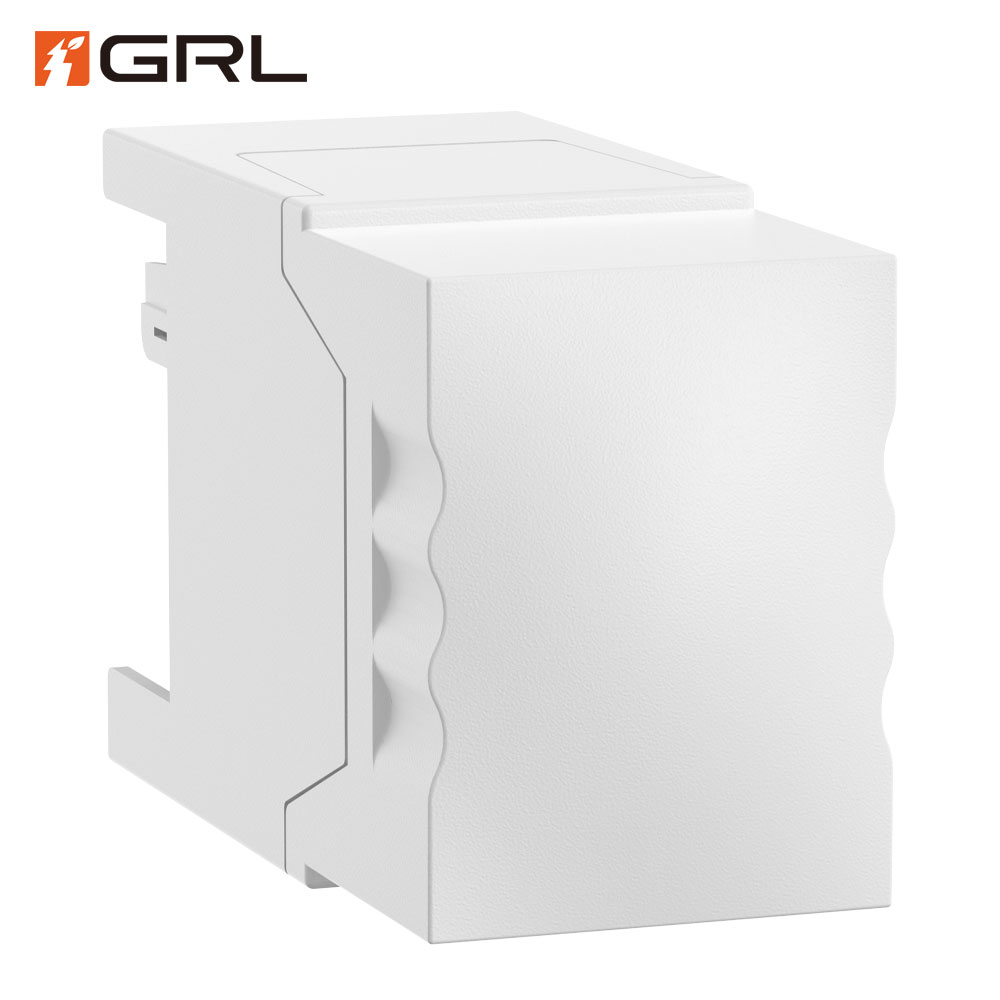

400A-630A, Ring Busbar System, Module

Model:

JXB-185, JXB-185, JXB-300

Voltage:

690V

Rated Current:

400A / 630A / 630A

Application Of Busbar System:

Flat copper bus bar20mm, 25mm, 30×5mm, 10mm

E-mail:

[email protected]

Key Words:

Ring Busbar System

Download PDF:

GRL CATALOGUE

Certification Contact Us

Description

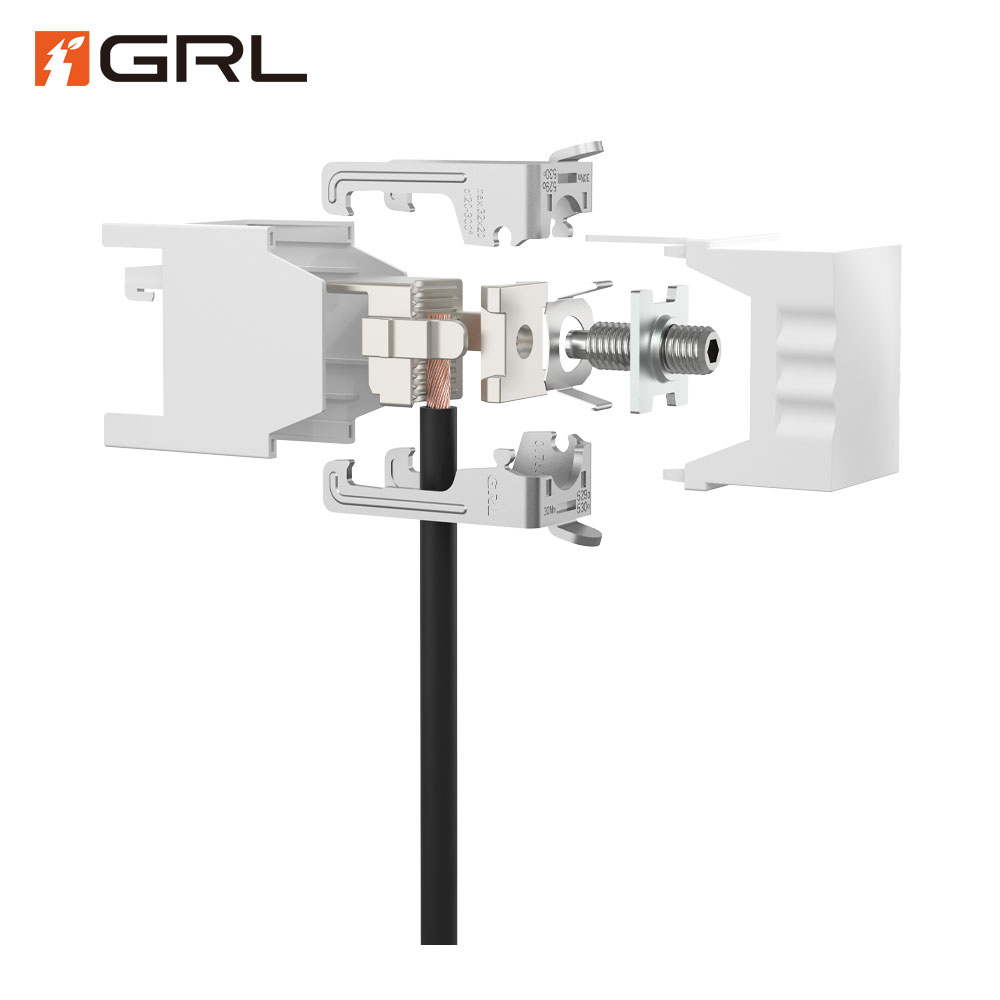

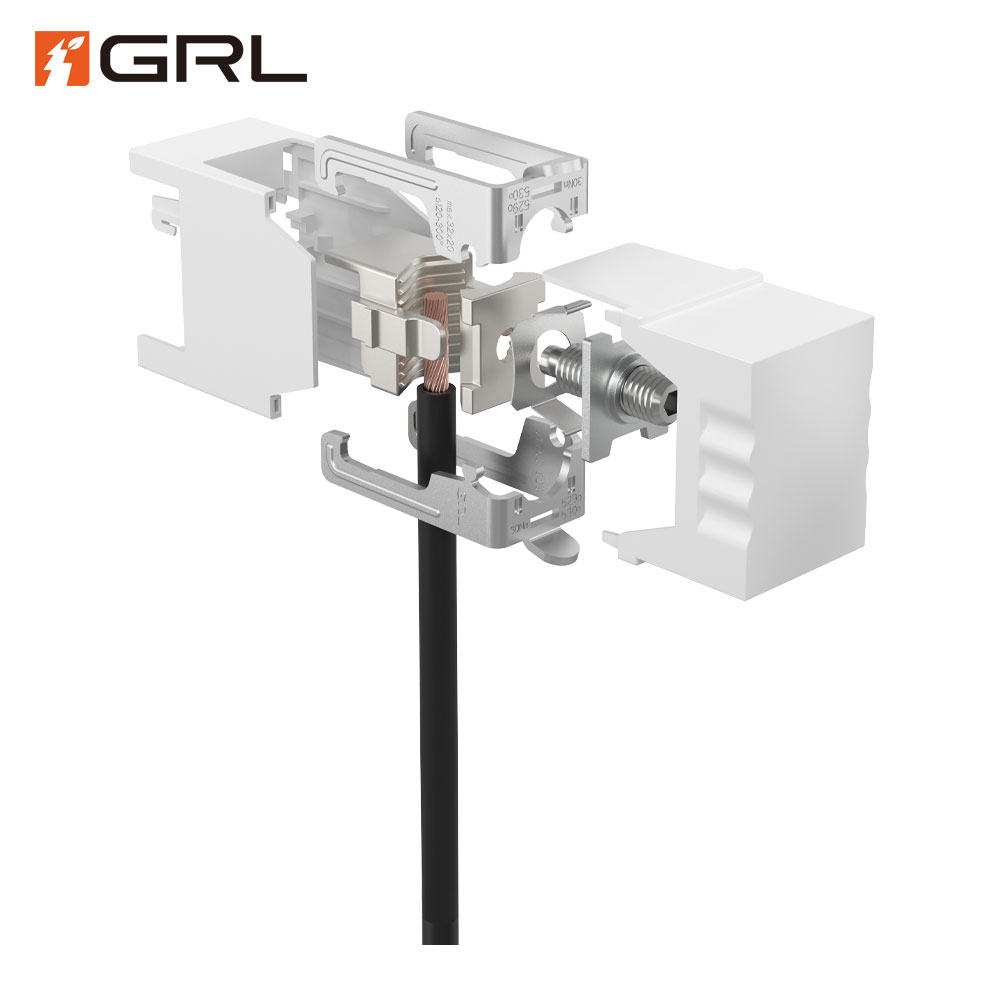

The 400A-630A Ring Bus System (RBS) is a versatile and reliable solution for a variety of applications. Easy installation provides a high degree of flexibility for system expansion. Each module is designed to work together to provide a complete ring bus system. The main bus module contains the main bus, and the branch bus module contains the branch bus. The cable management module is used to route and manage the cables between the main and branch busbars. The protection module provides overcurrent and short circuit protection for the system.

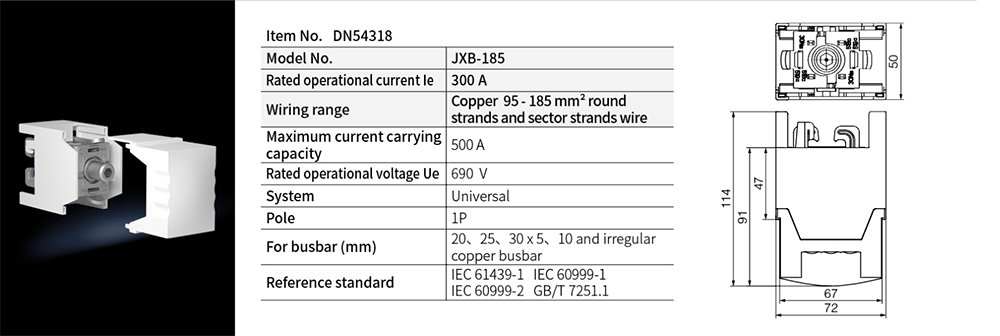

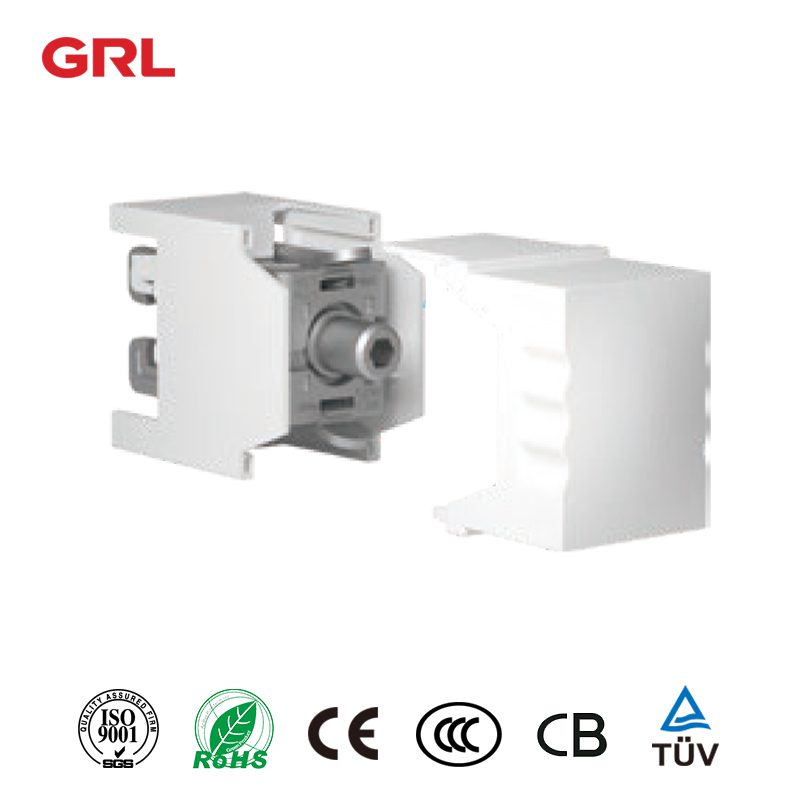

DN54318

Ring Busbar System

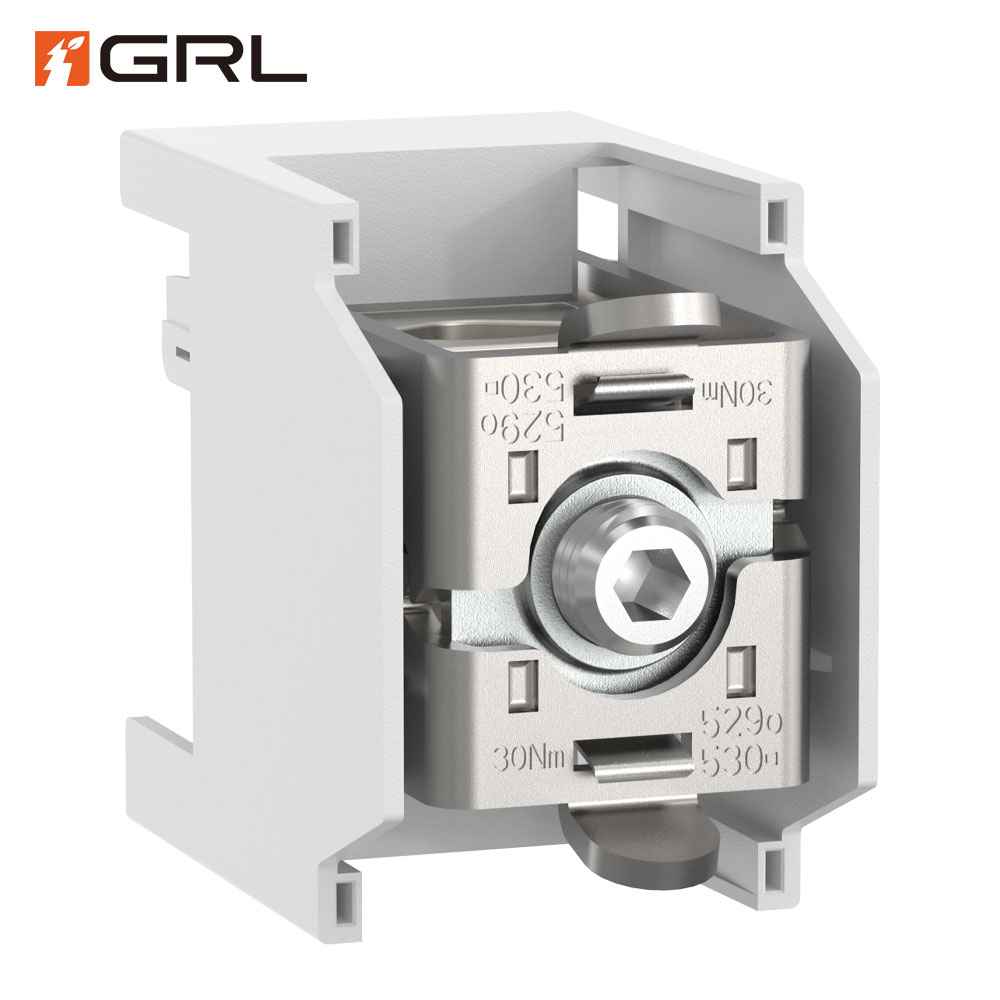

Connection Module

JXB-185

400A 95-185mm²

Ring Busbar System DN54318

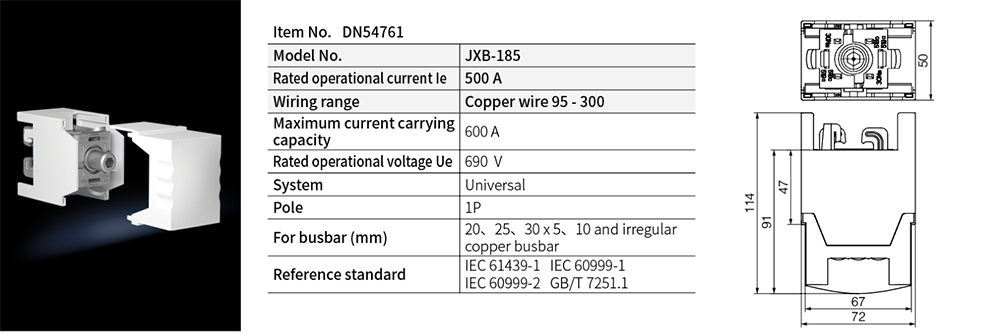

DN54761

Connection Module

JXB-185

630A 95-300mm²

Connection Moudle DN54761

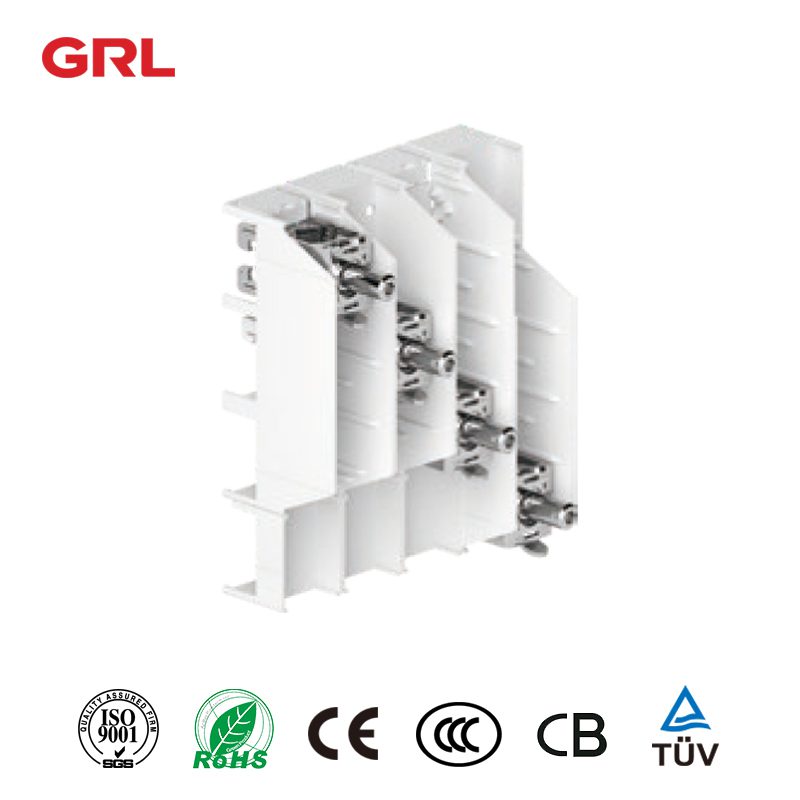

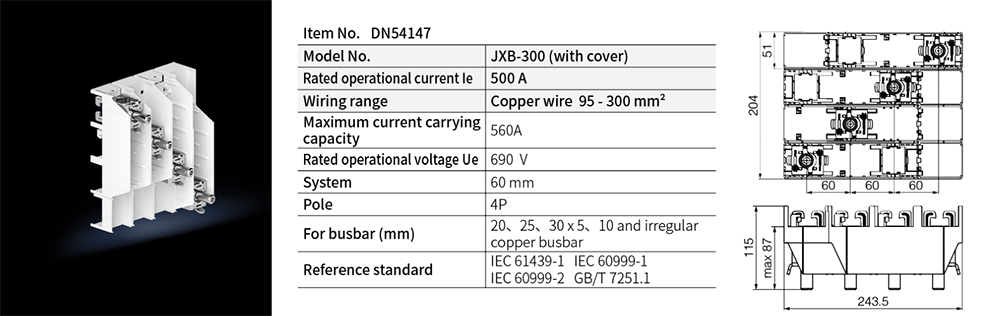

DN54147

Connection Module

JXB-300

630A 95-300mm²

Connection Moudle DN54147

GRL 400A-630A busbar system adopts modular design, which is easy to install and easy to use. This busbar system is ideal for a variety of applications, including 20mm, 25mm and 30x5mm flat copper busbars. The keyword for this product is “ring”. Ring busbar systems provide a more efficient way of power distribution by reducing the amount of voltage loss. It is particularly well suited for electrical installations in public or industrial buildings. If you have any questions about the product, please feel free to contact us at [email protected].
