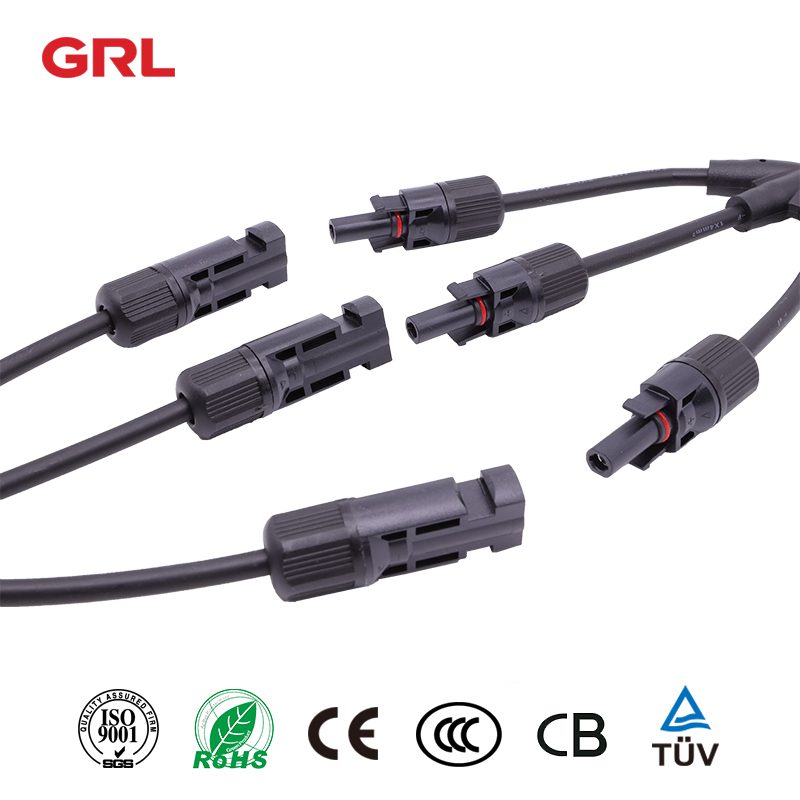

RMC40-4T~RMC40-1500 series Connector Photovoltaic connector PV connector solar connector

Mode:

RMC40-4T

Current:

40A

Voltage:

1000V/1500VDC

Flame class:

UL94-VO

Contact material:

Copper, Ag plated

Email:

[email protected]

Keyword:

solar connector

Certification Download PDF Contact Us

Description

RMC40-4T~RMC40-1500 series solar connector

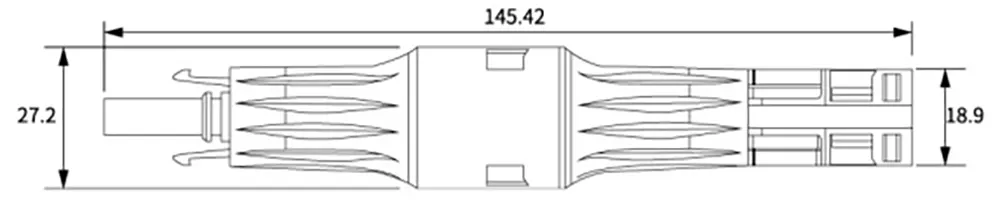

Model No.: RMC40-4T

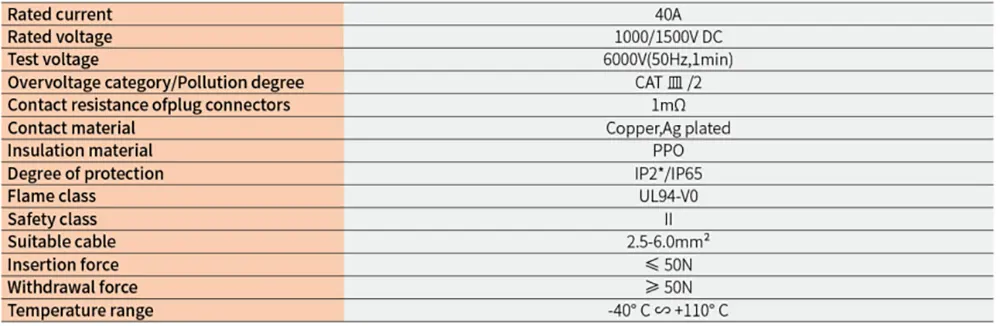

Technical Parameter

Rated current	40A
Rated voltage	1000/1500 VDC
Test voltage	6000V(50Hz,1min)
Overvoltage category / Pollution degree	CAT Ⅲ/2
Contact resistance ofplug connectors	1mΩ
Contact material	Copper, Ag plated
Insulation material	PPO
Degree of protection	IP2* / IP65
Flame class	UL94-VO
Safety class	Ⅱ
Suitable cable	2.5-6.0㎜²
Insertion force	≤50N
Withdrawal force	≥50N
Temperature range	-40℃ ∽+110℃

solar connector

fuse isolator switch

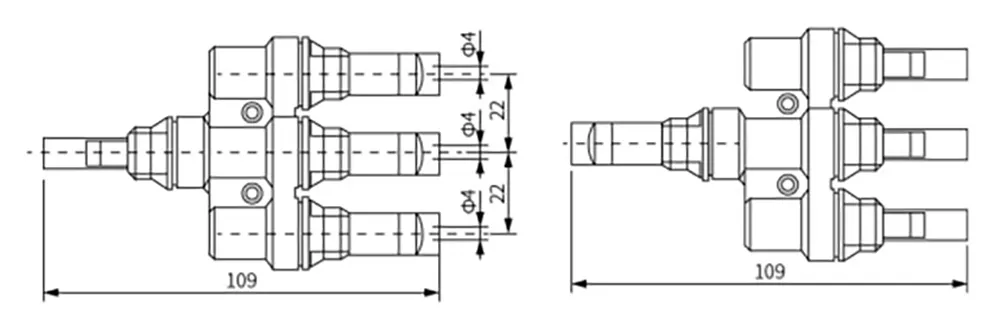

Model No. :RMC40-3T

Technical Parameter

Rated current	30A
Rated voltage	1000VDC
Test voltage	6000V(50Hz,1min)
Overvoltage category / Pollution degree	CAT Ⅲ/2
Contact resistance ofplug connectors	≤0.5mΩ
Contact material	Copper, Ag plated
Insulation material	PPO
Degree of protection	IP2* / IP65
Flame class	UL94-VO
Safety class	Ⅱ
Suitable cable	2.5-6.0㎜²
Insertion Withdrawal force	≤50N
Temperature range	-40℃ ∽+110
Cable length	8cm

solar connector

fuse linking

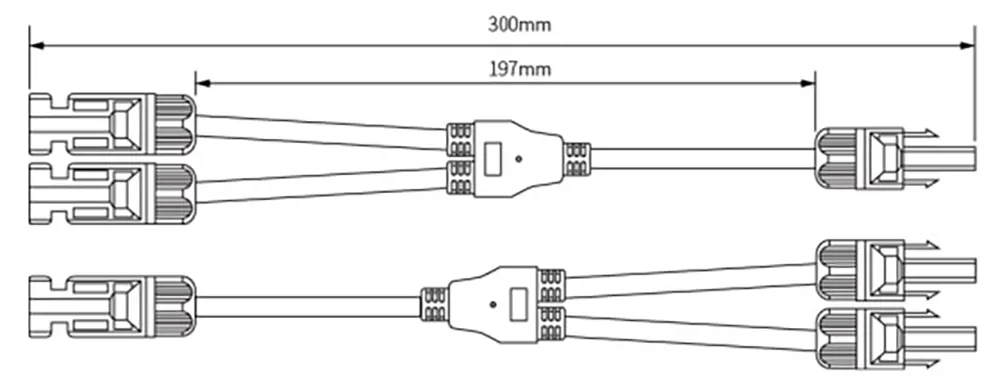

Model No. :RMC40-4Y

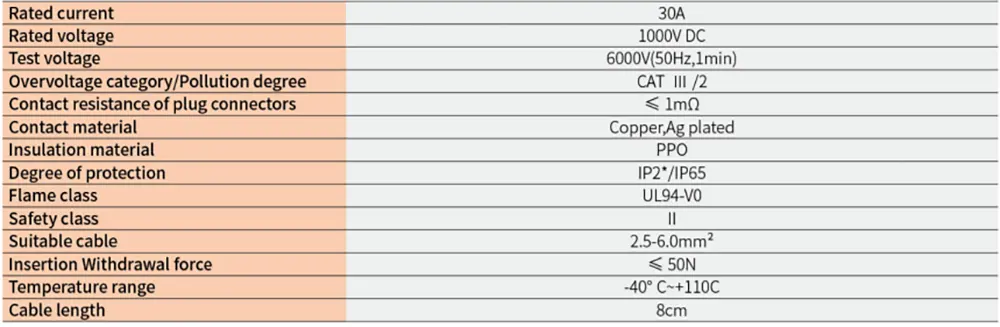

Technical Parameter

Rated current	30A
Rated voltage	1000VDC
Test voltage	6000V(50Hz,1min)
Overvoltage category / Pollution degree	CAT Ⅲ/2
Contact resistance ofplug connectors	≤1mΩ
Contact material	Copper, Ag plated
Insulation material	PPO
Degree of protection	IP2* / IP65
Flame class	UL94-VO
Safety class	Ⅱ
Suitable cable	2.5-6.0㎜²
Insertion Withdrawal force	≤50N
Temperature range	-40℃ ∽+110
Cable length	8cm

lv hrc fuse link

ceramic fuse link

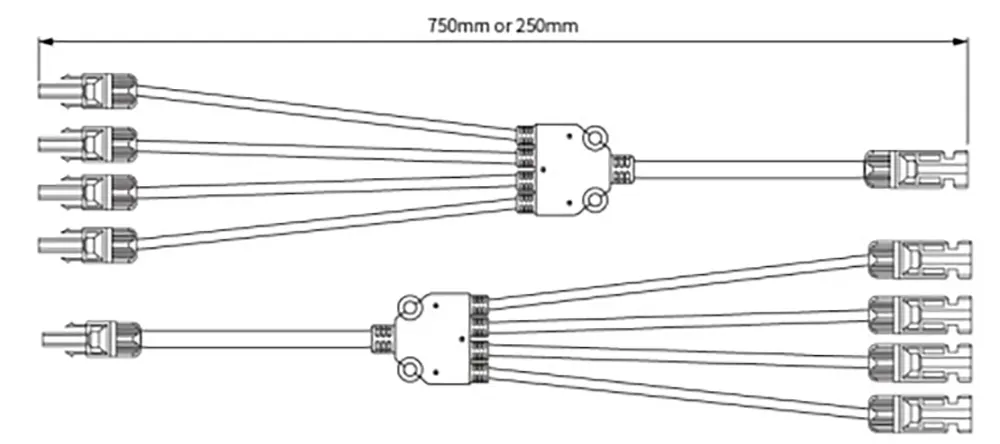

Model No.: RMC40-5Y solar connector

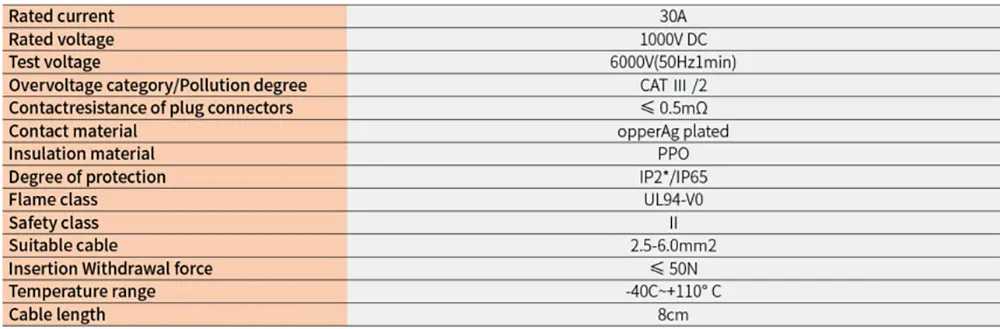

Technical Parameter

Rated current	30A
Rated voltage	1000VDC
Test voltage	6000V(50Hz,1min)
Overvoltage category / Pollution degree	CAT Ⅲ/2
Contact resistance ofplug connectors	≤0.5mΩ
Contact material	opper, Ag plated
Insulation material	PPO
Degree of protection	IP2* / IP65
Flame class	UL94-VO
Safety class	Ⅱ
Suitable cable	2.5-6.0㎜²
Insertion Withdrawal force	≤50N
Temperature range	-40℃ ∽+110
Cable length	8cm

solar connector

small electrical fuses

Model No.: RR1500-MC40 solar connector

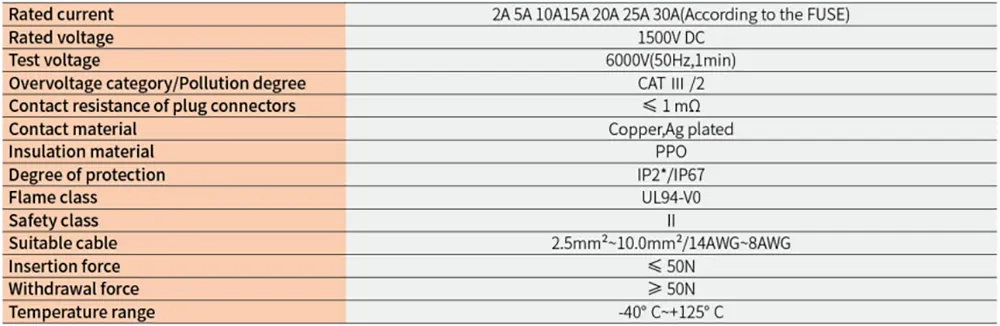

Technical Parameter

Rated current	2A 5A 10A 15A 20A 25A 30A(According to the FUSE)
Rated voltage	1500VDC
Test voltage	6000V(50Hz,1min)
Overvoltage category / Pollution degree	CAT Ⅲ/2
Contact resistance of plug connectors	≤1mΩ
Contact material	Copper, Ag plated
Insulation material	PPO
Degree of protection	IP2* / IP67
Flame class	UL94-VO
Safety class	Ⅱ
Suitable cable	2.5㎜²-10.0㎜²/14AWG~8AWG
Insertion force	≤50N
Withdrawal force	≥50N
Temperature range	-40℃~+125℃

Fuse Holder in Line

Amp Fuse Holder

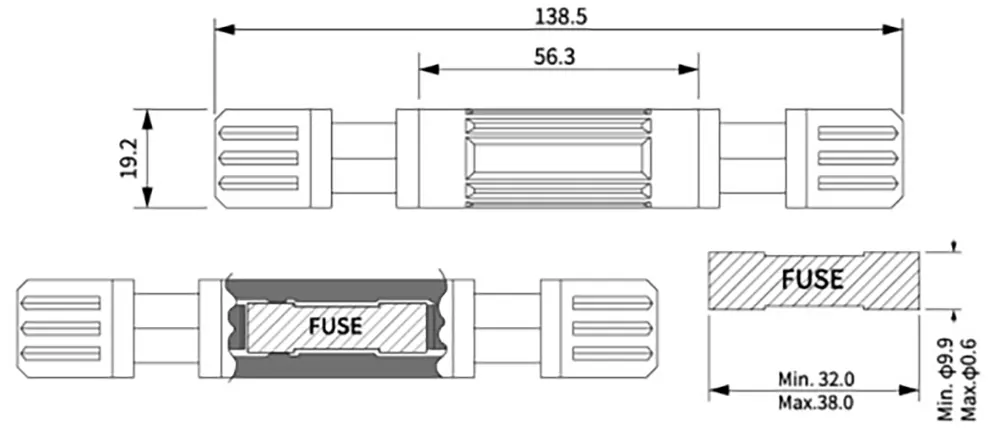

Model No. ：MC40-1000

Technical Parameter

Rated current	2A 5A 10A 15A 20A 25A 30A(According to the FUSE)
Rated voltage	1000VDC
Test voltage	6000V(50Hz,1min)
Overvoltage category / Pollution degree	CAT Ⅲ/2
Contact resistance of plug connectors	≤1mΩ
Contact material	Copper, Ag plated
Insulation material	PPO
Degree of protection	IP2* / IP67
Flame class	UL94-VO
Safety class	Ⅱ
Suitable cable	2.5㎜²-10.0㎜²/14AWG~8AWG
Insertion force	≤50N
Withdrawal force	≥50N
Temperature range	-40℃~+125℃

Disconnect Fuses

630 amp disconnect switch

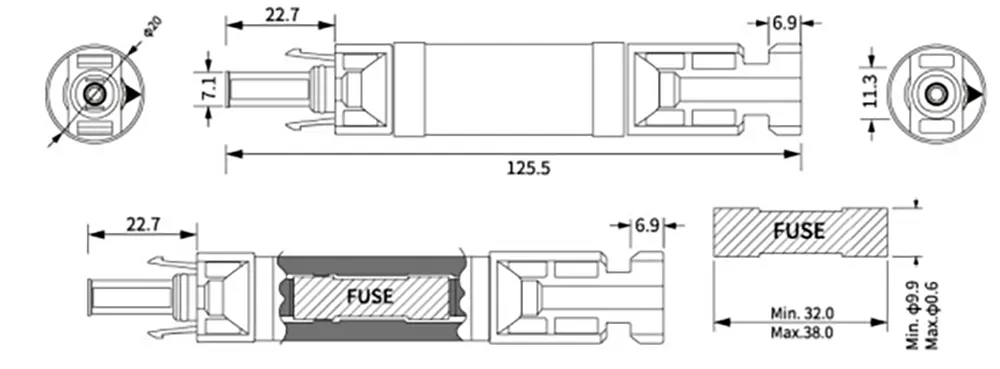

Model No.: RMC40-1500 solar connector

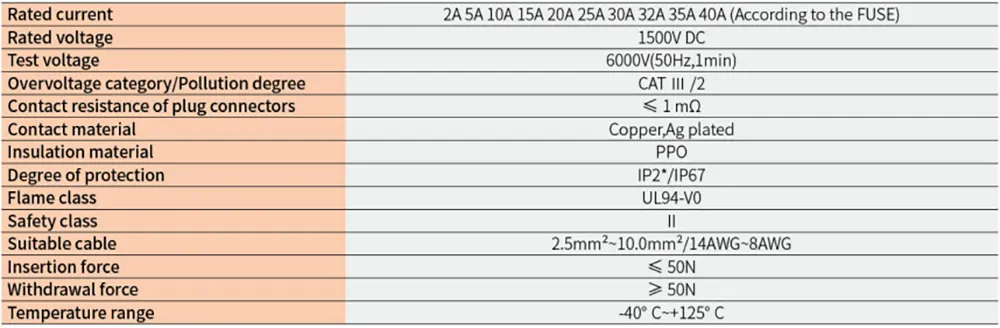

Technical Parameter

Rated current	2A 5A 10A 15A 20A 25A 30A 35A 40A(According to the FUSE)
Rated voltage	1500VDC
Test voltage	6000V(50Hz,1min)
Overvoltage category / Pollution degree	CAT Ⅲ/2
Contact resistance of plug connectors	≤1mΩ
Contact material	Copper, Ag plated
Insulation material	PPO
Degree of protection	IP2* / IP67
Flame class	UL94-VO
Safety class	Ⅱ
Suitable cable	2.5㎜²-10.0㎜²/14AWG~8AWG
Insertion force	≤50N
Withdrawal force	≥50N
Temperature range	-40℃~+125℃

fuser switch

ac fuse switch
