Solid Copper And Stainless Steel Earth Rods Lightning Protection Earthing Connection

Part No:

CER1412

Diameter:

14mm

Length:

1200mm

Weight each:

1.64kg

Certification Contact Us

Description

Solid Copper And Stainless Steel Earth Rods

Solid copper rod

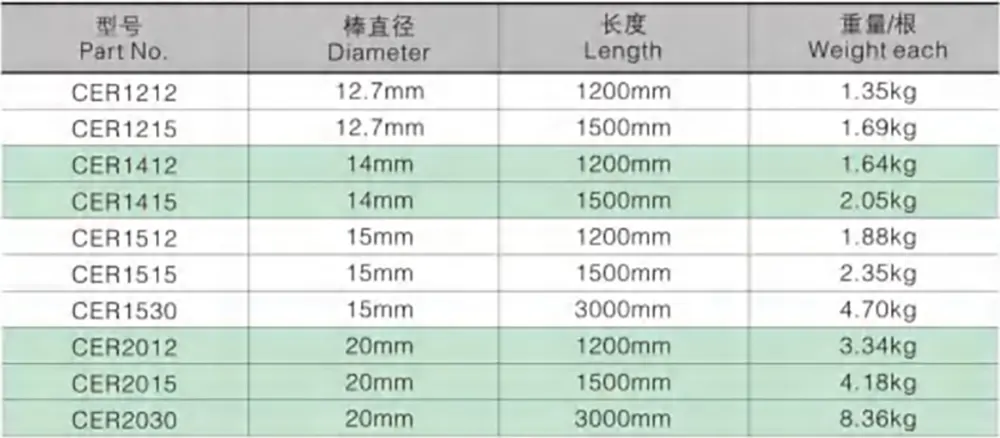

Part No	Diameter	Length	Weight each

CER1212	12.7mm	1200mm	1.35kg
CER1215	12.7mm	1500mm	1.69kg
CER1412	14mm	1200mm	1.64kg
CER1415	14mm	1500mm	2.05kg
CER1512	15mm	1200mm	1.88kg
CER1515	15mm	1500mm	2.35kg
CER1530	15mm	3000mm	4.70kg
CER2012	20mm	1200mm	3.34kg
CER2015	20mm	1500mm	4.18kg
CER2030	20mm	3000mm	8.36kg

length

Solid copper rod kit

Part No	Diameter	Length	Weight each

CER1512-kit	15mm	8ft(2440)mm	3.82kg
CER2012-kit	20mm	8 ft(2440)mm	6.79kg

Stainless steel rod

Part No	Diameter	Length	Weight each

SER1612	16mm	1200mm	1.87kg
SER1615	16mm	1500mm	2.34kg
SER1630	16mm	3000mm	4.68kg
SER2015	20mm	1500mm	3.65kg
SER2030	20mm	3000mm	7.30kg

Stainless steel rod kit

Part No	Diameter	Length	Weight each

SER162-kit	16mm	8ft(2440)mm	3.8kg

Solid copper rod

Socone solid copper earth rods otfe greater resistance to corrosion. They are ideally used in applications where soil conditions are very aggressive, such as soils with high salt content.

Stainless steel rod

Stainless steel rods are used to overcome many of the problems caused by galvanic corrosion which can take place between dissimilar metals buried in close proximity. Furse stainless steel earth rods are highly resistant to corrosion.

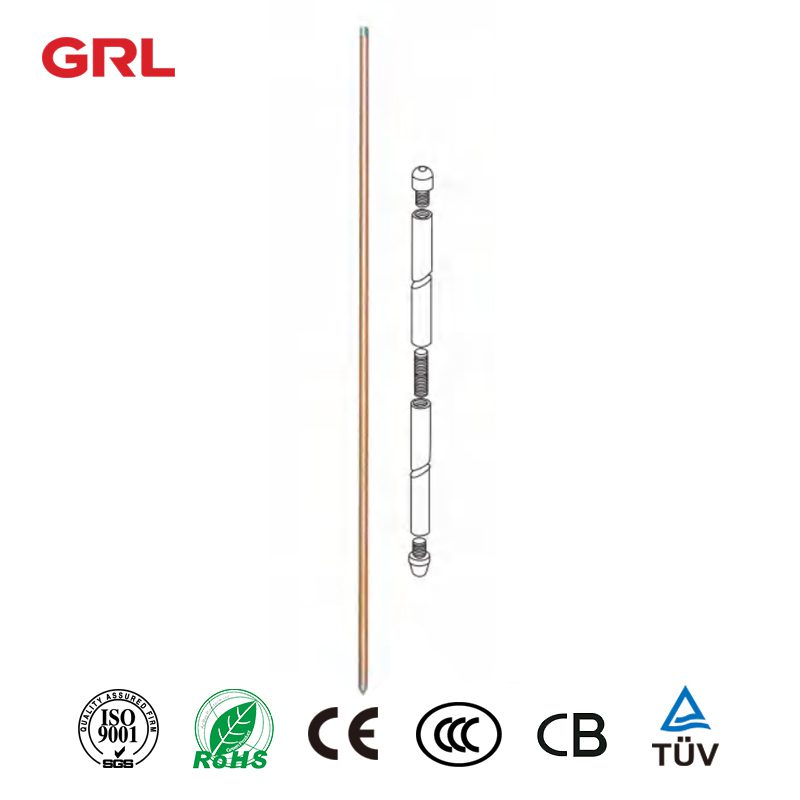

Kits include 2x 1200mm rods, coupling dowel, driving stud and spike to make 8 ft rodConnections to the rods can be by mechanical clamps,compression.

Standard：BS EN 50164-2,BS7430,UL467
