Transparent Load Disconnector DNH8(HGL)/TM Series

The DNH8(HGL)/TM Series -160A~630A/TM is a high-quality, transparent load disconnector that is applicable to AC 50Hz, rated voltage 400V, and rated current 630A. It is frequently used to connect and isolate breakers and lines. There are three poles and four poles (three poles + on-off neutral pole), and the extension shaft is used for operation outside the cabinet. The electrical and mechanical properties are the same as those of the DNH8 (HGL) -160A~630A.

Read on what is isolator switch?

Certification Download PDF Contact Us

Description

Disconnector DNH8(HGL)/TM Series

Transparent Load Disconnector

Product overview

DNH8 (HGL) -160A~630A/TM is applicable to AC 50Hz, rated voltage 400V and rated current 630A. It is used for infrequently connecting and isolating breakers and lines.

Operation Mode

Direct operation: the handle is placed on the switch
Operation outside the cabinet; The handle is installed outside the power distribution cabinet

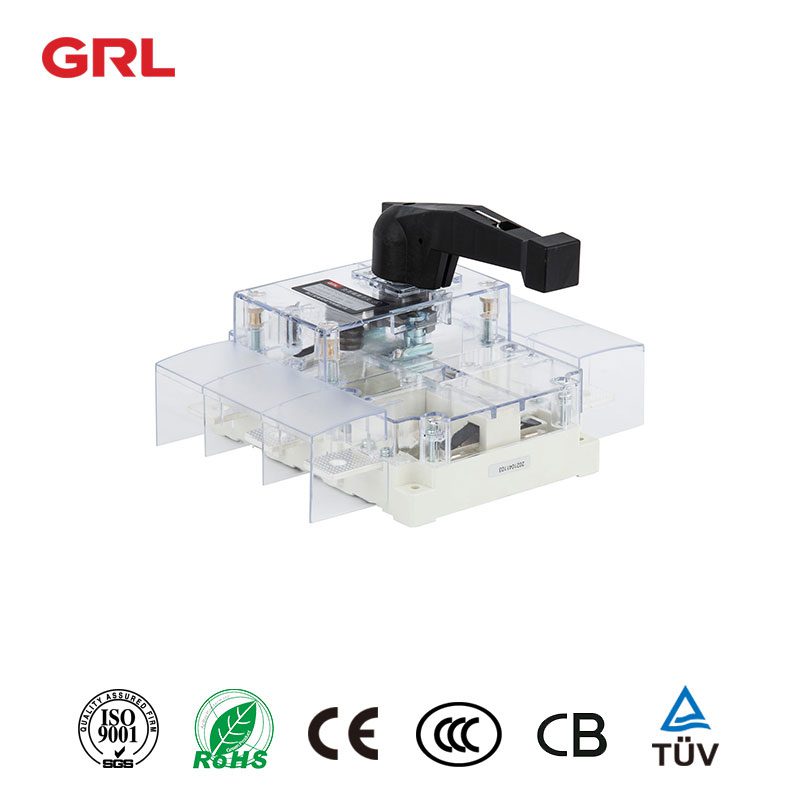

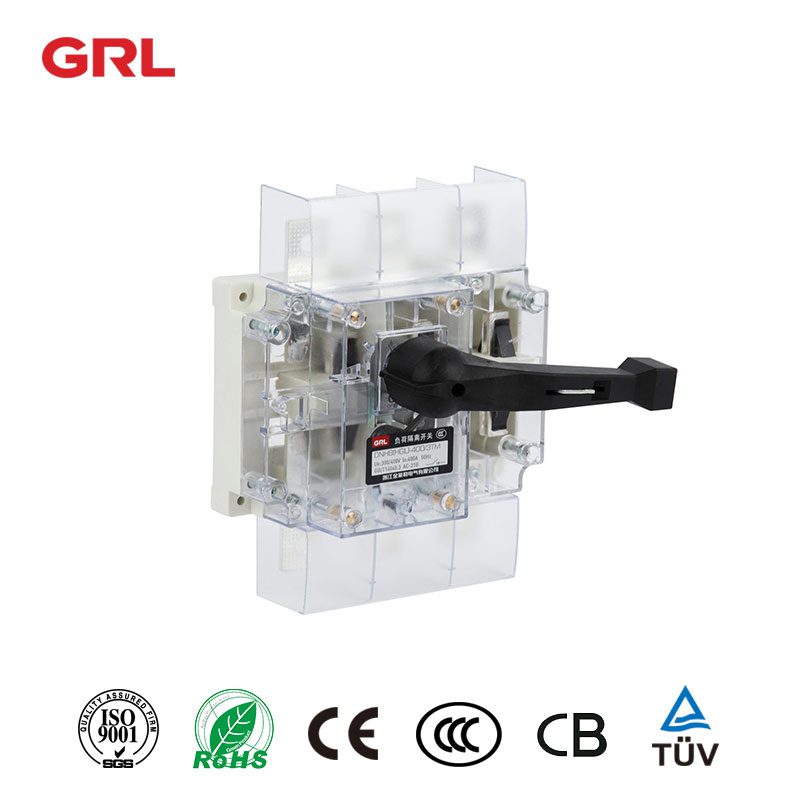

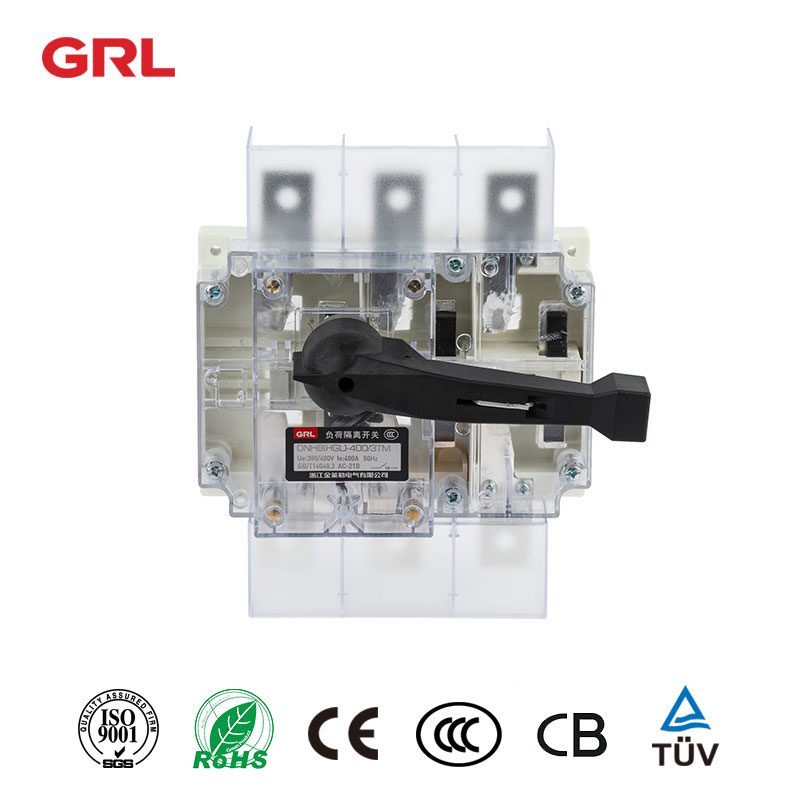

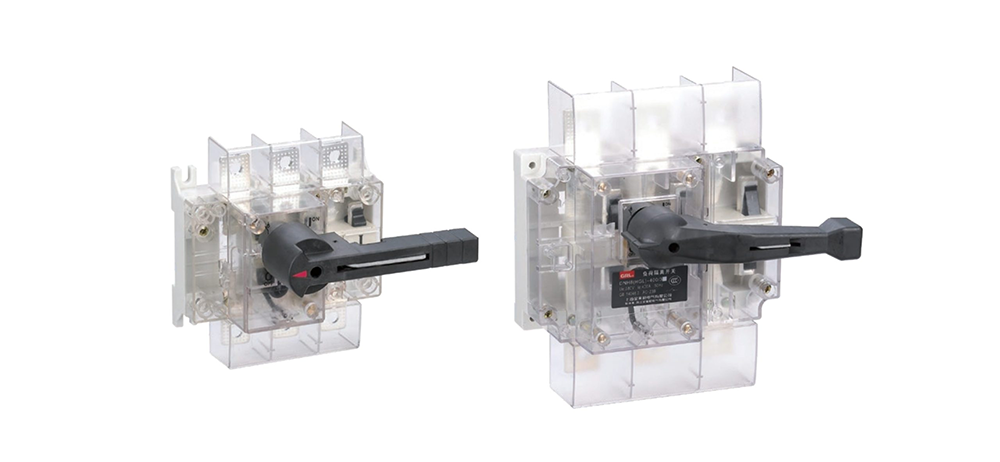

The primary use for the transparent upper cover and small cover is to allow for direct observation of the internal structure and contact state. The extension shaft is used to allow for operation when the unit is outside of the cabinet.

isolator switch on or off

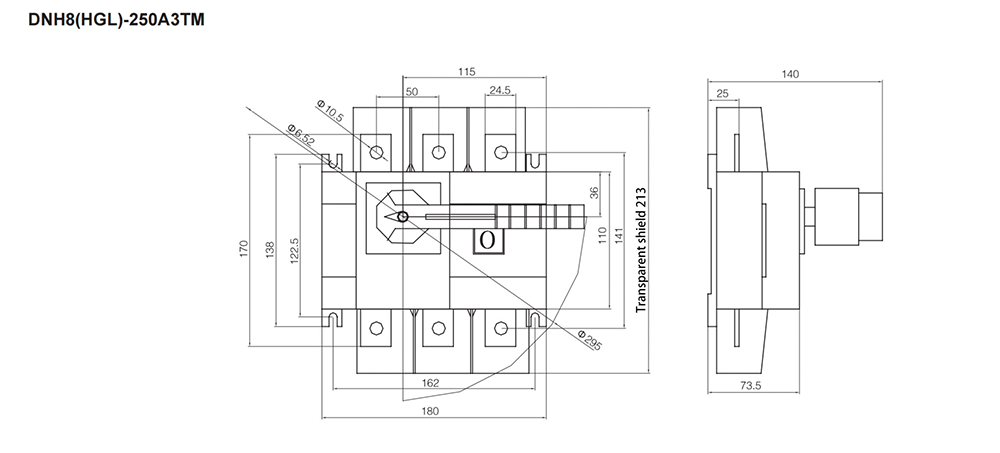

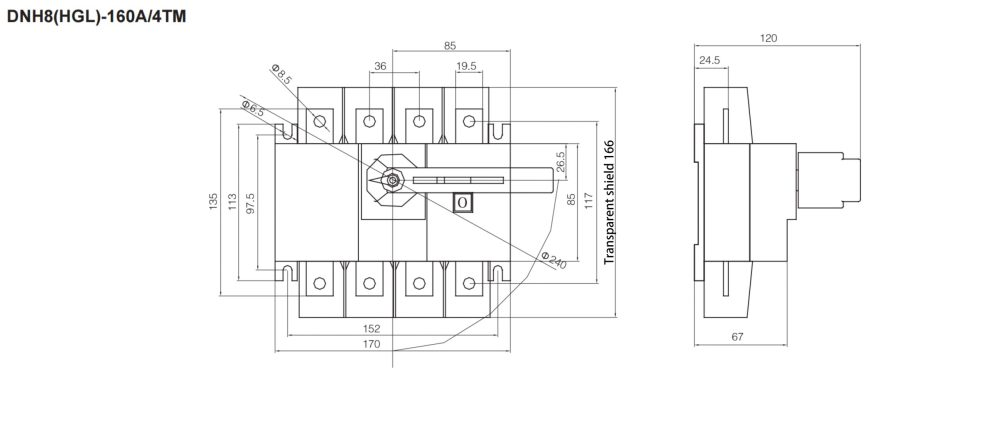

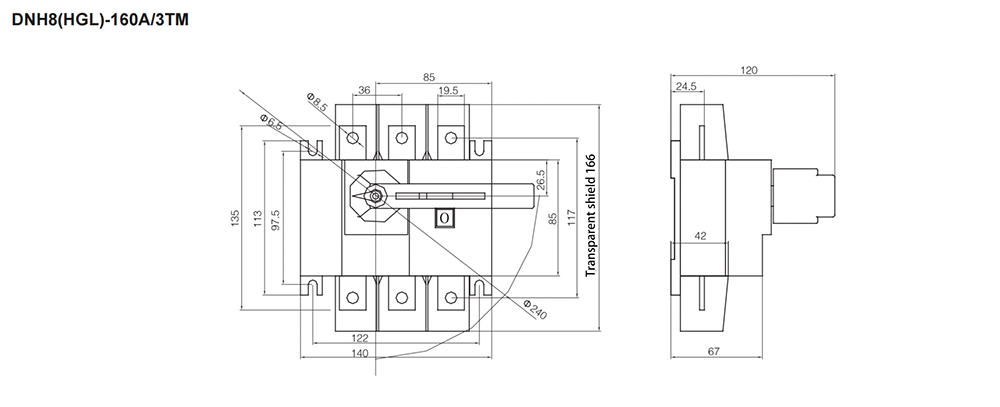

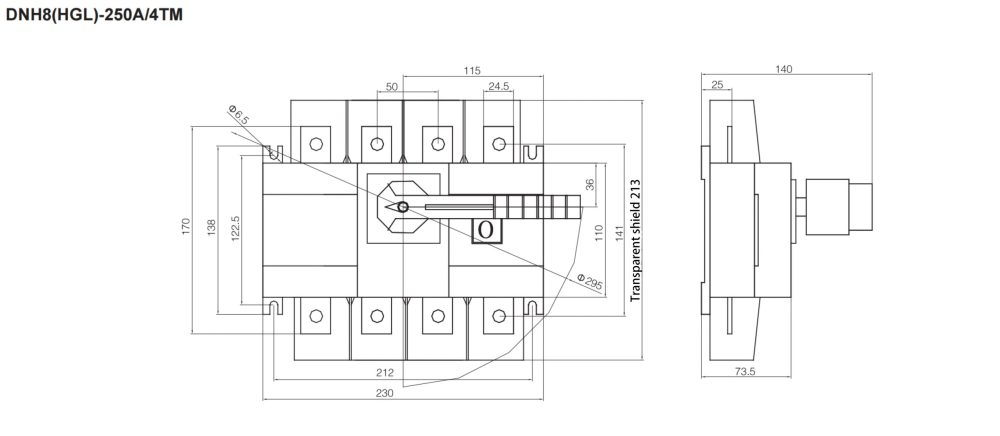

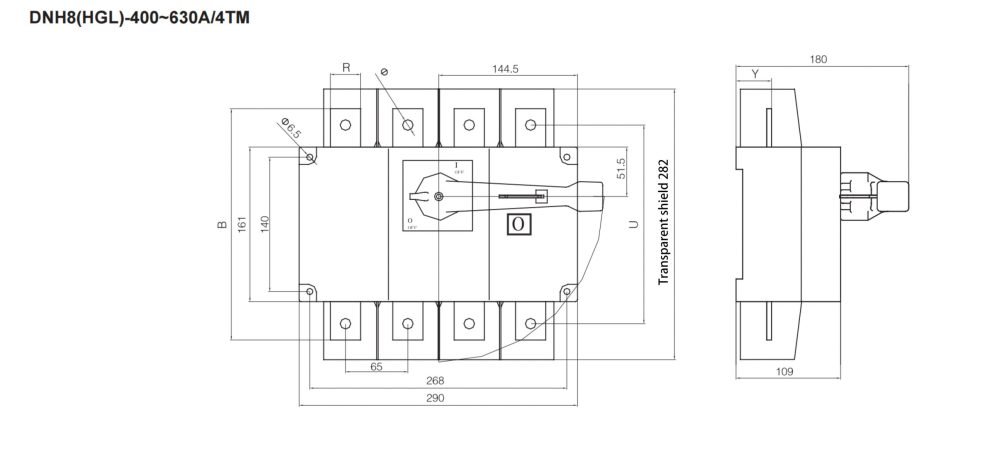

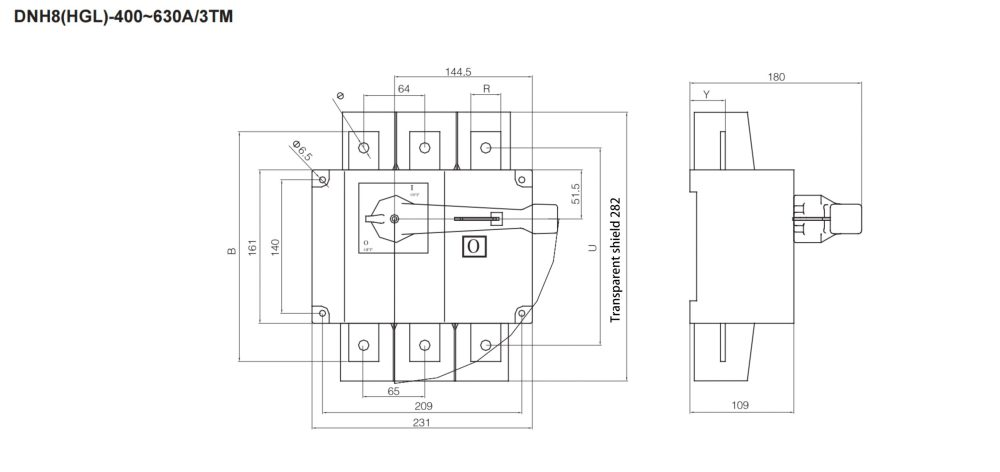

Outline and Installation Dimension (mm)
