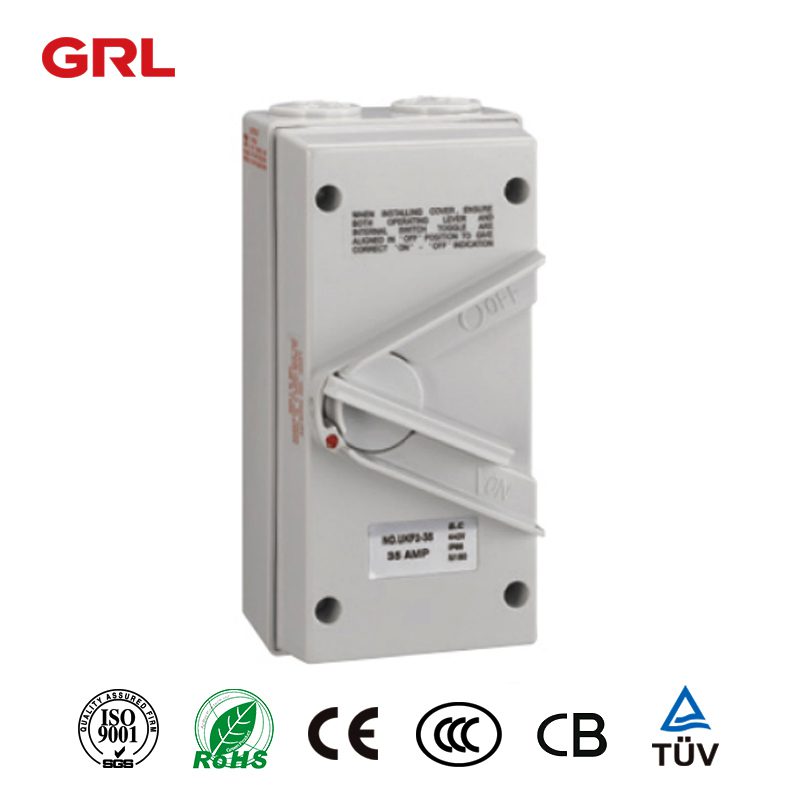

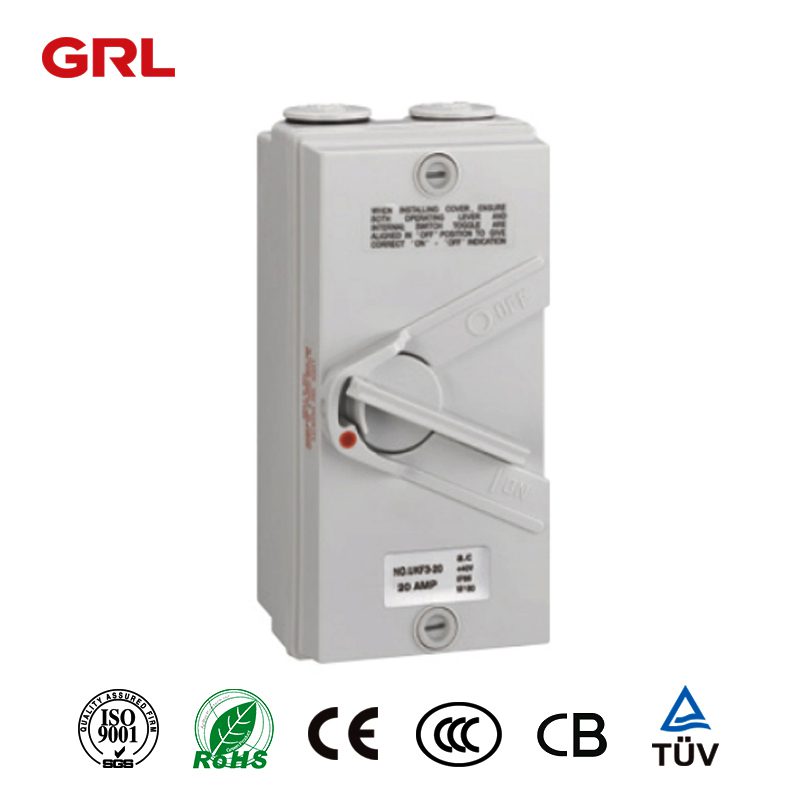

UKF Isolation Switch IP65 3P 35A Waterproof Enclosed Isolator Switch Box Outdoor Use

Product overview

Shell material:

ABS or PC

Waterproof rating:

IP65

Conductive material:

Silver

Features:

Waterproof, dustproof, UV proof, safe and durable, easy to install

Certification Contact Us

Description

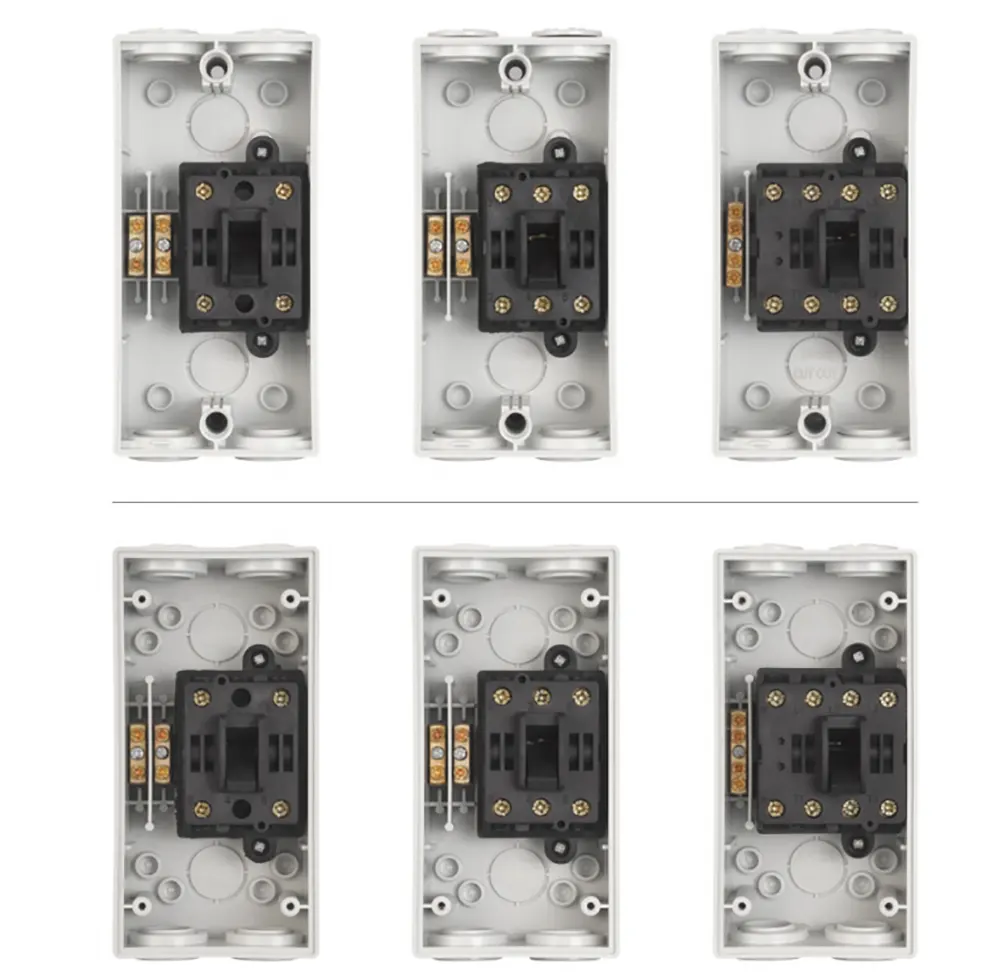

UKF Isolation Switch IP65 3P 35A

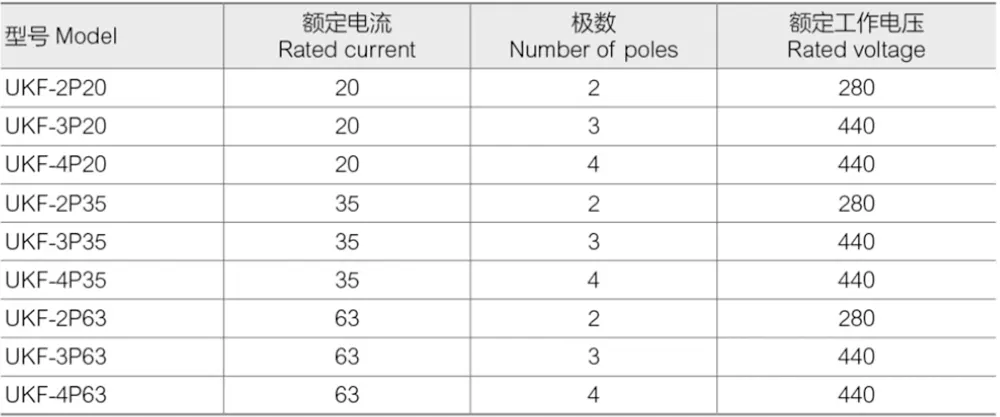

Selection code

Model	Rated current	Number of poles	Rated voltage
UKF-2P20	20	2	280
UKF-3P20	20	3	440
UKF-4P20	20	4	440
UKF-2P35	35	2	280
UKF-3P35	35	3	440
UKF-4P35	35	4	440
UKF-2P63	63	2	280
UKF-3P63	63	3	440
UKF-4P63	63	4	440

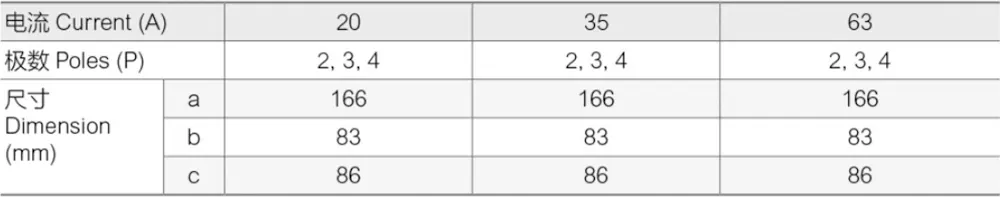

Parameter

Current(A)		20	35	63
Poles (P)		2.3.4	2.3.4	2.3.4
Dimension(mm)	a	166	166	166
	b	83	83	83
	c	86	86	86
