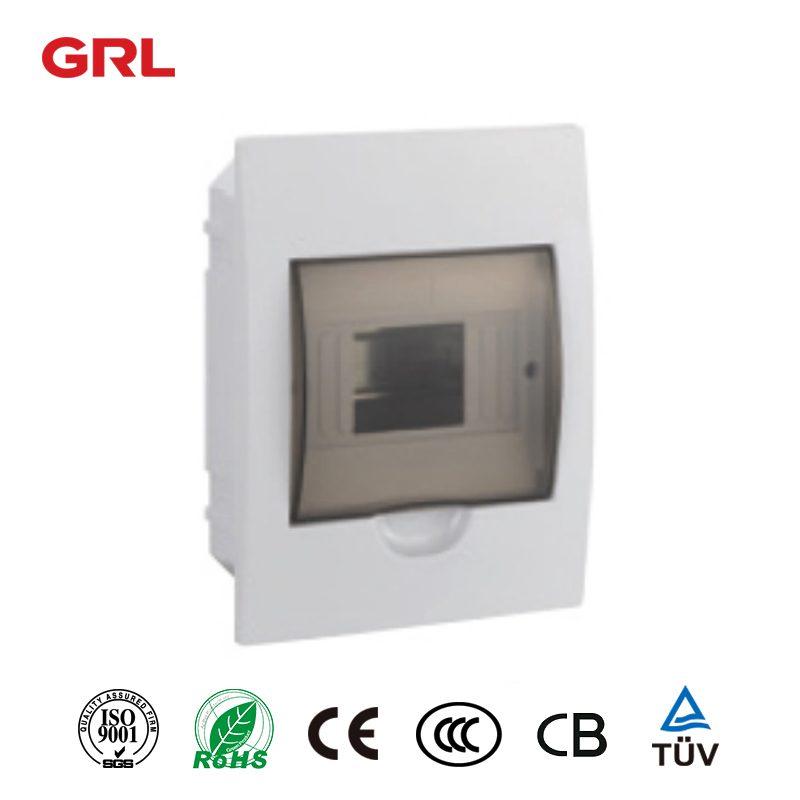

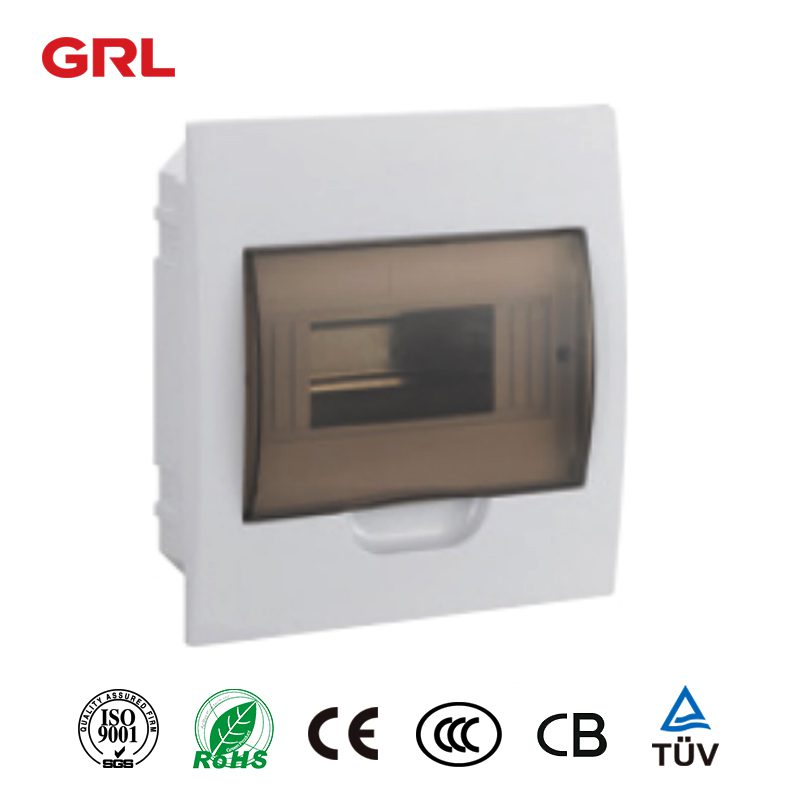

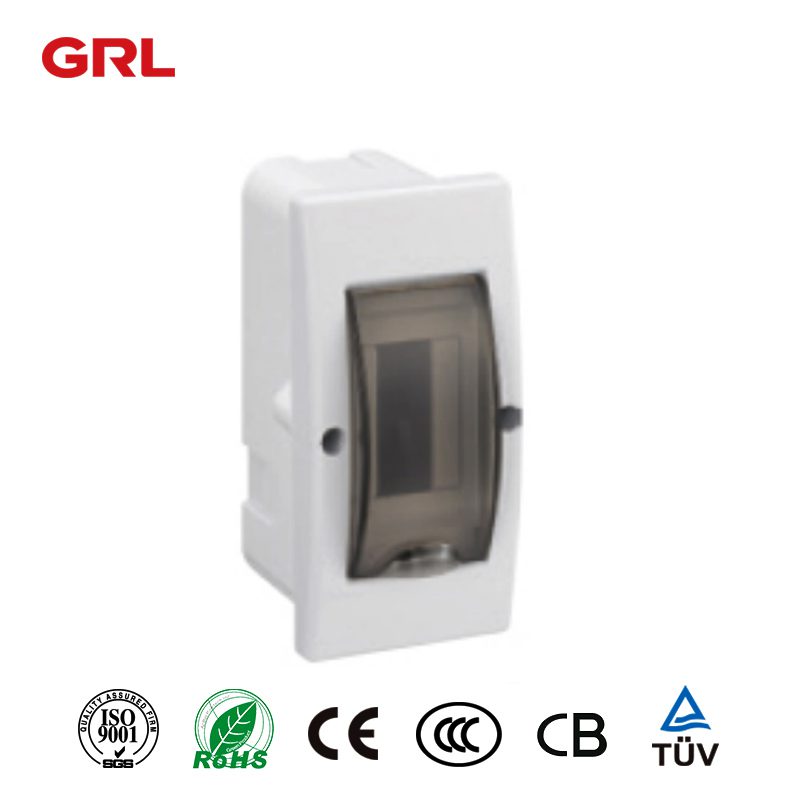

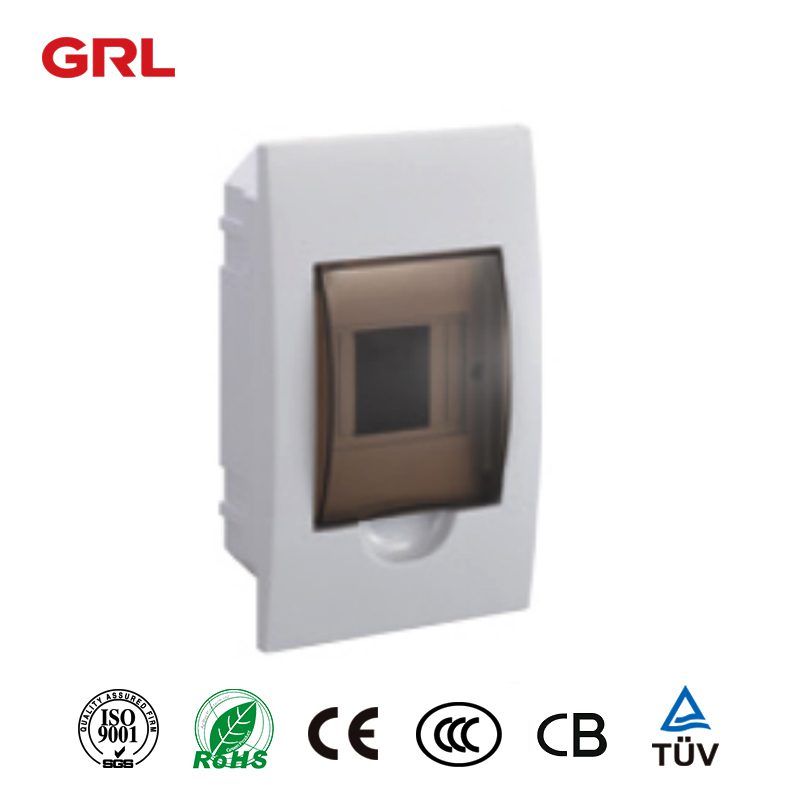

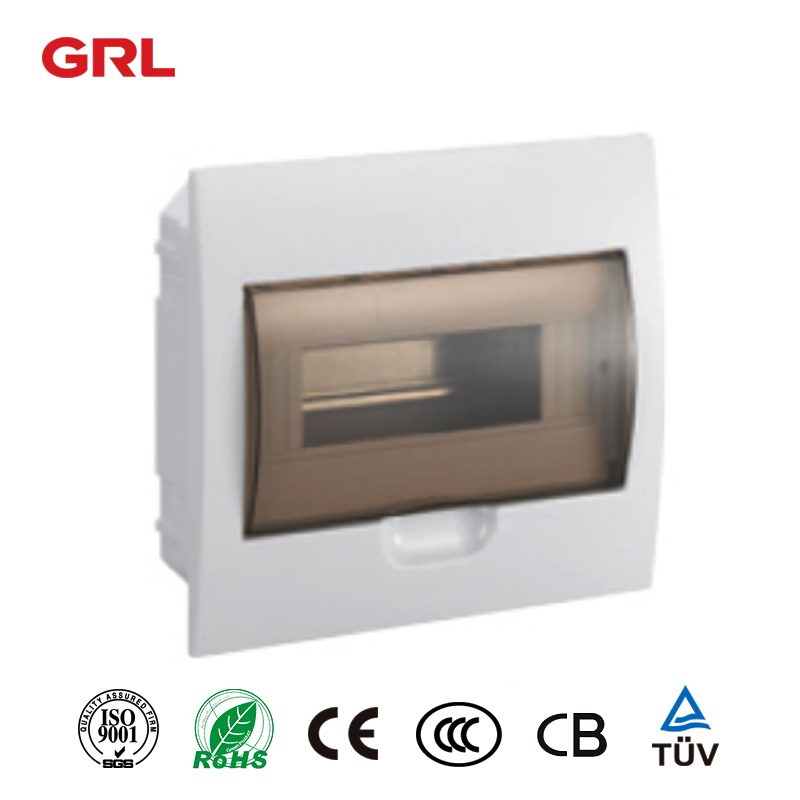

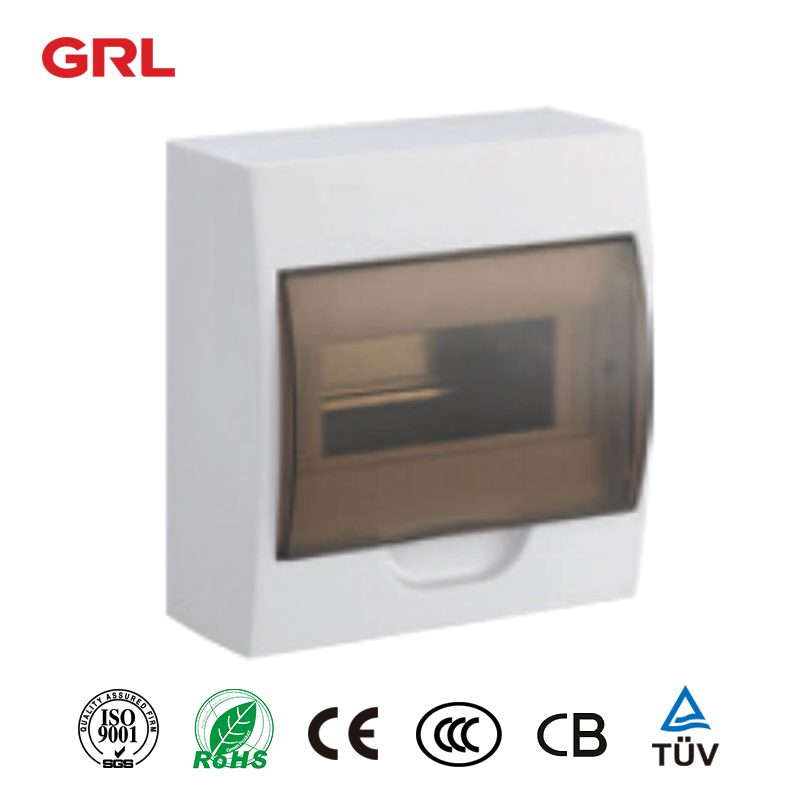

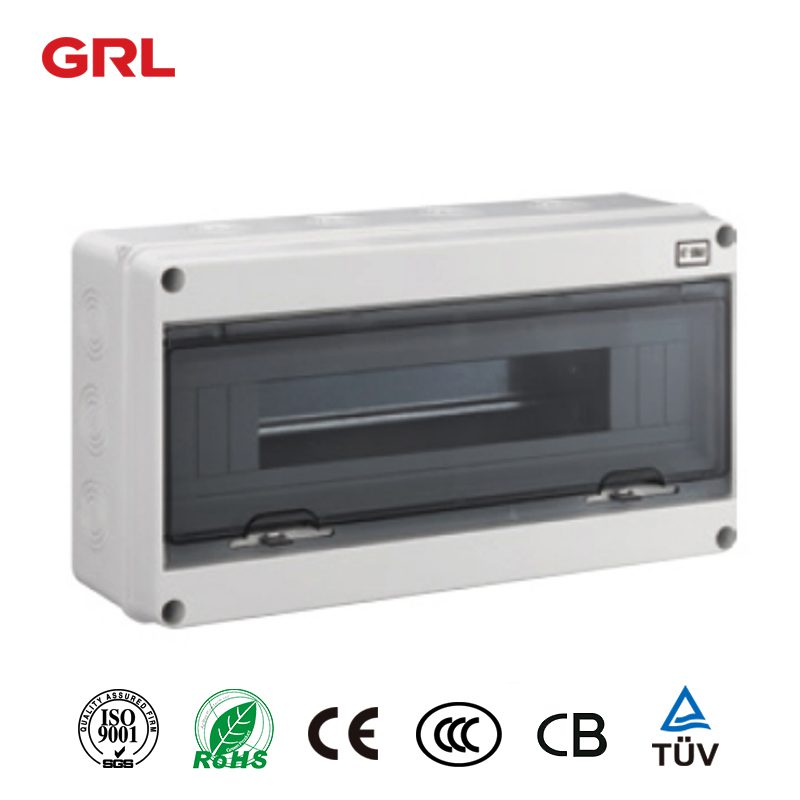

Waterproof Box IP40 New Meilan TSM-F Distribution Box (Concealed Series)

Shell material:

PS, ABS, flame retardant material (free choice)

Protection level:

IP40

Features:

dust-proof, convenient installation, durable, beautiful appearance, long service life

Key words:

Waterproof Box

Certification Download PDF Contact Us

Description

Waterproof Box IP40 New Meilan TSM-F Distribution Box

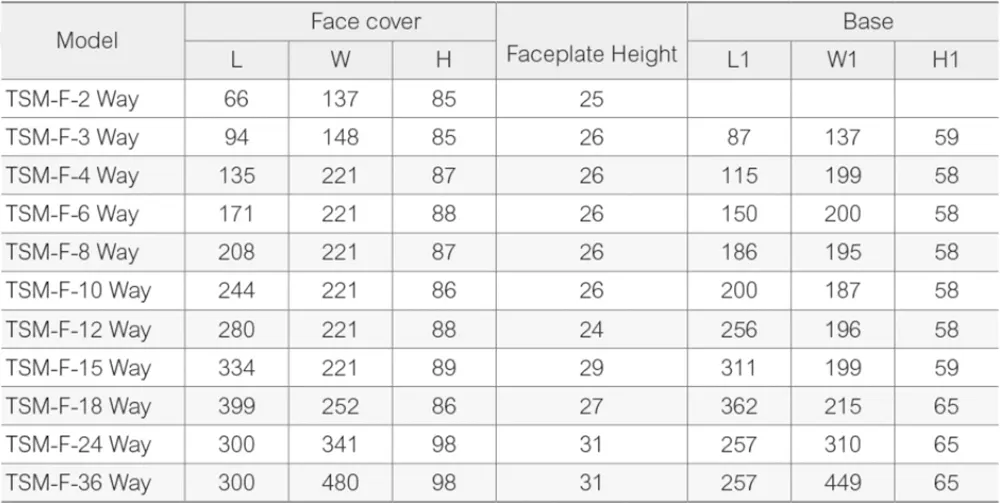

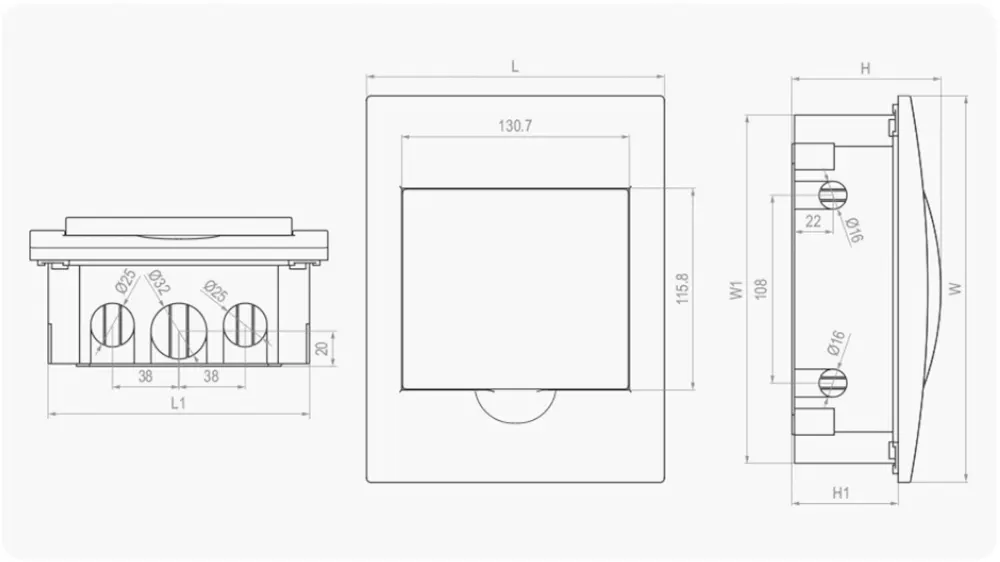

Overall dimension

Model	Overall dimension			Faceplate Height	Base
Model	L	W	H	Faceplate Height	L1	W2	H1
TSM-F2 Way	66	137	85	25
TSM-F3 Way	94	148	85	26	87	137	59
TSM-F4 Way	135	221	87	26	115	199	58
TSM-F-6 Way	171	221	88	26	150	200	58
TSM-F-8 Way	208	221	87	26	186	195	58
TSM-F-10 Way	244	221	86	26	200	187	58
TSM-F-12 Way	280	221	88	24	256	196	58
TSM-F-15 Way	334	221	89	29	311	199	59
TSM-F-18 Way	399	252	86	27	362	215	65
TSM-F-24 Way	300	341	98	31	257	310	65
TSM-F-36 Way	300	480	98	31	257	449	65
