This comprehensive guide will demystify the ATS, exploring its core functions, a detailed analysis of why it’s a vital investment, and a practical walkthrough of how to choose the perfect model for your home or business.

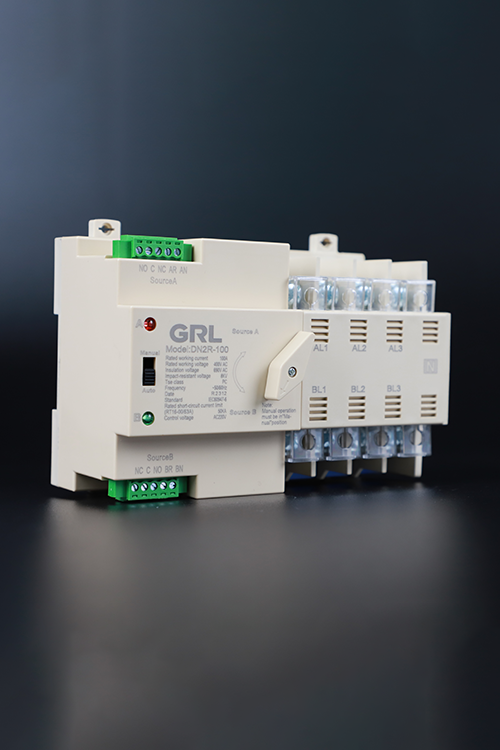

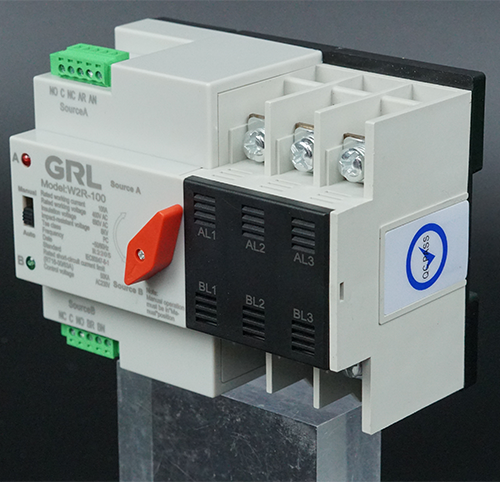

At its most fundamental level, an ATS is a sophisticated electrical switch that acts as the “brain” of your backup power system. It is permanently installed between your utility meter and your main electrical panel, serving as the central point for managing two distinct power sources: the utility grid and your standby generator.
The operation of an ATS is a marvel of automated engineering, following a precise, multi-step sequence to ensure seamless and safe power transfer.
Here’s how an ATS works, step-by-step:
Continuous Power Monitoring: The ATS’s control board is a vigilant sentinel, constantly monitoring the incoming utility power for voltage, frequency, and phase stability. It’s looking for any signs of a problem—not just a complete blackout, but also brownouts or significant power fluctuations.
Outage Detection: The moment the utility power drops below a pre-set threshold or fails entirely, the ATS’s controller detects the outage and initiates the transfer sequence. This typically happens within seconds.
Generator Startup: The ATS immediately sends a signal to your standby generator, commanding it to start. The generator’s engine cranks, warms up, and begins producing electricity. This warm-up period, usually lasting between 10 to 30 seconds, is crucial for the generator’s health and ensures it produces stable power before connecting to your home’s circuits.
Load Transfer: Once the ATS confirms the generator is providing stable power at the correct voltage and frequency, it mechanically switches your electrical load from the utility grid to the generator. This is a critical action where a physical interlock prevents the generator and the utility grid from ever being connected at the same time.
Utility Power Restoration: The ATS continues to monitor the utility power. When it senses that the main grid has returned and stabilized for a set period (to prevent switching back and forth during brief flickers), it initiates the return sequence.
Load Re-transfer and Cooldown: The ATS switches the load back to the utility power, disconnecting the generator. It then signals the generator to enter a cooldown phase, running for a few minutes with no load. This prevents engine shock and extends the generator’s lifespan before shutting it down completely.
This entire process, from outage to full restoration of power, happens automatically and safely, providing a level of reliability and convenience that is impossible with manual systems.
The question of whether you need an ATS is a crucial one, and the answer is rooted in safety, convenience, and the value of protecting your home or business.
For Homeowners: Convenience and Peace of Mind
While a portable generator can power a few appliances with extension cords, an ATS transforms a manual, often stressful, chore into an automated, seamless experience.
Uninterrupted Essential Services: An ATS ensures that critical appliances stay running without a moment’s thought. This includes your refrigerator, freezer, sump pump, furnace, air conditioning, and medical equipment like a CPAP machine.
Protection for Your Home and Family: What happens if an outage occurs while you’re away on vacation? Without an ATS, your sump pump could fail, leading to a flooded basement, or your food could spoil. An ATS eliminates these worries, offering true peace of mind.
Safety from the Elements: An ATS removes the need to venture outside in a storm or freezing temperatures to set up a generator and run cables, mitigating the risks of electrocution or falls.
For businesses, the stakes of a power outage are significantly higher. An ATS is an indispensable tool for business continuity.
Preventing Financial Loss: An outage can mean lost sales, stalled production, and damaged inventory. For a data-driven business, every minute of downtime can cost thousands of dollars. An ATS ensures that critical operations remain online.
Data and System Integrity: Servers and computer systems are vulnerable to sudden shutdowns. An ATS provides a reliable power source, safeguarding sensitive data and preventing costly hardware damage.
Maintaining Safety and Security: An ATS ensures that security systems, fire alarms, and emergency lighting remain fully operational, protecting your employees, customers, and physical assets during an emergency.
This is arguably the most critical reason for choosing an ATS over a manual system. “Back-feeding” occurs when a generator’s power is accidentally sent back through the utility lines, a lethal risk for utility workers who may be working on those lines, mistakenly believing the power is off. An ATS is equipped with a mechanical interlock, a fail-safe device that physically prevents the utility and generator power from being connected simultaneously. This guarantees that your backup power system is not only reliable but also safe for your community’s service personnel.
To make an informed decision, it’s helpful to understand the distinct roles of the three main types of backup power solutions.
Automatic Transfer Switch (ATS):
Function: Automatically switches the load between two power sources.
Best For: Providing seamless, hands-free power during extended outages with a standby generator.
Pros: Ultimate convenience, superior safety (prevents back-feeding), and total automation.
Cons: Higher initial cost than a manual switch.
Manual Transfer Switch (MTS):
Function: Requires a person to manually flip a switch to transfer power.
Best For: Users on a tight budget who are willing to manually manage their backup power.
Pros: Lower initial cost.
Cons: Requires manual intervention, slower response time, and potential safety risks if not used correctly.
Uninterruptible Power Supply (UPS):
Function: Provides immediate, short-term battery power.
Best For: Protecting sensitive electronics like computers and servers from momentary power flickers or providing time for an ATS to activate.
Pros: Instantaneous power, surge protection.
Cons: Very limited runtime (typically minutes), and batteries require regular maintenance.
The ideal power resilience strategy often involves a combination of these technologies. A UPS can handle the initial, momentary power blip, giving the ATS enough time to start and connect the generator for the long haul.
With the value of an ATS established, the next step is selecting a model that perfectly suits your needs.
Amperage Rating (Crucial): This is the most important factor. An ATS must have an amperage rating that is equal to or greater than your home’s main circuit breaker. A 100A home requires a 100A ATS, while a larger home might need a 200A model.
Phase Configuration: Most residential properties in the US and Europe are single-phase, while commercial and industrial facilities often use three-phase power. Ensure the ATS you select matches your electrical system.
Transfer Mechanism:
Open Transition: The standard for most homes and businesses. It involves a brief, momentary interruption of power (milliseconds) during the switch.
Closed Transition: A specialized, more expensive option that provides a seamless, zero-interruption transfer. This is reserved for highly critical loads, such as in hospitals or data centers.
Service Entrance Rated ATS: For homeowners, this is a highly valuable feature. A service entrance rated ATS combines the functions of the ATS and your main service disconnect, potentially simplifying installation and saving space.
Advanced Features: Modern ATS units offer a range of smart features, including:
LCD Display: Provides real-time status and diagnostic information.
Remote Monitoring: Allows you to check the ATS status and run self-tests from your smartphone or computer.
Event Logging: Records the dates and times of power outages and transfers.
Manufacturer and Warranty: Choose a reputable brand known for quality and reliability. A strong warranty (typically 2-5 years) is a good indicator of the manufacturer’s confidence in their product.
An ATS is a complex electrical device. Under no circumstances should you attempt to install it yourself. Always hire a licensed and certified electrician who is experienced with generator and ATS installations. A professional will:
Correctly size the ATS to your electrical system.
Ensure all wiring is secure and up to code.
Properly ground the system to prevent electrical hazards.
Test the system thoroughly to guarantee it functions as intended.
As for maintenance, while an ATS requires minimal attention, an annual check by a qualified technician is highly recommended. They will inspect the internal components, clean any dust buildup, and ensure the mechanical parts are in perfect working order. This simple preventative maintenance can extend the lifespan of your ATS to 20 years or more.
An Automatic Transfer Switch is more than just a piece of equipment; it’s an investment in safety, convenience, and peace of mind. It transforms your backup generator from a manual emergency solution into an integral, automated part of your home or business’s electrical infrastructure, ensuring that life and work can continue uninterrupted, no matter what happens on the grid.
