60mm Busbar System

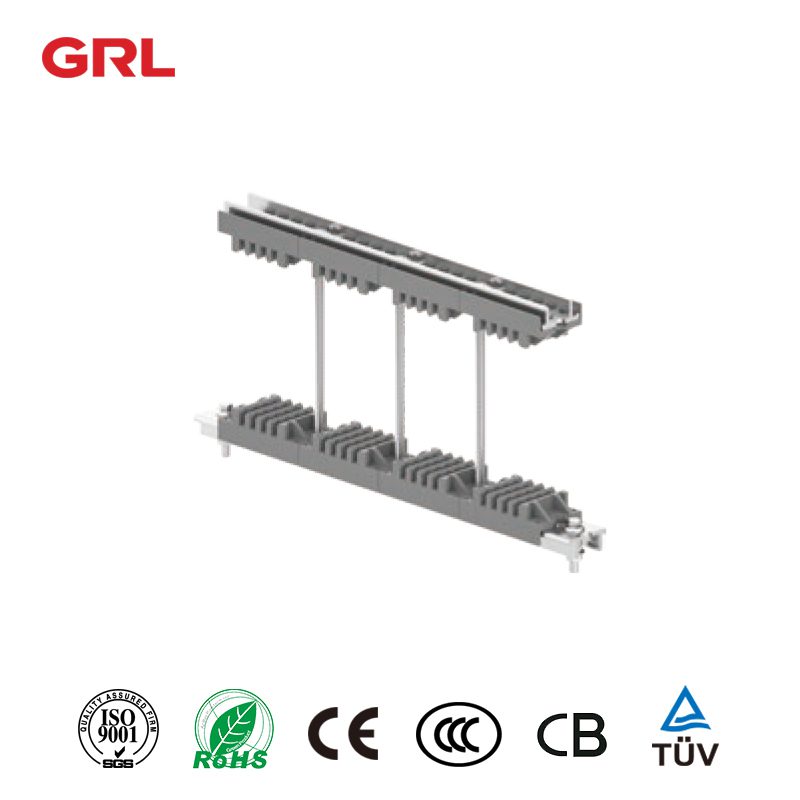

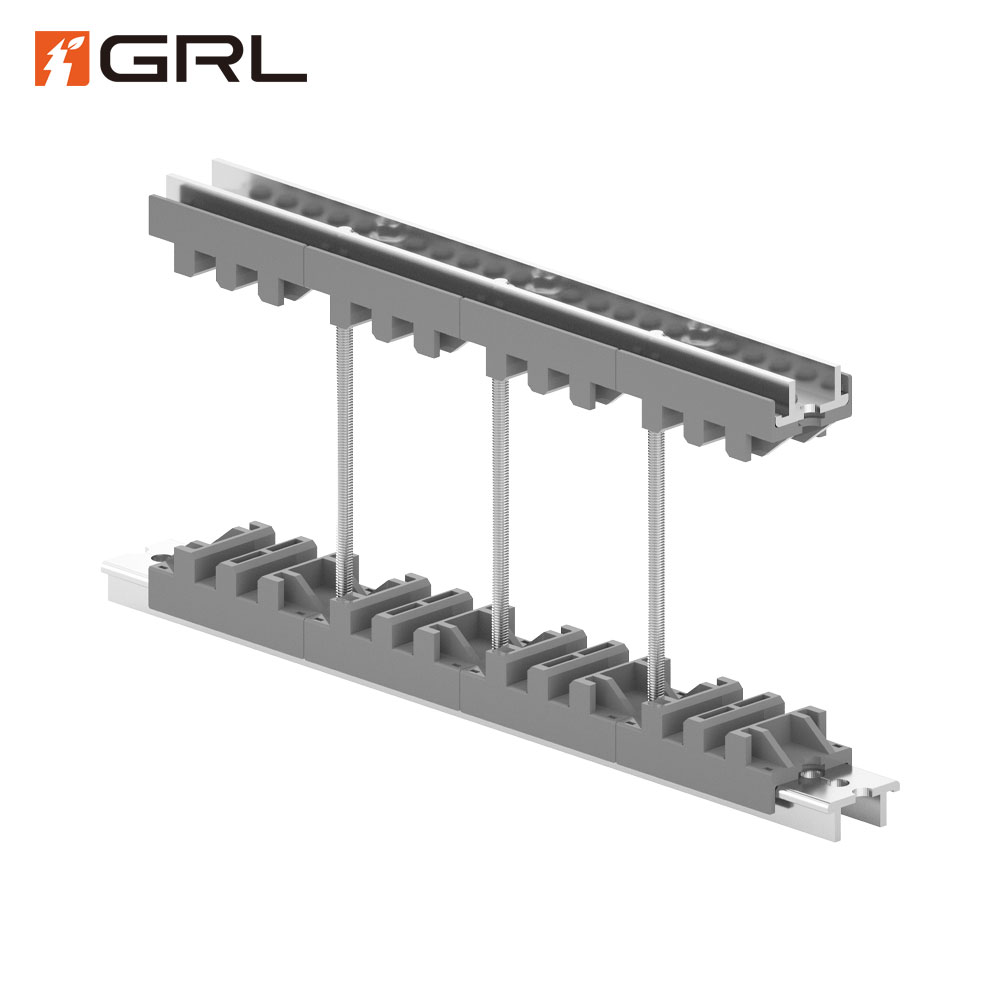

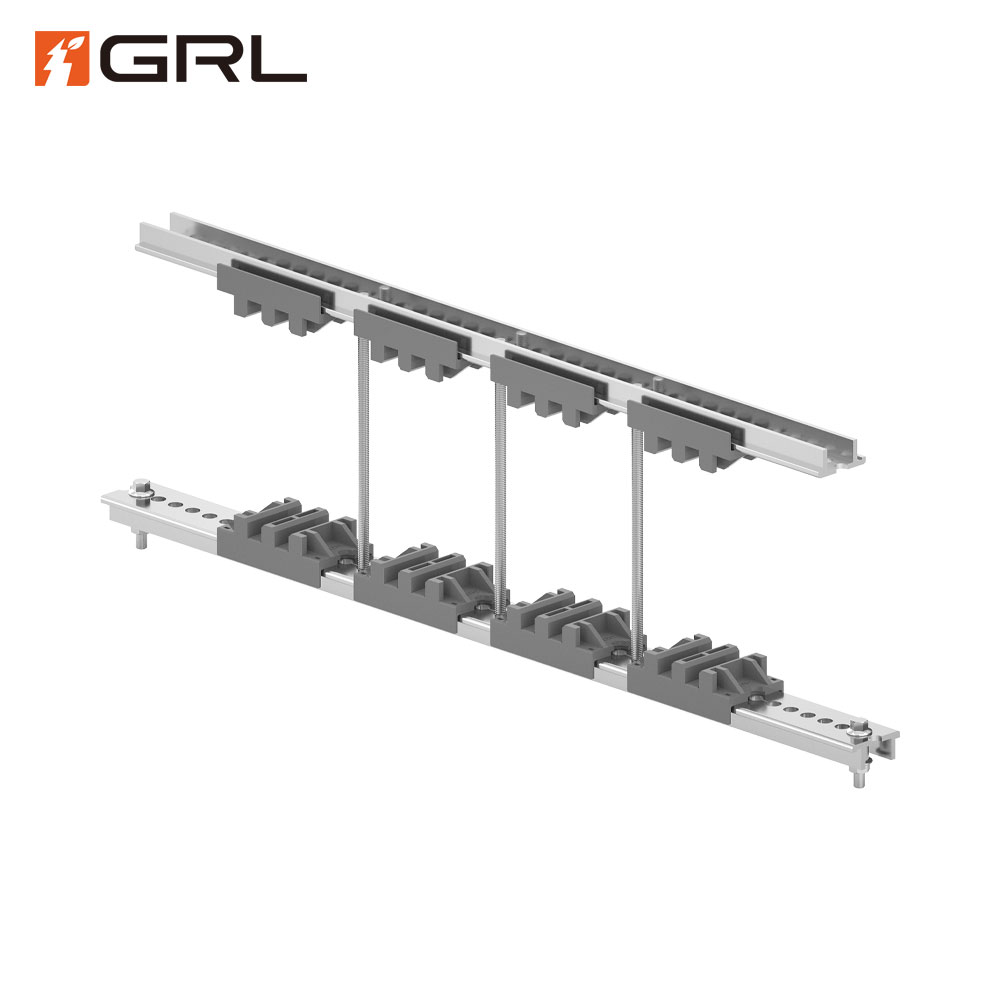

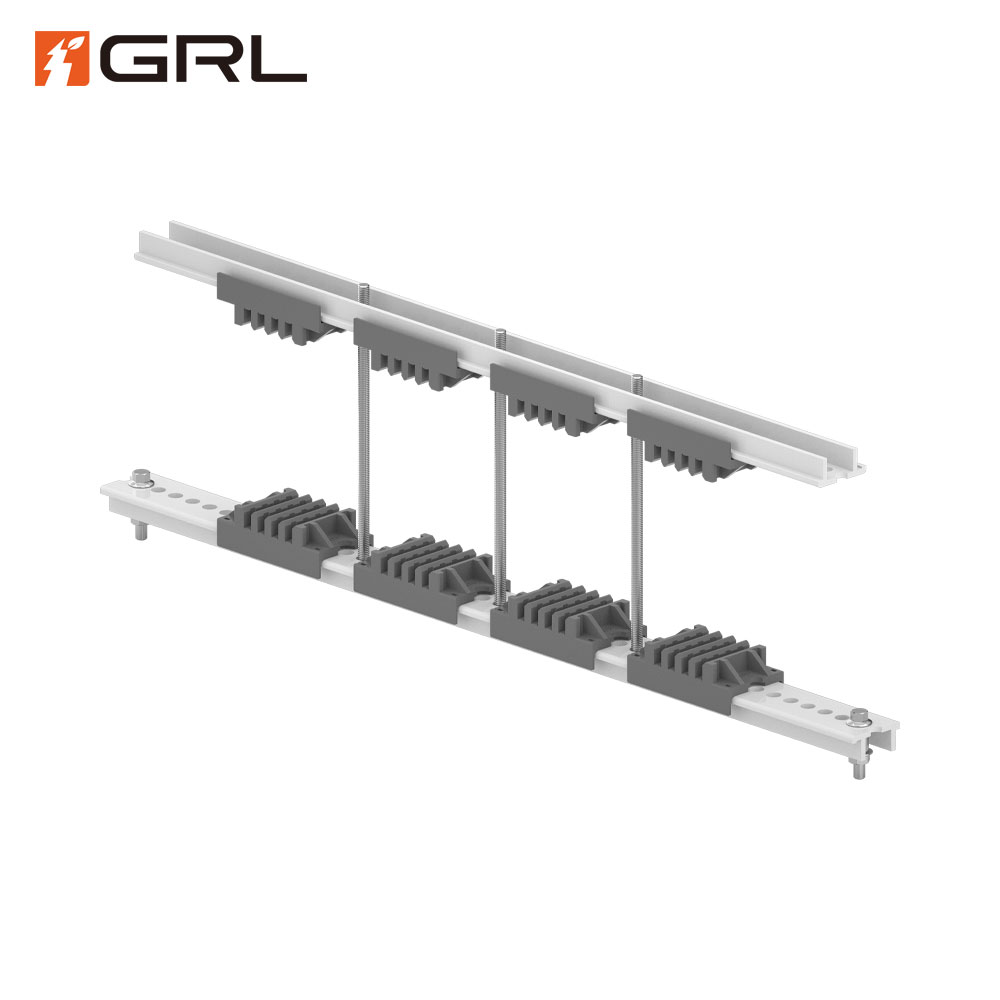

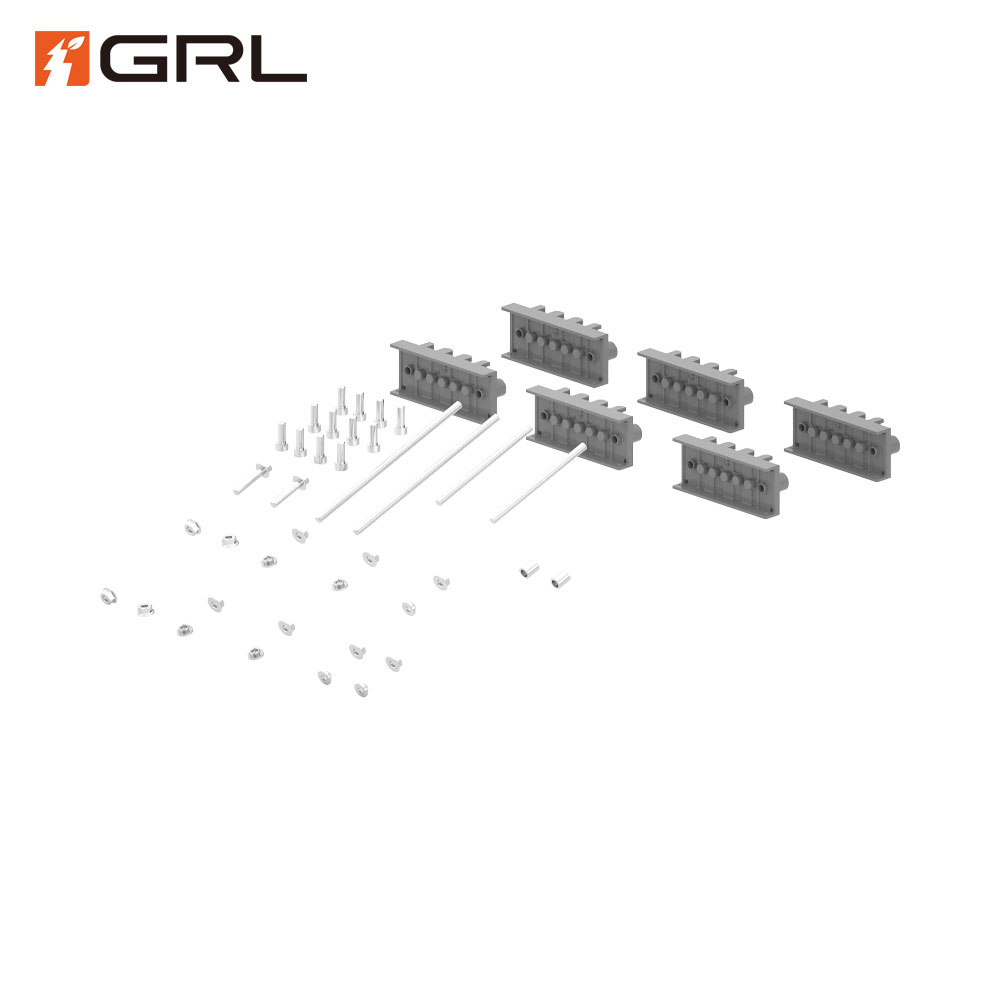

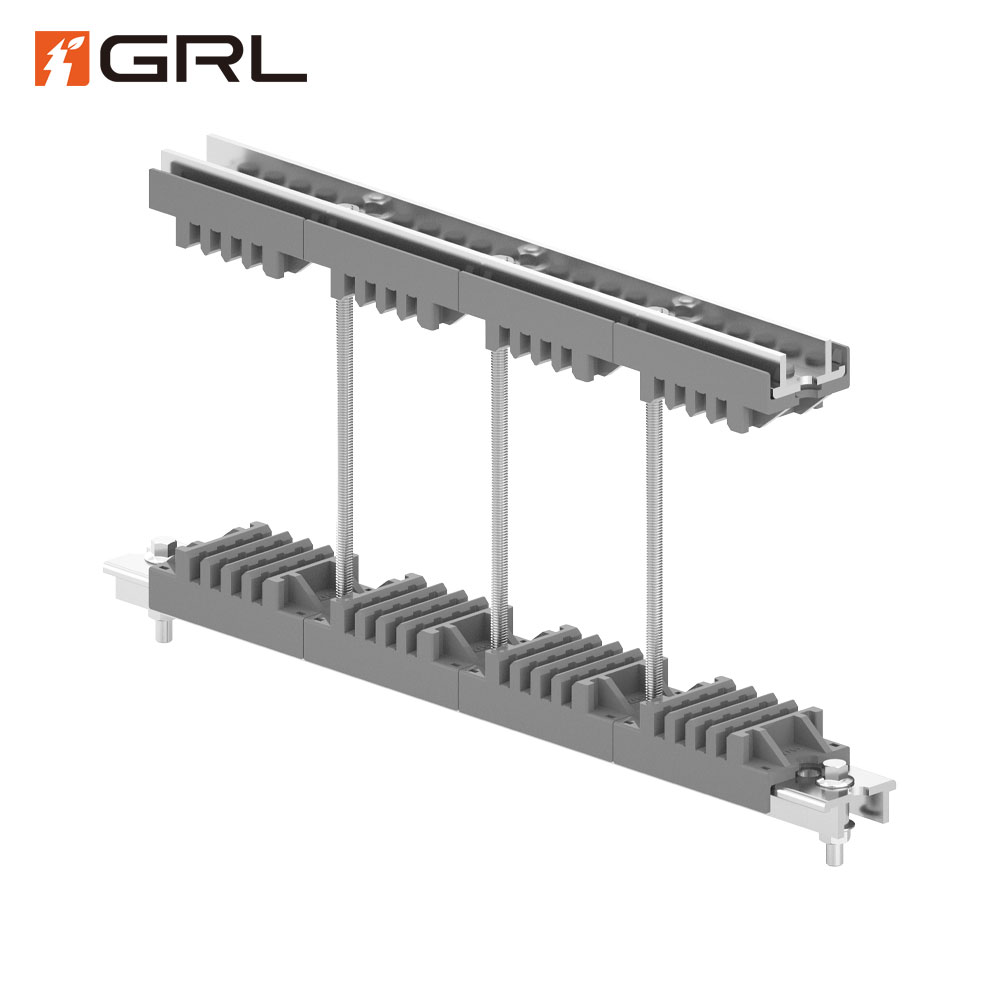

Busbar Trunking System, Market Bus Support


Material: Aluminum, Glass Fiber Reinforced Polyamide, Steel

Surface Treatment: Electrogalvanized(Environmental protection color)

Typical Use Rated Current: 400-4500A

Maximum Working Voltage: 1000VAC,1500VDC

Operating Temperature: -40~130℃

Flammability Rating: UL94V-0

Number Of Busbars Per Phase: 1-2, 1-4

Bus Width: 30-125mm, 30-120mm

Busbar Thickness: 5mm,10mm

Product Weight: 0.94kg, 0.9kg, 0.8kg

Key Words: Busbar Trunking System

E-mail: [email protected]

Download PDF: GRL CATALOGUE



The Busbar Trunking System is made of Aluminum, Glass Fiber Reinforced Polyamide, Steel for durability and long-lasting use. It has a typical use rated current of 400-4500A and a maximum working voltage of 1000VAC,1500VDC.

The operating temperature is -40~130℃ and the flammability rating is UL94V-0. Number of busbars per phase is 1-2, 1-4 and the bus width is 30-125mm, 30-120mm. Busbar thickness is 5mm,10mm and the product weight is 0.94kg, 0.9kg, 0.8kg.

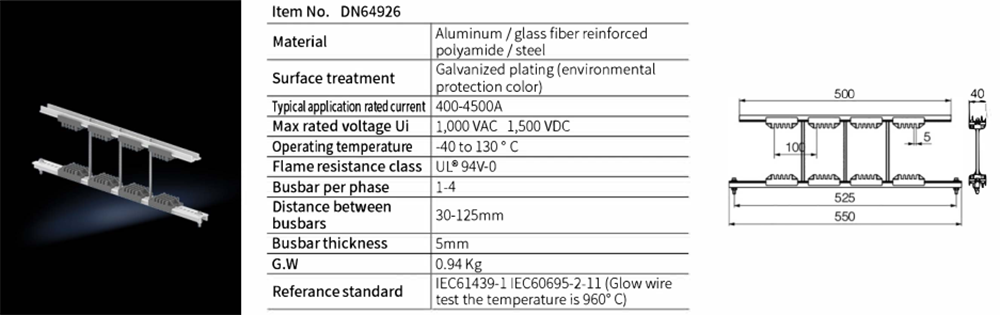

DN64926

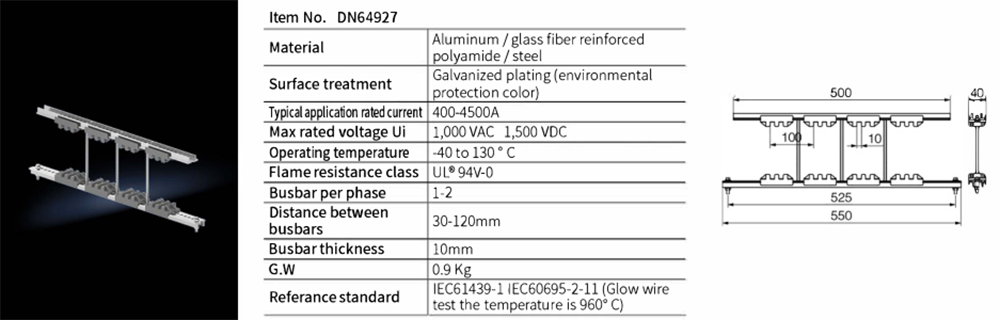

DN64927

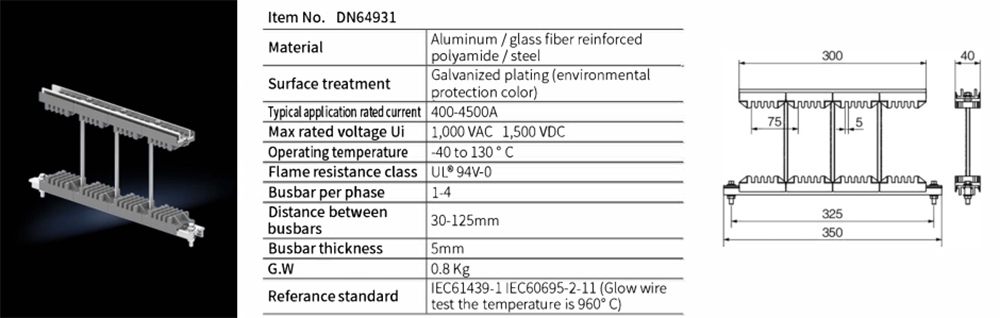

DN64931

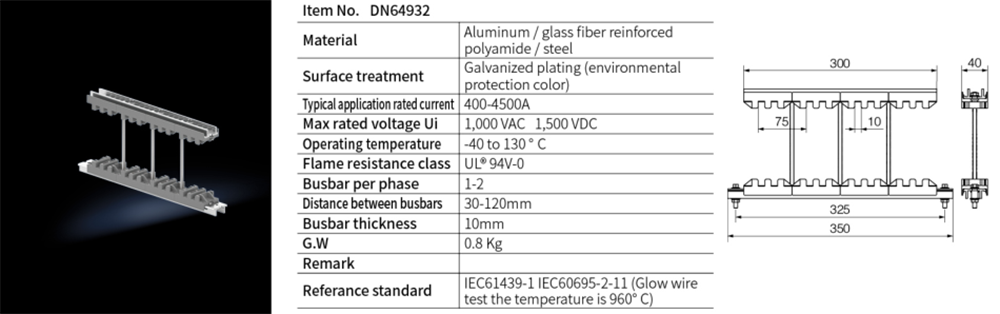

DN64932

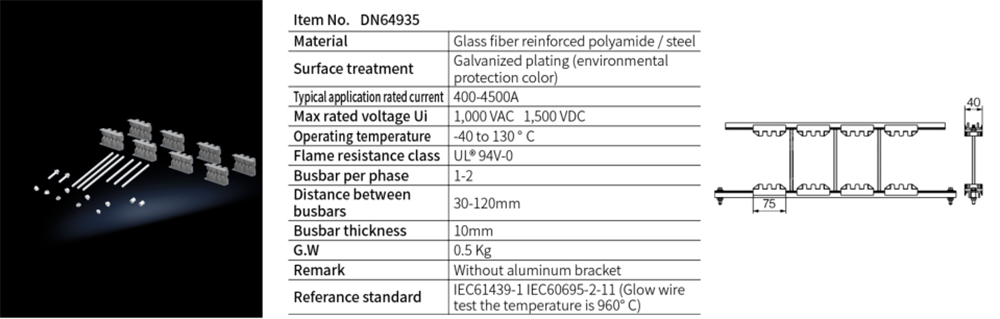

DN64935
