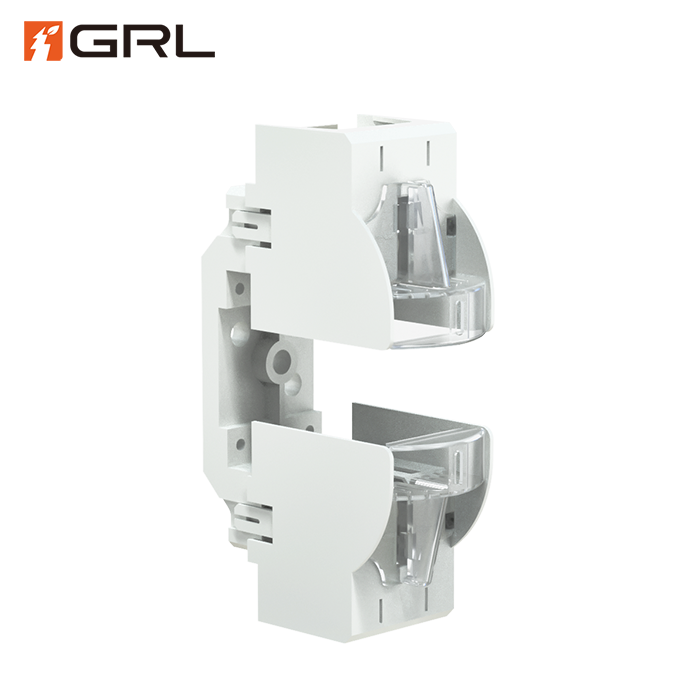

DNF1-1-P series 1140V AC fuse base NH1 Fuse link

Rated current In:

160A

Nominal voltage Un:

1140V

Nominal insulation voltage Ui:

1250V

Rated impulse withstand voltage Uimp:

6 kV

Breaking capacity with fuse installed:

80kA(AC 1140V)

Applicable fuse sizes:

Character:

One-pole With a transparent anti-slip protection cover

Way to install:

Stationary type

Reference standard:

IEC 60269-2 GB/T 13539.2

Description

DNF1-1P CANSHU

Rated current In	160A
Nominal voltage Un	1140V
Nominal insulation voltage Ui	1250V
Rated impulse withstand voltage Uimp	6KV
Breaking capacity with fuse installed	80kA(AC 1140V)
Applicable fuse sizes	1
Character	One-pole With a transparent anti-slip protection cover
Way to install	Stationary type
Reference standard	IEC 60269-2 GB/T 13539.2
