Fuse Base

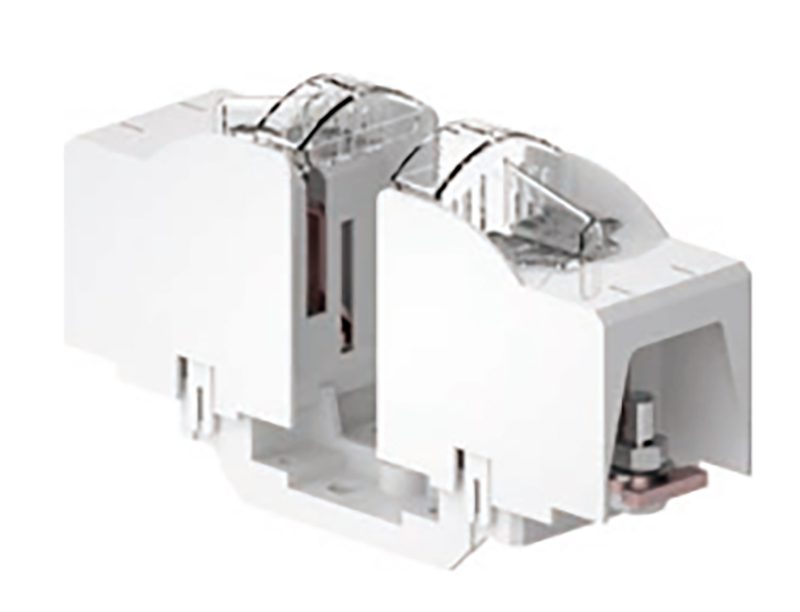

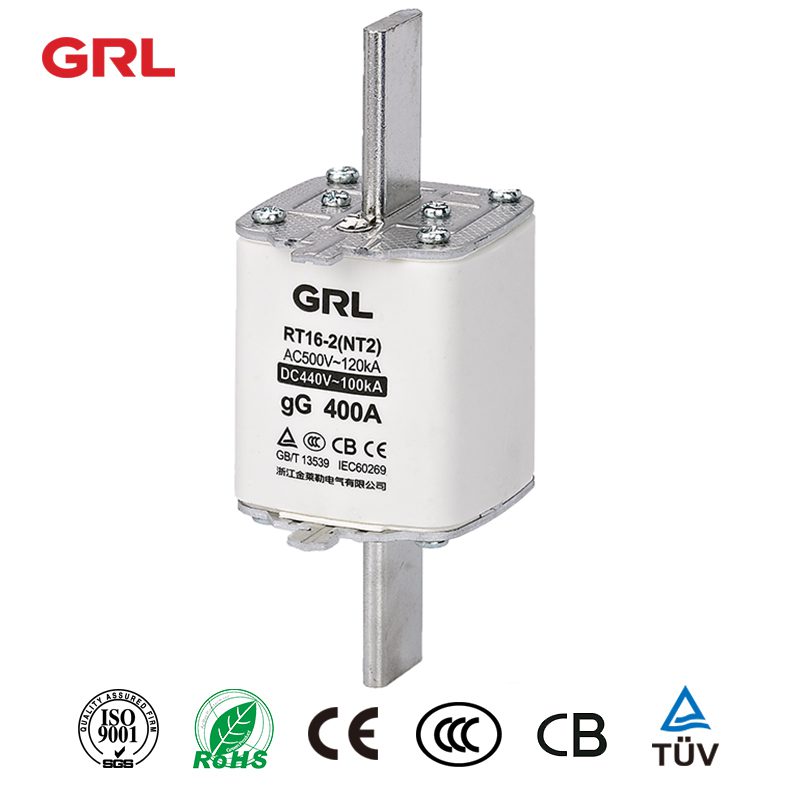

DNF1-2 series fuse holder automotive NH2 Fuse link


Rated current Ie: 400A(500VAC, 440VDC)/315A(690VAC)

Rated voltage Ue: 500VAC/690VAC/440VAC

Rated insulation voltage : 690V

Rated impulse withstand current Ipk: 6kV

Breaking capacity with fuse :120kA(500VAC)/50kA(690VAC)/100kA(440VAC)

Fuse size: NH2

Feature: 1P,3P, with or without touch protection device, N pole with breaking capacity without touch protection device

Mounting method: Fixed type

Reference standard: IEC 60269-1  IEC 60269-2  GB/T 13539.2

DNF1-2 series fuse holder automotive

DNF series Electrical Fuse Box-2

Order No.:DN56321

Model No.:DNF1-2

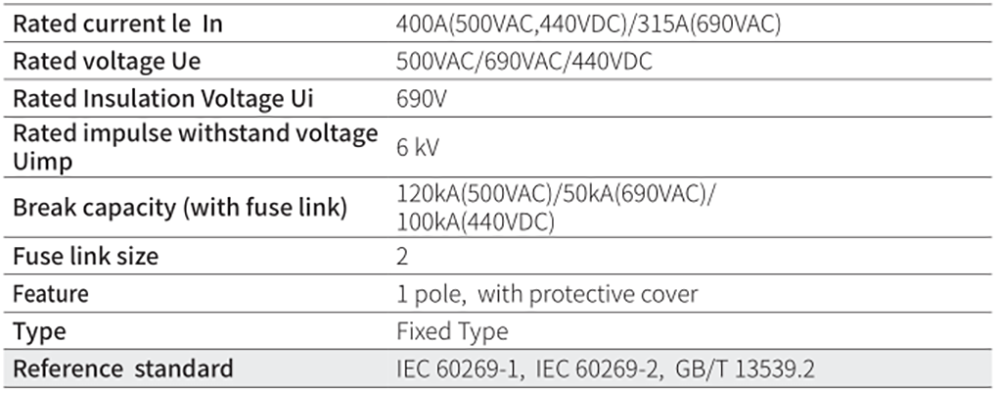

Rated Current le In 400A(500VAC,440VDC)/315A(690VAC)
Rated voltage Ue 500VAC/690VAC/440VDC
Rated Insulation Voltage Ui 690V
Rated Impulse Withstand Voltage Uimp 6KV
Break Capacity(with Fuse link) 120KA(500VAC)/50KA(690VAC)/100KA(440VDC)
Fuse link size 2
Feature 1 Pole, with protective cover
Type Fixed Type
Reference Standard IEC 60269-1,IEC 60269-2,GB/T 13539.2

fuse holder automotive
