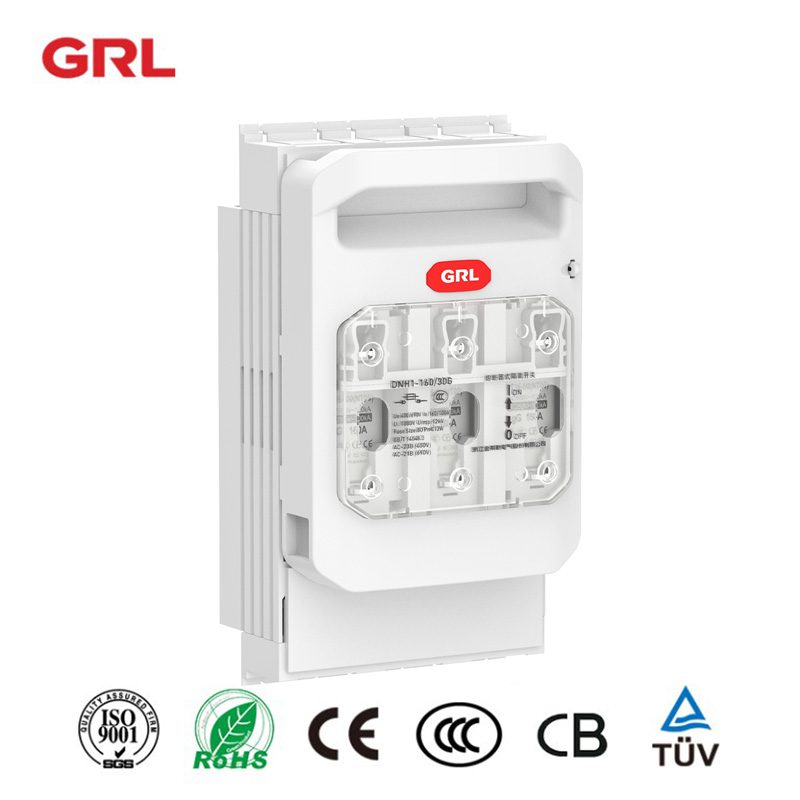

Fuse Switch Disconnector

DNH1 Disconnect Switch


Mode: DNH1

Current:40A 100A 160A 250A 400A 630A

Voltage: AC380V/AC400/AC690V

Certification: CE

Email: [email protected]

Keyword: types of disconnects, electrical disconnect switch, fused disconnect

DNH1 Disconnect Switch Parameters

Rated current 40A 100A 160A 250A 400A 630A
Rated voltage 380V、500V、690V
Utilization category AC21B(AC400V) AC23B(AC690V)
NH fuse-link size 00 1 2 3

DNH1 Disconnect Switch Parameters

If we want to know what a disconnect switch is, at first we have to look at other definitions:

Disconnect means to put (an electrical device) out of action by detaching it from a power supply.

A disconnect switch device is a mechanical device which is meet the specified requirements for the isolating function in the open position of the circuit.

The purpose of a disconnect switch in an electric circuit is to power off all or discrete parts of a device for safety reasons by separating the device or part from each electrical energy source.

A disconnect switch is a mechanical switching device capable of making, carrying and breaking current under normal circuit conditions, which may include specified operating overload conditions, or under specified abnormal circuit conditions (such as short circuits) for a specified period of time.

What is a Fused disconnect switch?

A disconnect switch is a switching device that switches/isolates loads and distribution boards manually. It is capable of making, carrying and breaking the specified rated current (including specified overload). It protects backward electrical loads, safely disconnecting all electrodes and electrical components from the power supply under load.

In addition to the protection provided by the fuse, the Fused disconnect switch also has the characteristics of a load switch and an isolating switch. It consists of three groups of switchblades and plastic bodies, each group of switchblades constitutes a double break for each phase. There is a gap reserved for bridging fuses in the centre of each set of blades.

The disadvantage of this arrangement is that when the switch is turned on to replace the fuse, the circuit connected to the fused disconnect switch may still have leakage current, so electricians should use professional protective equipment such as insulating gloves, hard hats, etc. when they replacing the fuse.

Click to view grl DNH7-160 product>>

The fuse type of disconnect switch performs the isolation function and also protects the circuit from overload currents.

Overload and short circuit protection for backward electrical equipment/loads are provided by inserting LV HRC fuse on the fused disconnect switch, usually, fuse size 000, 1 2 and 3, it is depending on the type of installation requirement.

HRC fuses have a high short-circuit breaking capacity. In addition, the opening time of the fuse-type isolating Disconnect switch after a short circuit is very short and fast. When the HRC fuse blows, a new fuse must be replaced on the fused disconnect switch.

The easiest and cheapest way to combine fusing and isolation functions is to use a fused disconnect switch. With these devices such as fuse bases, isolating switches and fused isolating switches, the fuse switch also functions as a switching element.

When removing the fuse holder, which also contains the fuse, a distinctly open isolation distance is existed, which can carry out safe maintenance work. A blown fuse can be easily removed and replaced.

Fused electric disconnect switch should only be operated practically by a trained and qualified electrician, and in accordance with the electric operating specifications, the electrician should be wearing protective clothing.

Because fused disconnect switches have a limited switching voltage and current capacity, they are therefore particularly suitable for applications where the switching function is only occasionally required.

Advantages of Fused disconnect switch

The benefits of Fuse types of disconnect switch are:

With isolation function.

It can withstand high short-time withstand circuits.

Open and close disconnect switch manually or automatically.

It can be switched to high current.

switch under load.

It is available in 2, 3, 4 pole versions.

It allows checking the work status of the fuse through the transparent cover.

How to choose a fused disconnect switch?

The fused disconnect switch is manufactured and to be used as conductor elements (link), the blade contact fuses. The selection of the type of fuse disconnector is directly related to the size of the fuse selected.

Therefore, first, a fuse housing (NH000 up to NH3) must be selected according to the incoming current to define which fuse-switch-disconnector will be used.

Second, you must check whether the fused disconnect switch is capable of carrying the circuit’s rated current or not. The rated current of the load must be less than or equal to the maximum current of the fused disconnect switch. The current rating of the fuse may be higher than the fused disconnect switch due to fuse size standards requirements.

Fused disconnect switch accessories:

There are many accessories that can be mounted on fuse switch disconnectors such as:

  • Mechanical fuse monitoring
  • Electronic fuse monitoring
  • Cable lug terminals
  • 3-phase busbars
  • Auxiliary contacts
  • Terminal covers
  • Padlocks and sealings

Fused disconnect switch applications

Machine switching (on/off) (HVAC, Crane, Pump, Conveyor, Industrial furnace, shield machine)

Power distribution

Low voltage switchboard or feeder pillar

Motor control centres (Isolating and protecting motor starters)

Security applications

Power plants

UPS and telecom applications

Solar off-grid and on-grid applications

Fused disconnect switch circuit diagram
